Transmission Support Crossmember: Notes

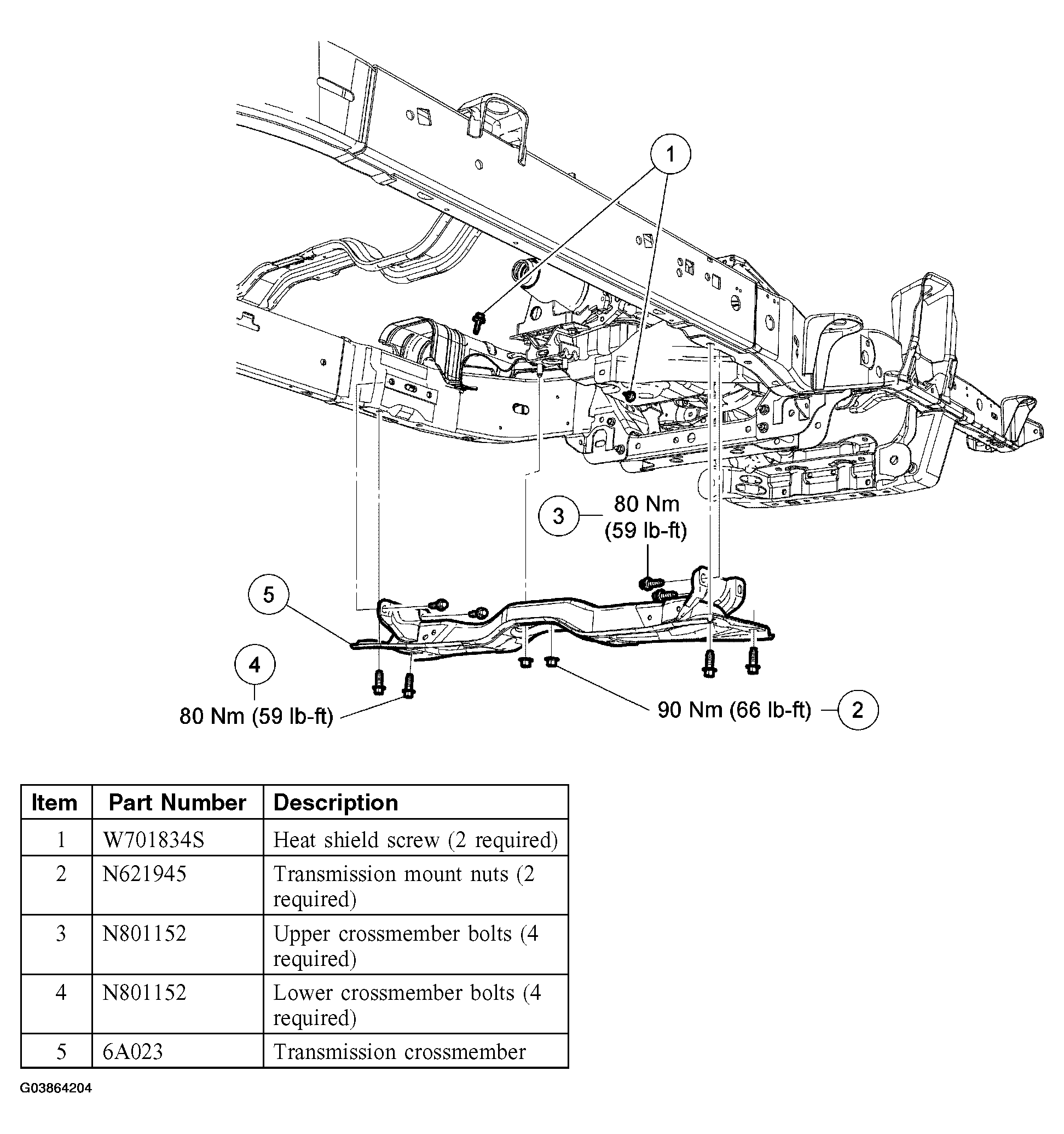

Fig 1: Identifying Transmission Support Crossmember Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
