Connector Identification (C155)

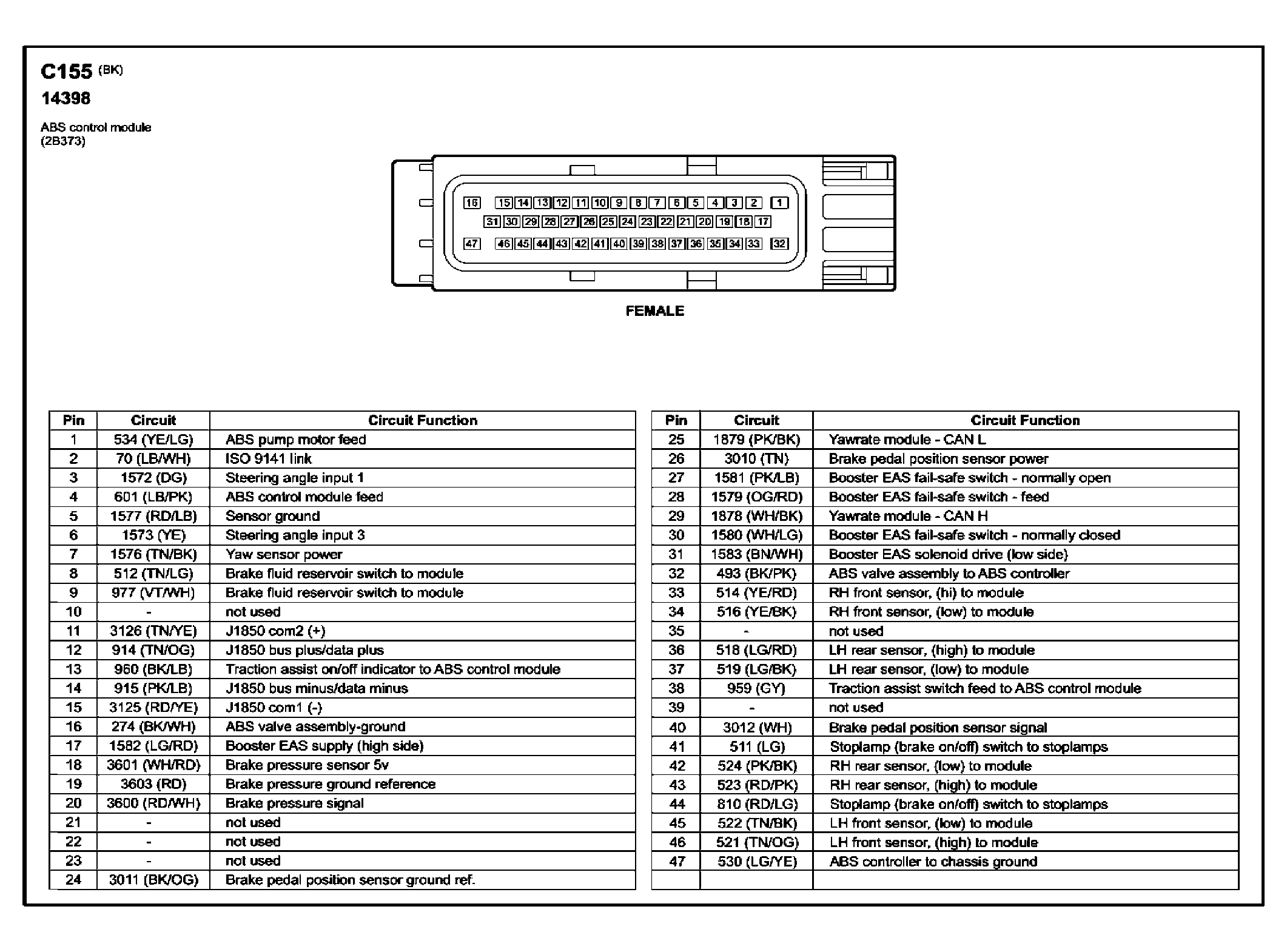

Fig 1: ABS Control Module Connector End View (C155)
Courtesy of FORD MOTOR CO.
