Solenoid Body Assembly: Removal

Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
Remove the drain plug and drain the fluid.

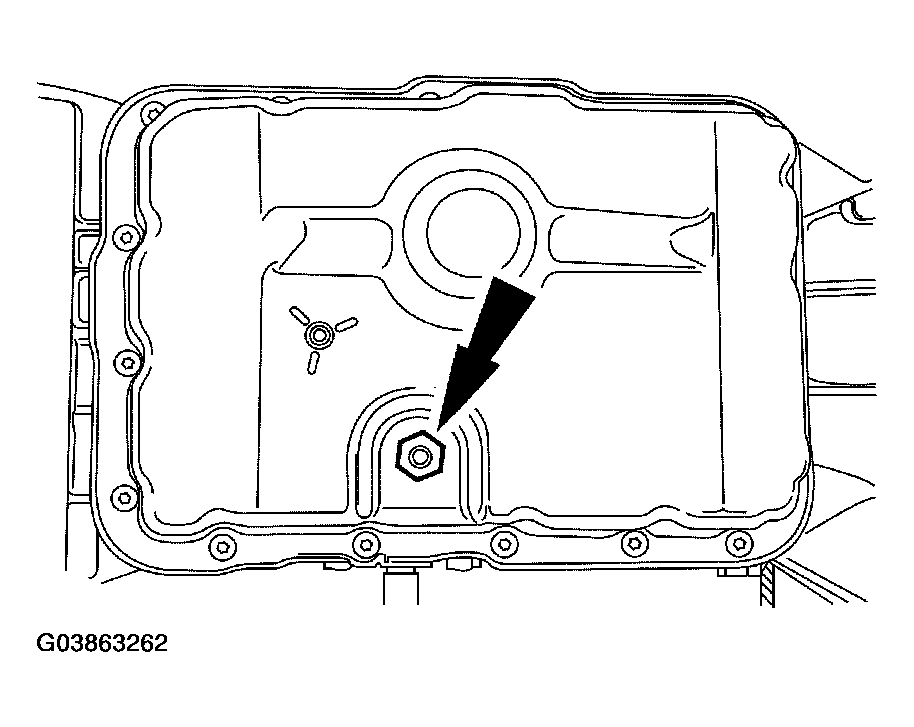

Fig 1: Removing Drain Plug
Courtesy of FORD MOTOR CO.

NOTE: Clean the area around connector to prevent contamination of the solenoid body connector.

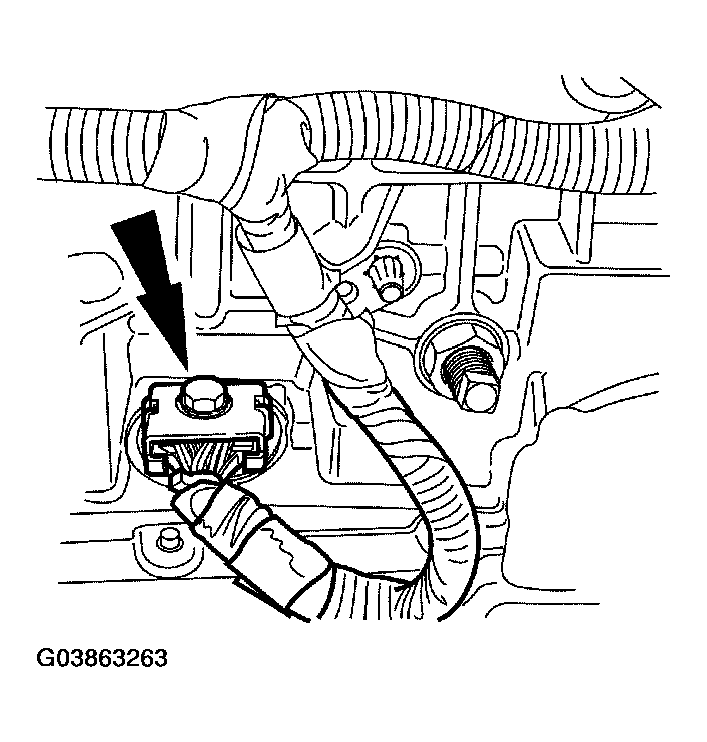

Fig 2: Disconnecting Solenoid Body Harness Connector

Courtesy of FORD MOTOR CO.

NOTE: The transmission fluid pan gasket is reusable, clean and inspect for damage. If not damaged, the gasket should be reused.

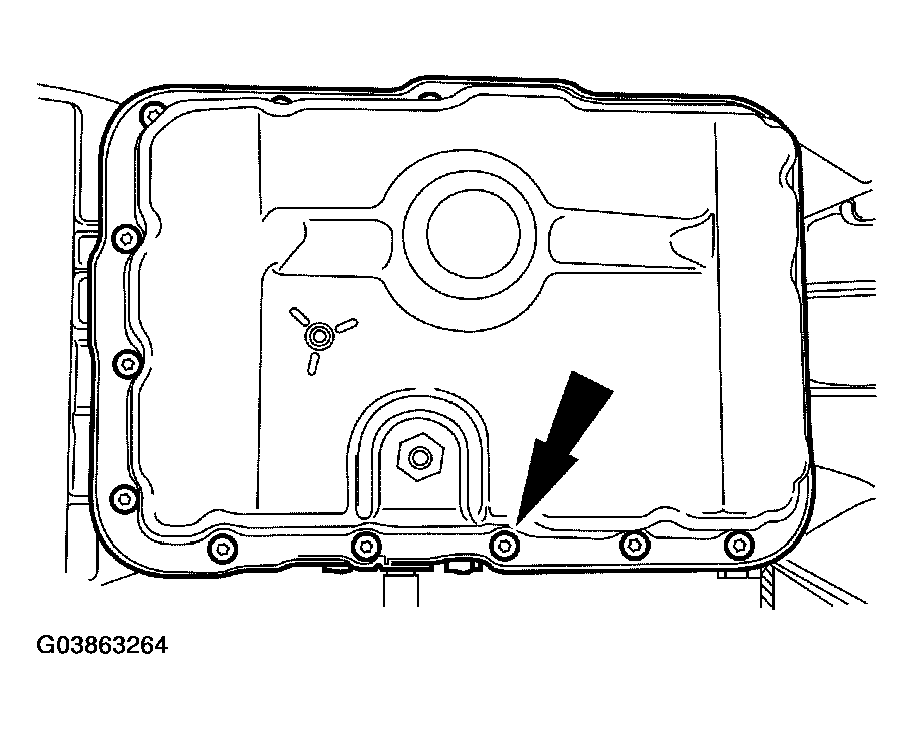

Fig 3: Removing 16 Transmission Fluid Pan Screws

Courtesy of FORD MOTOR CO.

Remove the 16 transmission fluid pan screws, fluid pan and gasket.
Remove the transmission fluid filter.

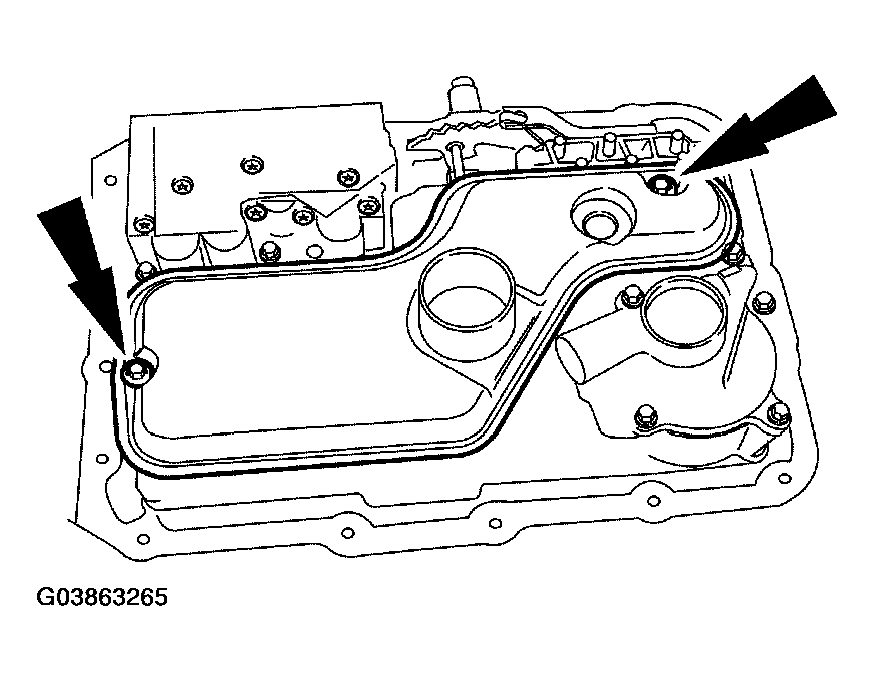

Fig 4: Removing Transmission Fluid Filter
Courtesy of FORD MOTOR CO.
Remove the solenoid body.

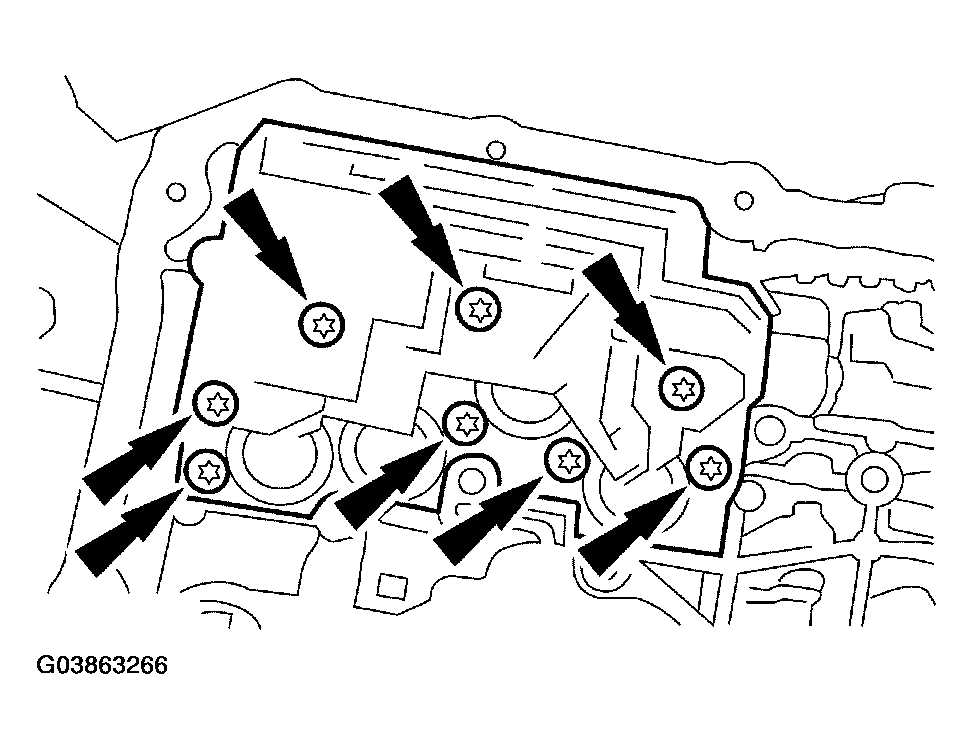

Fig 5: Removing Solenoid Body
Courtesy of FORD MOTOR CO.
