Relay - Micro ISO: Notes

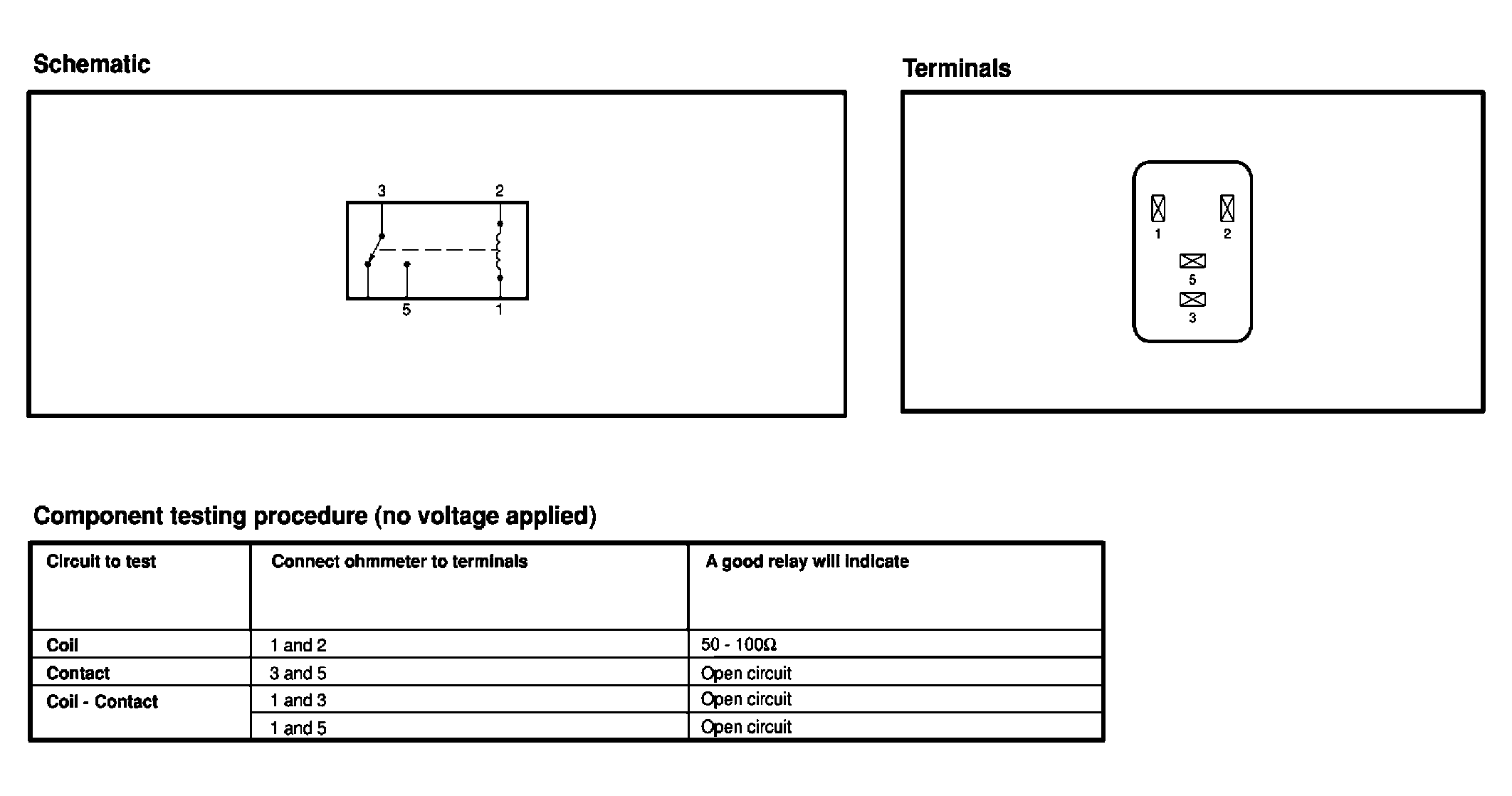

Fig 1: Relay - Micro ISO - Component Testing

G03982466

Courtesy of FORD MOTOR CO.
