Extension Housing Seal: Notes

EXTENSION HOUSING SEAL SPECIAL TOOL(S)

G03885061
 Slide Hammer 100-001 (T50T-100-A)
G03922675
 Remover, Torque Converter Fluid Seal 307-309 (T94P-77001-BH)
G03985144
 Installer, Drive Pinion Oil Seal 205-115
G04008227
 Installer, Drive Pinion Flange 205-479
G04008228
 Installer, Output Shaft Flange 307-404
G03997382
 Remover, Output Shaft Flange 307-523

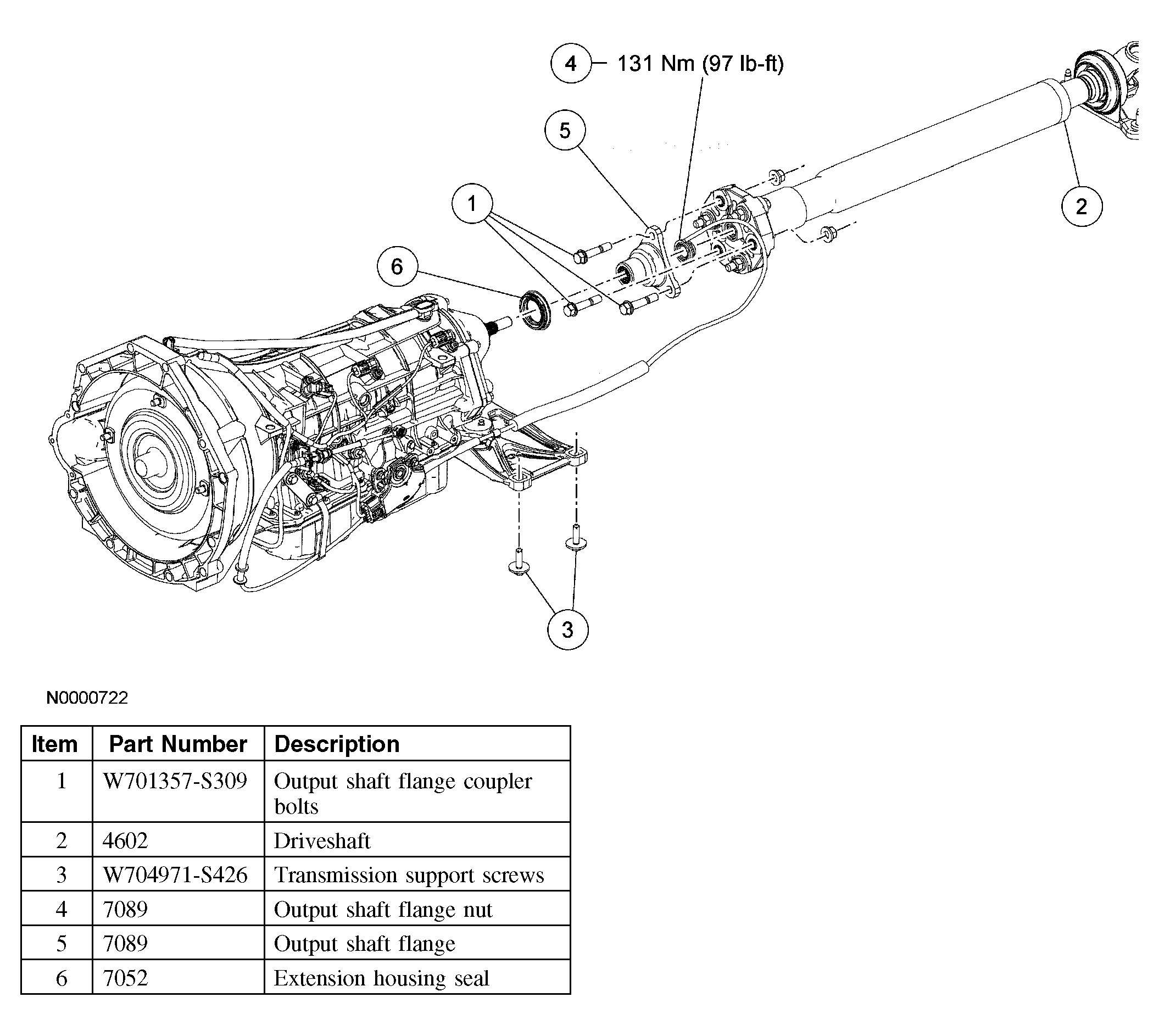

Fig 1: Identifying Components Extension Housing Seal
G03997304Courtesy of FORD MOTOR CO.
