Hydraulic Control Unit (HCU): Material

HYDRAULIC CONTROL UNIT MATERIAL SPECIFICATION

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) WSS-M6C62-A

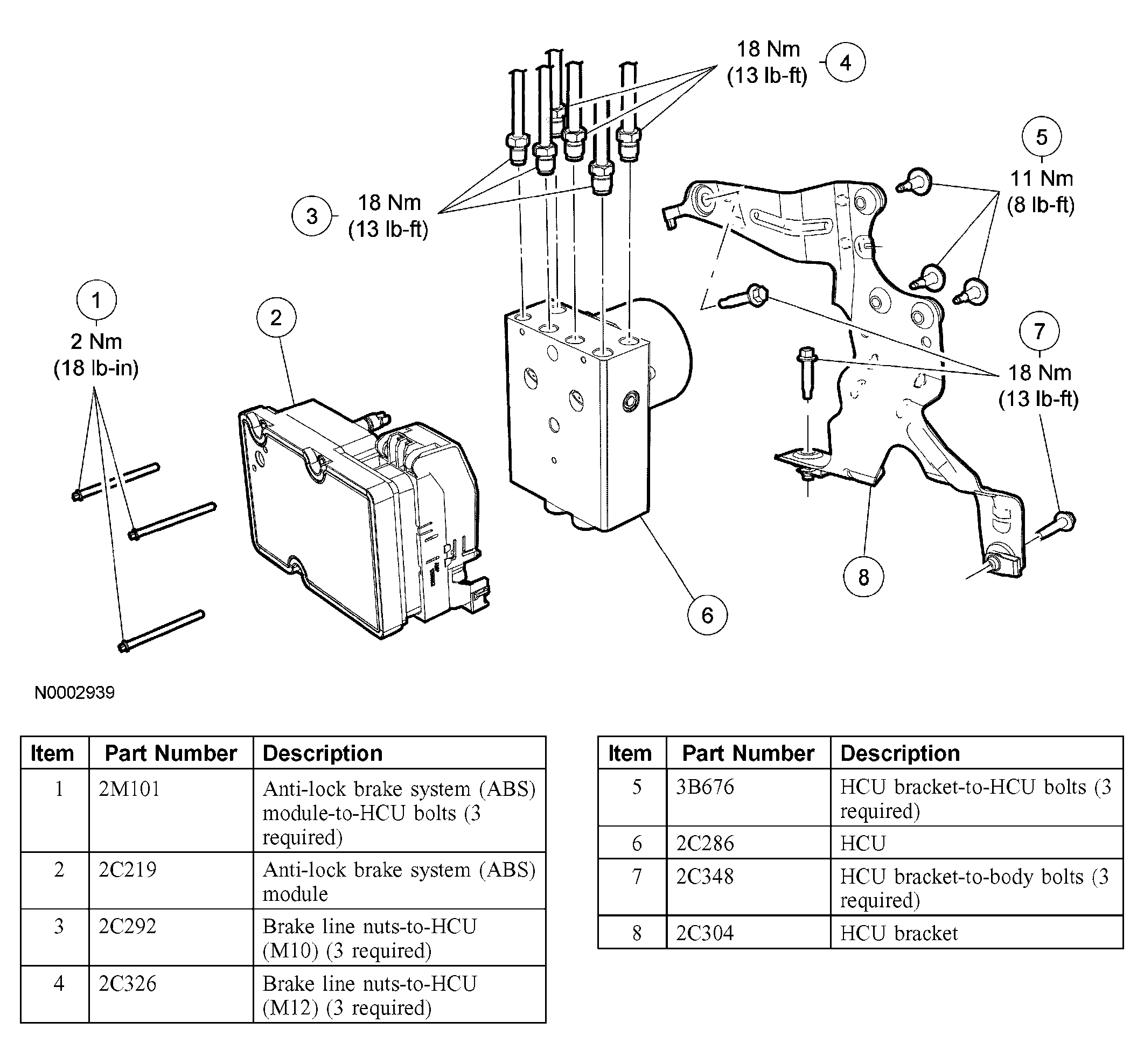

Fig 1: Identifying Hydraulic Control Unit (HCU) Components
G03995581Courtesy of FORD MOTOR CO.
