Connector Views
Fig 1: A/C Clutch Field Coil Connector End View (C100)
Courtesy of FORD MOTOR CO.
Fig 2: Crankshaft Position Sensor Connector End View (C101)
Courtesy of FORD MOTOR CO.
Fig 3: Generator Connector End View (C102a)
Courtesy of FORD MOTOR CO.
Fig 4: Generator Connector End View (C102b)
Courtesy of FORD MOTOR CO.
Fig 5: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.
Fig 6: Engine Oil Temperature (EOT) Sensor Connector End View (C104)
Courtesy of FORD MOTOR CO.
Fig 7: Fuel Rail Pressure Transducer Sensor Connector End View (C106)
Courtesy of FORD MOTOR CO.
Fig 8: Cylinder-Head Temperature Sensor Connector End View (C107)
Courtesy of FORD MOTOR CO.
Fig 9: Knock Sensor 2 Connector End View (C108)
Courtesy of FORD MOTOR CO.
Fig 10: Knock Sensor 1 Connector End View (C109)
Courtesy of FORD MOTOR CO.
Fig 11: Inline Connector End View (C110)
Courtesy of FORD MOTOR CO.
Fig 12: Coil On Plug (COP) 1 Connector End View (C111)
Courtesy of FORD MOTOR CO.
Fig 13: Coil On Plug (COP) 2 Connector End View (C112)
Courtesy of FORD MOTOR CO.
Fig 14: Coil On Plug (COP) 3 Connector End View (C113)
Courtesy of FORD MOTOR CO.
Fig 15: Coil On Plug (COP) 4 Connector End View (C114)
Courtesy of FORD MOTOR CO.
Fig 16: Coil On Plug (COP) 5 Connector End View (C115)
Courtesy of FORD MOTOR CO.
Fig 17: Coil On Plug (COP) 6 Connector End View (C116)
Courtesy of FORD MOTOR CO.
Fig 18: Coil On Plug (COP) 7 Connector End View (C117)
Courtesy of FORD MOTOR CO.
Fig 19: Coil On Plug (COP) 8 Connector End View (C118)
Courtesy of FORD MOTOR CO.
Fig 20: Power Steering Valve Solenoid Connector End View (C120)
Courtesy of FORD MOTOR CO.
Fig 21: Power Steering Pressure Switch Connector End View (C121)
Courtesy of FORD MOTOR CO.
Fig 22: EVAP Canister Purge Valve Connector End View (C123)
Courtesy of FORD MOTOR CO.

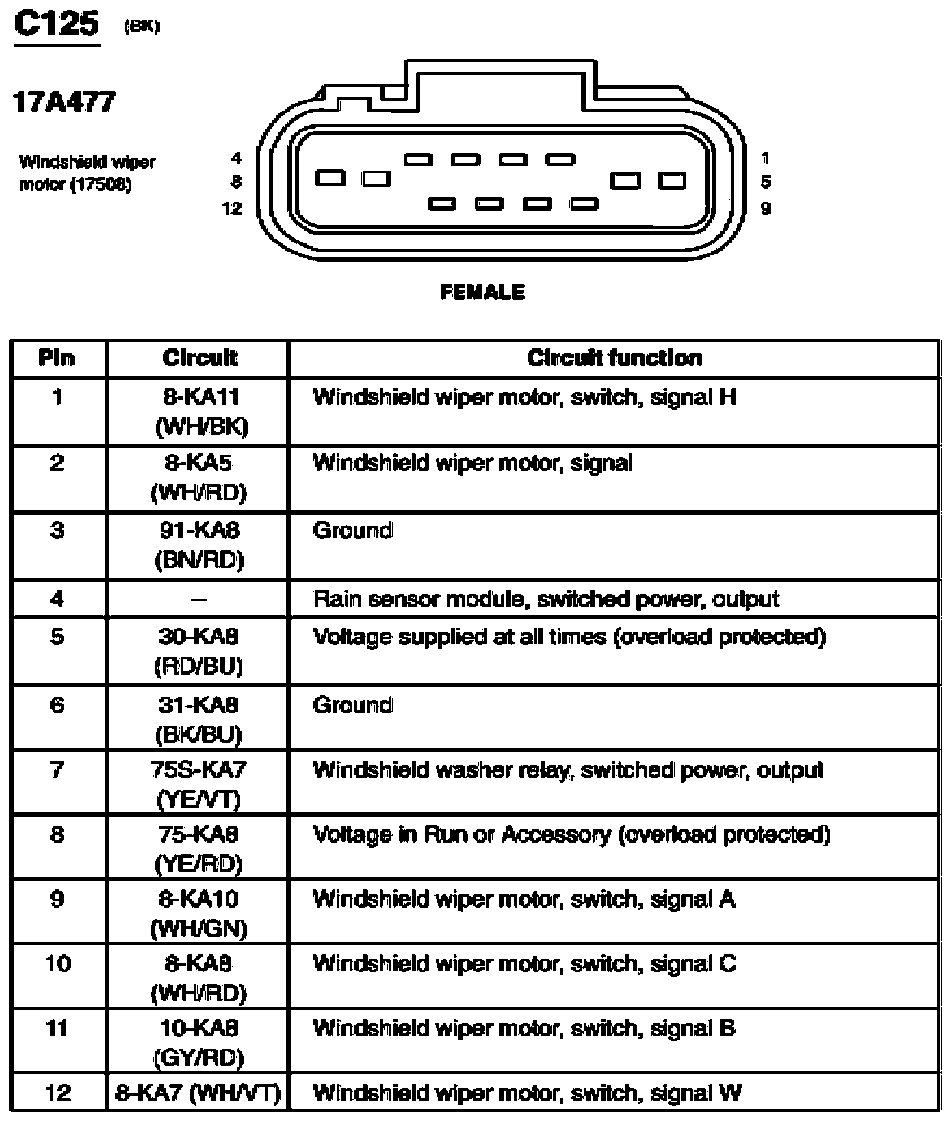

Fig 23: Windshield Wiper Motor Connector End View (C125)
Courtesy of FORD MOTOR CO.
Fig 24: ABS Test Connector End View (C126)
Courtesy of FORD MOTOR CO.
Fig 25: Mass Air Flow (MAF) Sensor Connector End View (C128)
Courtesy of FORD MOTOR CO.
Fig 26: Horn Connector End View (C131)
Courtesy of FORD MOTOR CO.
Fig 27: Ambient Air Temperature Sensor Connector End View (C132)
Courtesy of FORD MOTOR CO.
Fig 28: Inline Connector End View (C134)
Courtesy of FORD MOTOR CO.
Fig 29: Auxiliary Junction Box (AJB), Underhood Connector End View (C136)
Courtesy of FORD MOTOR CO.
Fig 30: Windshield Washer Pump Motor Connector End View (C137)
Courtesy of FORD MOTOR CO.
Fig 31: Inline Connector End View (C139)
Courtesy of FORD MOTOR CO.
Fig 32: Inline Connector End View (C140)
Courtesy of FORD MOTOR CO.
Fig 33: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
Courtesy of FORD MOTOR CO.
Fig 34: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
Courtesy of FORD MOTOR CO.
Fig 35: Inline Connector End View (C146)
Courtesy of FORD MOTOR CO.
Fig 36: Primary Brake Pressure Sensor Connector End View (C147)
Courtesy of FORD MOTOR CO.
Fig 37: Brake Booster Sensor Connector End View (C149)
Courtesy of FORD MOTOR CO.
Fig 38: Wheel Speed Sensor, Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO.
Fig 39: Fog Lamp, Left Front Connector End View (C152)
Courtesy of FORD MOTOR CO.

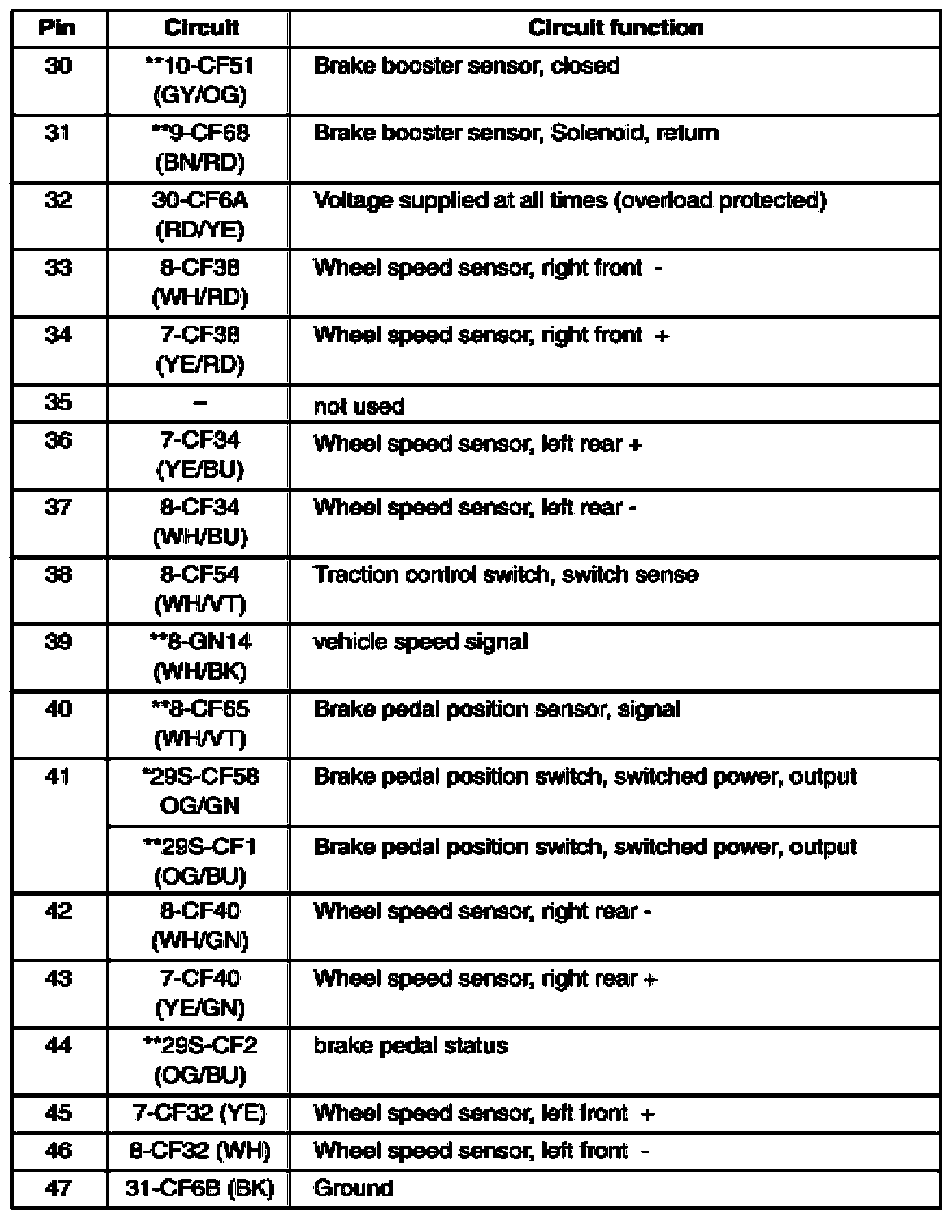

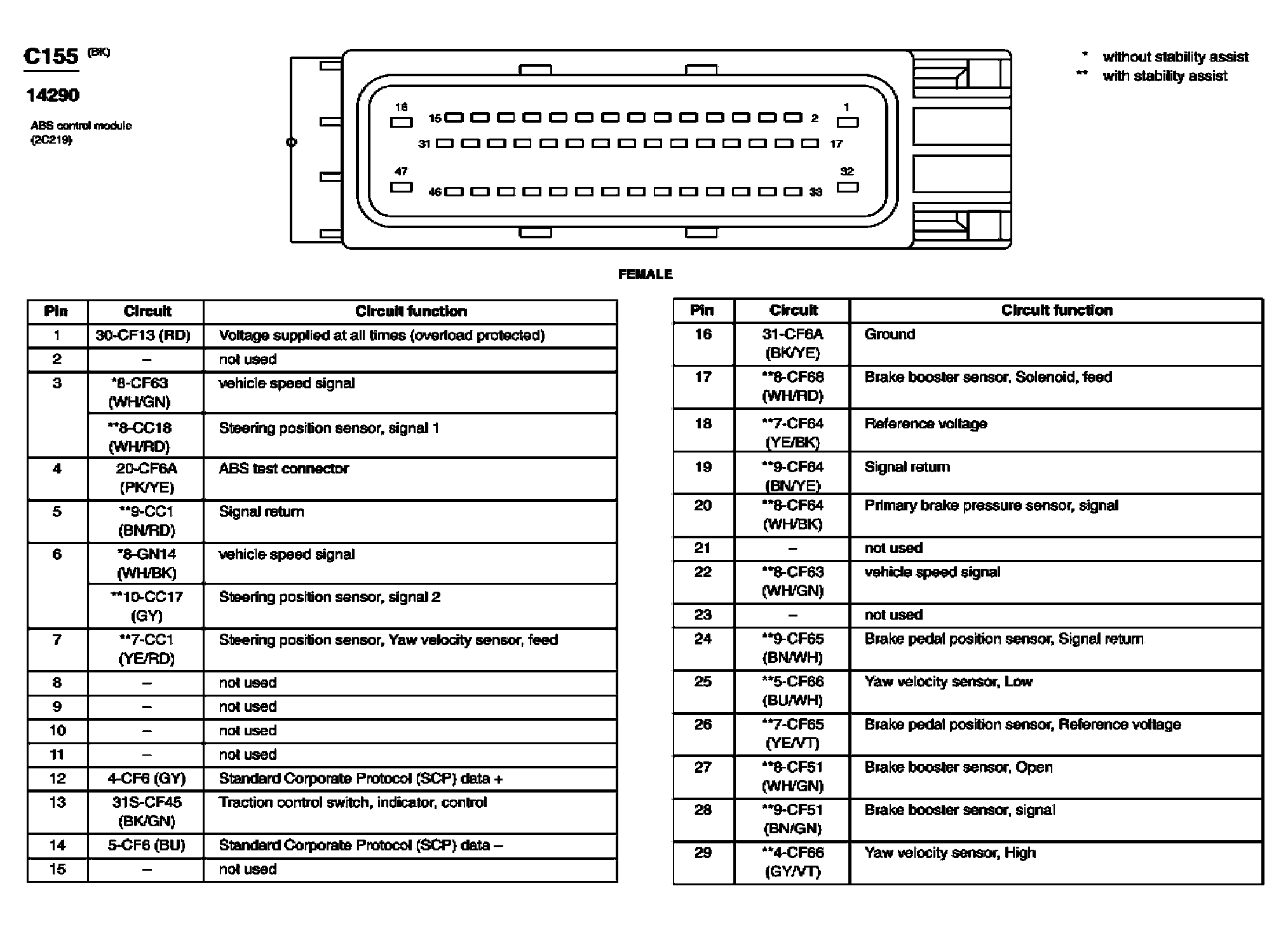

Fig 40: ABS Control Module Connector End View (C155) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 41: ABS Control Module Connector End View (C155) (2 Of 2)
Courtesy of FORD MOTOR CO.
Fig 42: Wheel Speed Sensor, Right Front Connector End View (C160)
Courtesy of FORD MOTOR CO.
Fig 43: Fog Lamp, Right Front Connector End View (C162)
Courtesy of FORD MOTOR CO.
Fig 44: Auxiliary Coolant Pump Motor Connector End View (C163)
Courtesy of FORD MOTOR CO.
Fig 45: Intermediate Shaft Speed (ISS) Sensor Connector End View (C164)
Courtesy of FORD MOTOR CO.

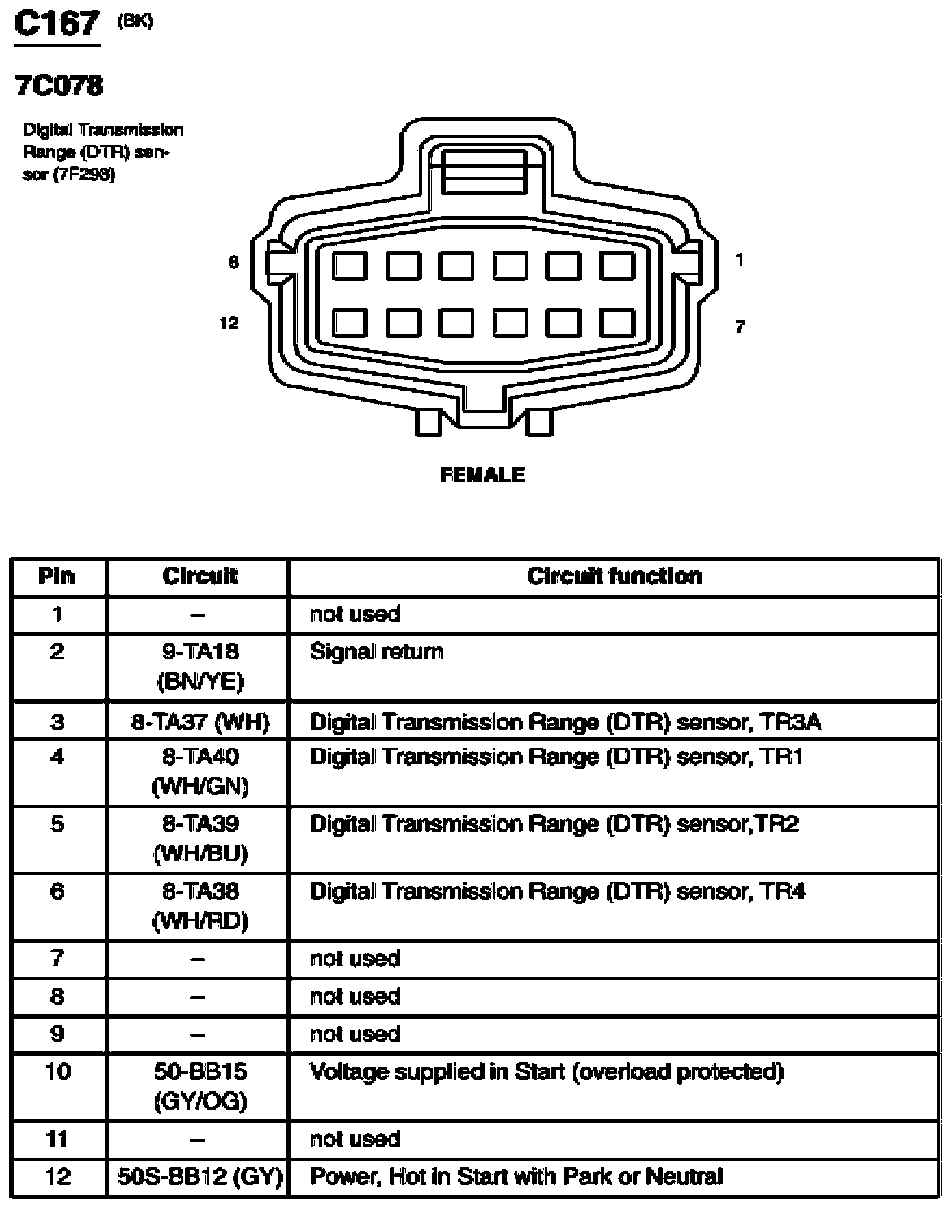

Fig 46: Digital Transmission Range (DTR) Sensor Connector End View (C167)
Courtesy of FORD MOTOR CO.

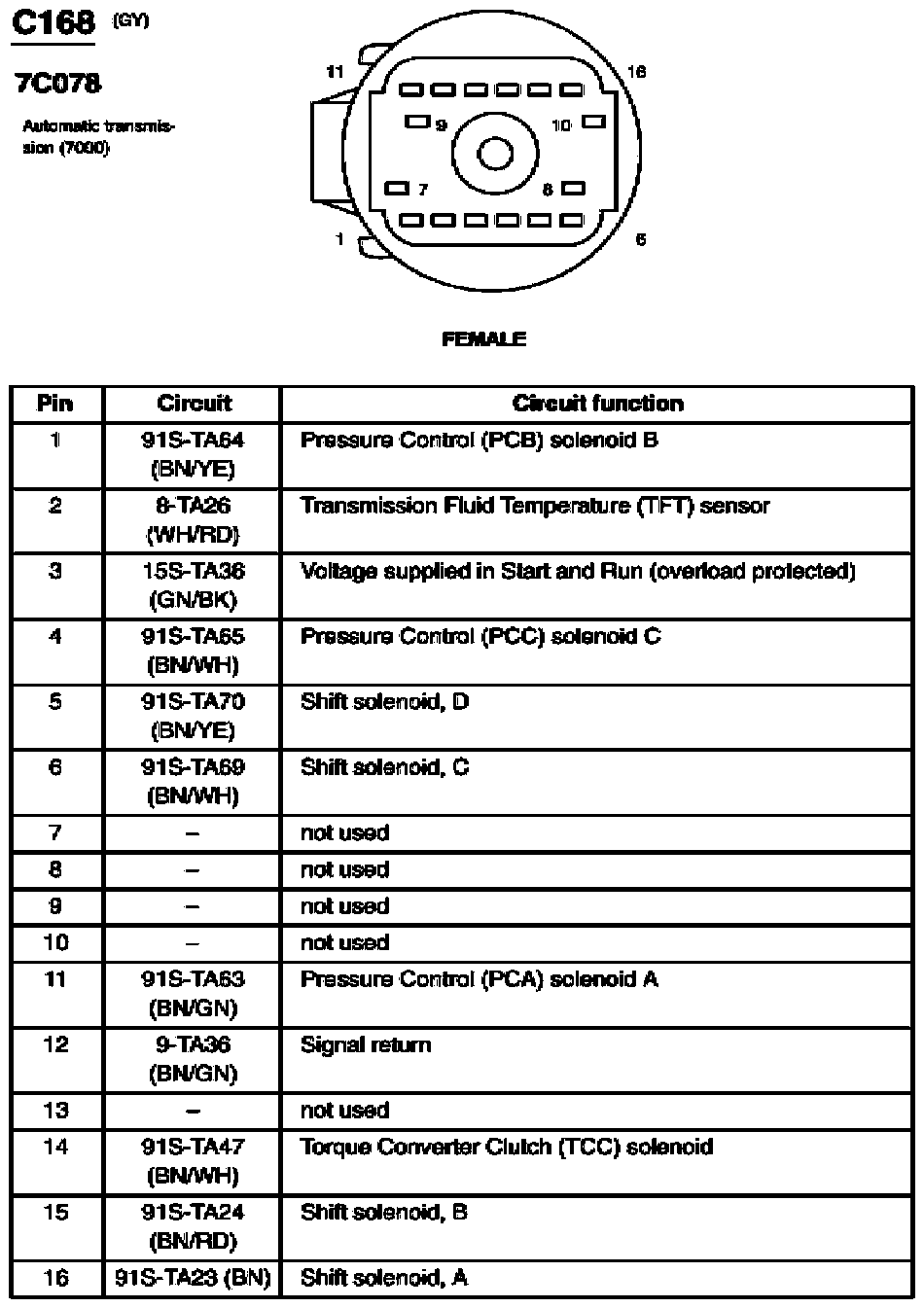

Fig 47: Automatic Transmission Connector End View (C168)
Courtesy of FORD MOTOR CO.
Fig 48: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
Courtesy of FORD MOTOR CO.
Fig 49: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
Courtesy of FORD MOTOR CO.

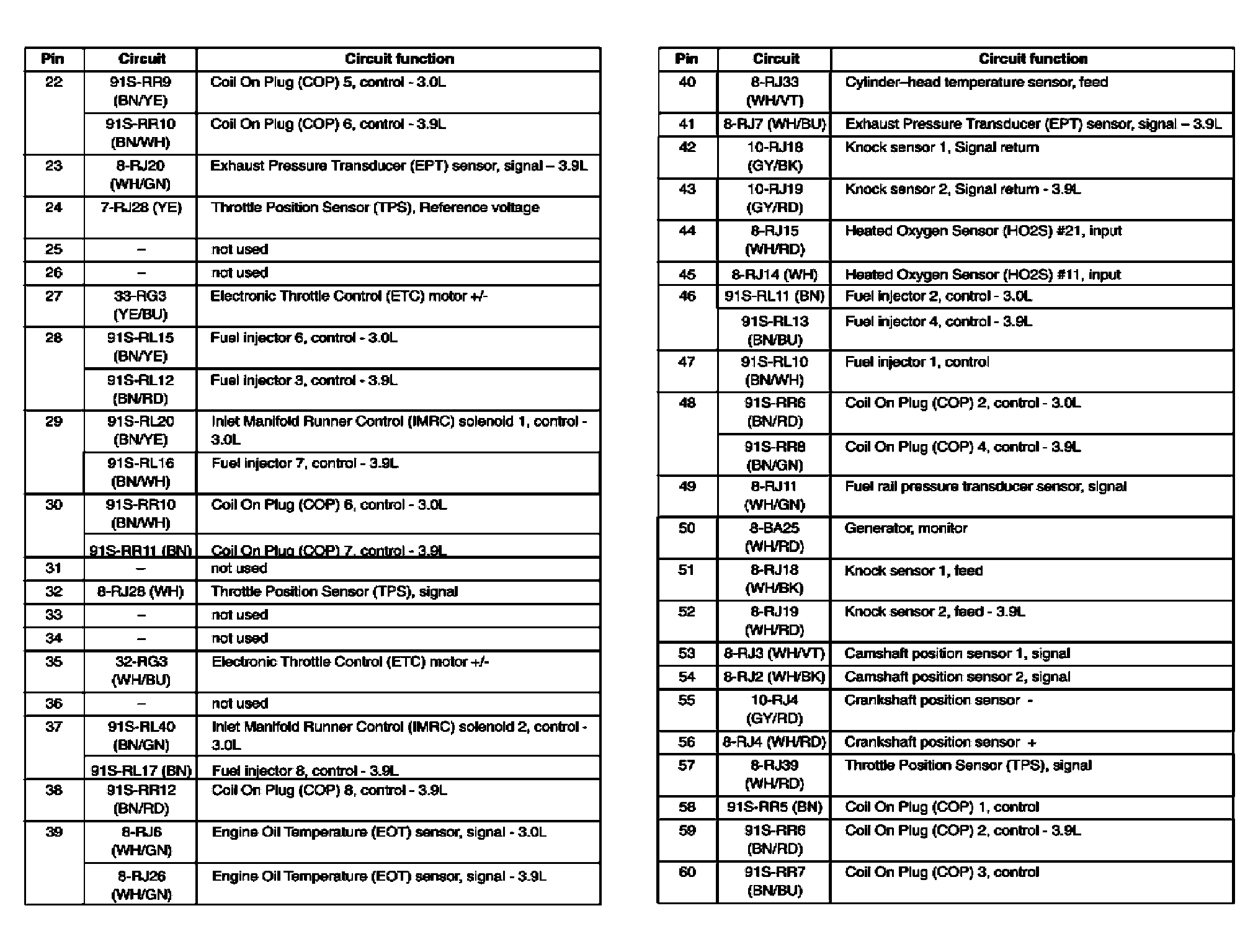

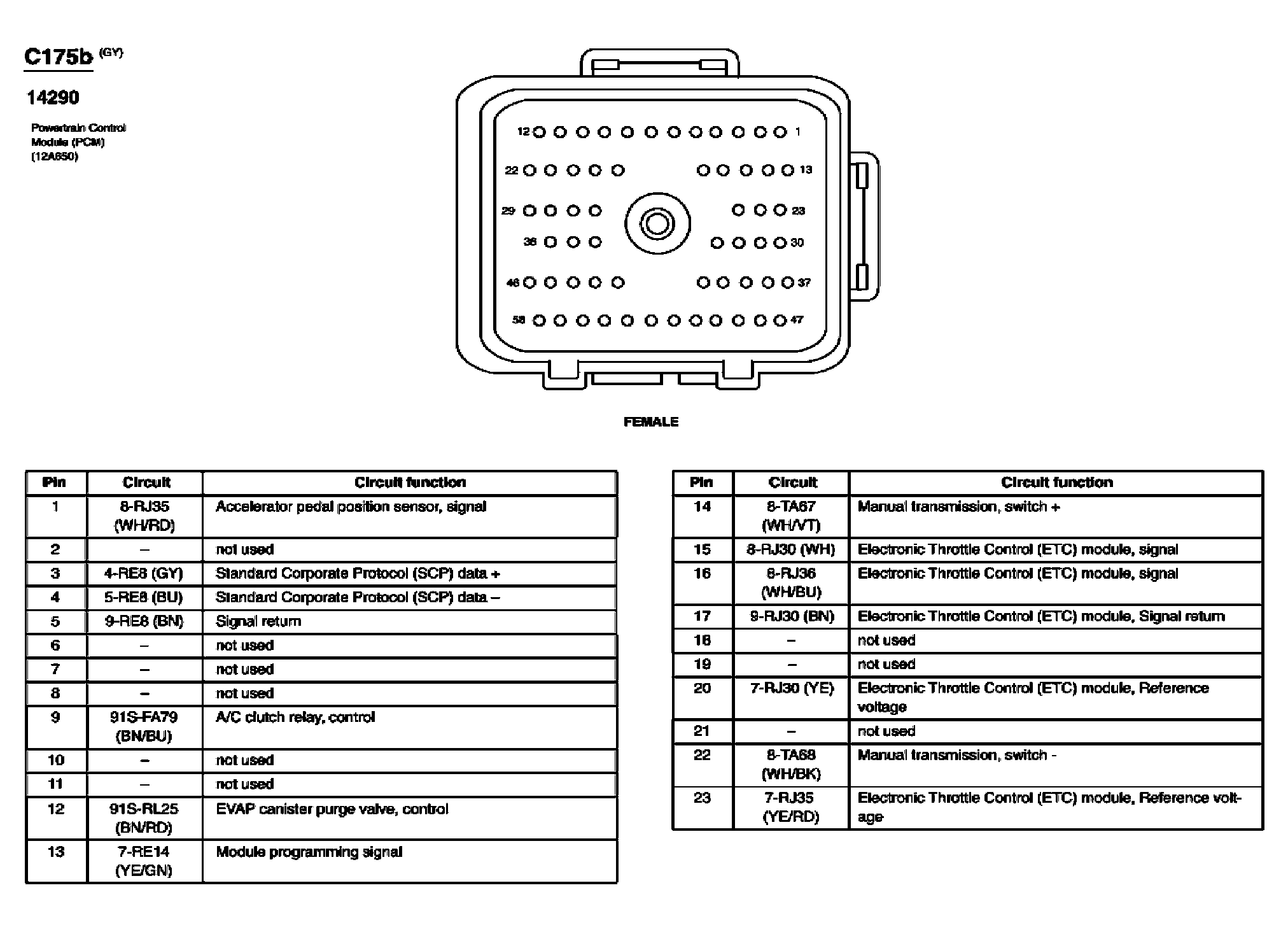

Fig 50: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)
Courtesy of FORD MOTOR CO.

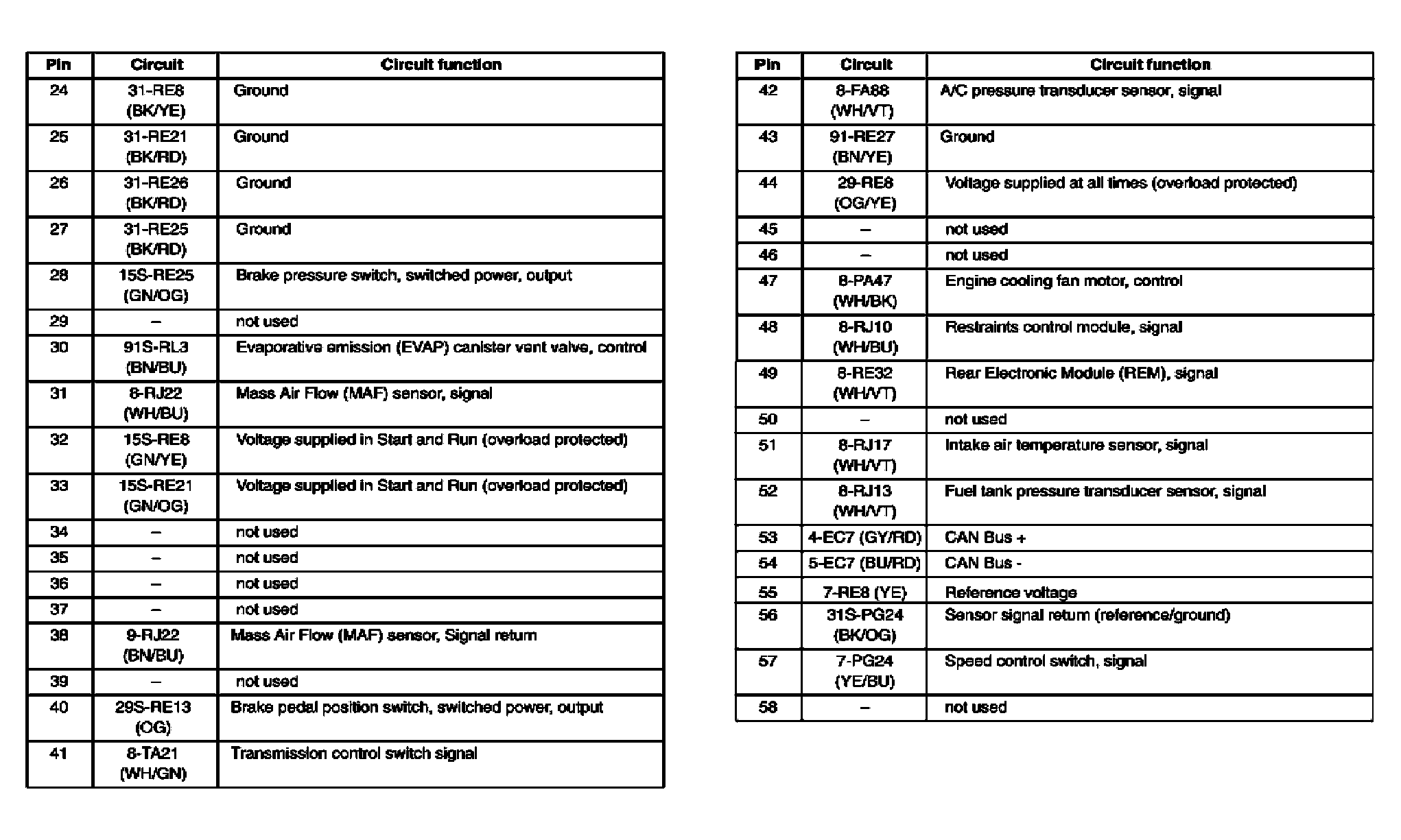

Fig 51: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)
Courtesy of FORD MOTOR CO.

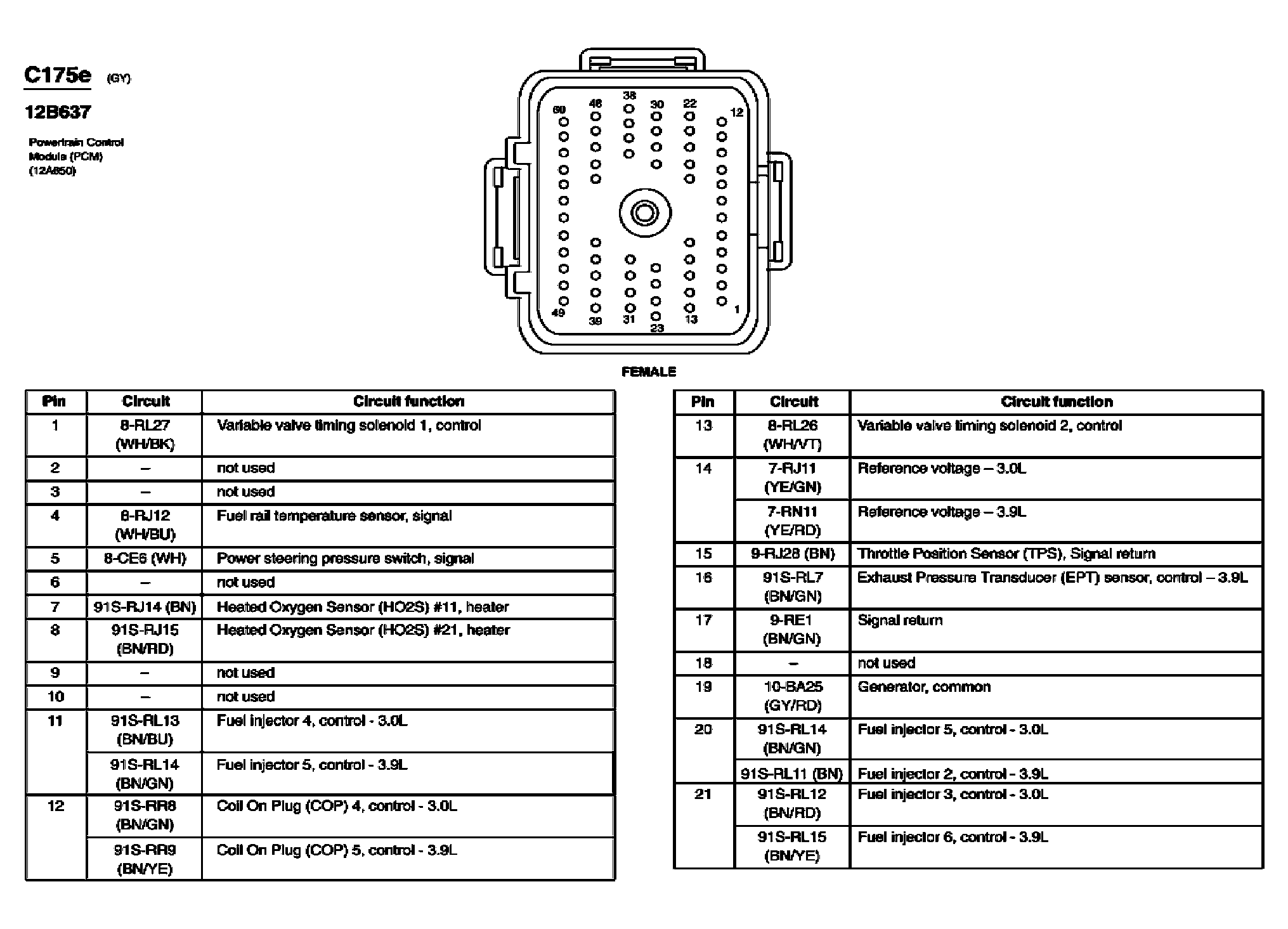

Fig 52: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 53: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)
Courtesy of FORD MOTOR CO.

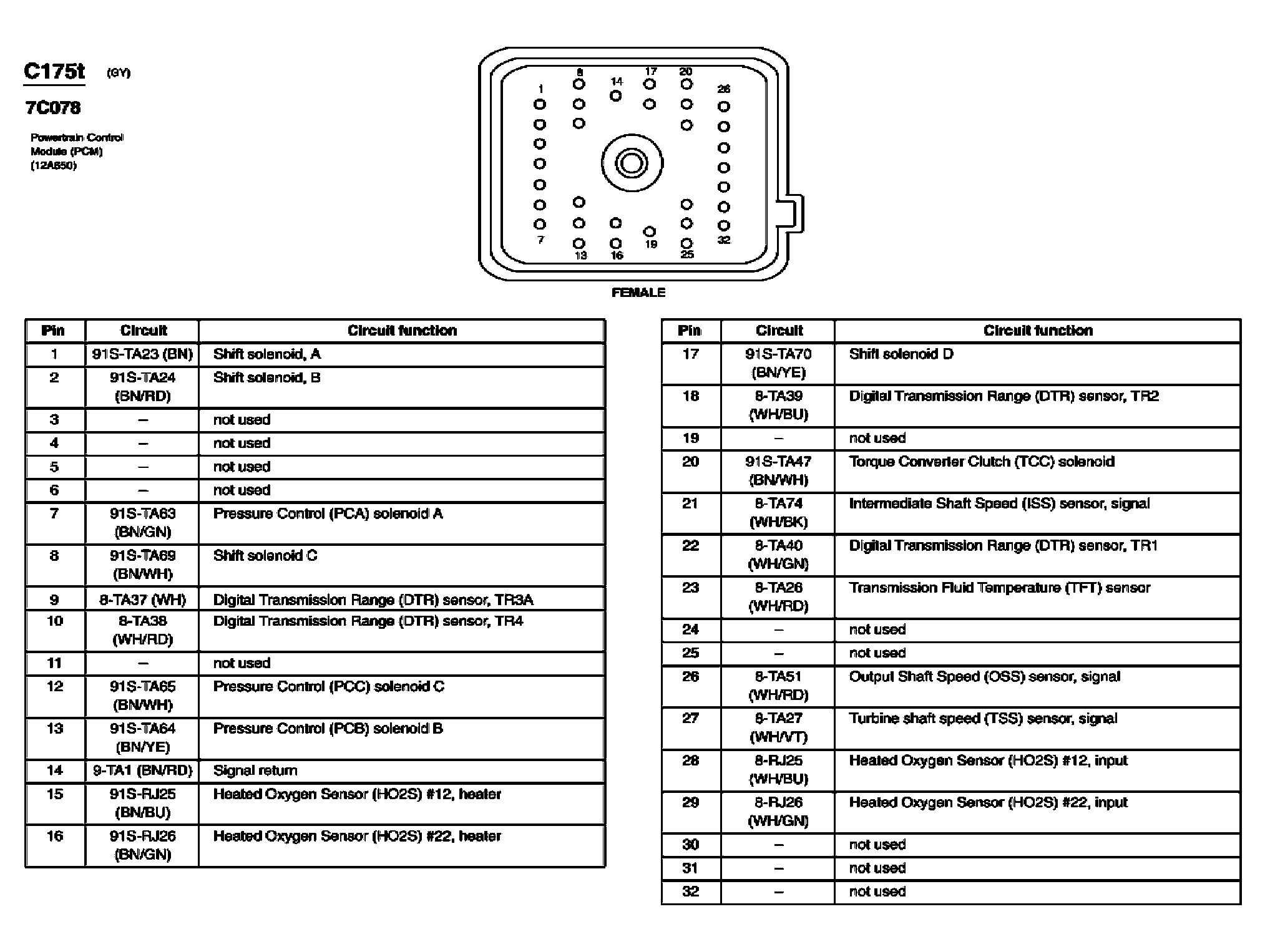

Fig 54: Powertrain Control Module (PCM) Connector End View (C175t)
Courtesy of FORD MOTOR CO.
Fig 55: Front Impact Severity Sensor Connector End View (C177)
Courtesy of FORD MOTOR CO.
Fig 56: EGR System Module Connector End View (C178)
Courtesy of FORD MOTOR CO.
Fig 57: Fuel Injector 1 Connector End View (C181)
Courtesy of FORD MOTOR CO.
Fig 58: Fuel Injector 2 Connector End View (C182)
Courtesy of FORD MOTOR CO.
Fig 59: Fuel Injector 3 Connector End View (C183)
Courtesy of FORD MOTOR CO.
Fig 60: Fuel Injector 4 Connector End View (C184)
Courtesy of FORD MOTOR CO.
Fig 61: Fuel Injector 5 Connector End View (C185)
Courtesy of FORD MOTOR CO.
Fig 62: Fuel Injector 6 Connector End View (C186)
Courtesy of FORD MOTOR CO.
Fig 63: Fuel Injector 7 Connector End View (C187)
Courtesy of FORD MOTOR CO.
Fig 64: Fuel Injector 8 Connector End View (C188)
Courtesy of FORD MOTOR CO.
Fig 65: Throttle Position Sensor (TPS) Connector End View (C189)
Courtesy of FORD MOTOR CO.
Fig 66: Inline Connector End View (C192)
Courtesy of FORD MOTOR CO.
Fig 67: Output Shaft Speed (OSS) Sensor Connector End View (C193)
Courtesy of FORD MOTOR CO.
Fig 68: Ignition Transformer Capacitor 2 Connector End View (C194)
Courtesy of FORD MOTOR CO.
Fig 69: Starter Motor Connector End View (C197a)
Courtesy of FORD MOTOR CO.
Fig 70: Starter Motor Connector End View (C197b)
Courtesy of FORD MOTOR CO.
Fig 71: Starter Motor Connector End View (C197c)
Courtesy of FORD MOTOR CO.

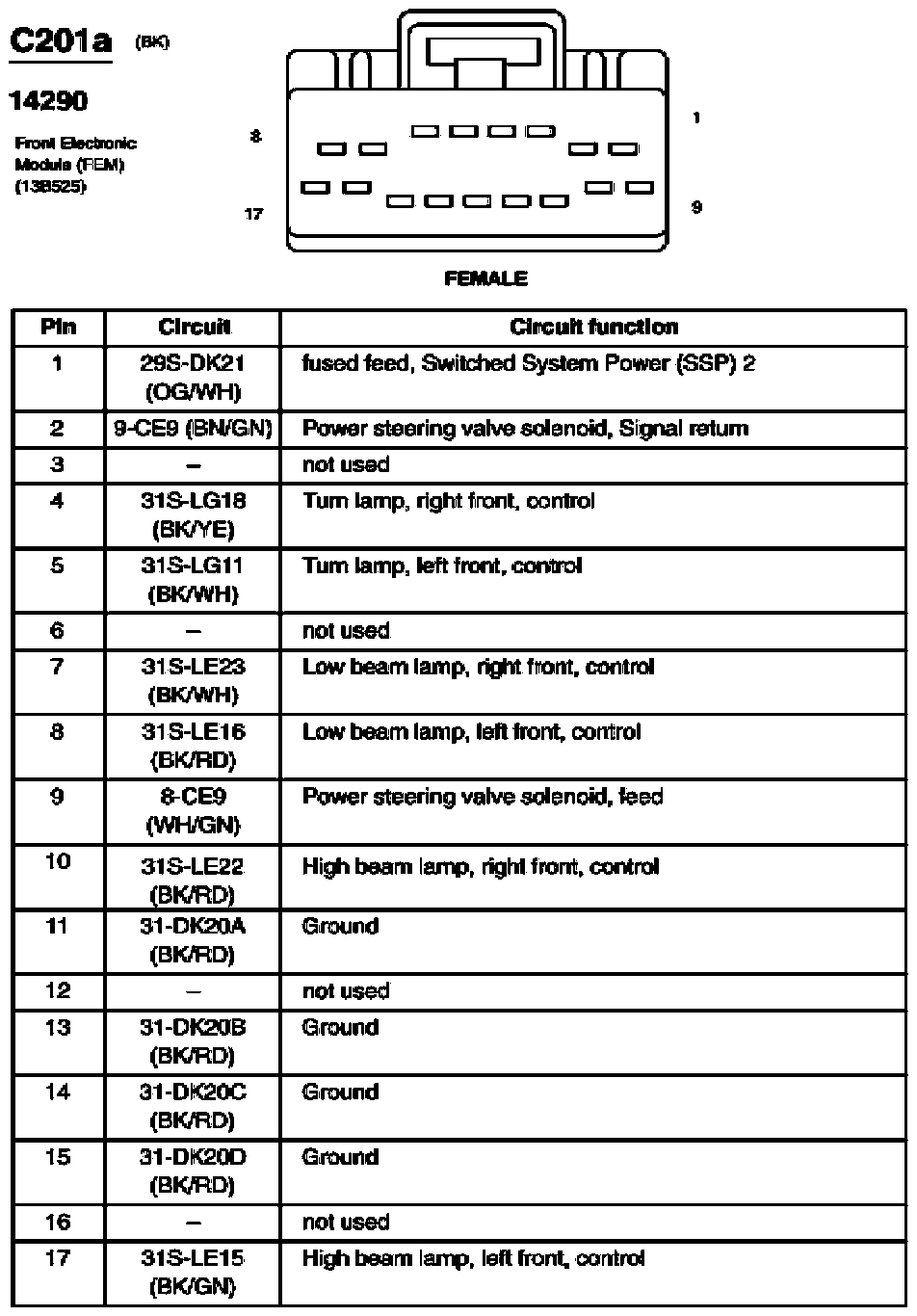

Fig 72: Front Electronic Module (FEM) Connector End View (C201a)
Courtesy of FORD MOTOR CO.

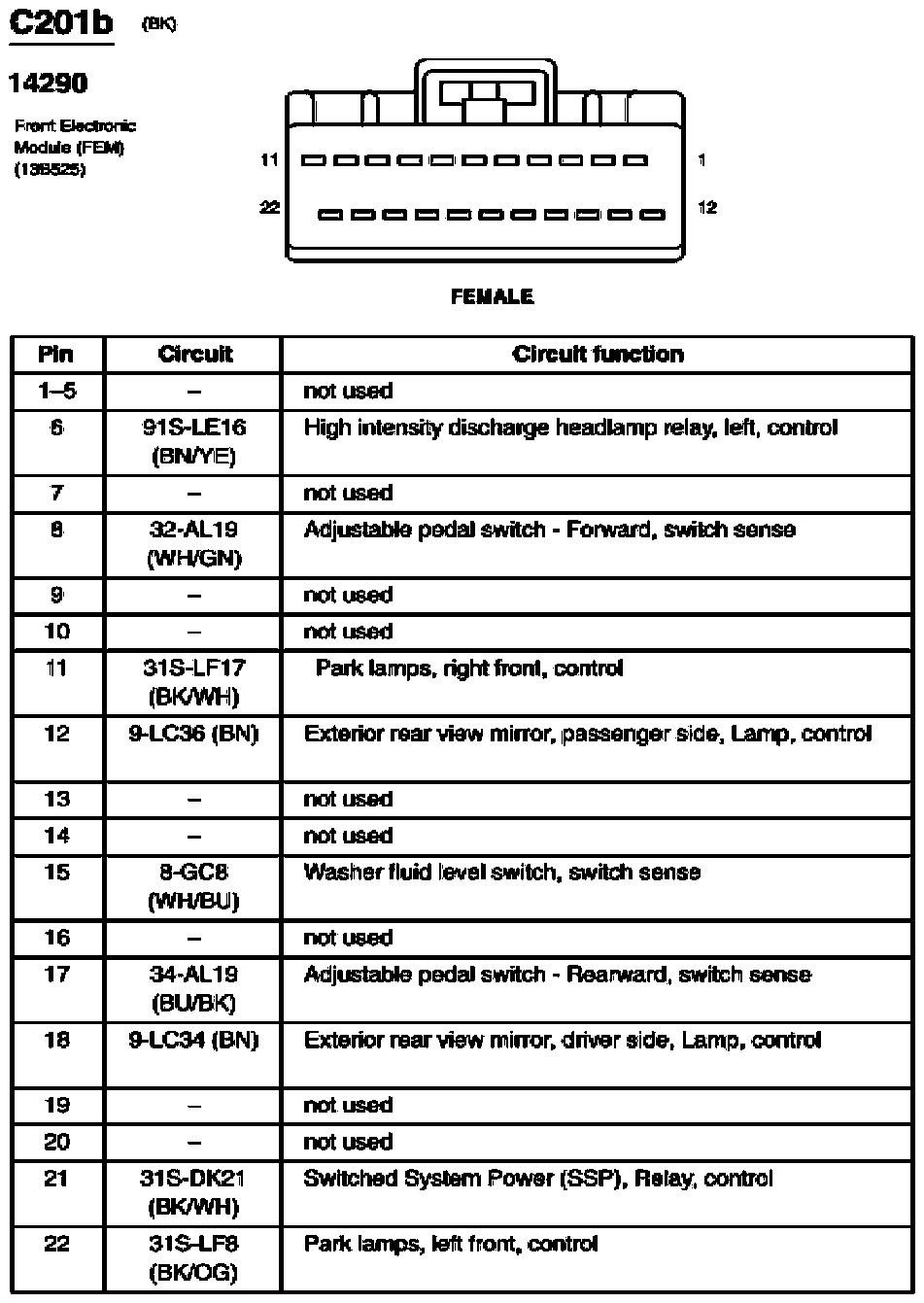

Fig 73: Front Electronic Module (FEM) Connector End View (C201b)
Courtesy of FORD MOTOR CO.
Fig 74: Front Electronic Module (FEM) Connector End View (C201c)
Courtesy of FORD MOTOR CO.

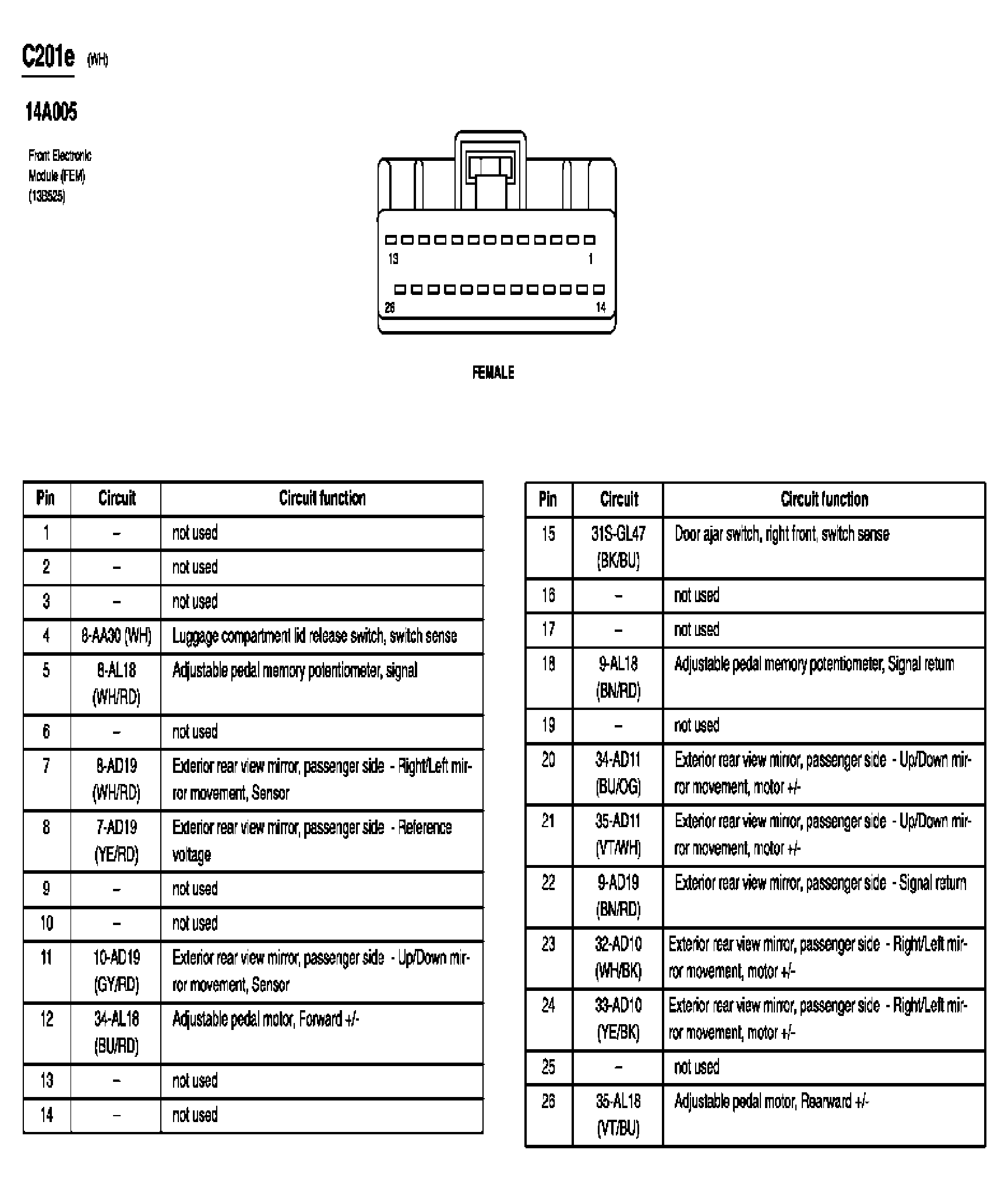

Fig 75: Front Electronic Module (FEM) Connector End View (C201e)
Courtesy of FORD MOTOR CO.

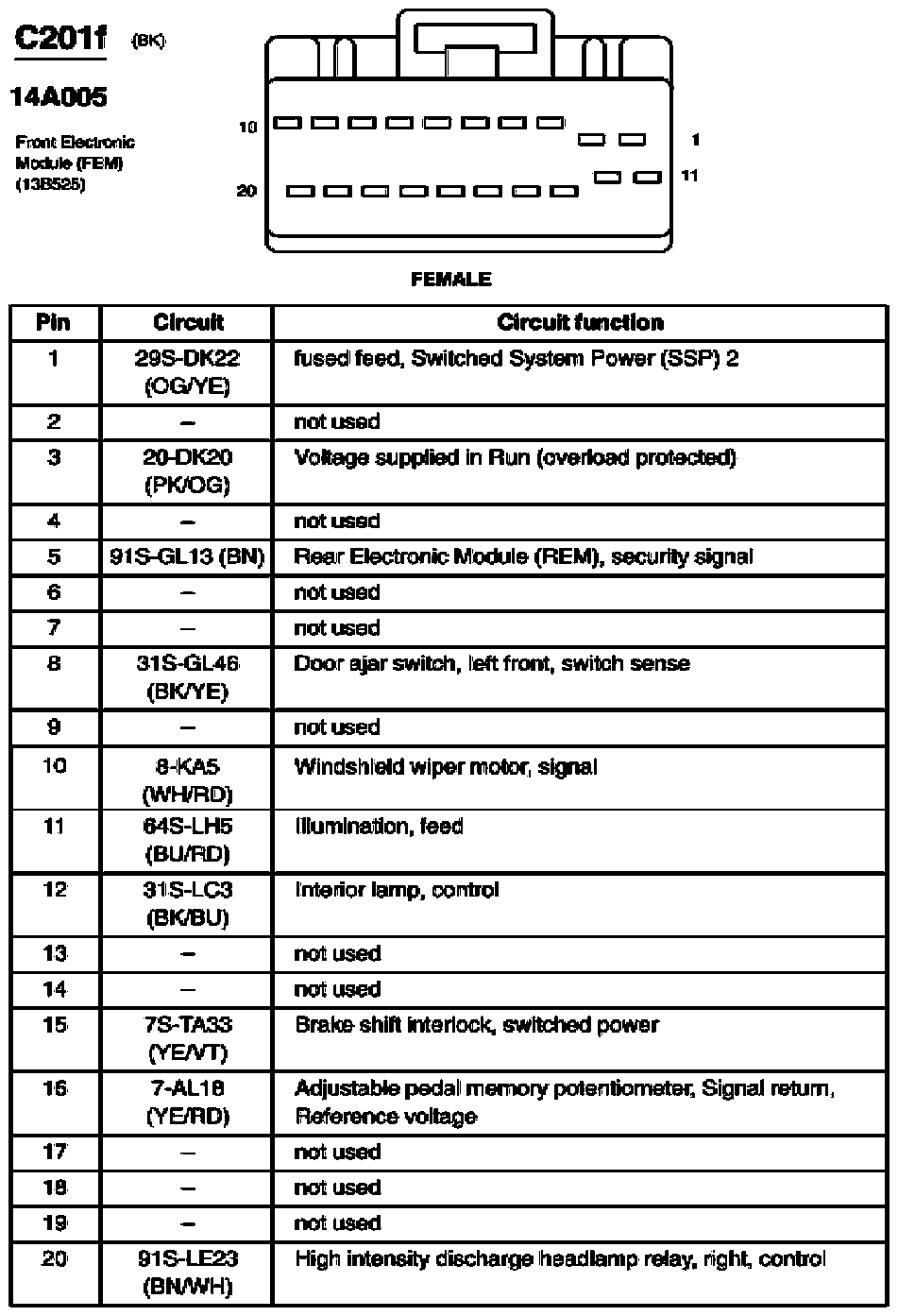

Fig 76: Front Electronic Module (FEM) Connector End View (C201f)
Courtesy of FORD MOTOR CO.
Fig 77: Multifunction Switch Connector End View (C202)
Courtesy of FORD MOTOR CO.
Fig 78: Main Light Switch Connector End View (C205)
Courtesy of FORD MOTOR CO.
Fig 79: Instrument Panel Dimming Module Connector End View (C206)
Courtesy of FORD MOTOR CO.
Fig 80: Footwell Lamp, Left Front Connector End View (C209)
Courtesy of FORD MOTOR CO.
Fig 81: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.
Fig 82: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.

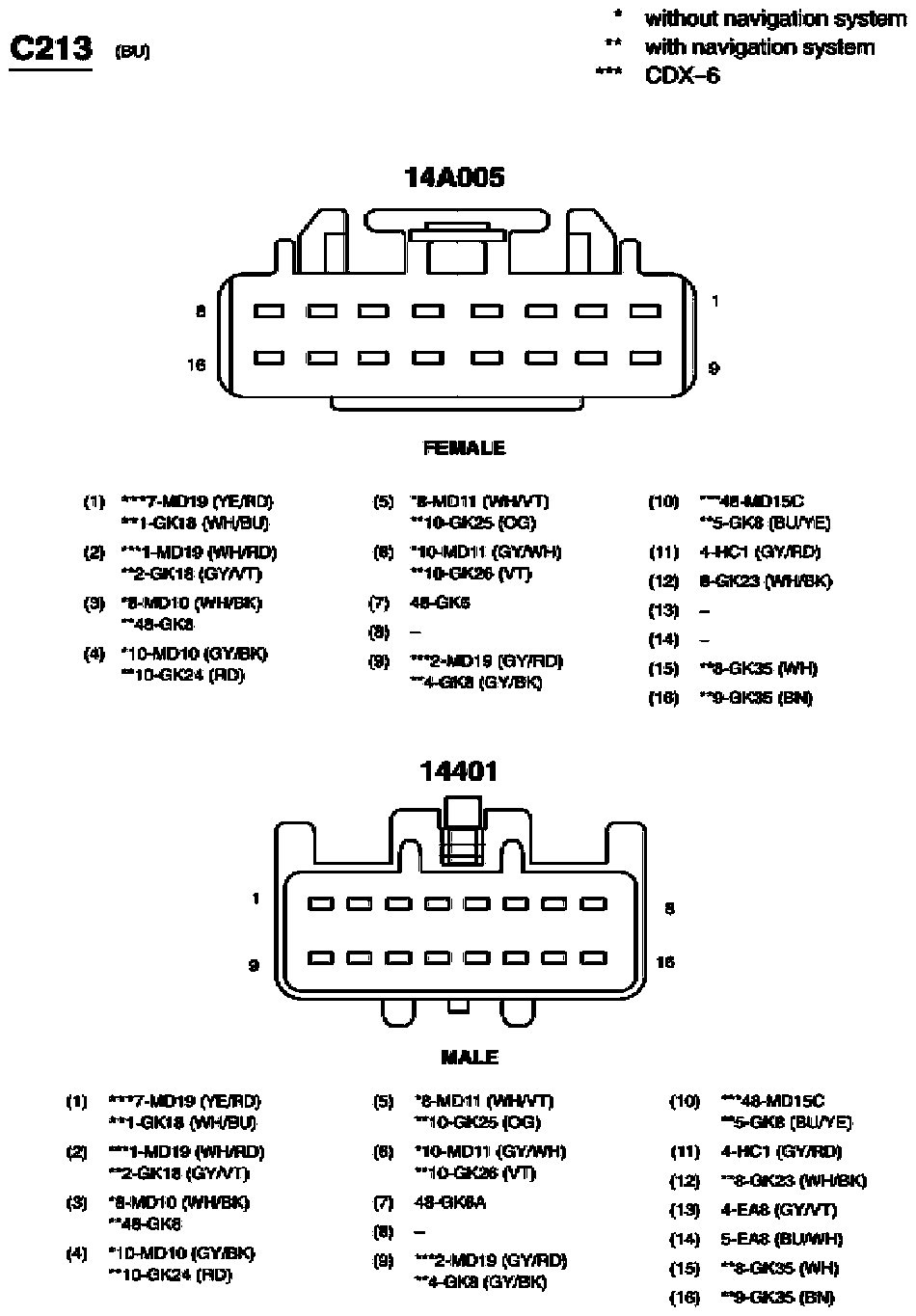

Fig 83: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.
Fig 84: Inline Connector End View (C213)
Courtesy of FORD MOTOR CO.
Fig 85: Inline Connector End View (C214)
Courtesy of FORD MOTOR CO.
Fig 86: Inline Connector End View (C215)
Courtesy of FORD MOTOR CO.
Fig 87: Steering Wheel Assembly Connector End View (C218a)
Courtesy of FORD MOTOR CO.
Fig 88: Steering Wheel Assembly Connector End View (C218b)
Courtesy of FORD MOTOR CO.
Fig 89: Inline Connector End View (C219)
Courtesy of FORD MOTOR CO.

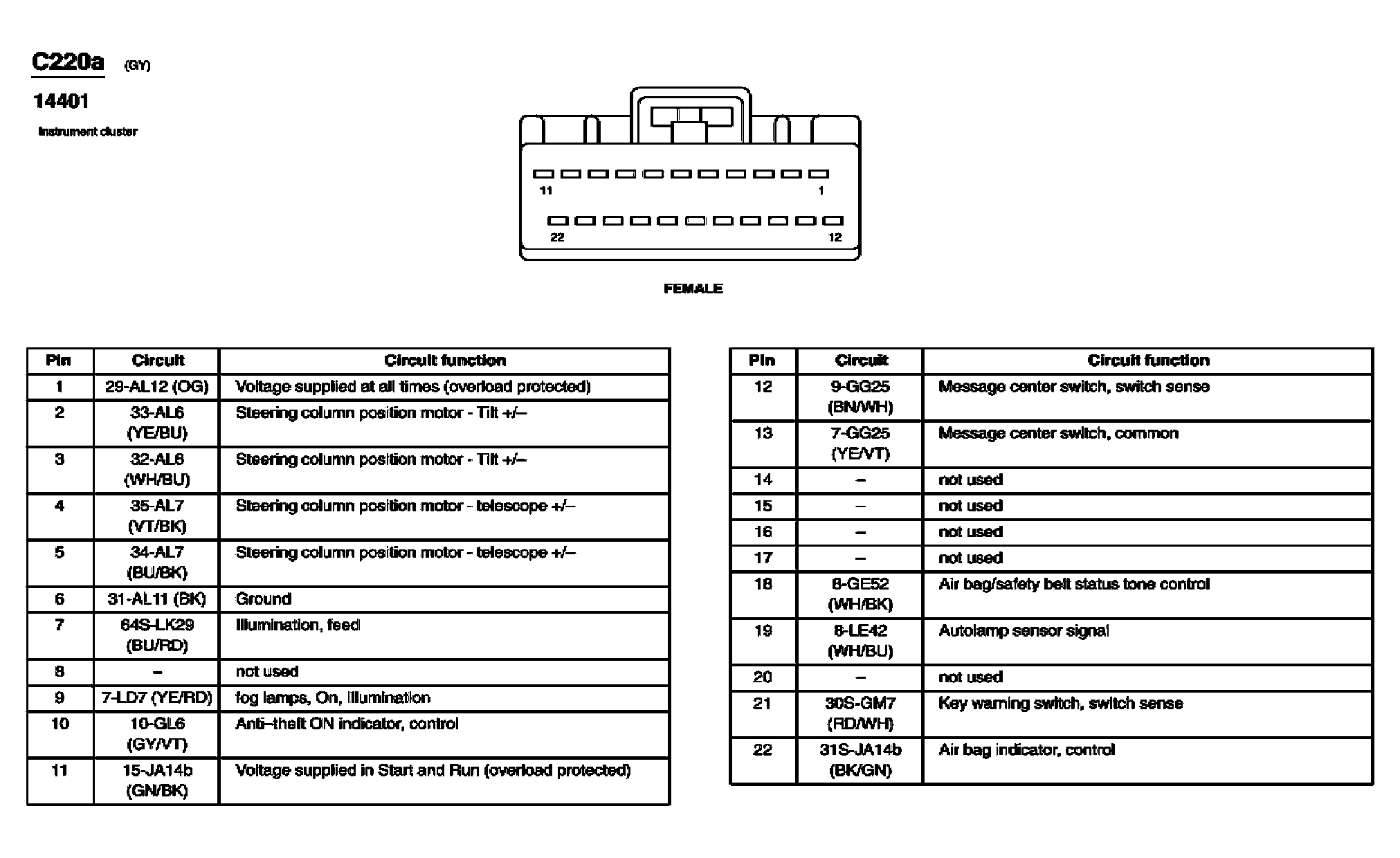

Fig 90: Instrument Cluster Connector End View (C220a)
Courtesy of FORD MOTOR CO.

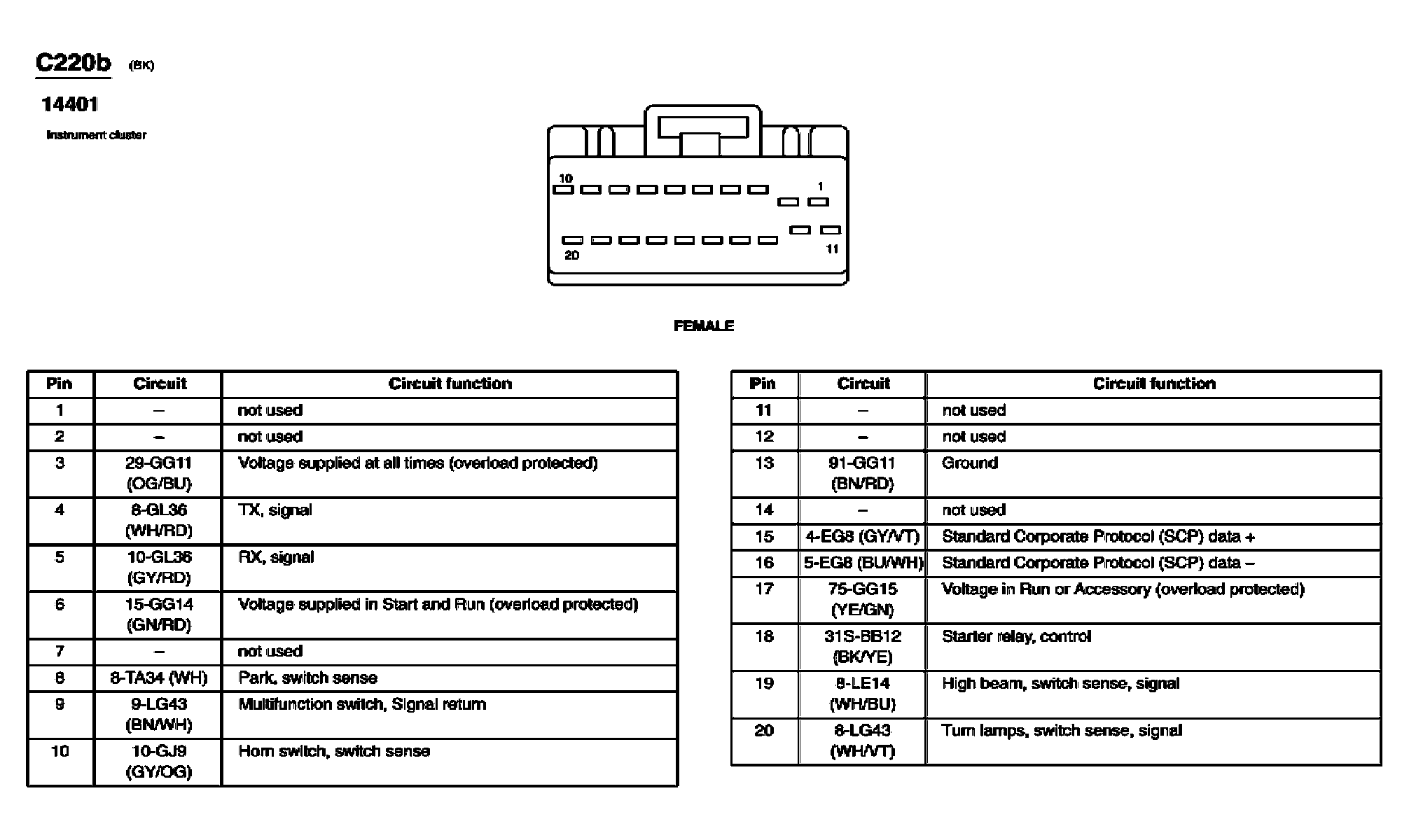

Fig 91: Instrument Cluster Connector End View (C220b)
Courtesy of FORD MOTOR CO.

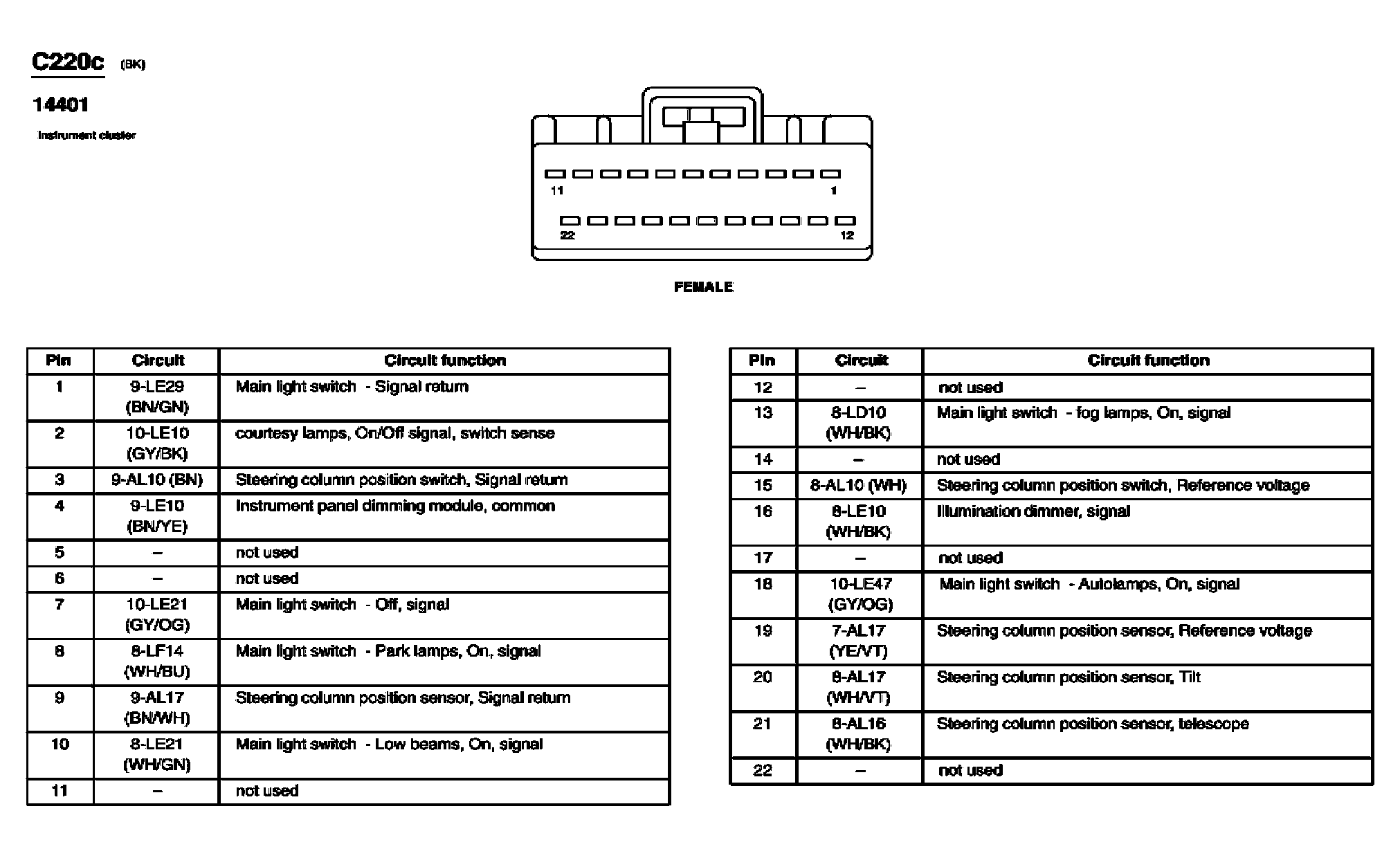

Fig 92: Instrument Cluster Connector End View (C220c)
Courtesy of FORD MOTOR CO.
Fig 93: Steering Column Position Sensor Connector End View (C222)
Courtesy of FORD MOTOR CO.

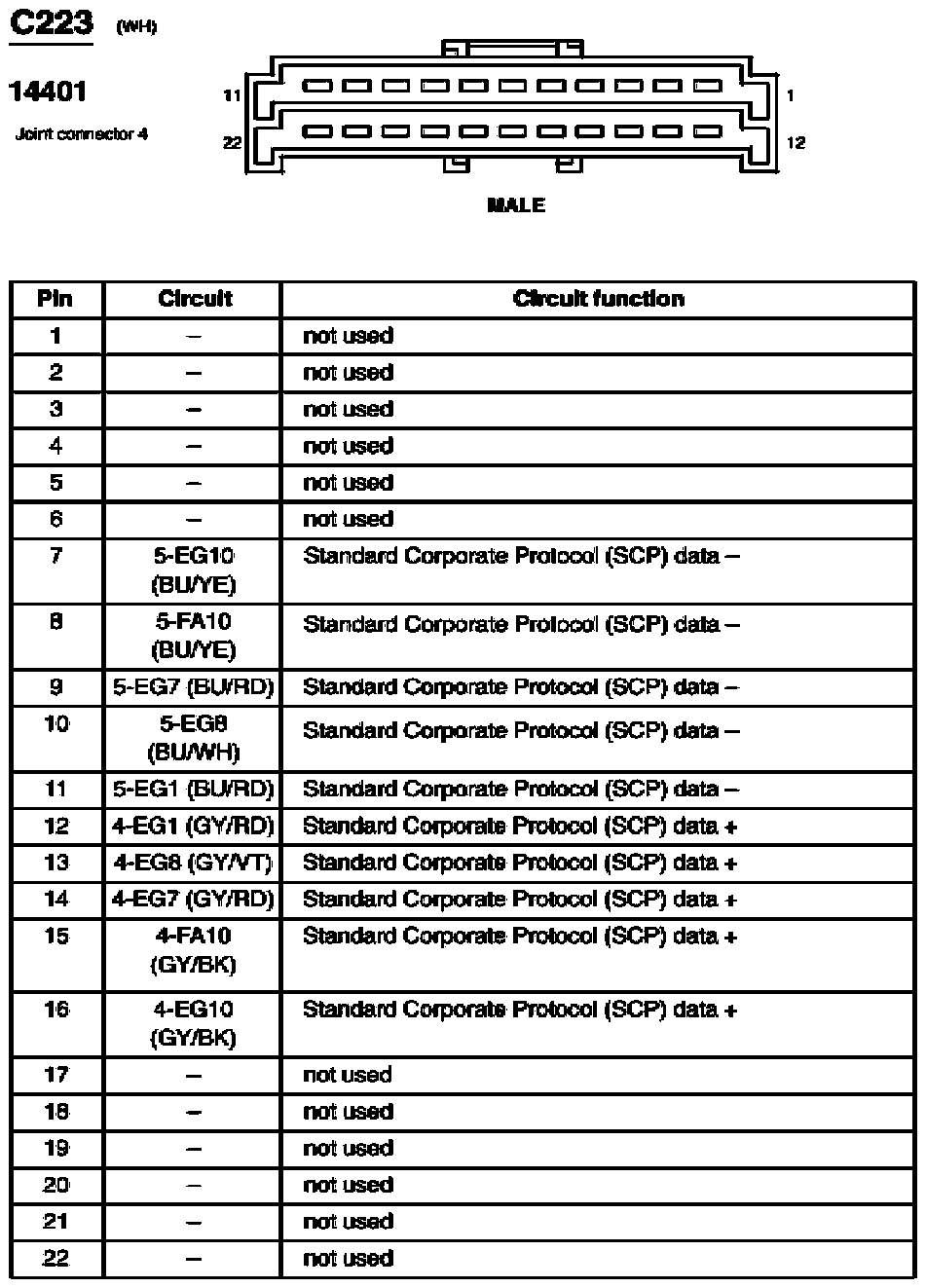

Fig 94: Joint Connector 4 Connector End View (C223)
Courtesy of FORD MOTOR CO.

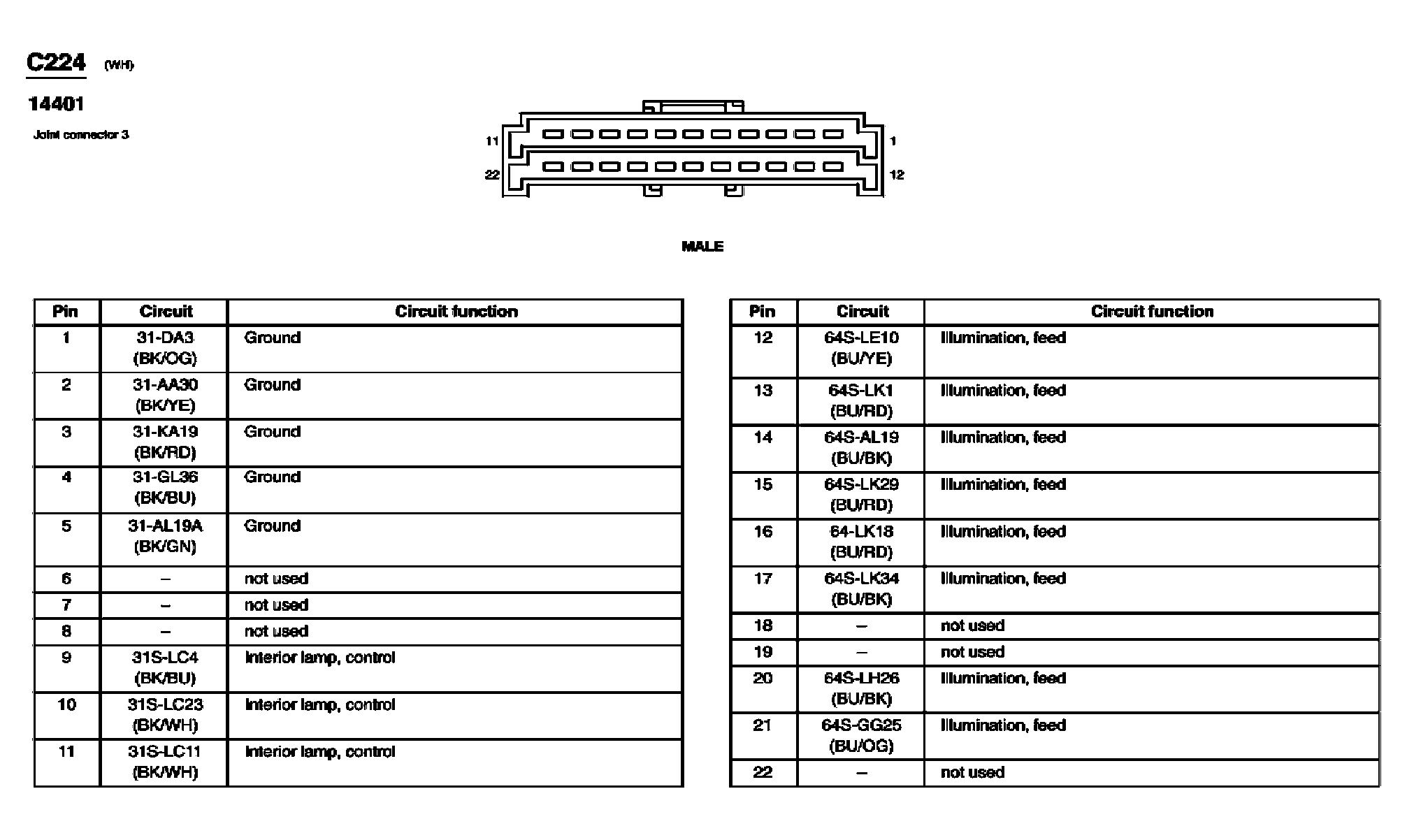

Fig 95: Joint Connector 3 Connector End View (C224)
Courtesy of FORD MOTOR CO.
Fig 96: Center Image Amplifier Connector End View (C225)
Courtesy of FORD MOTOR CO.
Fig 97: Steering Position Sensor Connector End View (C226)
Courtesy of FORD MOTOR CO.
Fig 98: Steering Column Position Motor Connector End View (C227)
Courtesy of FORD MOTOR CO.

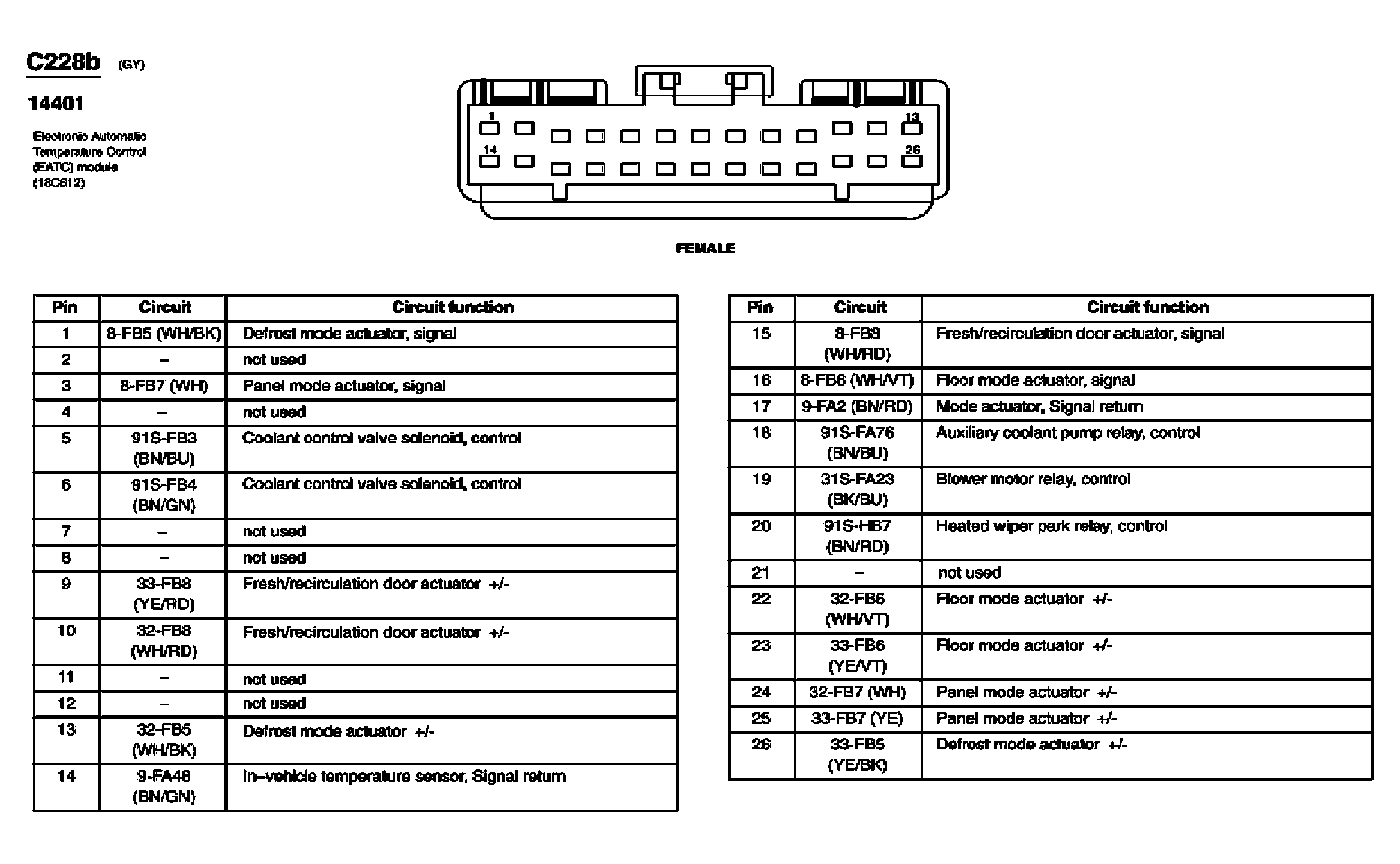

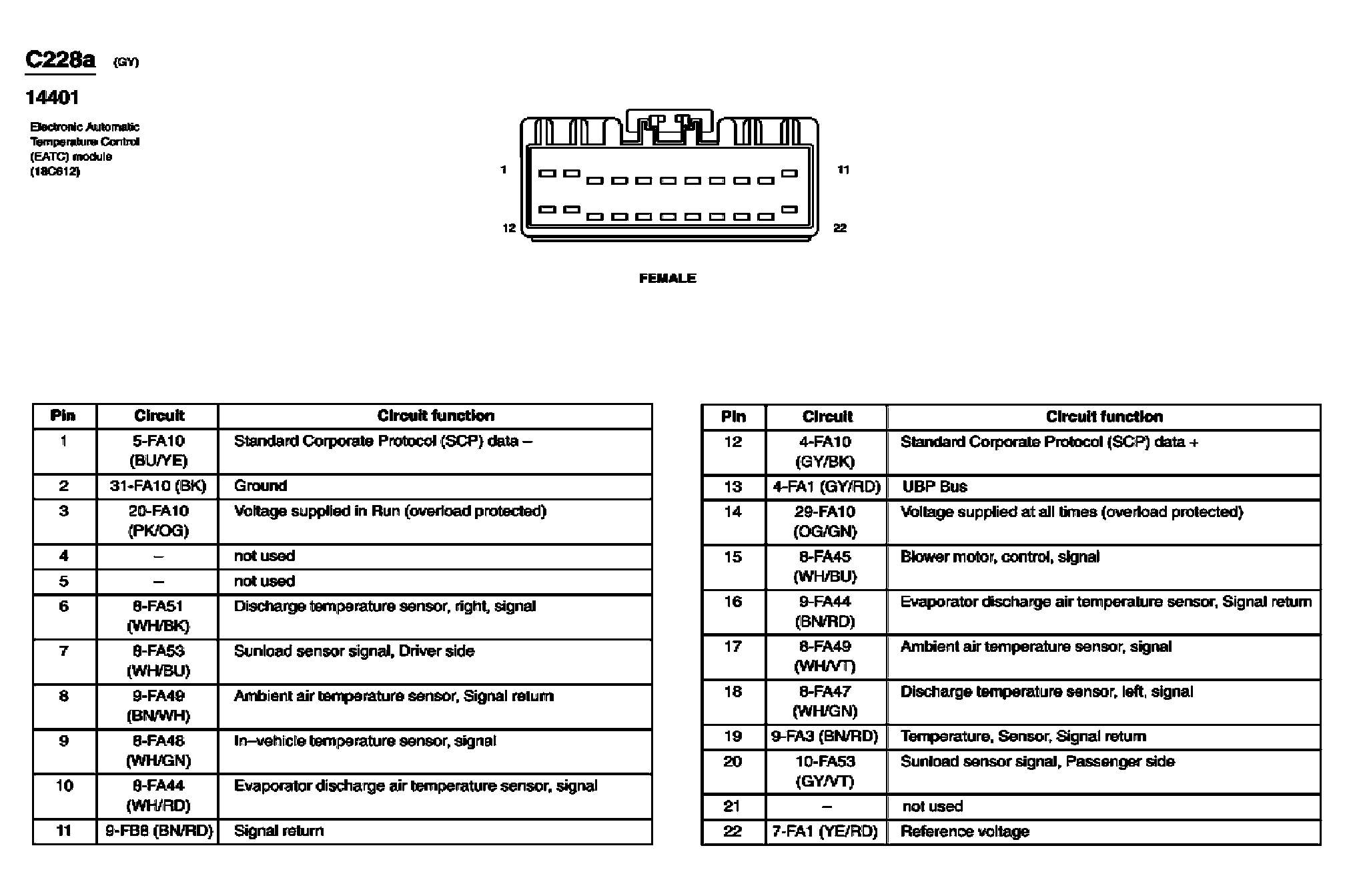

Fig 99: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)
Courtesy of FORD MOTOR CO.
Fig 100: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)
Courtesy of FORD MOTOR CO.
Fig 101: Center Image Speaker, Left Connector End View (C230)
Courtesy of FORD MOTOR CO.
Fig 102: Center Image Speaker, Right Connector End View (C231)
Courtesy of FORD MOTOR CO.
Fig 103: Defrost Mode Actuator Connector End View (C232)
Courtesy of FORD MOTOR CO.
Fig 104: In-Vehicle Temperature Sensor Connector End View (C233)
Courtesy of FORD MOTOR CO.
Fig 105: Floor Mode Actuator Connector End View (C234)
Courtesy of FORD MOTOR CO.
Fig 106: Discharge Temperature Sensor, Left Connector End View (C235)
Courtesy of FORD MOTOR CO.
Fig 107: Panel Mode Actuator Connector End View (C236)
Courtesy of FORD MOTOR CO.
Fig 108: Inline Connector End View (C237)
Courtesy of FORD MOTOR CO.
Fig 109: Inline Connector End View (C238)
Courtesy of FORD MOTOR CO.
Fig 110: Inline Connector End View (C248)
Courtesy of FORD MOTOR CO.

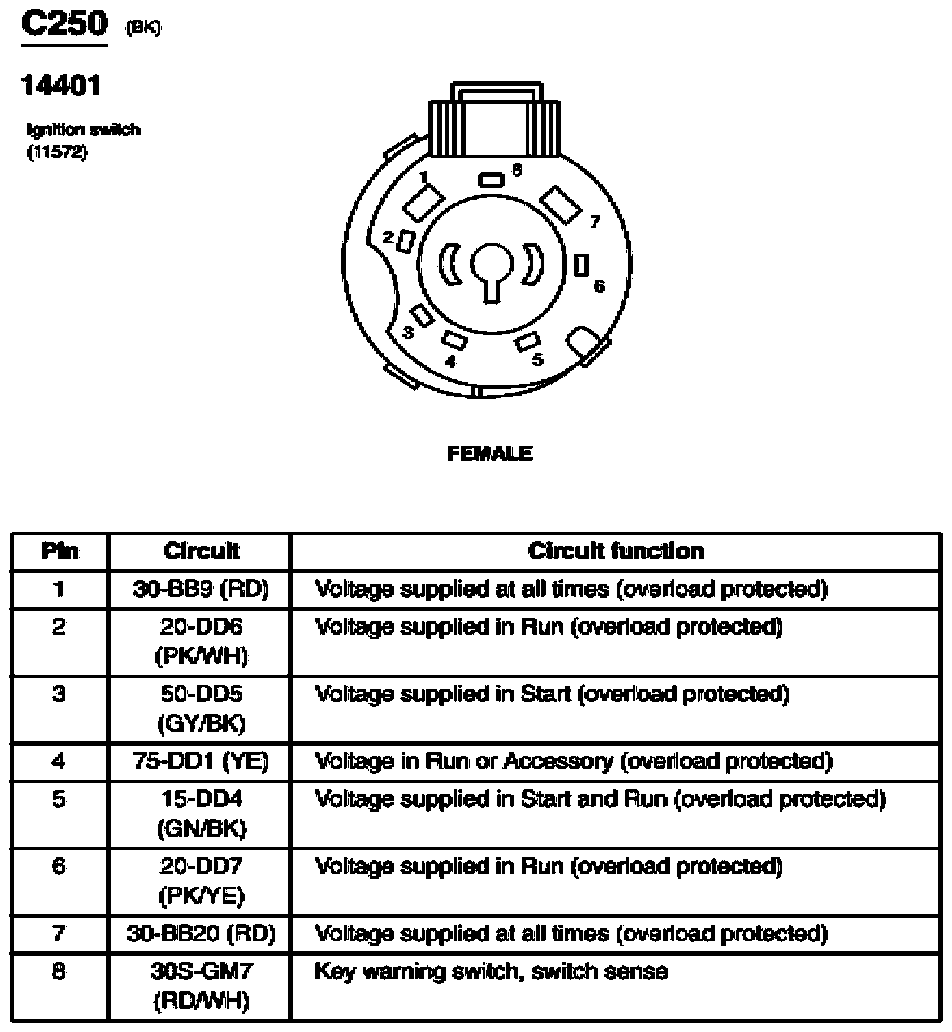

Fig 111: Ignition Switch Connector End View (C250)
Courtesy of FORD MOTOR CO.
Fig 112: Data Link Connector (DLC) Connector End View (C251)
Courtesy of FORD MOTOR CO.
Fig 113: Passive Anti-Theft Transceiver Module Connector End View (C252)
Courtesy of FORD MOTOR CO.
Fig 114: Message Center Switch Connector End View (C253)
Courtesy of FORD MOTOR CO.
Fig 115: Glove Box Lamp Connector End View (C254)
Courtesy of FORD MOTOR CO.
Fig 116: Discharge Temperature Sensor, Right Connector End View (C255)
Courtesy of FORD MOTOR CO.
Fig 117: Passenger Air Bag Module Connector End View (C256)
Courtesy of FORD MOTOR CO.
Fig 118: Inline Connector End View (C260)
Courtesy of FORD MOTOR CO.

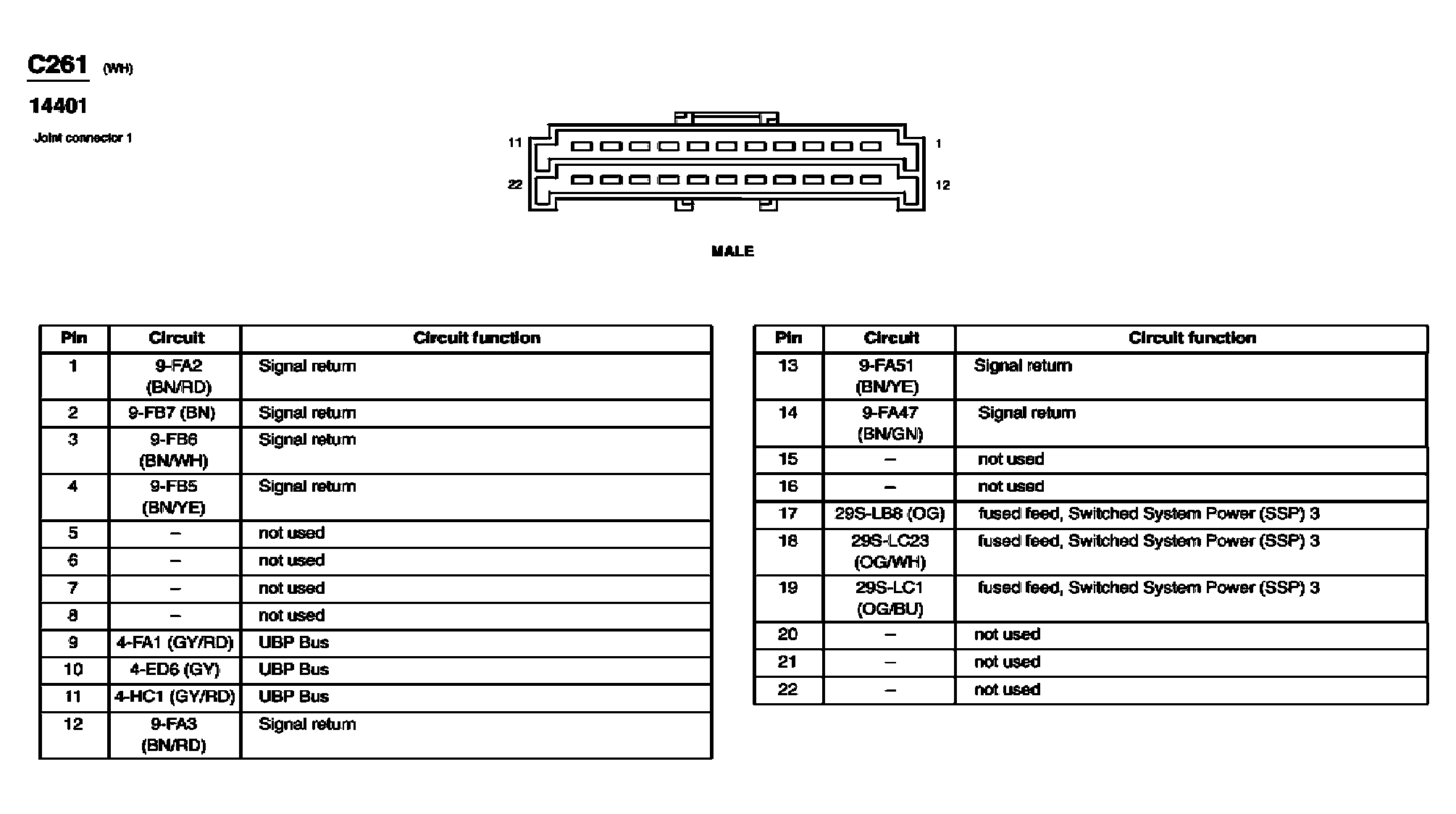

Fig 119: Joint Connector 1 Connector End View (C261)
Courtesy of FORD MOTOR CO.
Fig 120: Joint Connector 2 Connector End View (C262)
Courtesy of FORD MOTOR CO.
Fig 121: Inline Connector End View (C263)
Courtesy of FORD MOTOR CO.
Fig 122: Inline Connector End View (C264)
Courtesy of FORD MOTOR CO.
Fig 123: Inline Connector End View (C265)
Courtesy of FORD MOTOR CO.
Fig 124: Footwell Lamp, Right Front Connector End View (C266)
Courtesy of FORD MOTOR CO.
Fig 125: Inline Connector End View (C268)
Courtesy of FORD MOTOR CO.

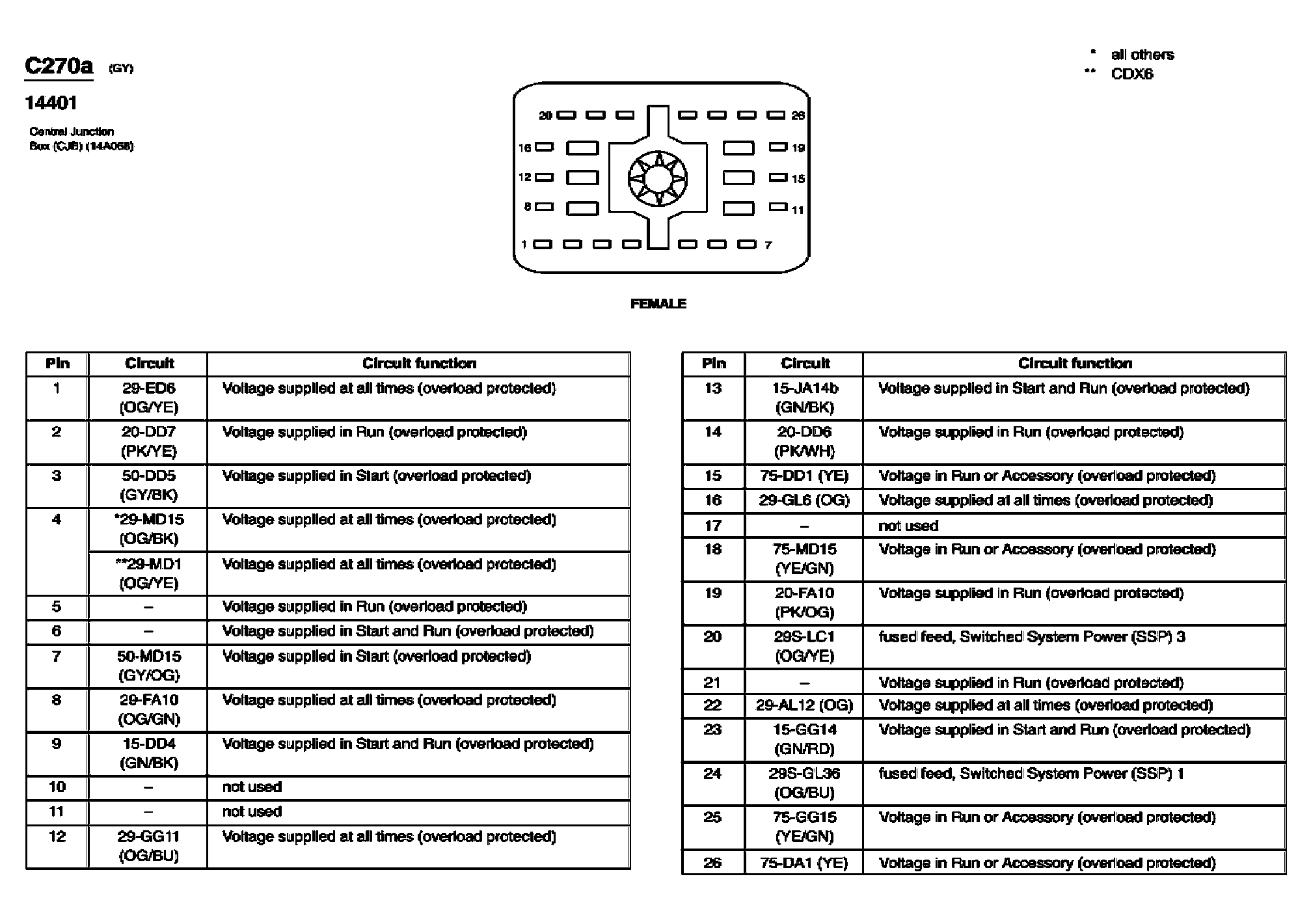

Fig 126: Central Junction Box (CJB) Connector End View (C270a)
Courtesy of FORD MOTOR CO.

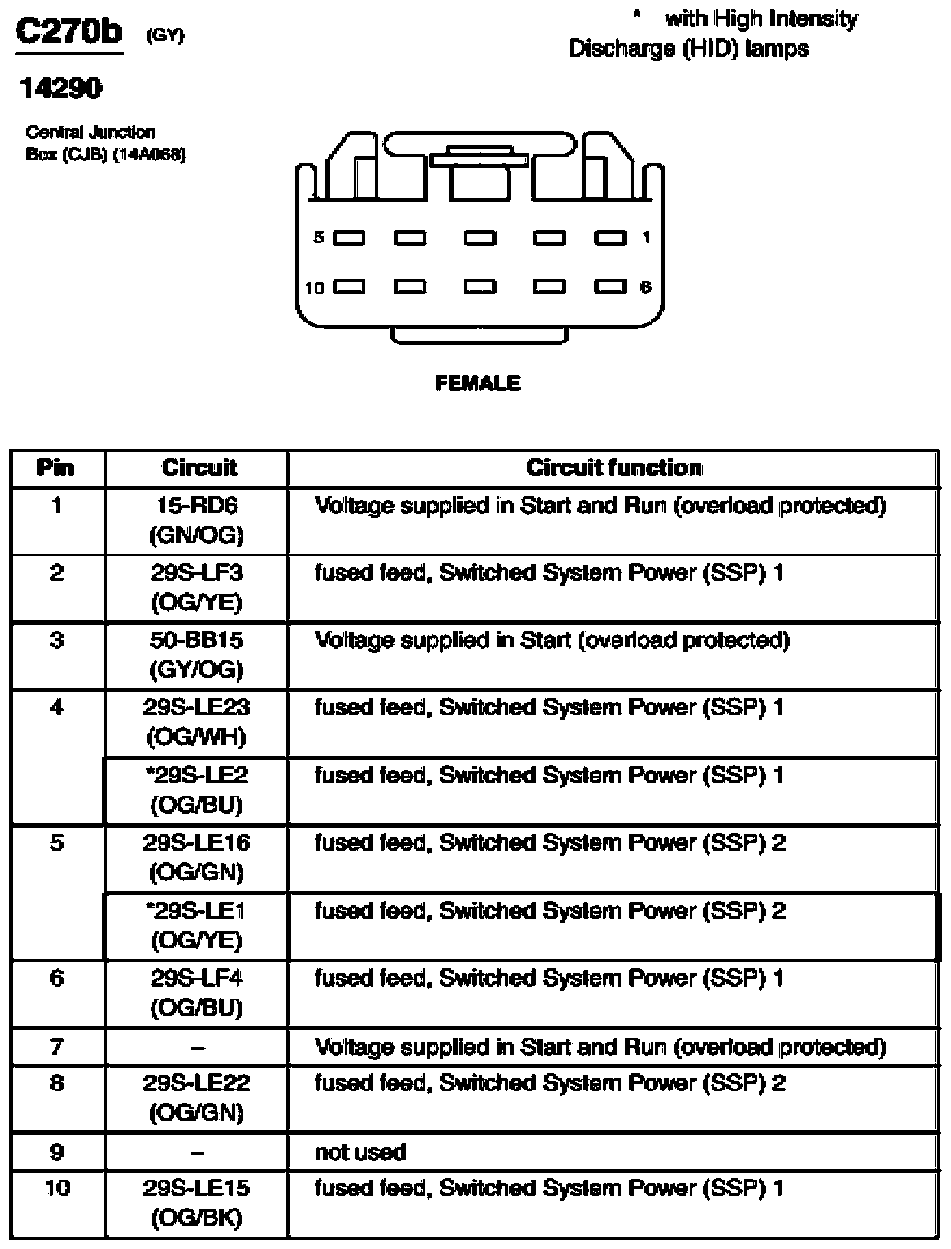

Fig 127: Central Junction Box (CJB) Connector End View (C270b)
Courtesy of FORD MOTOR CO.

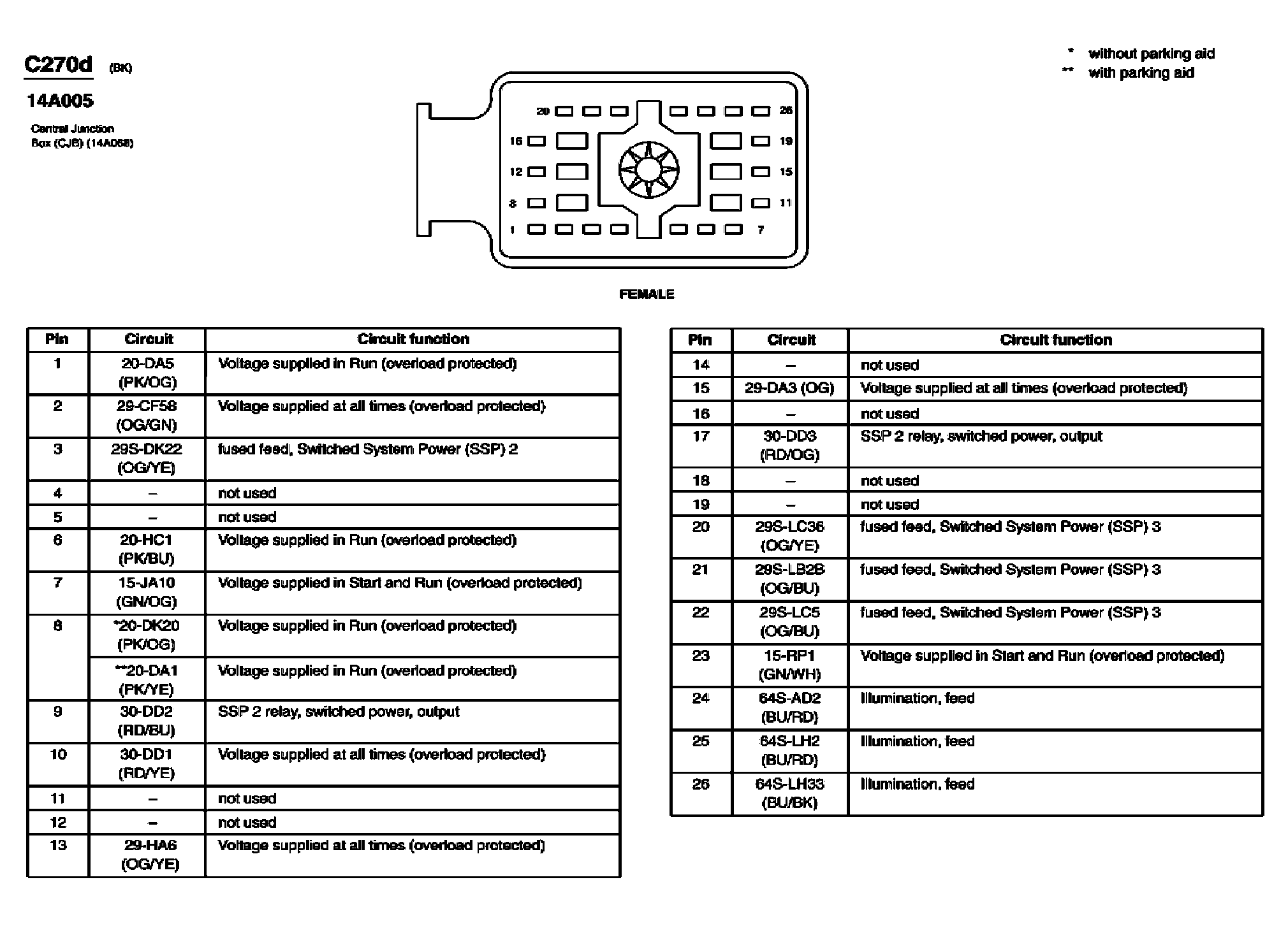

Fig 128: Central Junction Box (CJB) Connector End View (C270c)
Courtesy of FORD MOTOR CO.
Fig 129: Central Junction Box (CJB) Connector End View (C270d)
Courtesy of FORD MOTOR CO.
Fig 130: Central Junction Box (CJB) Connector End View (C270e)
Courtesy of FORD MOTOR CO.
Fig 131: Inline Connector End View (C275)
Courtesy of FORD MOTOR CO.
Fig 132: Brake Pressure Switch Connector End View (C277)
Courtesy of FORD MOTOR CO.
Fig 133: Brake Pedal Position Switch Connector End View (C278)
Courtesy of FORD MOTOR CO.
Fig 134: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)
Courtesy of FORD MOTOR CO.

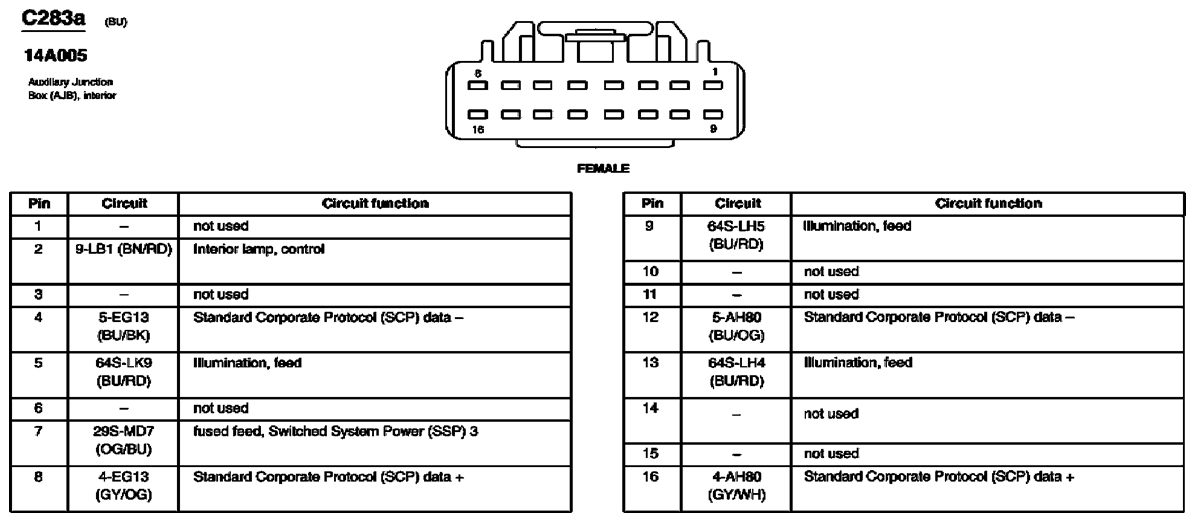

Fig 135: Auxiliary Junction Box (AJB), Interior Connector End View (C283a)
Courtesy of FORD MOTOR CO.

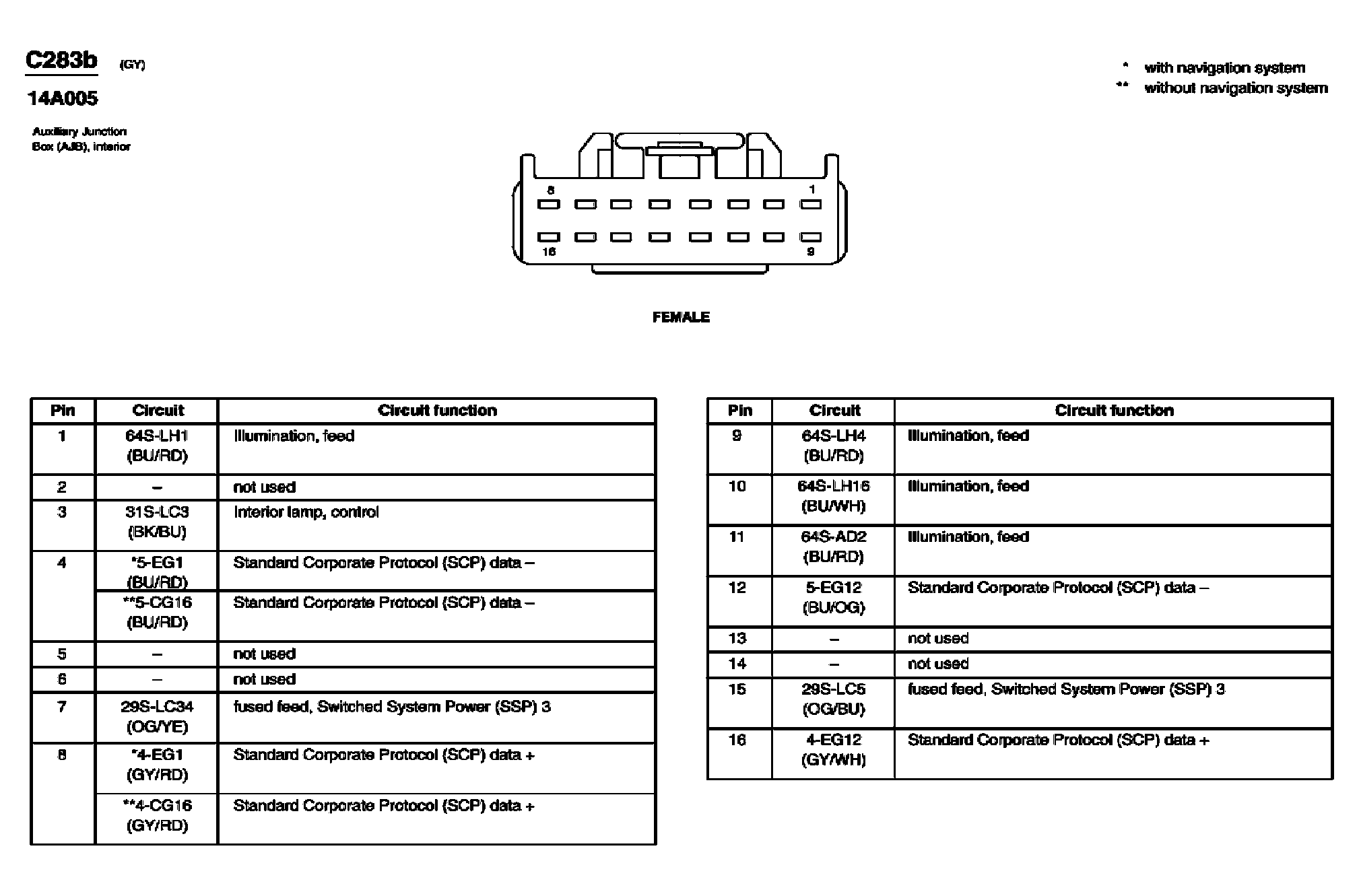

Fig 136: Auxiliary Junction Box (AJB), Interior Connector End View (C283b)
Courtesy of FORD MOTOR CO.
Fig 137: Auxiliary Junction Box (AJB), Interior Connector End View (C283c)
Courtesy of FORD MOTOR CO.
Fig 138: Auxiliary Junction Box (AJB), Interior Connector End View (C283d)
Courtesy of FORD MOTOR CO.
Fig 139: Stud, Junction Box Connector End View (C285a)
Courtesy of FORD MOTOR CO.
Fig 140: Stud, Junction Box Connector End View (C285b)
Courtesy of FORD MOTOR CO.
Fig 141: Autolamp/Sunload Sensor Connector End View (C286)
Courtesy of FORD MOTOR CO.
Fig 142: Heater Blower Motor Connector End View (C288)
Courtesy of FORD MOTOR CO.
Fig 143: Fresh/Recirculation Door Actuator Connector End View (C289)
Courtesy of FORD MOTOR CO.
Fig 144: Audio Unit Connector End View (C290a)
Courtesy of FORD MOTOR CO.

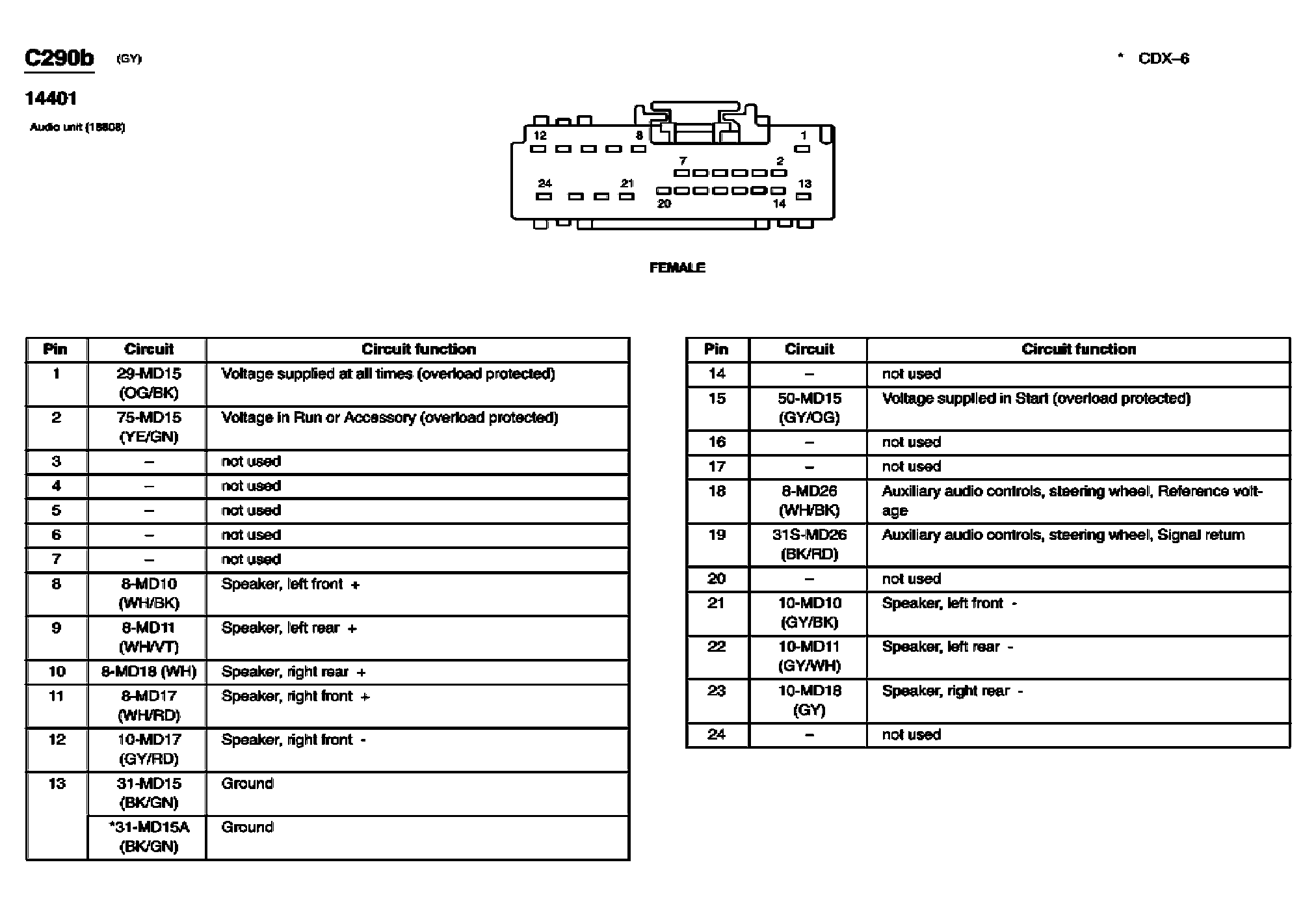

Fig 145: Audio Unit Connector End View (C290b)
Courtesy of FORD MOTOR CO.
Fig 146: Audio Unit Connector End View (C290c)
Courtesy of FORD MOTOR CO.
Fig 147: Audio Unit Connector End View (C290d)
Courtesy of FORD MOTOR CO.
Fig 148: Inline Connector End View (C291)
Courtesy of FORD MOTOR CO.
Fig 149: Evaporator Discharge Air Temperature Sensor Connector End View (C296)
Courtesy of FORD MOTOR CO.
Fig 150: Inline Connector End View (C298)
Courtesy of FORD MOTOR CO.
Fig 151: Inline Connector End View (C300)
Courtesy of FORD MOTOR CO.
Fig 152: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)
Courtesy of FORD MOTOR CO.
Fig 153: Transmission Shift Selector Connector End View (C307)
Courtesy of FORD MOTOR CO.

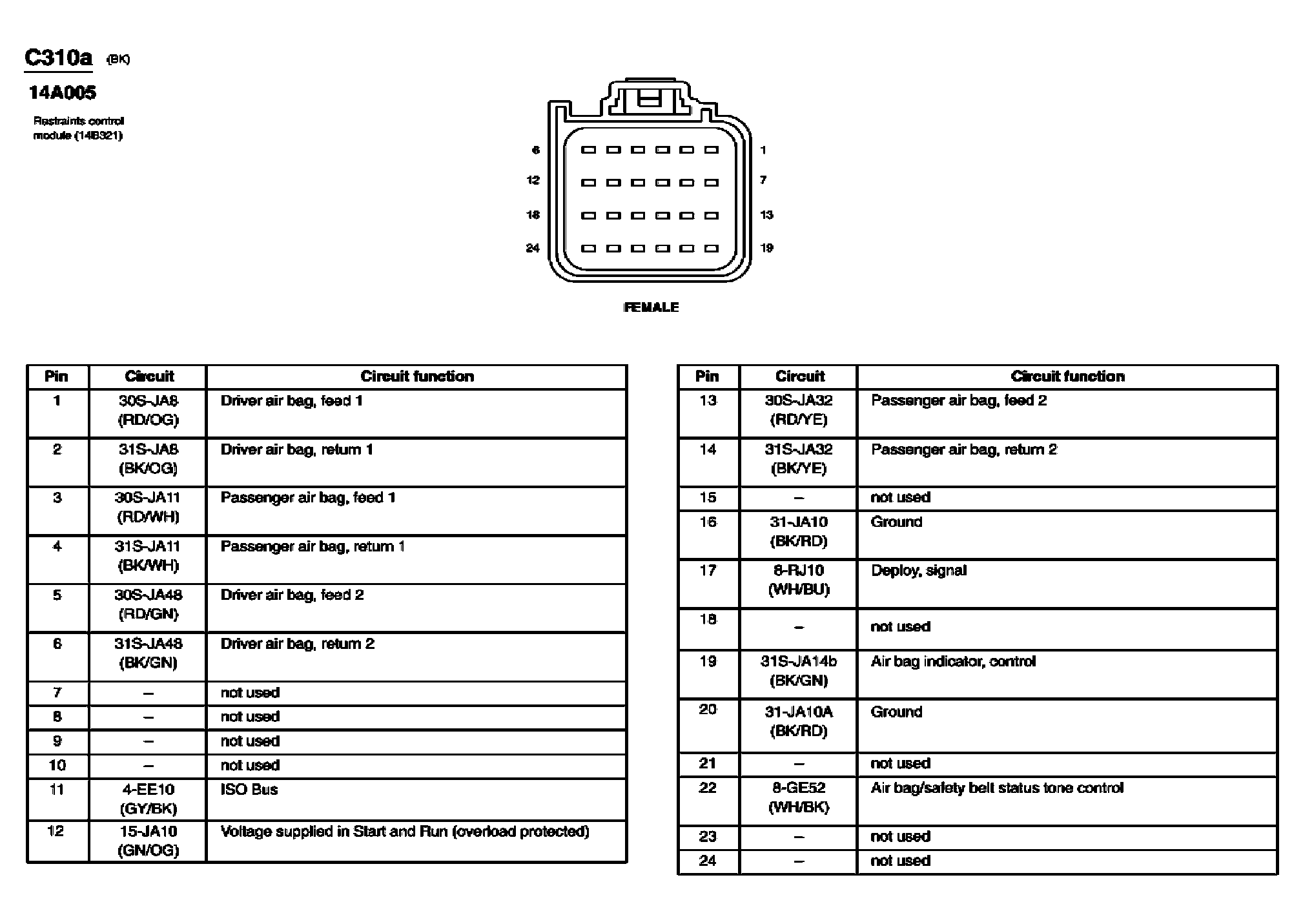

Fig 154: Restraints Control Module Connector End View (C310a)
Courtesy of FORD MOTOR CO.

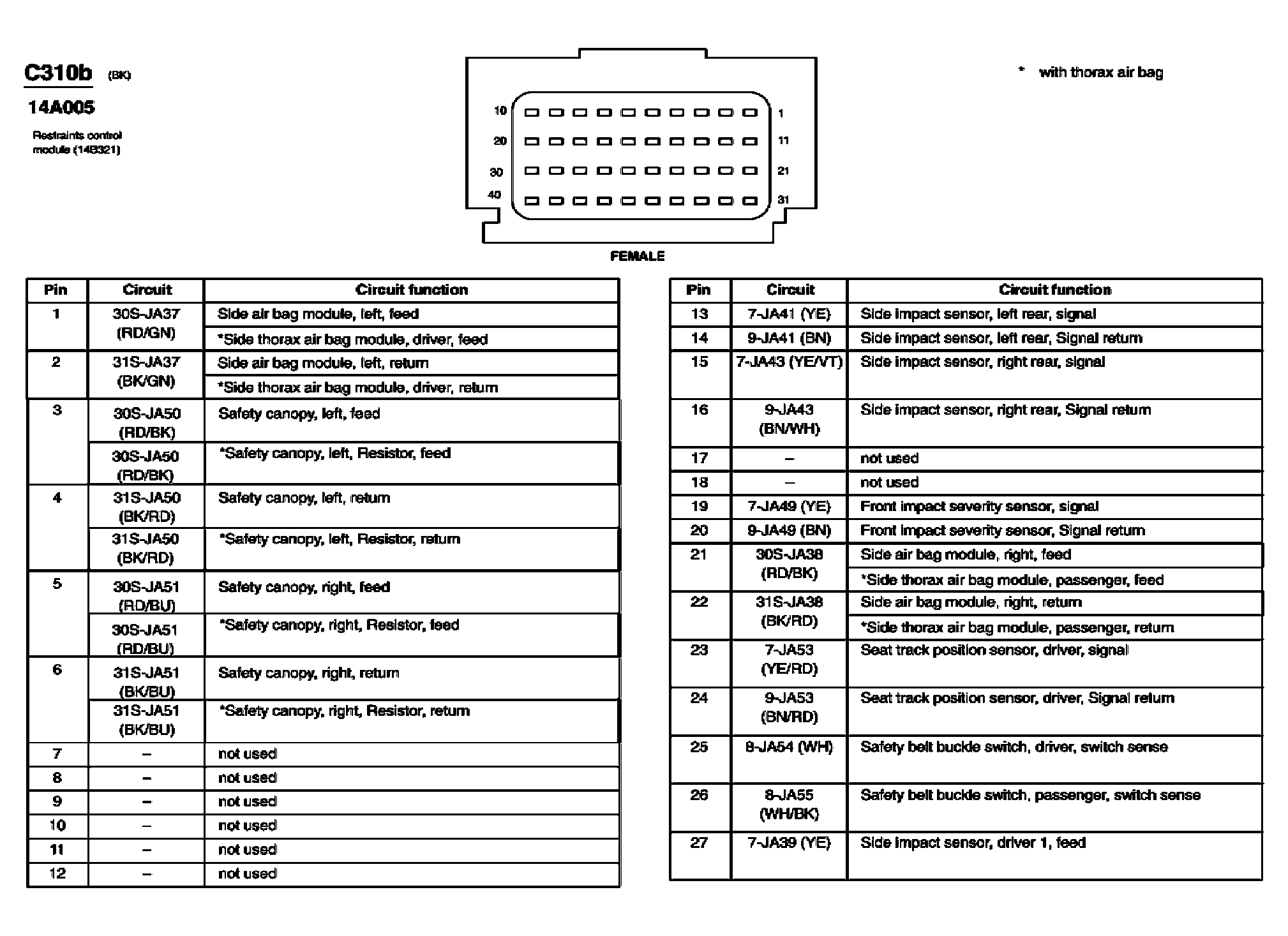

Fig 155: Restraints Control Module Connector End View (C310b) (1 Of 2)
Courtesy of FORD MOTOR CO.

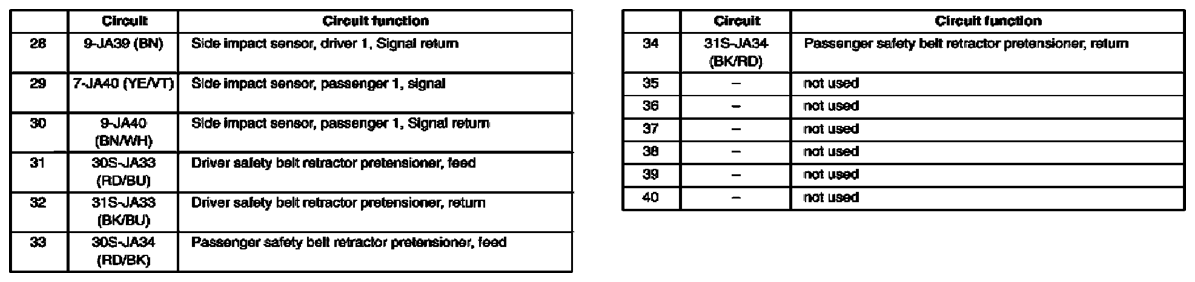

Fig 156: Restraints Control Module Connector End View (C310b) (2 Of 2)
Courtesy of FORD MOTOR CO.
Fig 157: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.
Fig 158: Inline Connector End View (C312)
Courtesy of FORD MOTOR CO.
Fig 159: Inline Connector End View (C313)
Courtesy of FORD MOTOR CO.
Fig 160: Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.
Fig 161: Inline Connector End View (C315)
Courtesy of FORD MOTOR CO.
Fig 162: Inline Connector End View (C316)
Courtesy of FORD MOTOR CO.
Fig 163: Cigar Lighter, Front Connector End View (C319)
Courtesy of FORD MOTOR CO.
Fig 164: Driver Safety Belt Retractor Pretensioner Connector End View (C323)
Courtesy of FORD MOTOR CO.
Fig 165: Inline Connector End View (C327)
Courtesy of FORD MOTOR CO.
Fig 166: Inline Connector End View (C328)
Courtesy of FORD MOTOR CO.
Fig 167: Seat Adjust Switch, Passenger Side Front Connector End View (C330)
Courtesy of FORD MOTOR CO.
Fig 168: Lumbar Adjust Switch, Right Front Connector End View (C331)
Courtesy of FORD MOTOR CO.
Fig 169: Passenger Seat Horizontal Motor Connector End View (C332)
Courtesy of FORD MOTOR CO.
Fig 170: Passenger Seat Vertical Motor Connector End View (C333)
Courtesy of FORD MOTOR CO.
Fig 171: Passenger Seat Lumbar Compressor Motor Connector End View (C336)
Courtesy of FORD MOTOR CO.
Fig 172: Side Air Bag Module, Right Connector End View (C337)
Courtesy of FORD MOTOR CO.
Fig 173: Passenger Seat Backrest Motor Connector End View (C338)
Courtesy of FORD MOTOR CO.
Fig 174: Inline Connector End View (C339)
Courtesy of FORD MOTOR CO.
Fig 175: Inline Connector End View (C340)
Courtesy of FORD MOTOR CO.

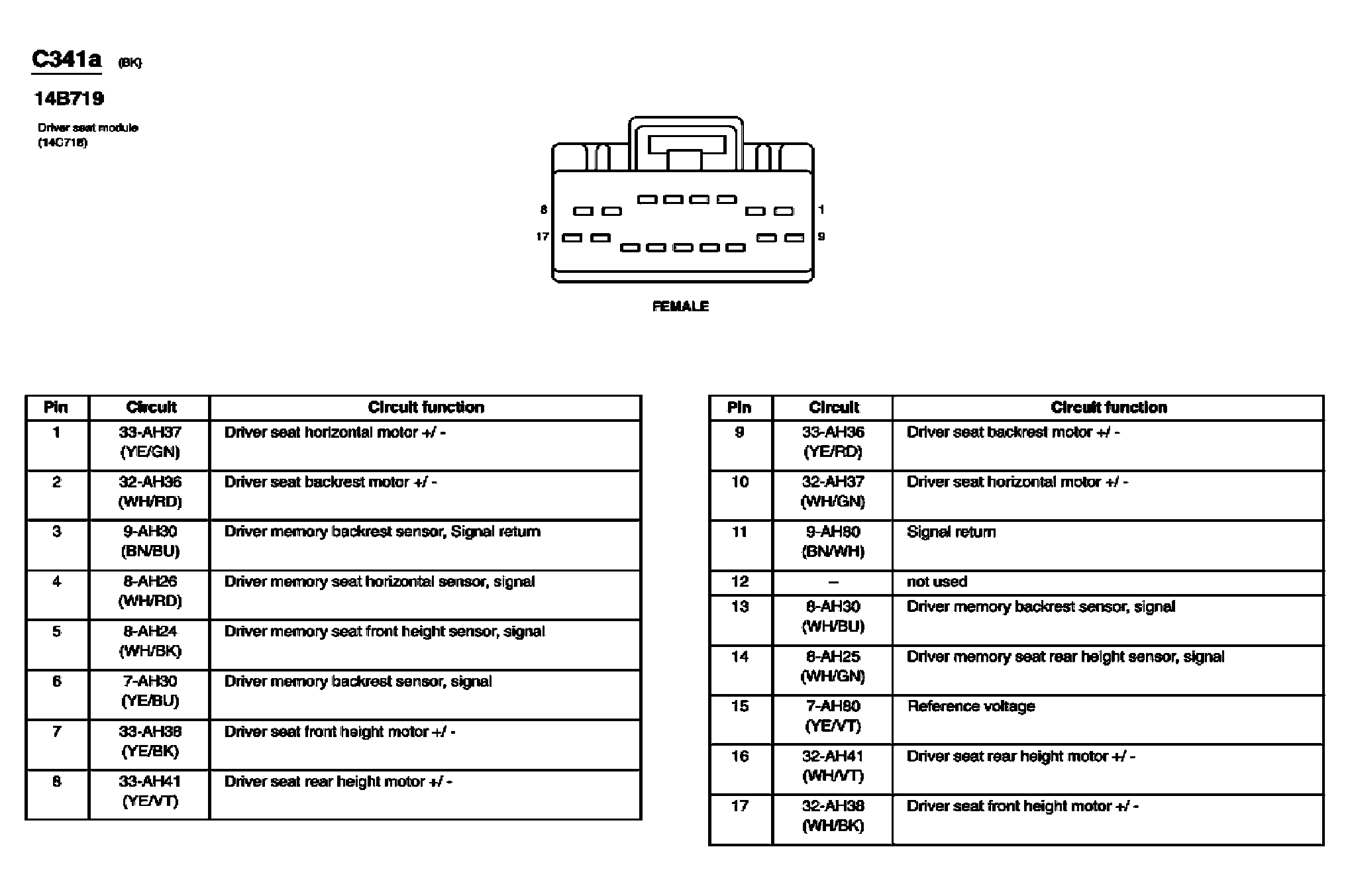

Fig 176: Driver Seat Module Connector End View (C341a)
Courtesy of FORD MOTOR CO.
Fig 177: Driver Seat Module Connector End View (C341b)
Courtesy of FORD MOTOR CO.

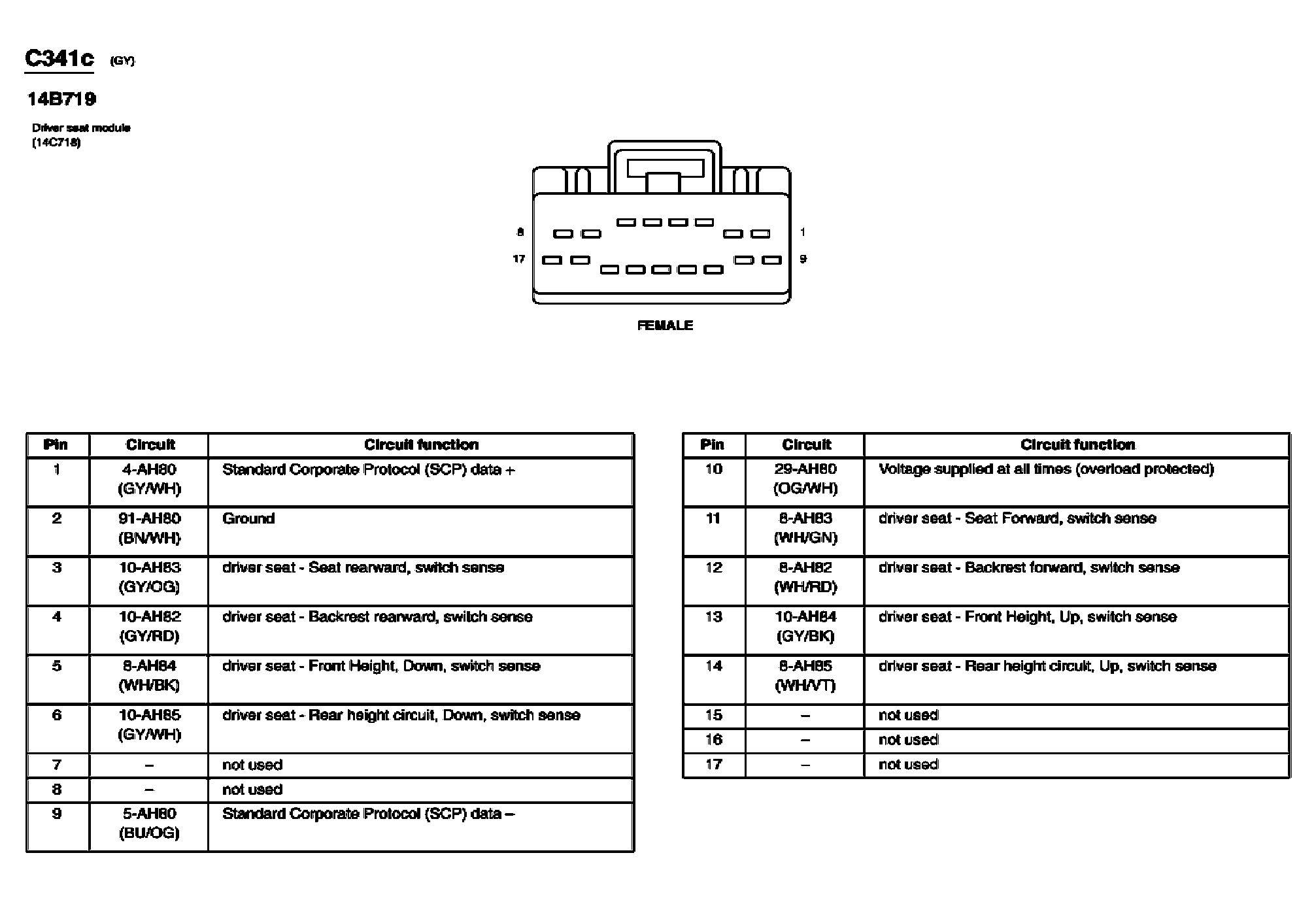

Fig 178: Driver Seat Module Connector End View (C341c)
Courtesy of FORD MOTOR CO.

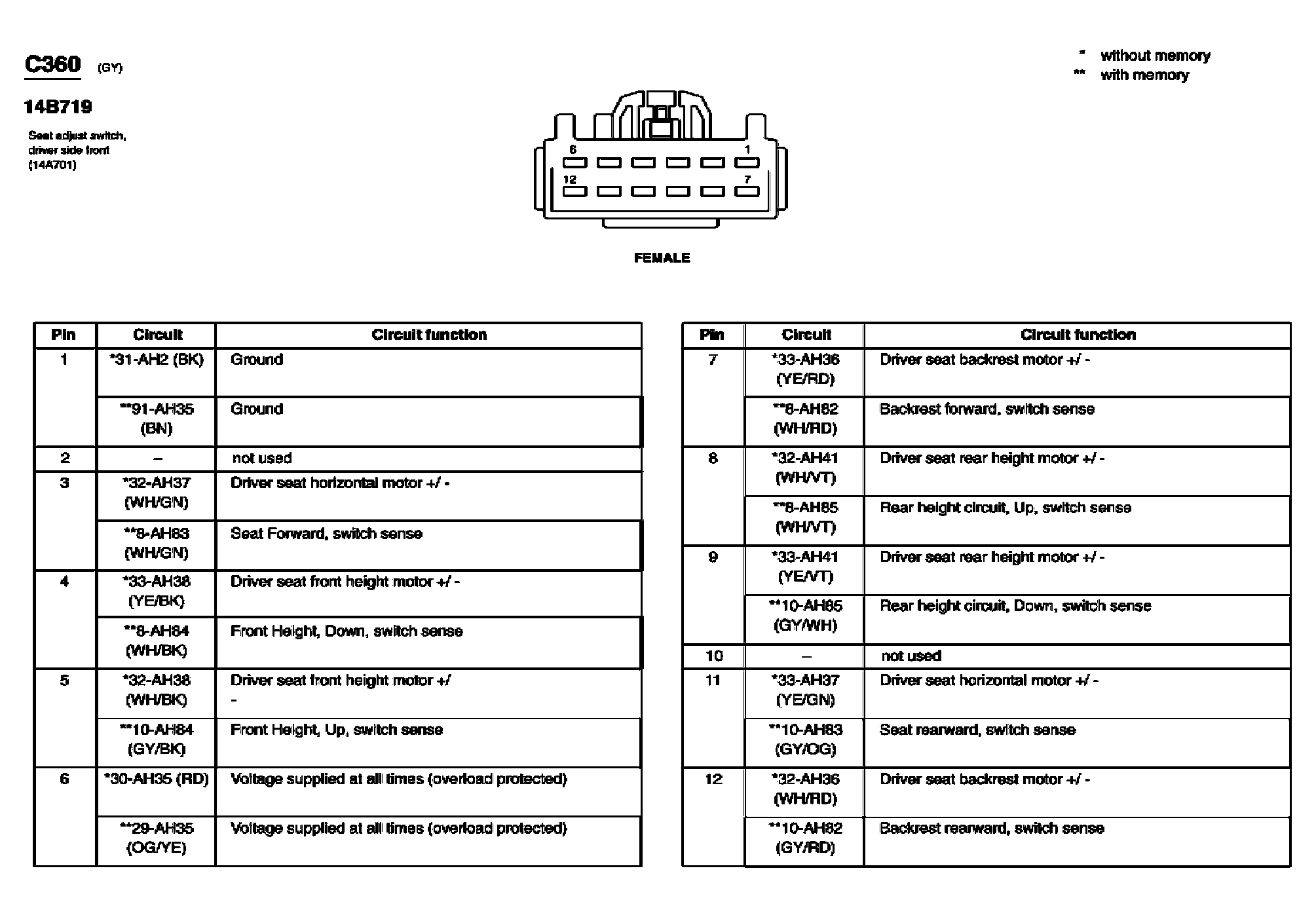

Fig 179: Seat Adjust Switch, Driver Side Front Connector End View (C360)
Courtesy of FORD MOTOR CO.
Fig 180: Lumbar Adjust Switch, Left Front Connector End View (C361)
Courtesy of FORD MOTOR CO.
Fig 181: Driver Seat Horizontal Motor Connector End View (C362)
Courtesy of FORD MOTOR CO.
Fig 182: Driver Seat Rear Height Motor Connector End View (C363)
Courtesy of FORD MOTOR CO.
Fig 183: Driver Seat Lumbar Compressor Motor Connector End View (C366)
Courtesy of FORD MOTOR CO.
Fig 184: Side Air Bag Module, Left Connector End View (C367)
Courtesy of FORD MOTOR CO.
Fig 185: Driver Seat Backrest Motor Connector End View (C368)
Courtesy of FORD MOTOR CO.
Fig 186: Driver Memory Seat Horizontal Sensor Connector End View (C372)
Courtesy of FORD MOTOR CO.
Fig 187: Driver Memory Seat Rear Height Sensor Connector End View (C373)
Courtesy of FORD MOTOR CO.
Fig 188: Driver Memory Backrest Sensor Connector End View (C376)
Courtesy of FORD MOTOR CO.
Fig 189: Driver Seat Front Height Motor Connector End View (C382)
Courtesy of FORD MOTOR CO.
Fig 190: Driver Memory Seat Front Height Sensor Connector End View (C383)
Courtesy of FORD MOTOR CO.
Fig 191: Rear Window Defrost Grid Connector End View (C402a)
Courtesy of FORD MOTOR CO.
Fig 192: Rear Window Defrost Grid Connector End View (C402b)
Courtesy of FORD MOTOR CO.
Fig 193: Inline Connector End View (C405)
Courtesy of FORD MOTOR CO.
Fig 194: Battery Junction Box (BJB) Connector End View (C407a)
Courtesy of FORD MOTOR CO.
Fig 195: Battery Junction Box (BJB) Connector End View (C407b)
Courtesy of FORD MOTOR CO.
Fig 196: Inline Connector End View (C408)
Courtesy of FORD MOTOR CO.
Fig 197: Fuel Door Release Solenoid Connector End View (C409)
Courtesy of FORD MOTOR CO.
Fig 198: Inline Connector End View (C410)
Courtesy of FORD MOTOR CO.
Fig 199: Inline Connector End View (C411)
Courtesy of FORD MOTOR CO.
Fig 200: Turn Lamp, Left Rear Connector End View (C413)
Courtesy of FORD MOTOR CO.
Fig 201: Lamp Assembly, Left Rear Connector End View (C414)
Courtesy of FORD MOTOR CO.
Fig 202: Turn Lamp, Right Rear Connector End View (C416)
Courtesy of FORD MOTOR CO.
Fig 203: Lamp Assembly, Right Rear Connector End View (C417)
Courtesy of FORD MOTOR CO.
Fig 204: Rear Electronic Module (REM) Connector End View (C420a)
Courtesy of FORD MOTOR CO.

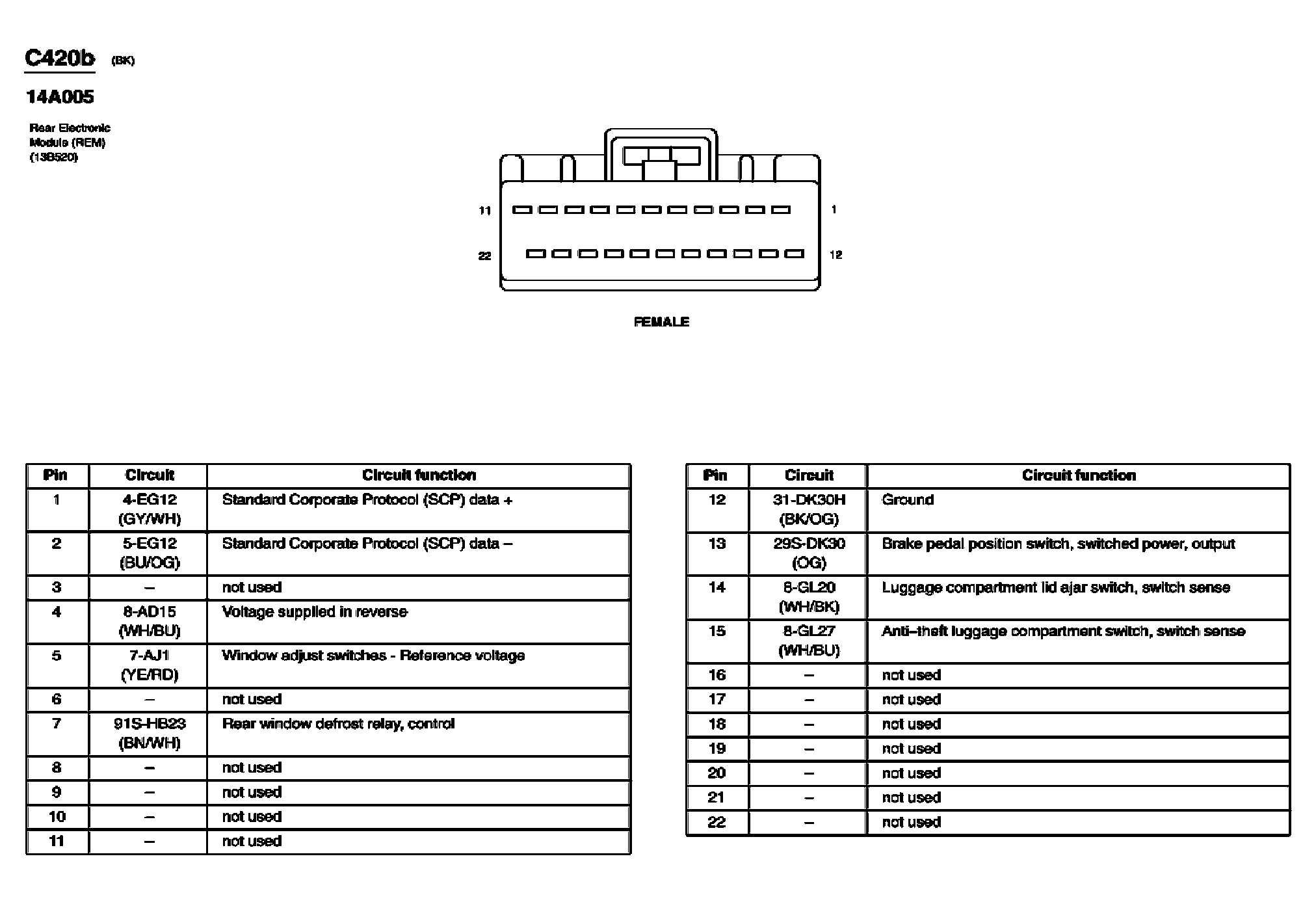

Fig 205: Rear Electronic Module (REM) Connector End View (C420b)
Courtesy of FORD MOTOR CO.

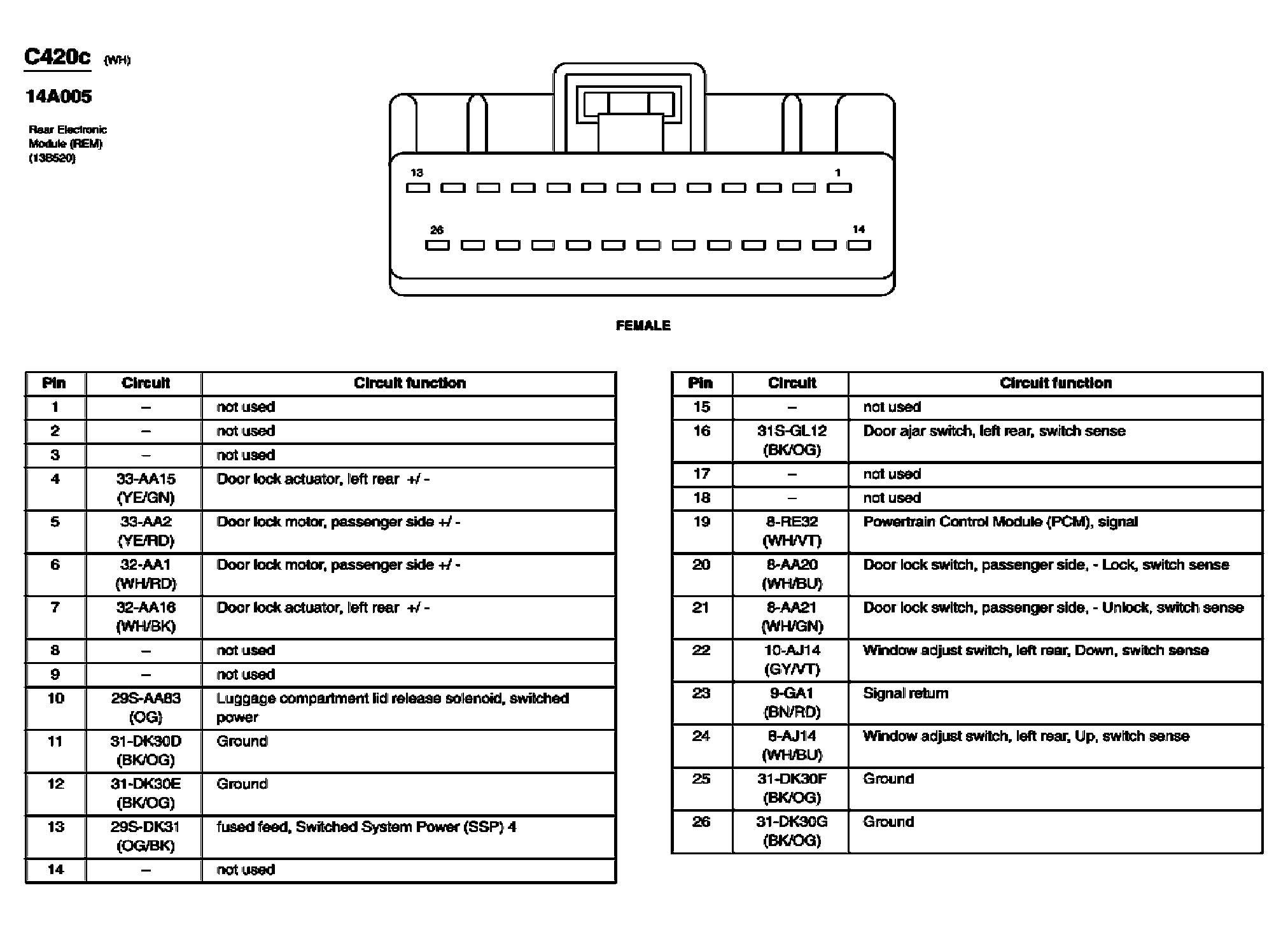

Fig 206: Rear Electronic Module (REM) Connector End View (C420c)
Courtesy of FORD MOTOR CO.

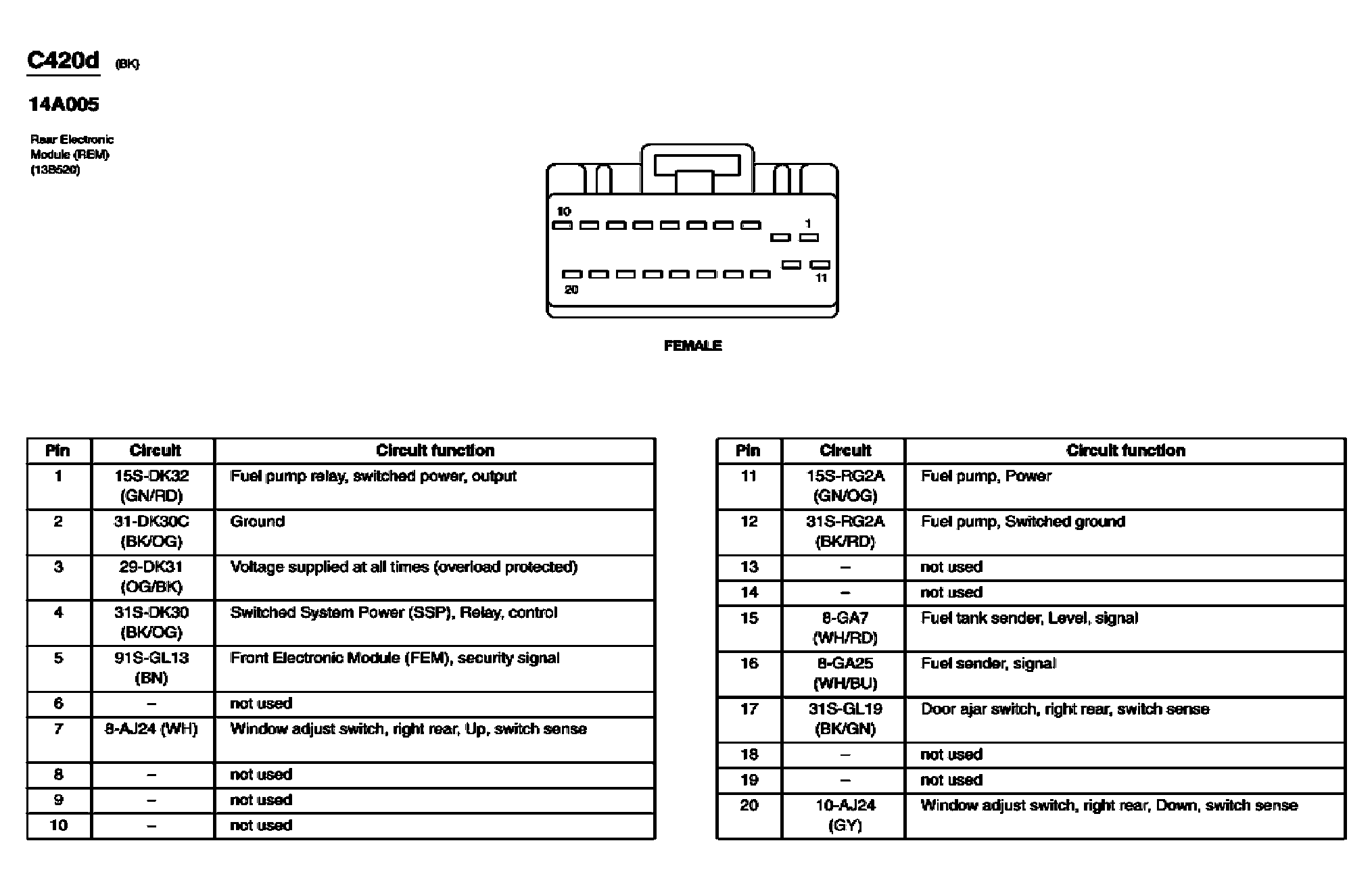

Fig 207: Rear Electronic Module (REM) Connector End View (C420d)
Courtesy of FORD MOTOR CO.
Fig 208: Rear Electronic Module (REM) Connector End View (C420e)
Courtesy of FORD MOTOR CO.
Fig 209: Rear Electronic Module (REM) Connector End View (C420f)
Courtesy of FORD MOTOR CO.
Fig 210: Rear Electronic Module (REM) Connector End View (C420g)
Courtesy of FORD MOTOR CO.
Fig 211: Wheel Speed Sensor, Right Rear Connector End View (C426)
Courtesy of FORD MOTOR CO.

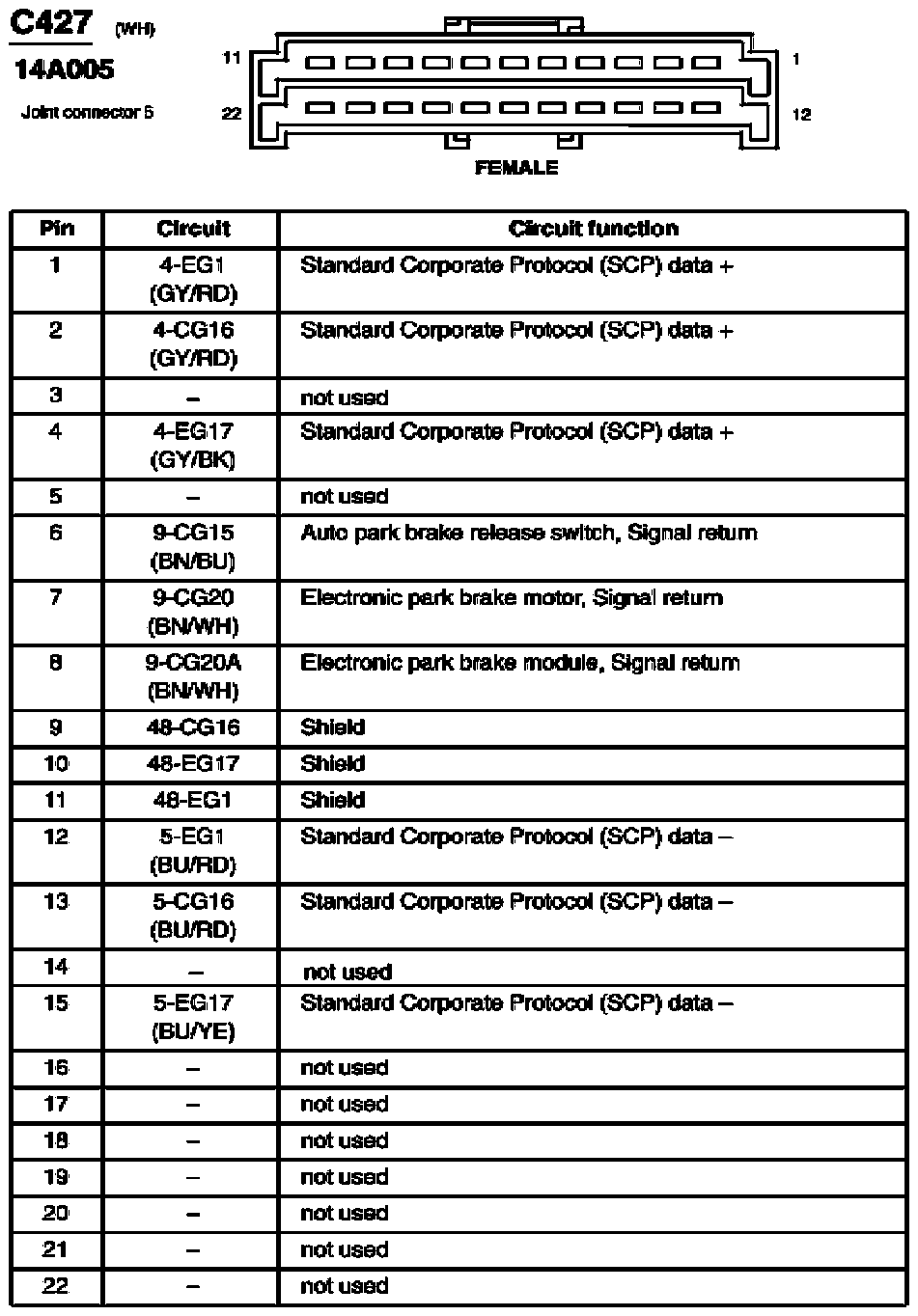

Fig 212: Joint Connector 5 Connector End View (C427)
Courtesy of FORD MOTOR CO.
Fig 213: Luggage Compartment Lamp Connector End View (C428)
Courtesy of FORD MOTOR CO.
Fig 214: Luggage Compartment Lid Ajar Switch Connector End View (C429)
Courtesy of FORD MOTOR CO.
Fig 215: Luggage Compartment Lid Release Solenoid Connector End View (C430)
Courtesy of FORD MOTOR CO.
Fig 216: Inline Connector End View (C431)
Courtesy of FORD MOTOR CO.
Fig 217: Inline Connector End View (C432)
Courtesy of FORD MOTOR CO.
Fig 218: Fuel Tank Unit Connector End View (C433)
Courtesy of FORD MOTOR CO.
Fig 219: Fuel Sender Connector End View (C434)
Courtesy of FORD MOTOR CO.
Fig 220: Fuel Tank Pressure Transducer Sensor Connector End View (C435)
Courtesy of FORD MOTOR CO.
Fig 221: Wheel Speed Sensor, Left Rear Connector End View (C440)
Courtesy of FORD MOTOR CO.
Fig 222: SSP 1 Relay Connector End View (C441)
Courtesy of FORD MOTOR CO.
Fig 223: SSP 2 Relay Connector End View (C442)
Courtesy of FORD MOTOR CO.
Fig 224: Rear Window Defrost Relay Connector End View (C443)
Courtesy of FORD MOTOR CO.
Fig 225: SSP 3 Relay Connector End View (C444)
Courtesy of FORD MOTOR CO.
Fig 226: SSP 4 Relay Connector End View (C445)
Courtesy of FORD MOTOR CO.
Fig 227: Fuel Pump Relay Connector End View (C446)
Courtesy of FORD MOTOR CO.
Fig 228: Fuel Pump Motor Diode Connector End View (C449)
Courtesy of FORD MOTOR CO.
Fig 229: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)
Courtesy of FORD MOTOR CO.
Fig 230: Reversing Lamp, Left Connector End View (C451)
Courtesy of FORD MOTOR CO.
Fig 231: License Plate Lamp, Left Connector End View (C452)
Courtesy of FORD MOTOR CO.
Fig 232: Reversing Lamp, Right Connector End View (C461)
Courtesy of FORD MOTOR CO.
Fig 233: License Plate Lamp, Right Connector End View (C462)
Courtesy of FORD MOTOR CO.
Fig 234: Inline Connector End View (C465)
Courtesy of FORD MOTOR CO.
Fig 235: Subwoofer Amplifier Connector End View (C466a)
Courtesy of FORD MOTOR CO.
Fig 236: Subwoofer Amplifier Connector End View (C466b)
Courtesy of FORD MOTOR CO.
Fig 237: Anti-Theft Luggage Compartment Switch Connector End View (C483)
Courtesy of FORD MOTOR CO.
Fig 238: Key Pad Switch Assembly Connector End View (C500)
Courtesy of FORD MOTOR CO.
Fig 239: Driver Door Module Connector End View (C501a)
Courtesy of FORD MOTOR CO.

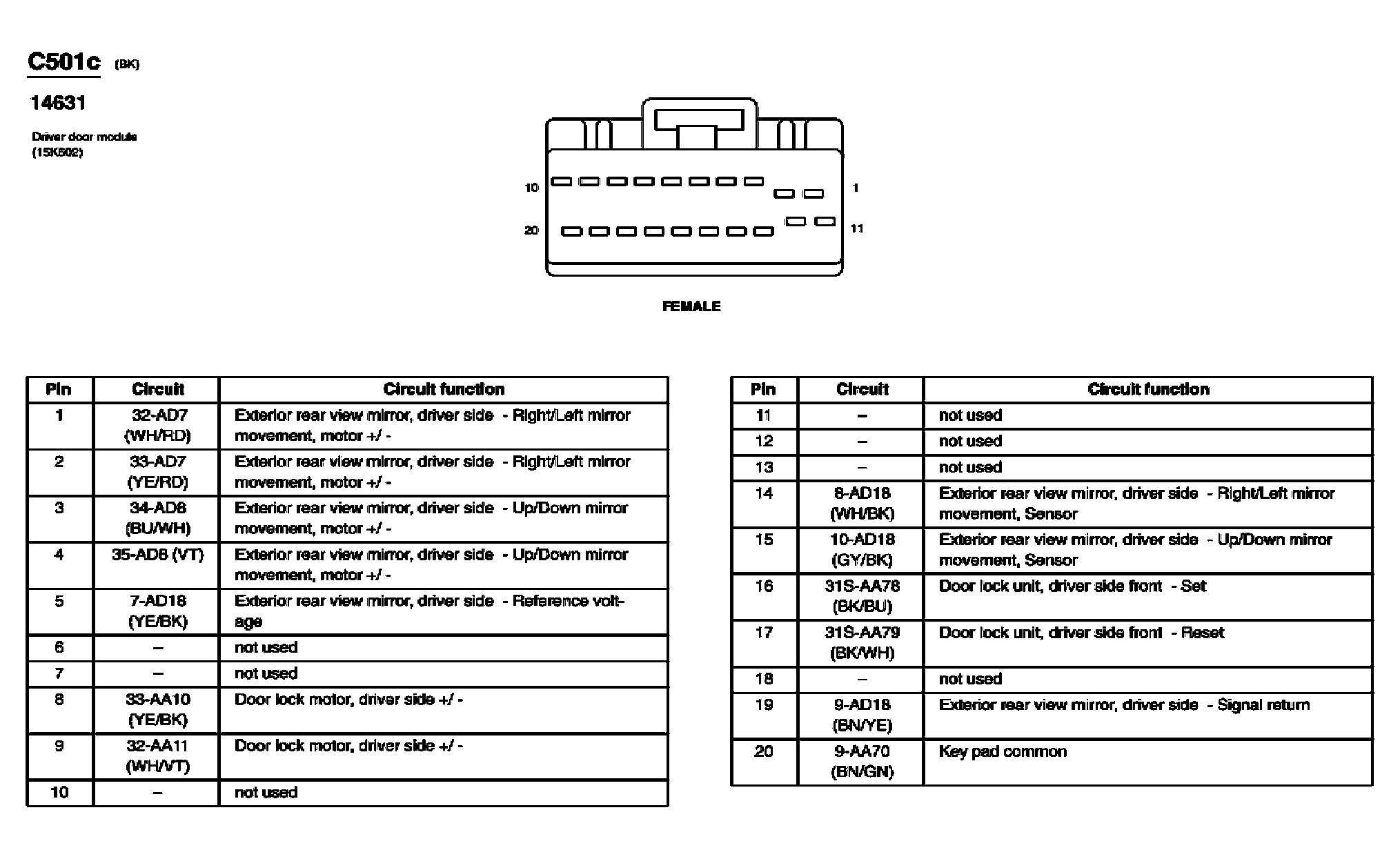

Fig 240: Driver Door Module Connector End View (C501c)
Courtesy of FORD MOTOR CO.

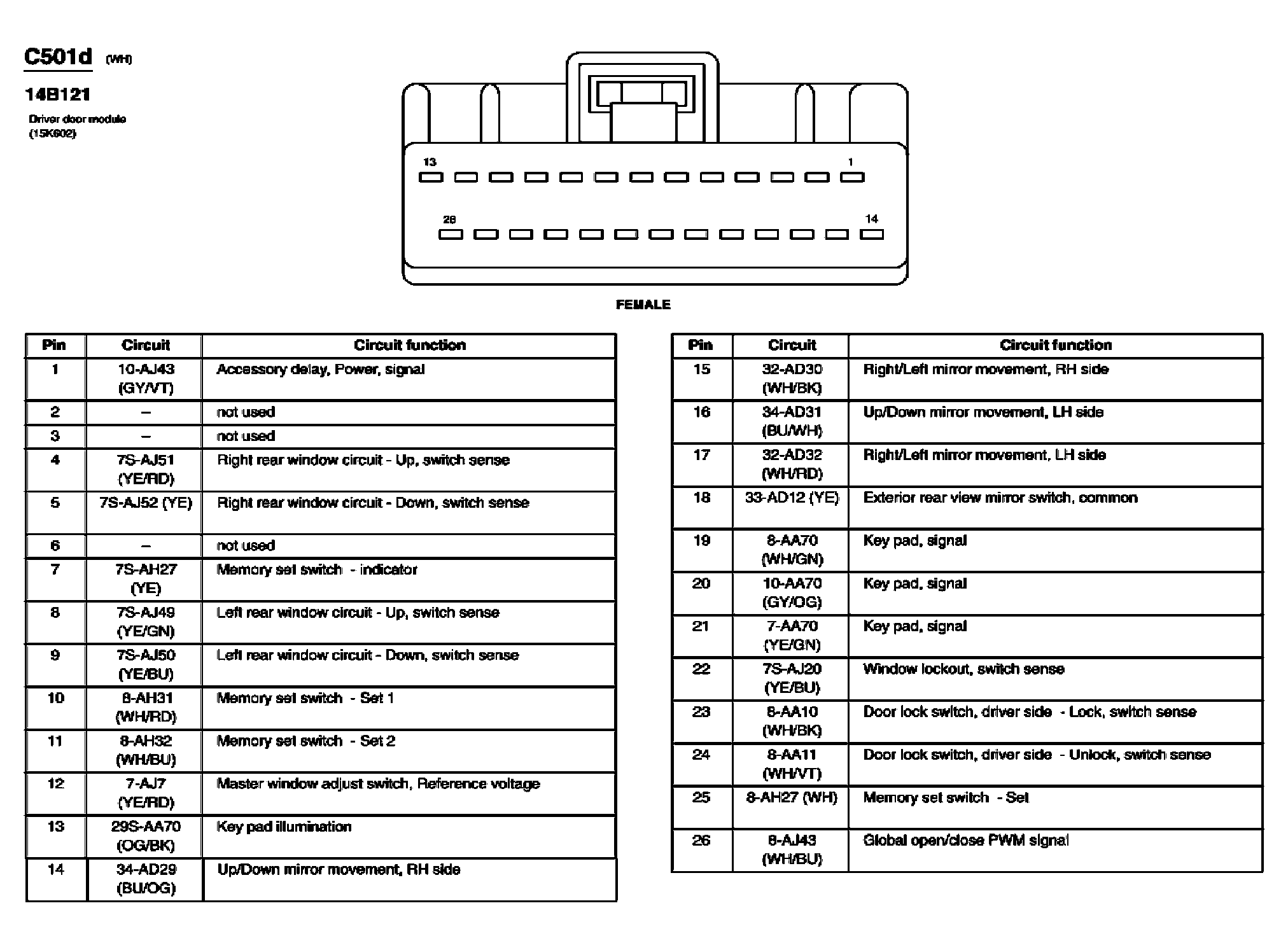

Fig 241: Driver Door Module Connector End View (C501d)
Courtesy of FORD MOTOR CO.
Fig 242: Memory Set Switch Connector End View (C503)
Courtesy of FORD MOTOR CO.
Fig 243: Master Window Adjust Switch Connector End View (C504a)
Courtesy of FORD MOTOR CO.
Fig 244: Master Window Adjust Switch Connector End View (C504b)
Courtesy of FORD MOTOR CO.
Fig 245: Door Lock Switch, Driver Side Connector End View (C505)
Courtesy of FORD MOTOR CO.
Fig 246: Inline Connector End View (C510)
Courtesy of FORD MOTOR CO.
Fig 247: Inline Connector End View (C511)
Courtesy of FORD MOTOR CO.

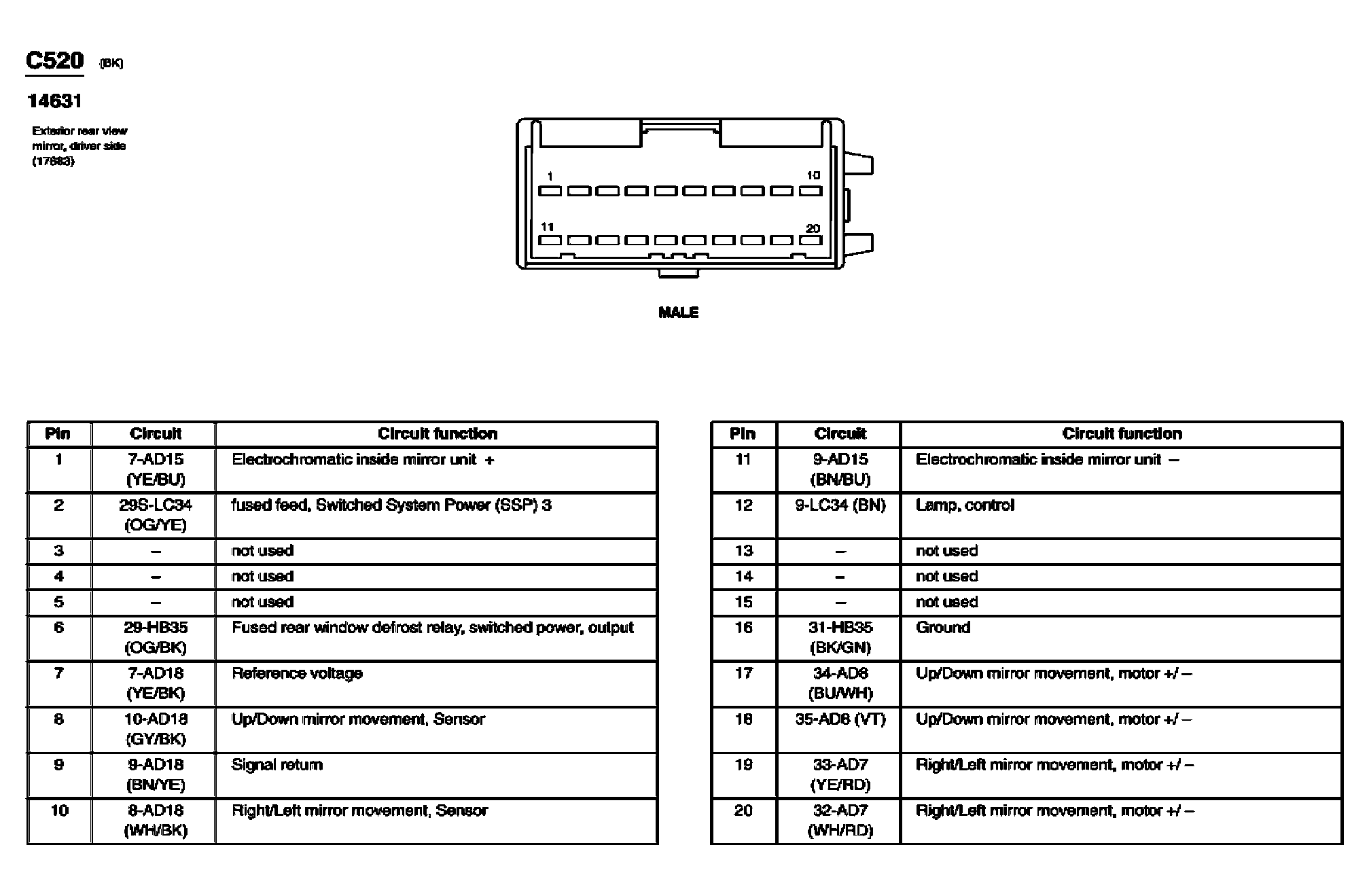

Fig 248: Exterior Rear View Mirror, Driver Side Connector End View (C520)
Courtesy of FORD MOTOR CO.
Fig 249: Speaker, Left Front Connector End View (C523)
Courtesy of FORD MOTOR CO.
Fig 250: Power Window Motor, Driver Side Front Connector End View (C524)
Courtesy of FORD MOTOR CO.
Fig 251: Door Lock Unit, Driver Side Front Connector End View (C525)
Courtesy of FORD MOTOR CO.
Fig 252: Exterior Rear View Mirror Switch Connector End View (C527)
Courtesy of FORD MOTOR CO.
Fig 253: Inline Connector End View (C561)
Courtesy of FORD MOTOR CO.
Fig 254: Inline Connector End View (C562)
Courtesy of FORD MOTOR CO.

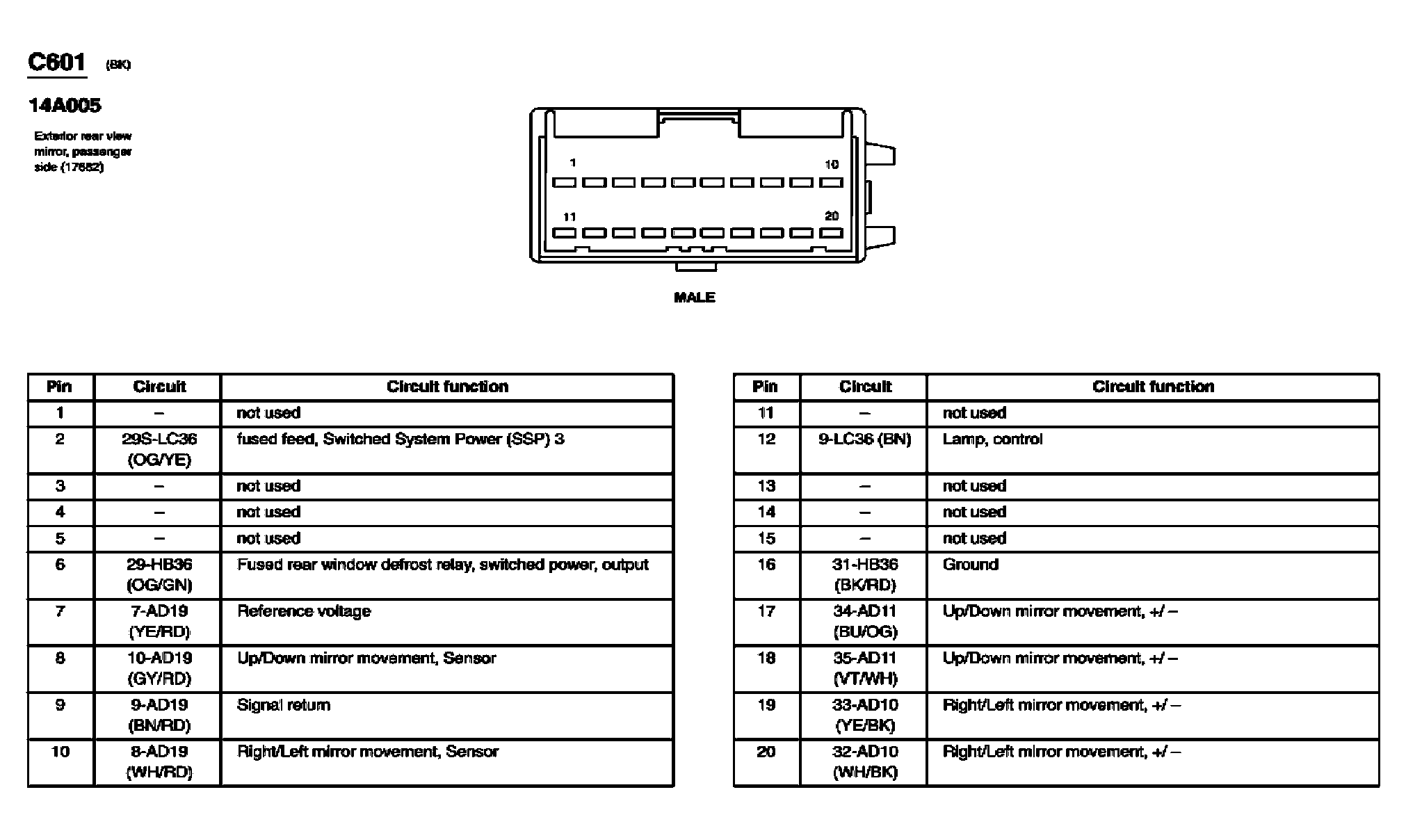

Fig 255: Exterior Rear View Mirror, Driver Side Connector End View (C601)
Courtesy of FORD MOTOR CO.
Fig 256: Window Adjust Switch, Passenger Side Connector End View (C604)
Courtesy of FORD MOTOR CO.
Fig 257: Door Lock Switch, Passenger Side Connector End View (C605)
Courtesy of FORD MOTOR CO.
Fig 258: Power Window Motor, Passenger Side Front Connector End View (C608)
Courtesy of FORD MOTOR CO.
Fig 259: Door Lock Unit, Passenger Side Front Connector End View (C609)
Courtesy of FORD MOTOR CO.
Fig 260: Inline Connector End View (C610)
Courtesy of FORD MOTOR CO.
Fig 261: Inline Connector End View (C611)
Courtesy of FORD MOTOR CO.
Fig 262: Speaker, Right Front Connector End View (C612)
Courtesy of FORD MOTOR CO.
Fig 263: Window Adjust Switch, Left Rear Connector End View (C701)
Courtesy of FORD MOTOR CO.
Fig 264: Speaker, Left Rear Connector End View (C702)
Courtesy of FORD MOTOR CO.
Fig 265: Power Window Motor, Left Rear Connector End View (C703)
Courtesy of FORD MOTOR CO.
Fig 266: Door Lock Actuator, Left Rear Connector End View (C704)
Courtesy of FORD MOTOR CO.
Fig 267: Inline Connector End View (C710)
Courtesy of FORD MOTOR CO.
Fig 268: Seat Heater Switch, Left Rear Connector End View (C722)
Courtesy of FORD MOTOR CO.
Fig 269: Window Adjust Switch, Right Rear Connector End View (C801)
Courtesy of FORD MOTOR CO.
Fig 270: Speaker, Right Rear Connector End View (C802)
Courtesy of FORD MOTOR CO.
Fig 271: Power Window Motor, Right Rear Connector End View (C803)
Courtesy of FORD MOTOR CO.
Fig 272: Door Lock Actuator, Right Rear Connector End View (C804)
Courtesy of FORD MOTOR CO.
Fig 273: Inline Connector End View (C810)
Courtesy of FORD MOTOR CO.
Fig 274: Seat Heater Switch, Right Rear Connector End View (C822)
Courtesy of FORD MOTOR CO.
Fig 275: Map Reading Lamp, Right Front Connector End View (C903)
Courtesy of FORD MOTOR CO.
Fig 276: High Mounted Stoplamp Connector End View (C904)
Courtesy of FORD MOTOR CO.
Fig 277: Map Reading Lamp Switch, Right Front Connector End View (C905)
Courtesy of FORD MOTOR CO.
Fig 278: Vanity Mirror Lamp, Right Connector End View (C906)
Courtesy of FORD MOTOR CO.
Fig 279: Vanity Mirror Lamp, Left Connector End View (C907)
Courtesy of FORD MOTOR CO.
Fig 280: Map Reading Lamp, Left Front Connector End View (C908)
Courtesy of FORD MOTOR CO.
Fig 281: Map Reading Lamp Switch, Left Front Connector End View (C910)
Courtesy of FORD MOTOR CO.
Fig 282: Electrochromatic Inside Mirror Unit Connector End View (C911)
Courtesy of FORD MOTOR CO.
Fig 283: Roof Opening Panel Switch Connector End View (C912)
Courtesy of FORD MOTOR CO.
Fig 284: Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.
Fig 285: Roof Opening Panel Motor Assembly Connector End View (C920)
Courtesy of FORD MOTOR CO.
Fig 286: COPS & Heated Oxygen Sensor (HO2S) Relay Connector End View (C1003)
Courtesy of FORD MOTOR CO.
Fig 287: Auxiliary Coolant Pump Relay Connector End View (C1005)
Courtesy of FORD MOTOR CO.
Fig 288: Horn Relay Connector End View (C1006)
Courtesy of FORD MOTOR CO.
Fig 289: Fog Lamp Relay Connector End View (C1007)
Courtesy of FORD MOTOR CO.
Fig 290: A/C Clutch Relay Connector End View (C1008)
Courtesy of FORD MOTOR CO.
Fig 291: Junction Block Connector End View (C1010b)
Courtesy of FORD MOTOR CO.
Fig 292: Junction Block Connector End View (C1010c)
Courtesy of FORD MOTOR CO.
Fig 293: Heated Wiper Park Relay Connector End View (C1014)
Courtesy of FORD MOTOR CO.
Fig 294: PCM Power Relay Connector End View (C1016)
Courtesy of FORD MOTOR CO.
Fig 295: Starter Relay Connector End View (C1017)
Courtesy of FORD MOTOR CO.
Fig 296: PCM Power Diode Connector End View (C1018)
Courtesy of FORD MOTOR CO.
Fig 297: Headlamp, Left Connector End View (C1021)
Courtesy of FORD MOTOR CO.
Fig 298: Park/Turn Lamp, Left Front Connector End View (C1023)
Courtesy of FORD MOTOR CO.
Fig 299: Inline Connector End View (C1026)
Courtesy of FORD MOTOR CO.
Fig 300: Coolant Control Valve Solenoid Connector End View (C1034)
Courtesy of FORD MOTOR CO.
Fig 301: Headlamp, Right Connector End View (C1041)
Courtesy of FORD MOTOR CO.
Fig 302: Park/Turn Lamp, Right Front Connector End View (C1043)
Courtesy of FORD MOTOR CO.
Fig 303: Engine Cooling Fan Motor Connector End View (C1048)
Courtesy of FORD MOTOR CO.
Fig 304: Fuel Rail Temperature Sensor Connector End View (C1257)
Courtesy of FORD MOTOR CO.
Fig 305: A/C Pressure Transducer Sensor Connector End View (C1260)
Courtesy of FORD MOTOR CO.
Fig 306: Brake Pedal Position Sensor Connector End View (C1347)
Courtesy of FORD MOTOR CO.
Fig 307: Camshaft Position Sensor 1 Connector End View (C1366)
Courtesy of FORD MOTOR CO.
Fig 308: Camshaft Position Sensor 2 Connector End View (C1367)
Courtesy of FORD MOTOR CO.
Fig 309: Electronic Throttle Control (ETC) Motor Connector End View (C1368)
Courtesy of FORD MOTOR CO.
Fig 310: Variable Valve Timing Solenoid 1 Connector End View (C1369)
Courtesy of FORD MOTOR CO.
Fig 311: Variable Valve Timing Solenoid 2 Connector End View (C1370)
Courtesy of FORD MOTOR CO.
Fig 312: Inlet Manifold Runner Control (IMRC) Solenoid 1 Connector End View (C1371)
Courtesy of FORD MOTOR CO.
Fig 313: Inlet Manifold Runner Control (IMRC) Solenoid 2 Connector End View (C1372)
Courtesy of FORD MOTOR CO.
Fig 314: High Intensity Discharge Headlamp Relay, Left Connector End View (C1379)
Courtesy of FORD MOTOR CO.
Fig 315: High Intensity Discharge Headlamp Relay, Right Connector End View (C1380)
Courtesy of FORD MOTOR CO.
Fig 316: Brake Fluid Level Sensor Connector End View (C1395)
Courtesy of FORD MOTOR CO.
Fig 317: Adjustable Pedal Motor Connector End View (C2003)
Courtesy of FORD MOTOR CO.
Fig 318: Brake Shift Interlock Connector End View (C2008)
Courtesy of FORD MOTOR CO.
Fig 319: Electronic Throttle Control (ETC) Module Connector End View (C2040)
Courtesy of FORD MOTOR CO.
Fig 320: Adjustable Pedal Switch Connector End View (C2089)
Courtesy of FORD MOTOR CO.
Fig 321: Adjustable Pedal Memory Potentiometer Connector End View (C2090)
Courtesy of FORD MOTOR CO.
Fig 322: Steering Column Position Switch Connector End View (C2250)
Courtesy of FORD MOTOR CO.

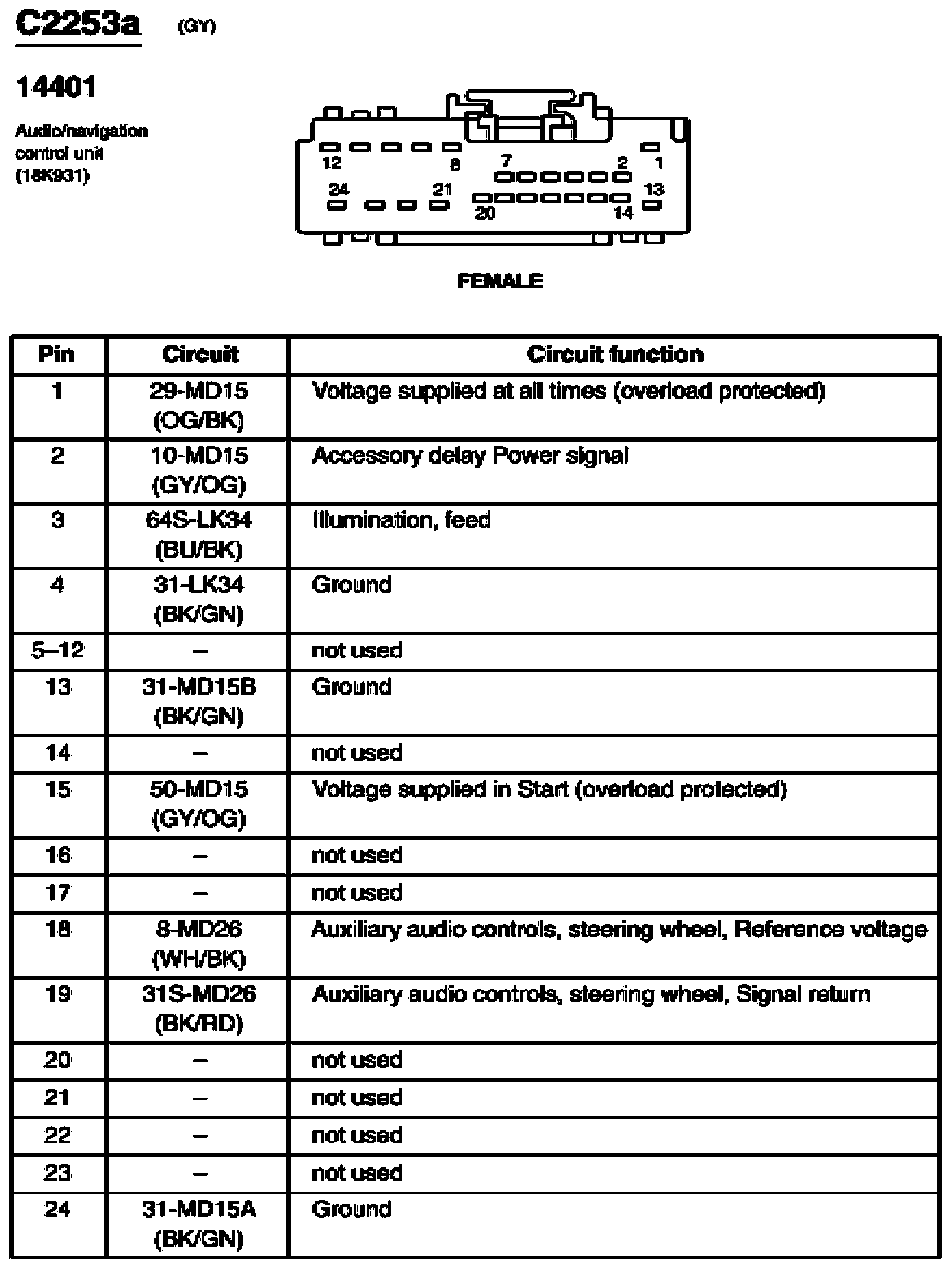

Fig 323: Audio/Navigation Control Unit Connector End View (C2253a)
Courtesy of FORD MOTOR CO.
Fig 324: Audio/Navigation Control Unit Connector End View (C2253b)
Courtesy of FORD MOTOR CO.
Fig 325: Audio/Navigation Control Unit Connector End View (C2253c)
Courtesy of FORD MOTOR CO.
Fig 326: Audio/Navigation Control Unit Connector End View (C2253d)
Courtesy of FORD MOTOR CO.
Fig 327: Fuel Door Release Switch Connector End View (C2258)
Courtesy of FORD MOTOR CO.
Fig 328: Heated Wiper Park Connector End View (C2272a)
Courtesy of FORD MOTOR CO.
Fig 329: Heated Wiper Park Connector End View (C2272b)
Courtesy of FORD MOTOR CO.
Fig 330: Side Air Curtain Bridge Resistor, Left Connector End View (C2283)
Courtesy of FORD MOTOR CO.
Fig 331: Side Air Curtain Bridge Resistor, Right Connector End View (C2284)
Courtesy of FORD MOTOR CO.
Fig 332: Inline Connector End View (C3007)
Courtesy of FORD MOTOR CO.
Fig 333: Climate Controlled Seat Module, Driver Side Connector End View (C3031a)
Courtesy of FORD MOTOR CO.

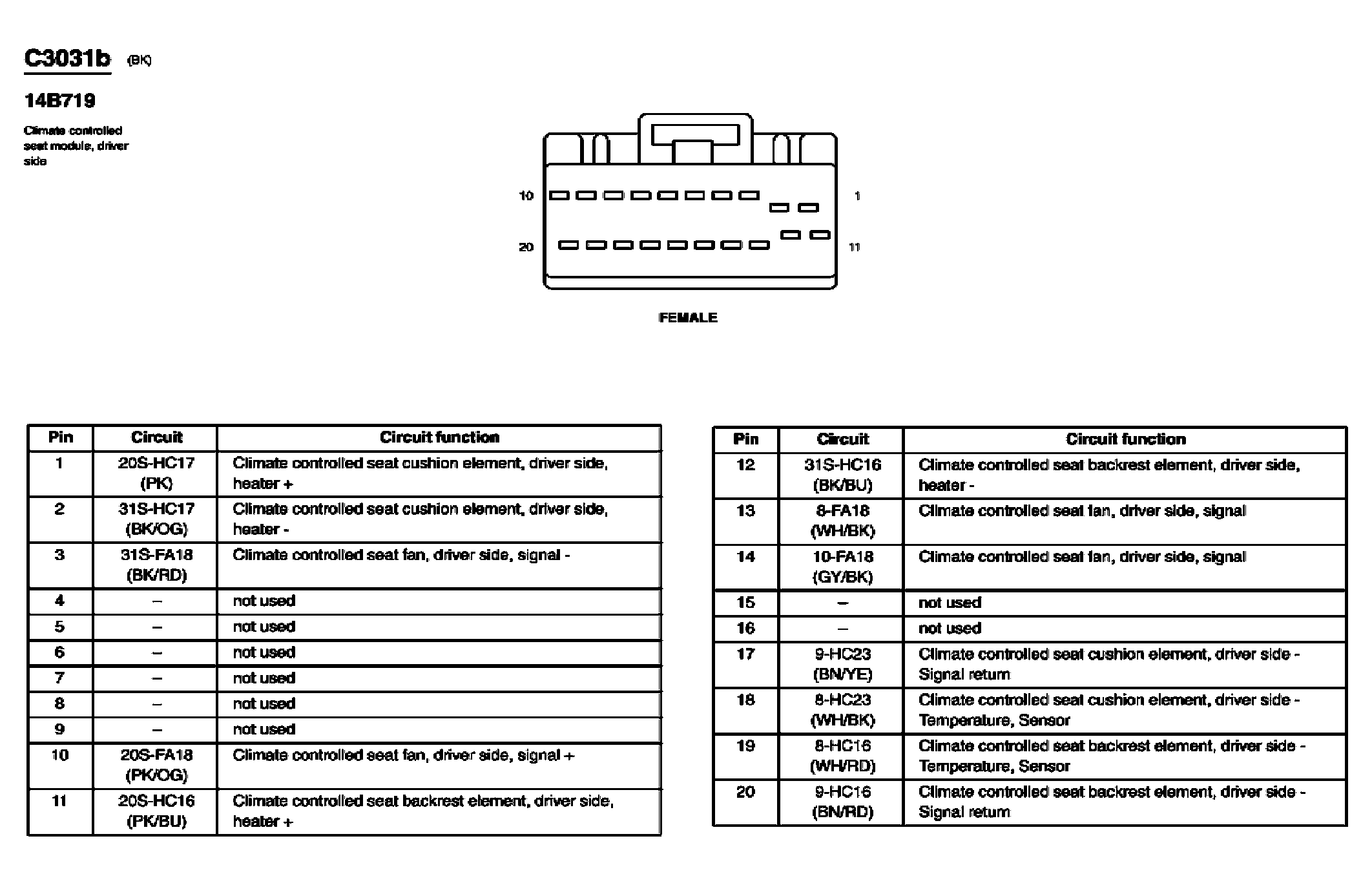

Fig 334: Climate Controlled Seat Module, Driver Side Connector End View (C3031b)
Courtesy of FORD MOTOR CO.
Fig 335: Climate Controlled Seat Fan, Driver Side Connector End View (C3033)
Courtesy of FORD MOTOR CO.
Fig 336: Climate Controlled Seat Backrest Element, Driver Side Connector End View (C3034)
Courtesy of FORD MOTOR CO.
Fig 337: Climate Controlled Seat Cushion Element, Driver Side Connector End View (C3035)
Courtesy of FORD MOTOR CO.
Fig 338: Climate Controlled Seat Module, Passenger Side Connector End View (C3036a)
Courtesy of FORD MOTOR CO.

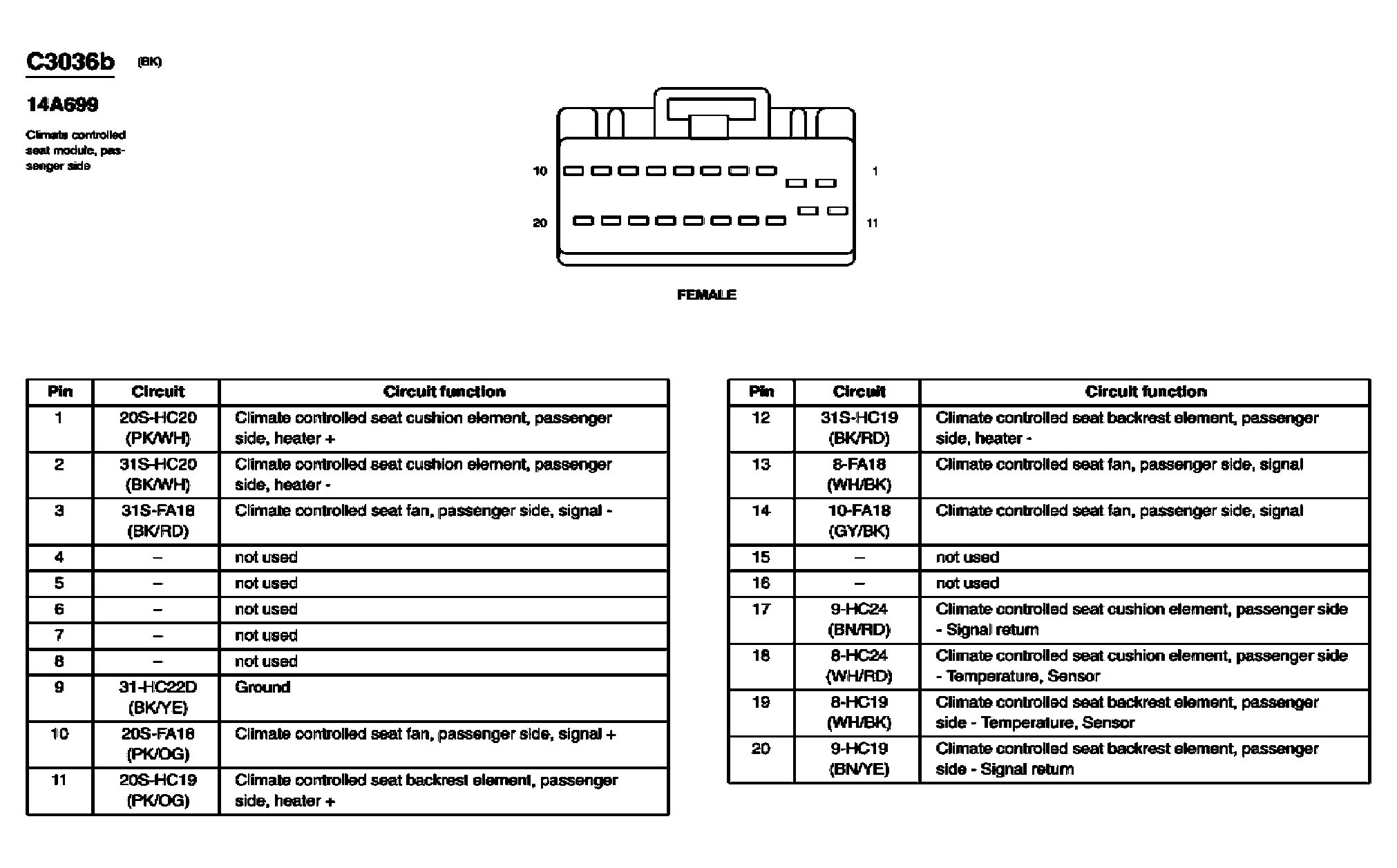

Fig 339: Climate Controlled Seat Module, Passenger Side Connector End View (C3036b)
Courtesy of FORD MOTOR CO.
Fig 340: Climate Controlled Seat Fan, Passenger Side Connector End View (C3038)
Courtesy of FORD MOTOR CO.
Fig 341: Climate Controlled Seat Backrest Element, Passenger Side Connector End View (C3039)
Courtesy of FORD MOTOR CO.
Fig 342: Climate Controlled Seat Cushion Element, Passenger Side Connector End View (C3040)
Courtesy of FORD MOTOR CO.
Fig 343: Inline Connector End View (C3049)
Courtesy of FORD MOTOR CO.
Fig 344: Power Point, Console 2 Connector End View (C3064)
Courtesy of FORD MOTOR CO.
Fig 345: Safety Belt Buckle Switch, Driver Connector End View (C3065)
Courtesy of FORD MOTOR CO.
Fig 346: Safety Belt Buckle Switch, Passenger Connector End View (C3066)
Courtesy of FORD MOTOR CO.
Fig 347: Yaw Velocity Sensor Connector End View (C3073)
Courtesy of FORD MOTOR CO.
Fig 348: Heated Seat Module, Left Rear Connector End View (C3162)
Courtesy of FORD MOTOR CO.
Fig 349: Heated Seat Module, Right Rear Connector End View (C3163)
Courtesy of FORD MOTOR CO.
Fig 350: Seat Cushion Heater, Left Rear Connector End View (C3167)
Courtesy of FORD MOTOR CO.
Fig 351: Seat Back Heater, Left Rear Connector End View (C3168)
Courtesy of FORD MOTOR CO.
Fig 352: Seat Cushion Heater, Right Rear Connector End View (C3169)
Courtesy of FORD MOTOR CO.
Fig 353: Seat Back Heater, Right Rear Connector End View (C3170)
Courtesy of FORD MOTOR CO.
Fig 354: Seat Track Position Sensor, Driver Connector End View (C3207)
Courtesy of FORD MOTOR CO.
Fig 355: Traction Control Switch Connector End View (C3208)
Courtesy of FORD MOTOR CO.
Fig 356: Side Impact Sensor, Driver 1 Connector End View (C3209)
Courtesy of FORD MOTOR CO.
Fig 357: Side Impact Sensor, Passenger 1 Connector End View (C3211)
Courtesy of FORD MOTOR CO.
Fig 358: Auto Park Brake Release Switch Connector End View (C3218)
Courtesy of FORD MOTOR CO.
Fig 359: Side Thorax Air Bag Module, Driver Connector End View (C3226)
Courtesy of FORD MOTOR CO.
Fig 360: Side Thorax Air Bag Module, Passenger Connector End View (C3227)
Courtesy of FORD MOTOR CO.
Fig 361: High Mounted Stoplamp Capacitor Connector End View (C3238)
Courtesy of FORD MOTOR CO.
Fig 362: Side Impact Sensor, Left Rear Connector End View (C3248)
Courtesy of FORD MOTOR CO.
Fig 363: Side Impact Sensor, Right Rear Connector End View (C3249)
Courtesy of FORD MOTOR CO.

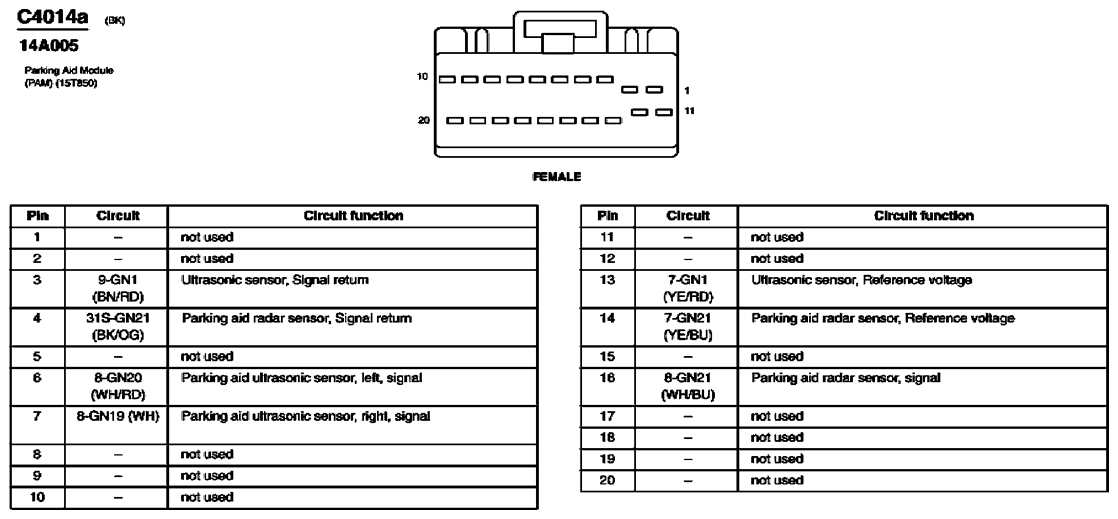

Fig 364: Parking Aid Module (PAM) Connector End View (C4014a)
Courtesy of FORD MOTOR CO.
Fig 365: Parking Aid Module (PAM) Connector End View (C4014b)
Courtesy of FORD MOTOR CO.
Fig 366: Mega Fuse Connector End View (C4066a)
Courtesy of FORD MOTOR CO.
Fig 367: Mega Fuse Connector End View (C4066b)
Courtesy of FORD MOTOR CO.
Fig 368: Subwoofer, Left Connector End View (C4068)
Courtesy of FORD MOTOR CO.
Fig 369: Subwoofer, Right Connector End View (C4069)
Courtesy of FORD MOTOR CO.
Fig 370: Battery Connector End View (C4070a)
Courtesy of FORD MOTOR CO.
Fig 371: Battery Connector End View (C4070b)
Courtesy of FORD MOTOR CO.
Fig 372: Parking Aid Radar Sensor Connector End View (C4191)
Courtesy of FORD MOTOR CO.
Fig 373: Parking Aid Ultrasonic Sensor, Left Connector End View (C4192)
Courtesy of FORD MOTOR CO.
Fig 374: Parking Aid Ultrasonic Sensor, Right Connector End View (C4193)
Courtesy of FORD MOTOR CO.
Fig 375: Electronic Park Brake Module Connector End View (C4205a)
Courtesy of FORD MOTOR CO.
Fig 376: Electronic Park Brake Module Connector End View (C4205b)
Courtesy of FORD MOTOR CO.
Fig 377: Electronic Park Brake Motor Connector End View (C4206)
Courtesy of FORD MOTOR CO.
Fig 378: Radio Amplifier Connector End View (C4208a)
Courtesy of FORD MOTOR CO.

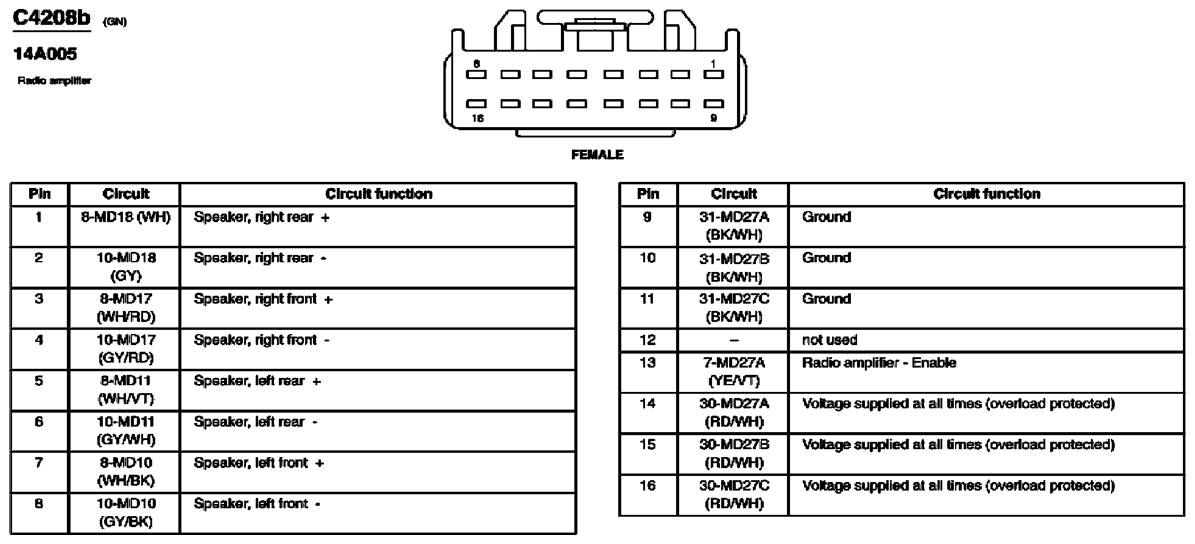

Fig 379: Radio Amplifier Connector End View (C4208b)
Courtesy of FORD MOTOR CO.

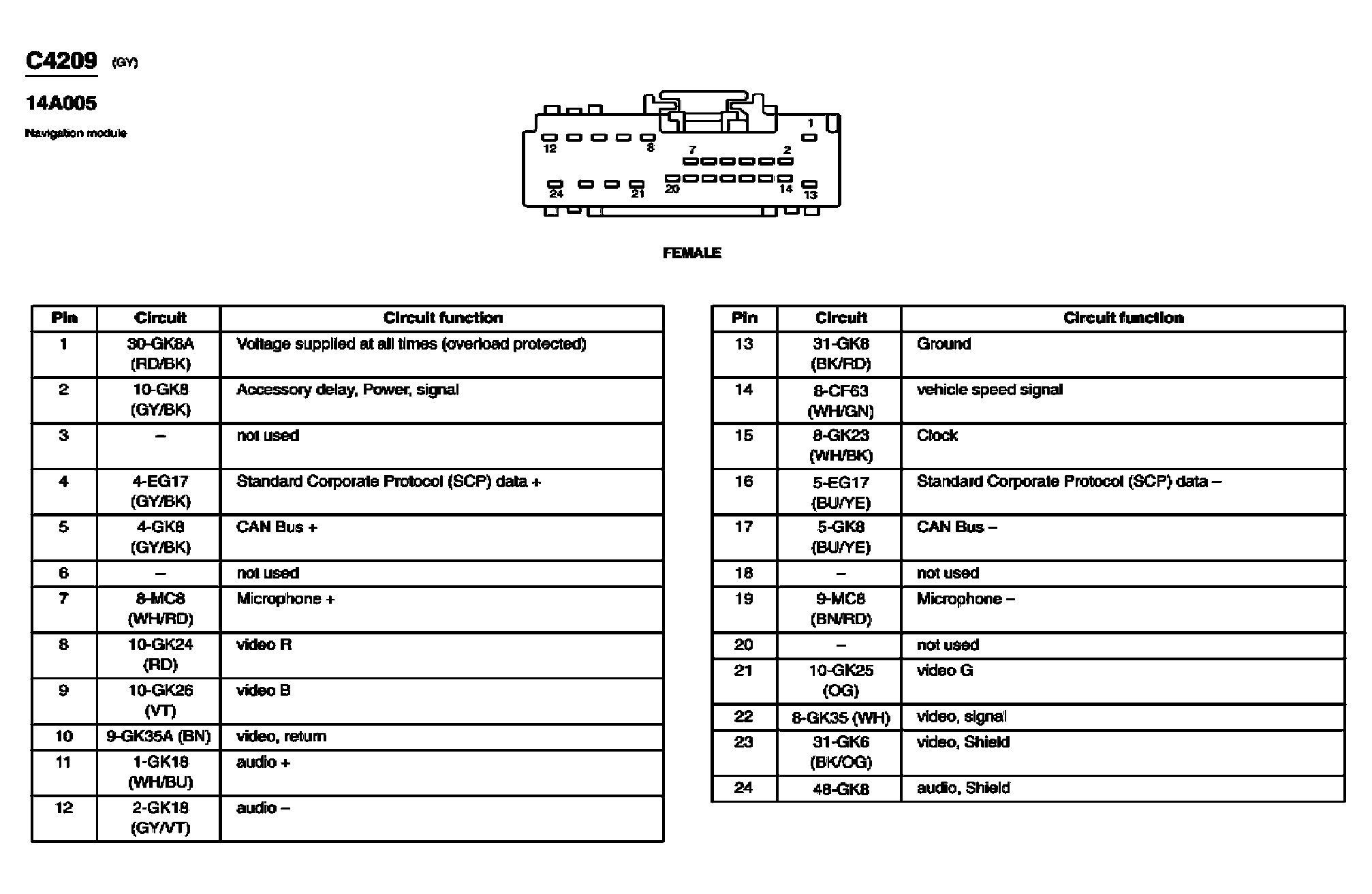

Fig 380: Navigation Module Connector End View (C4209)
Courtesy of FORD MOTOR CO.
Fig 381: Rear Window Defroster Capacitor Connector End View (C4220)
Courtesy of FORD MOTOR CO.
Fig 382: Side Air Curtain Module, Driver Connector End View (C9006)
Courtesy of FORD MOTOR CO.
Fig 383: Side Air Curtain Module, Passenger Connector End View (C9007)
Courtesy of FORD MOTOR CO.
Fig 384: Grab Handle Lamp, Left Rear Connector End View (C9009)
Courtesy of FORD MOTOR CO.
Fig 385: Grab Handle Lamp, Right Rear Connector End View (C9010)
Courtesy of FORD MOTOR CO.
Fig 386: Parking Aid Disable Switch Connector End View (C9011)
Courtesy of FORD MOTOR CO.
Fig 387: Electrochromatic Inside Mirror Unit Connector End View (C9012)
Courtesy of FORD MOTOR CO.
Fig 388: Electronic Hidden Antenna Module (EHAM) Connector End View (C9021)
Courtesy of FORD MOTOR CO.
