Fuel Filter: Service and Repair

FUEL FILTER

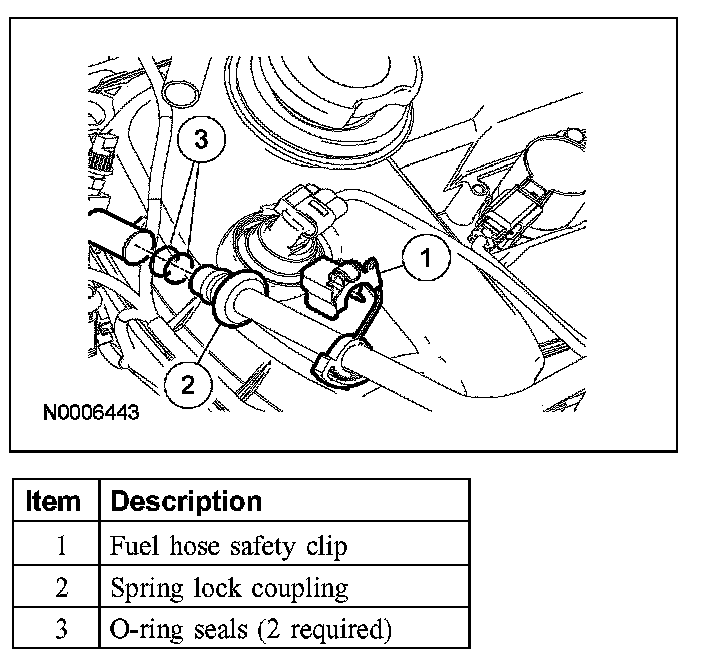

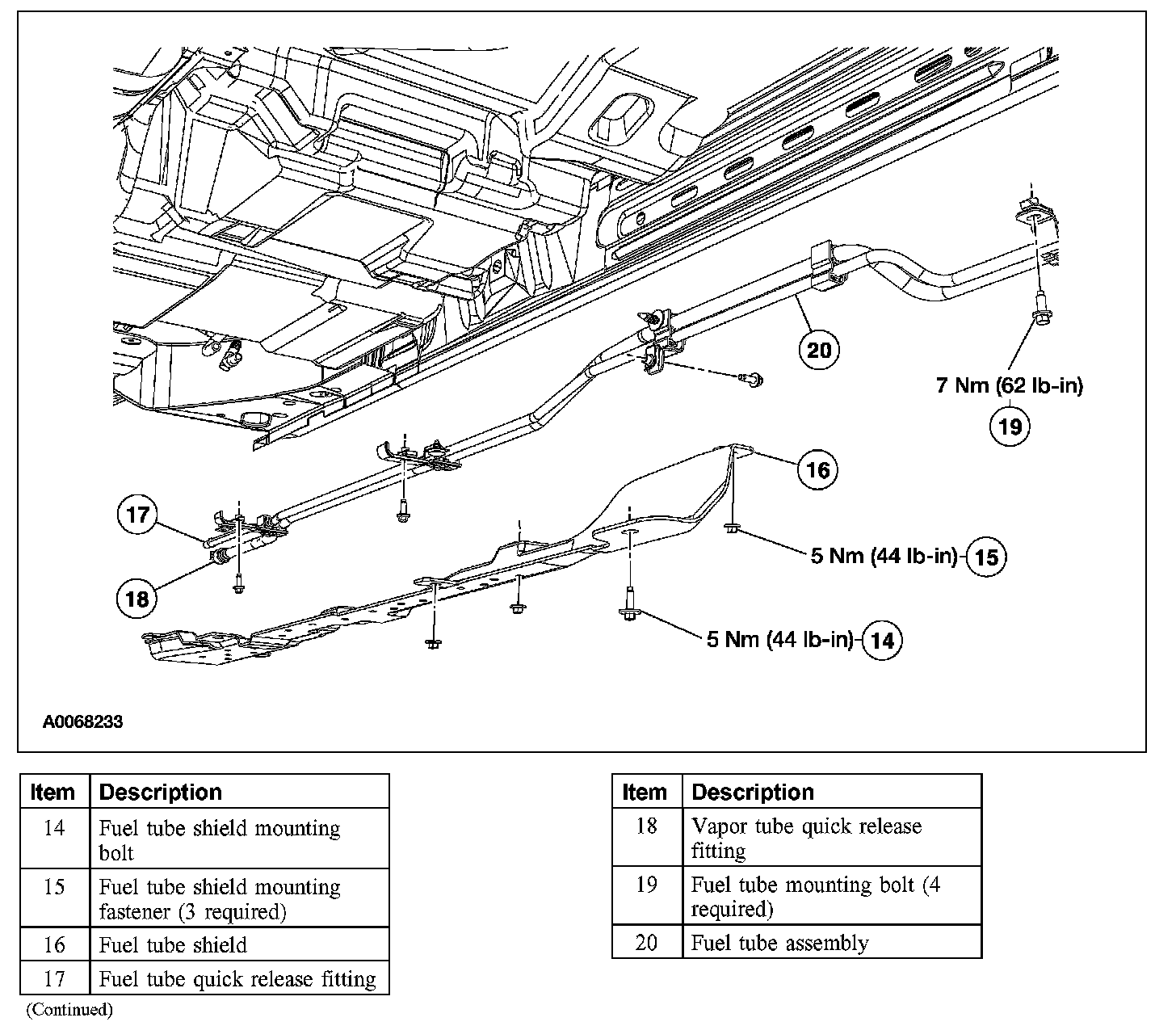

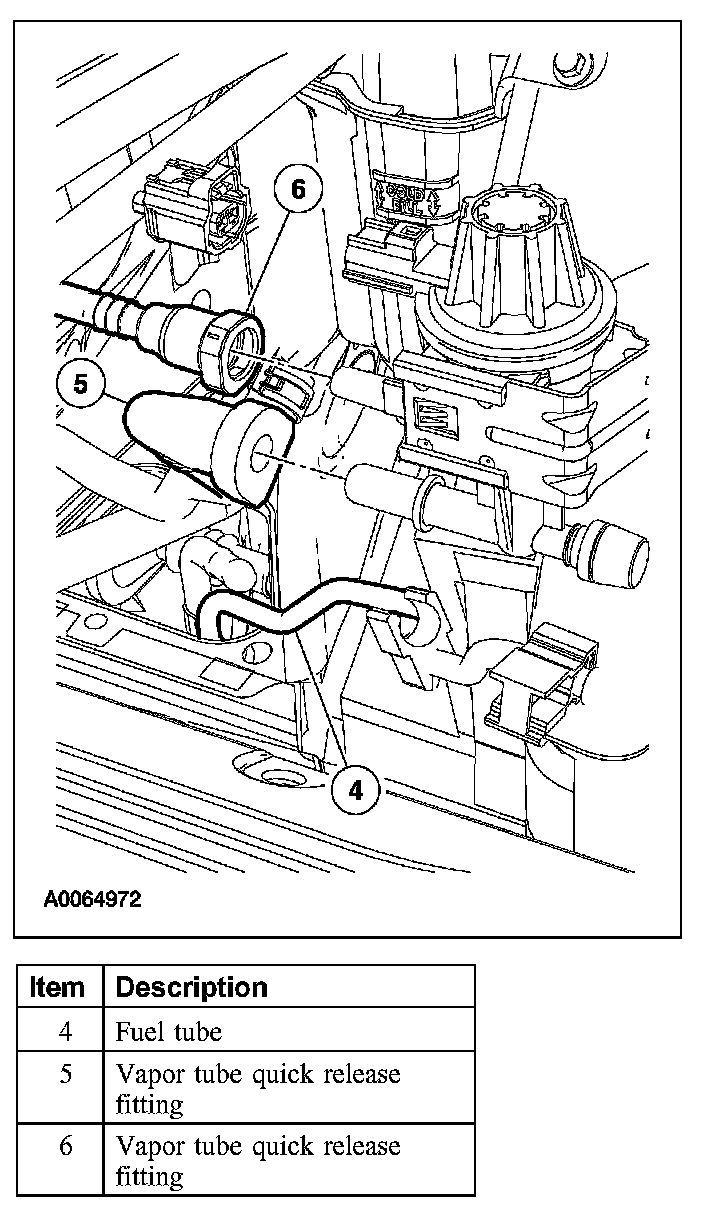

Exploded View

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Relieve the fuel system pressure.
3. Disconnect the battery ground cable.
4. Remove the left front wheel well rear splash shield.
5. Disconnect the fuel tube quick release fittings from both sides of the fuel filter.

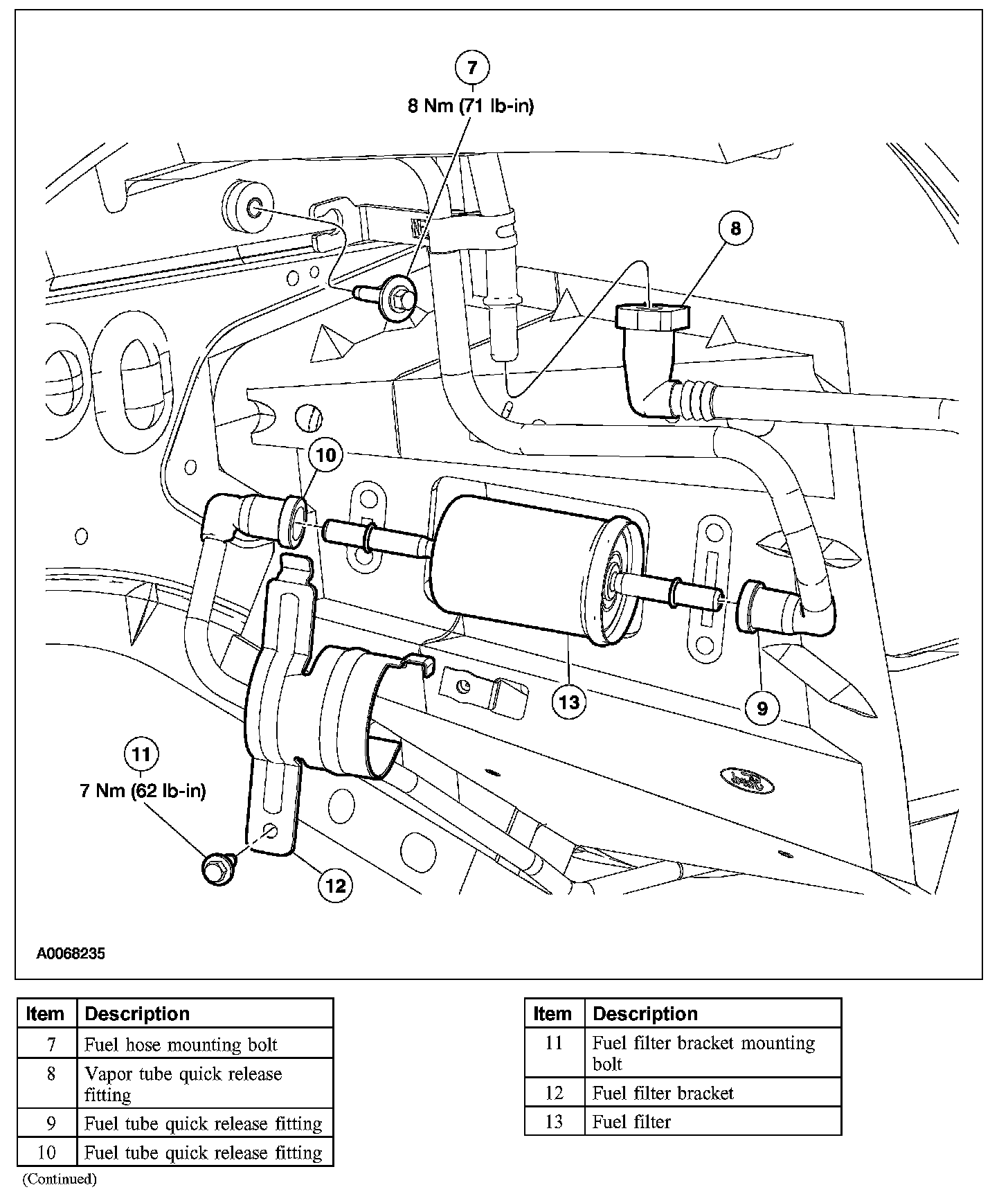

6. Remove the fuel filter bracket mounting bolt, fuel filter bracket, and the fuel filter.
- To install, tighten to 7 Nm (62 lb-in).

7. To install, reverse the removal procedure.
