Home >> Lincoln >> 2005 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests DG: Knock Sensor
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Tests DG: Knock Sensor



PINPOINT TEST DG: KNOCK SENSOR

DG Introduction:





DG Introduction:





DG Introduction:





DG Introduction:





DG Introduction:





DG Introduction:





DG Introduction:





DG1 - DG2:





DG3 - DG5:





DG6 - DG8:

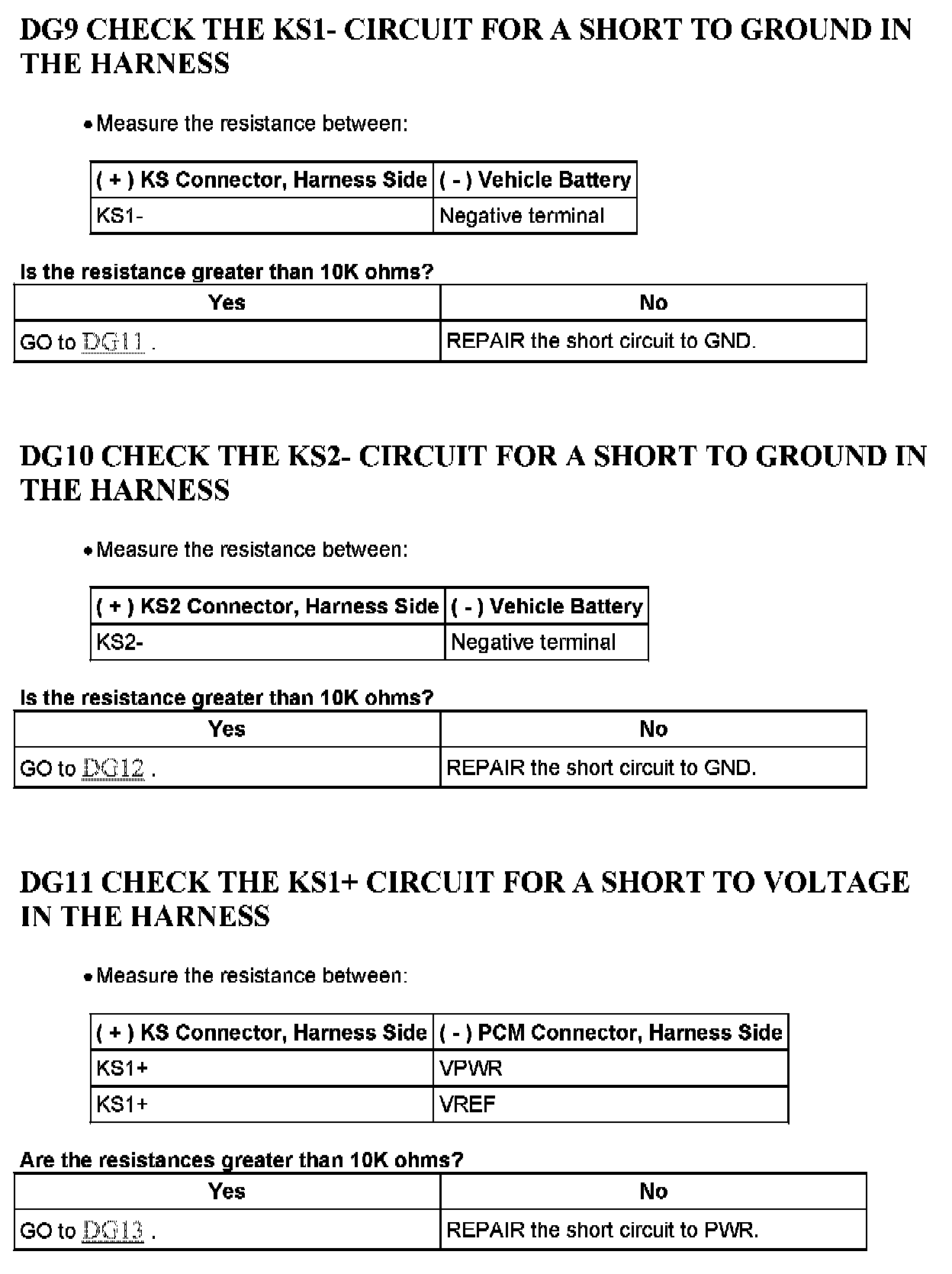

DG9 - DG11:

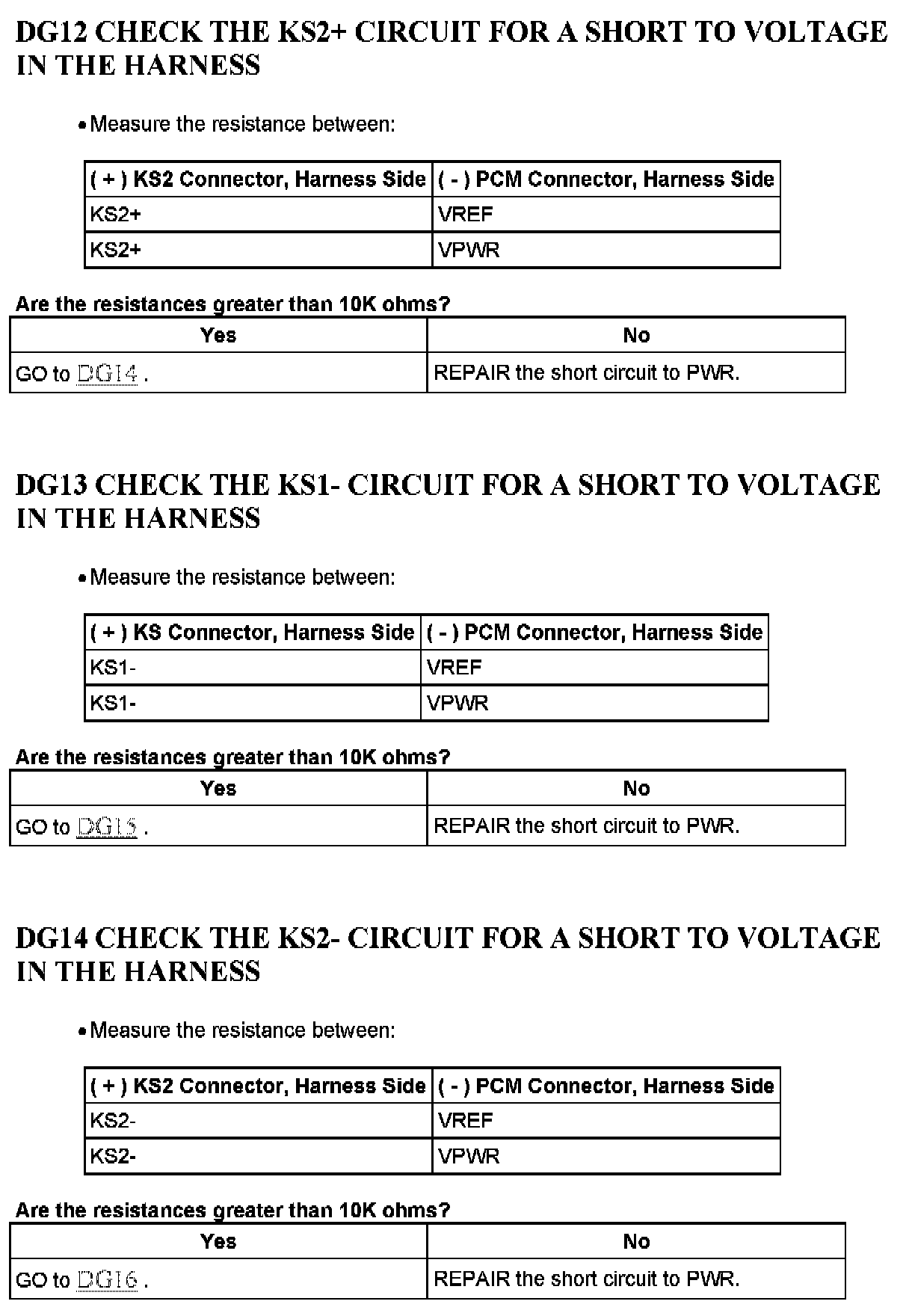

DG12 - DG14:





DG15 - DG16:

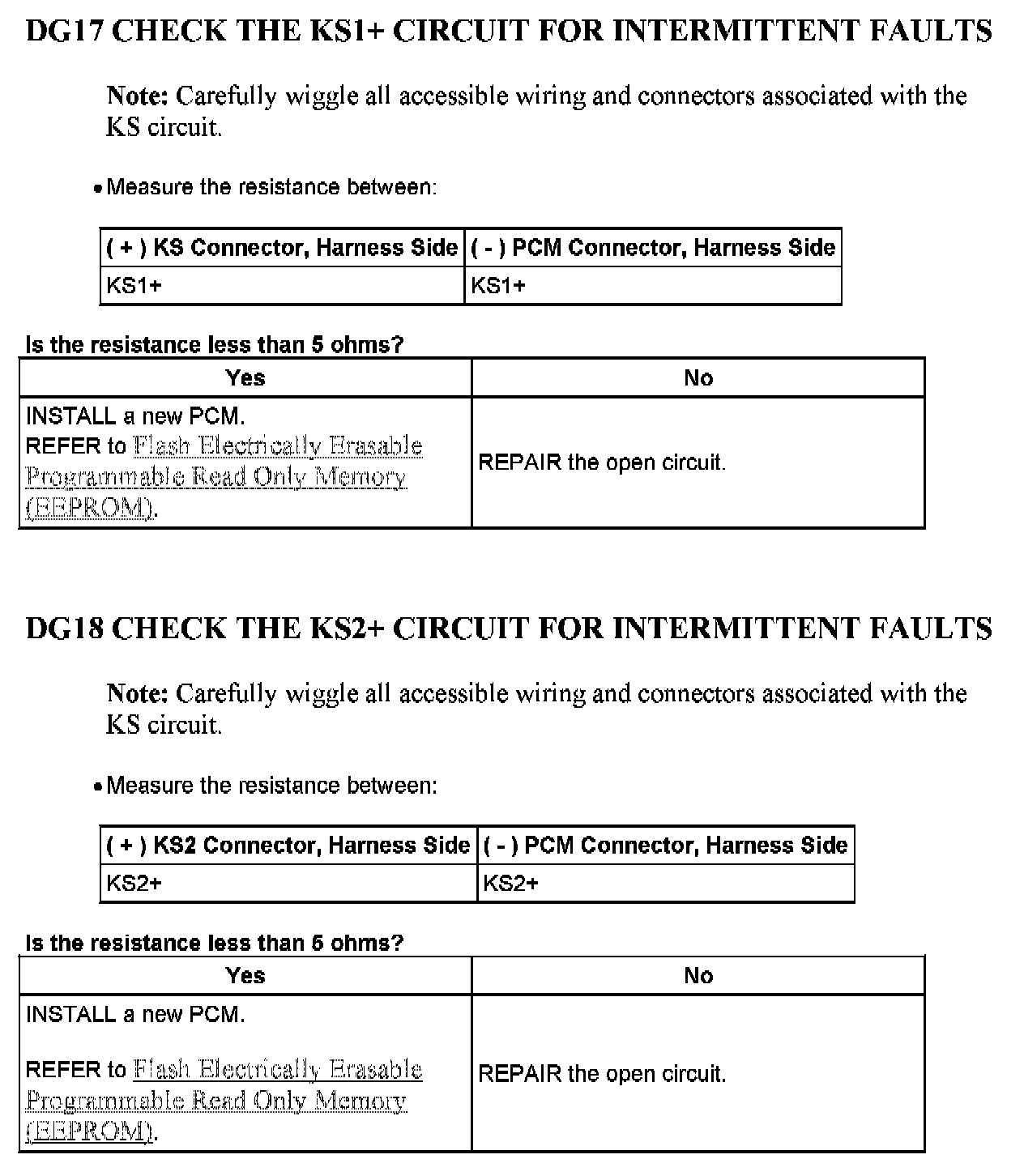

DG17 - DG18:
