Tests HU: Intake Air System
PINPOINT TEST HU: INTAKE AIR SYSTEMS

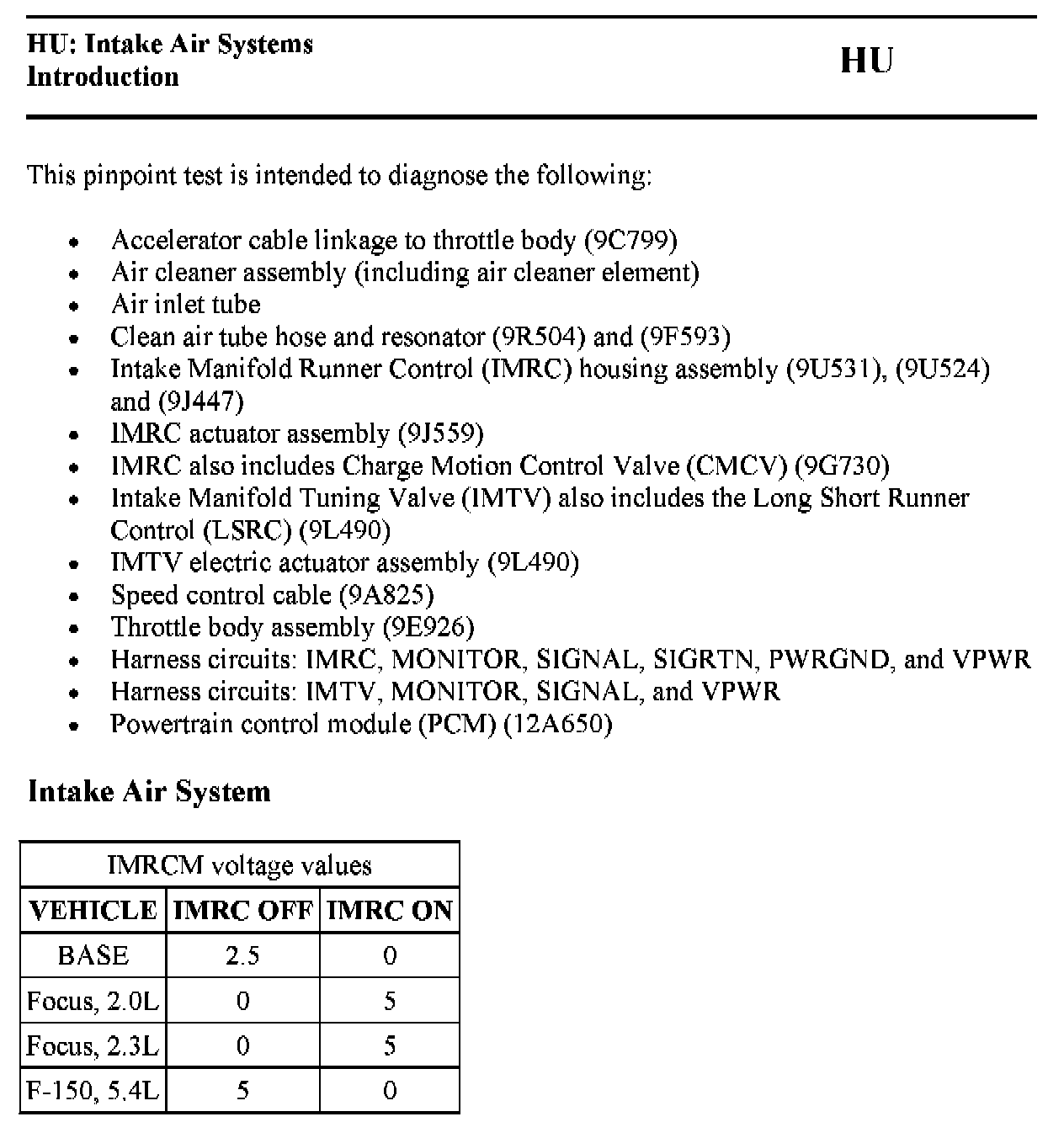

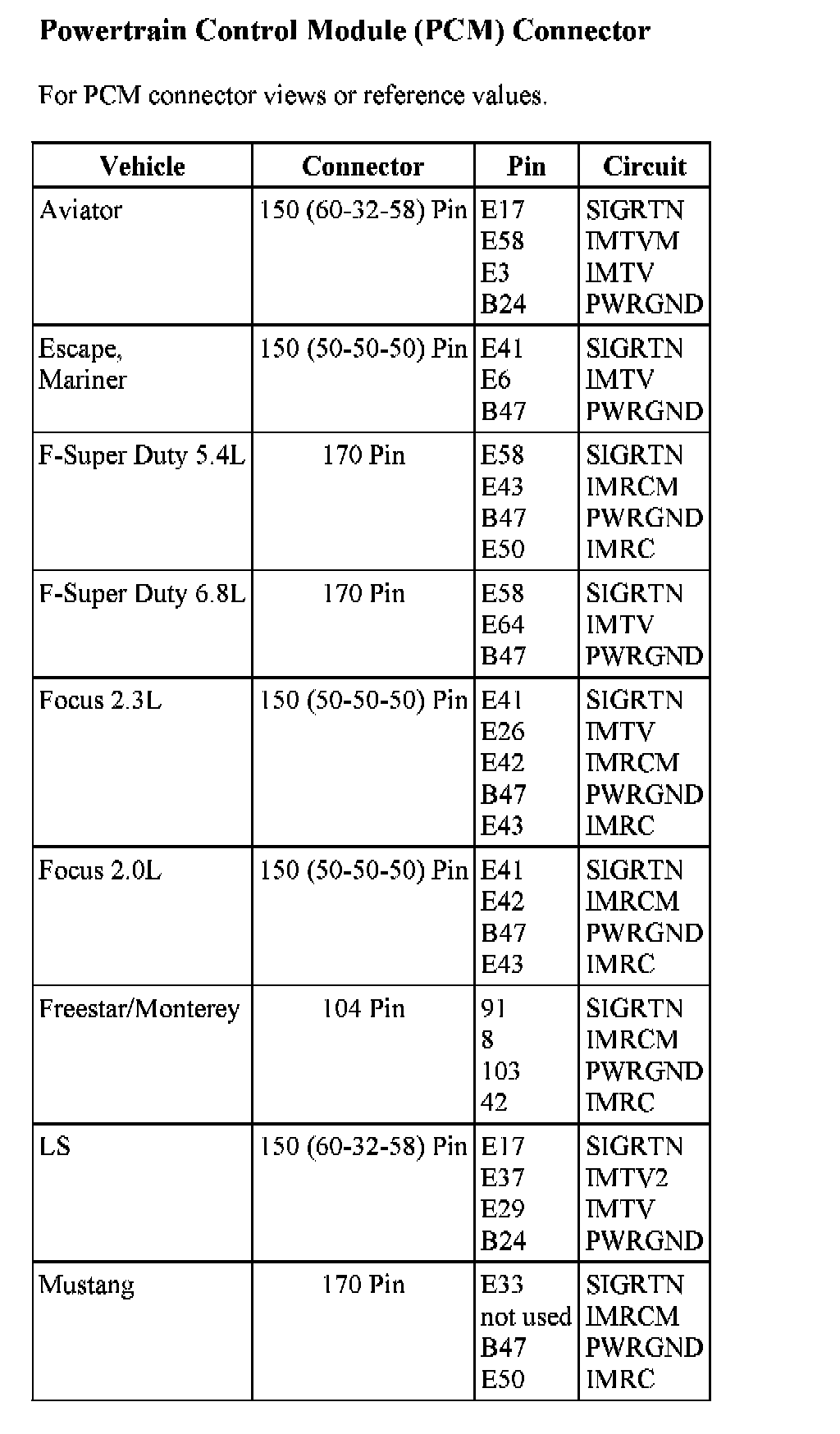

HU Introduction:
HU Introduction:
HU Introduction:
HU Introduction:
HU Introduction:
HU Introduction:
HU Introduction:
Hu Introduction:
Hu Introduction:
HU Introduction:
HU Introduction:
HU1 - HU3:

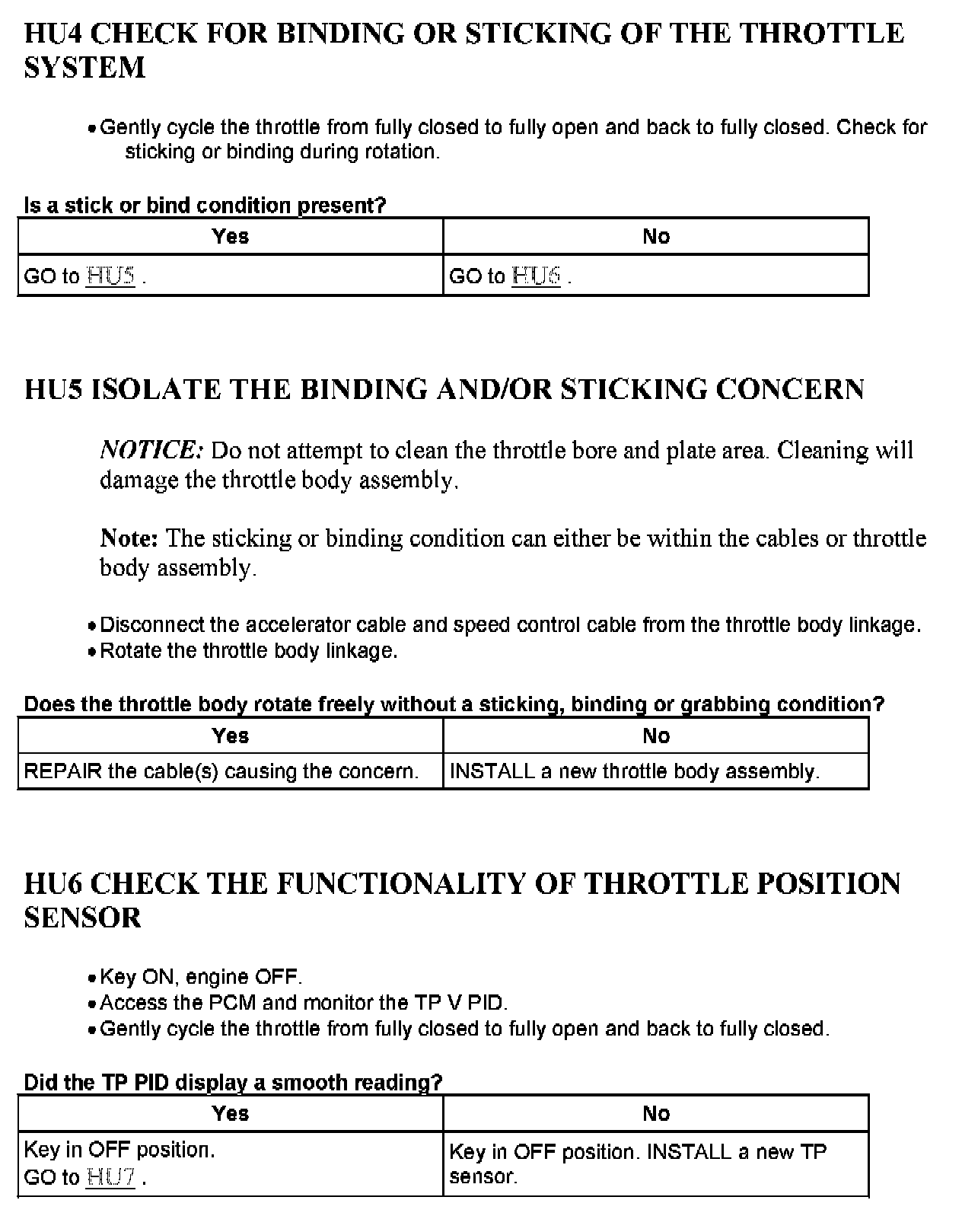

HU4 - HU6:

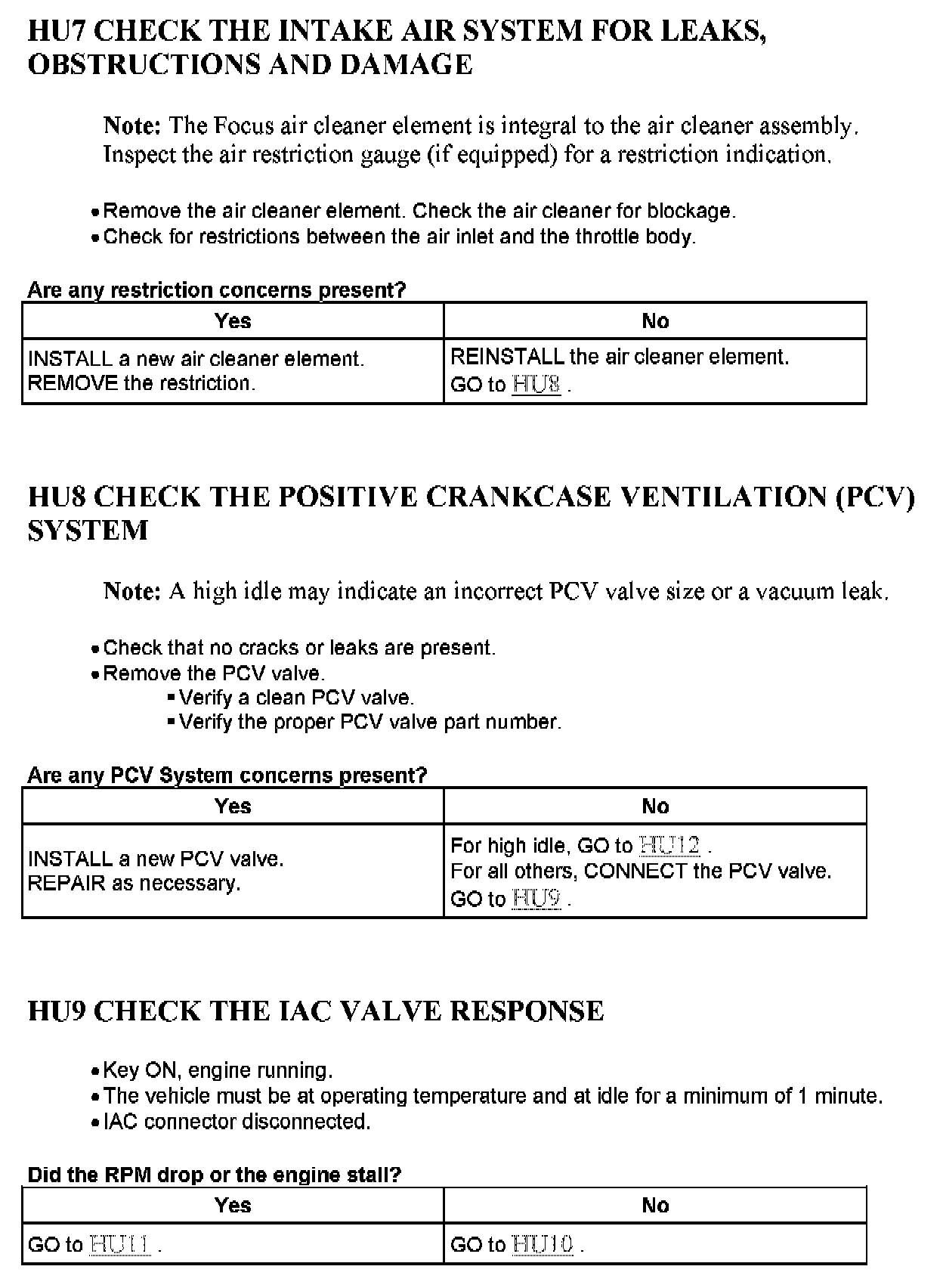

HU7 - HU9:

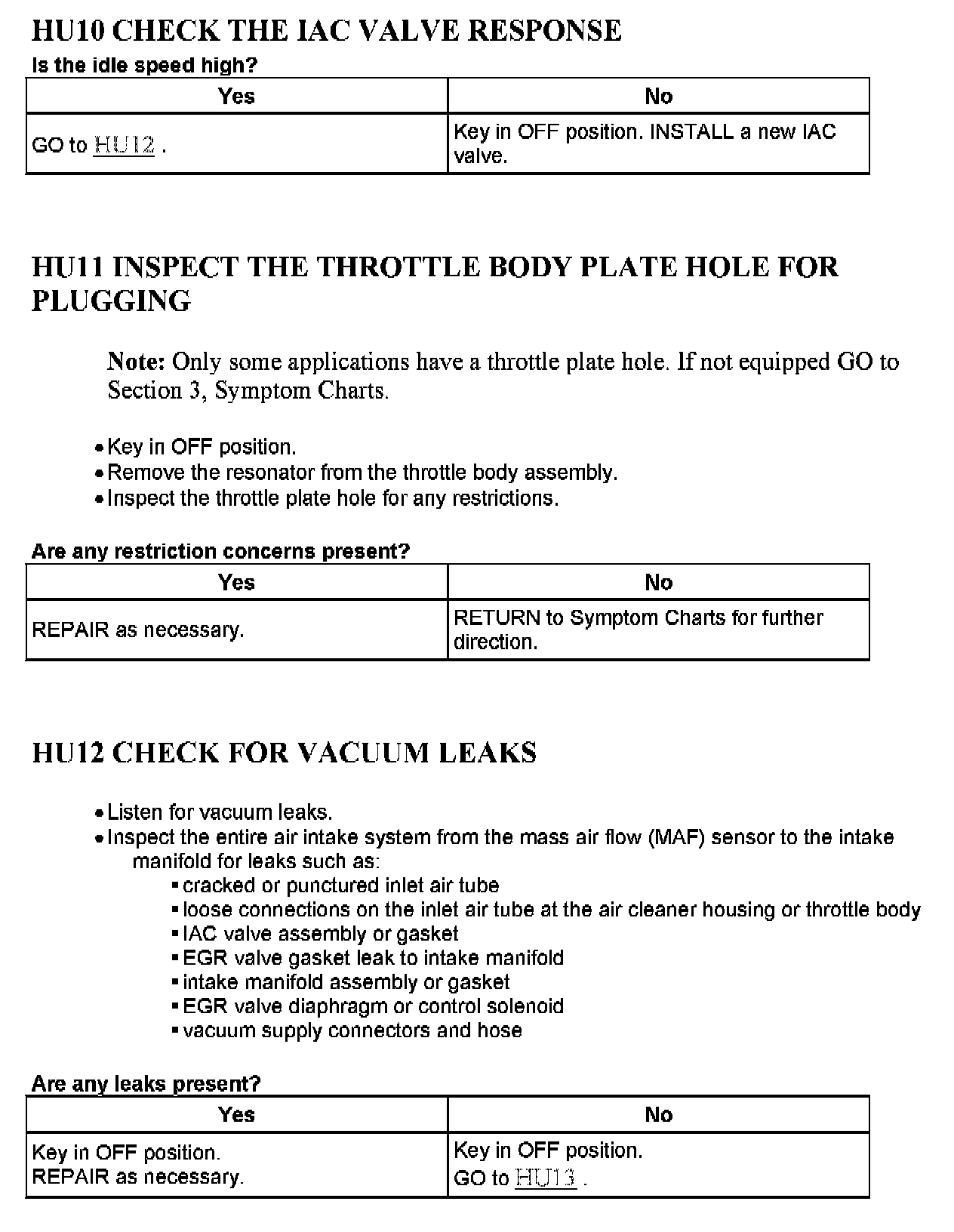

HU10 - HU12:

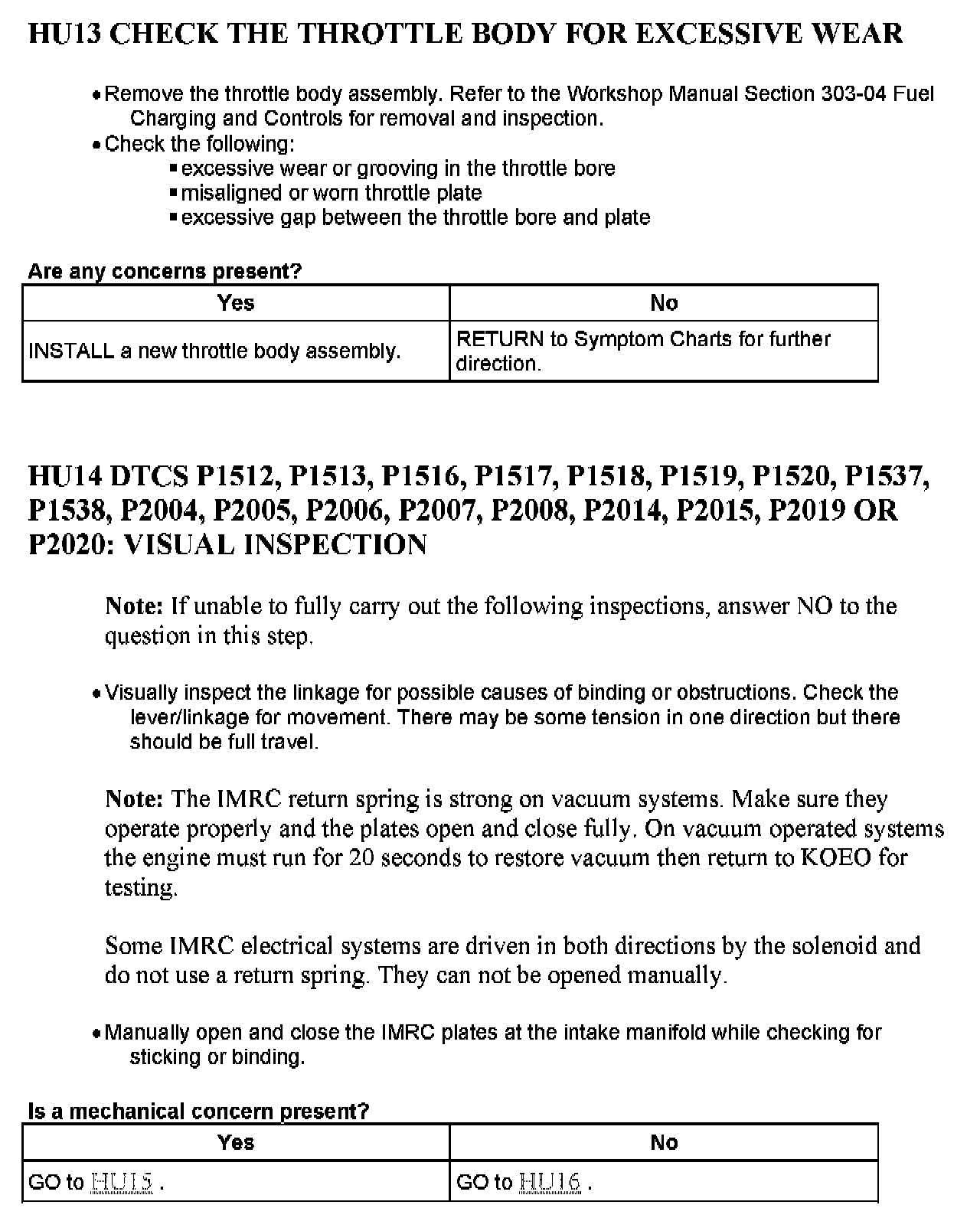

HU13 - HU14:
HU15:
HU16:
HU17 - HU18:
HU19 - HU20:
HU21 - HU22:
HU23 - HU24:

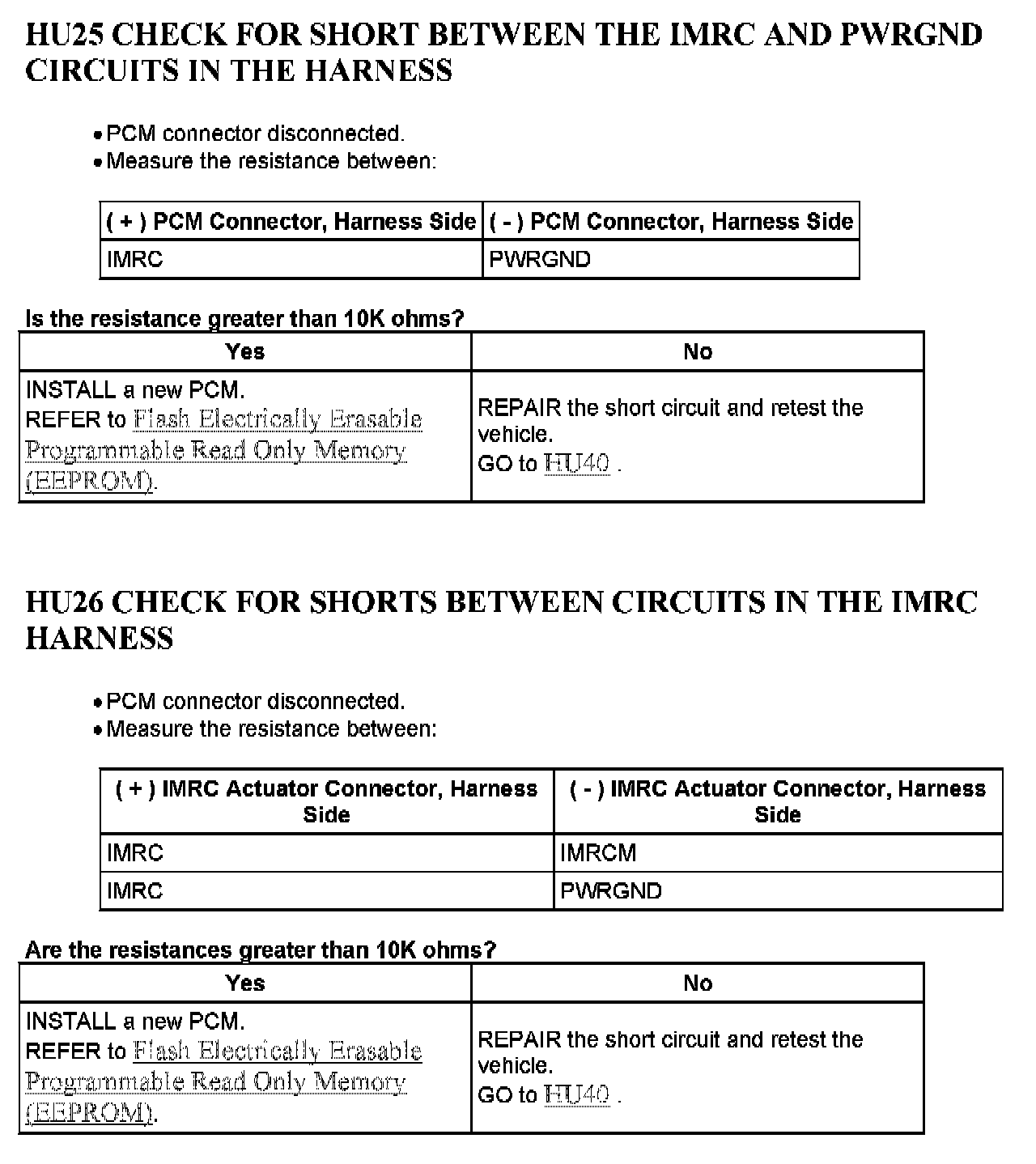

HU25 - HU26:

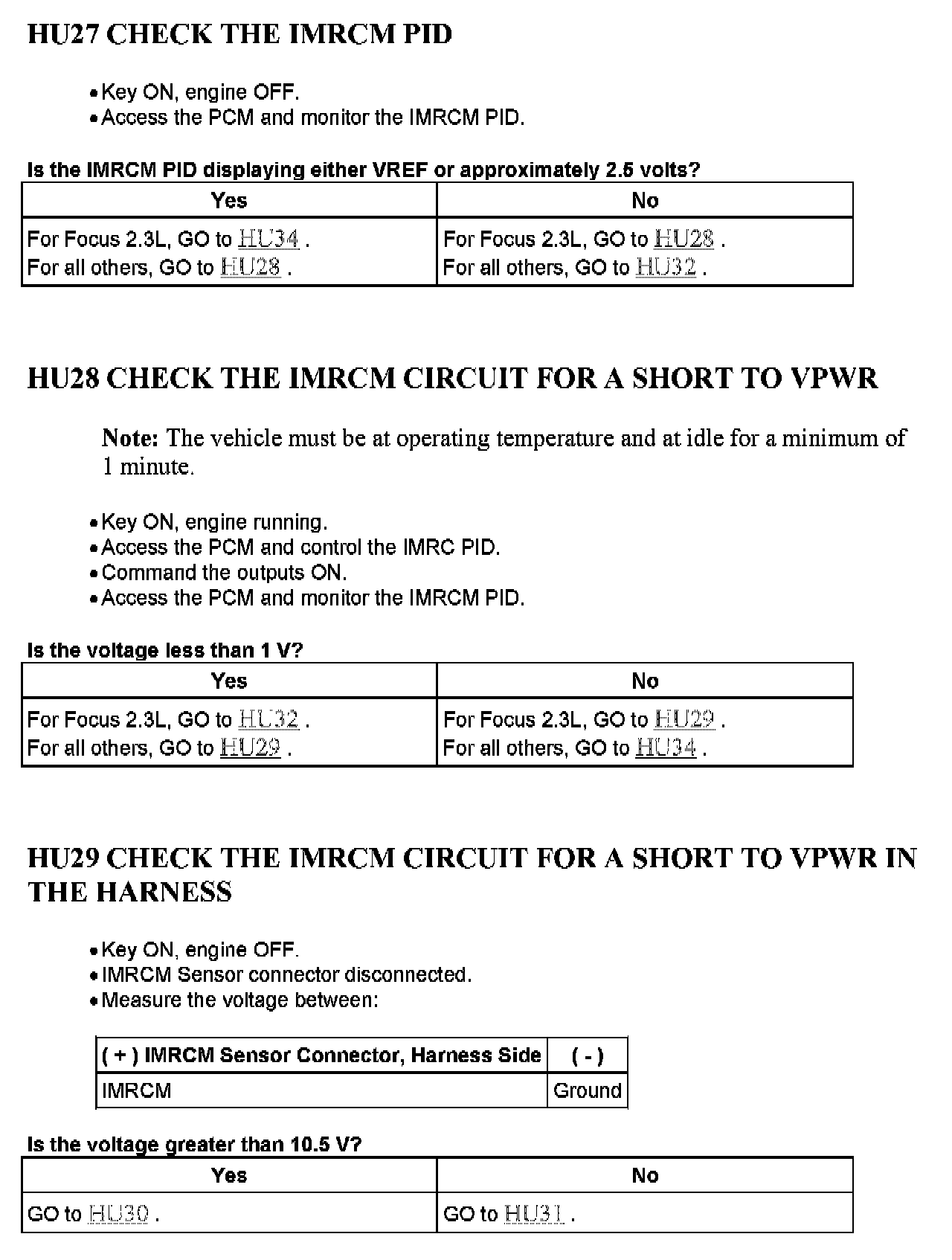

HU27 - HU29:
HU30 - HU31:

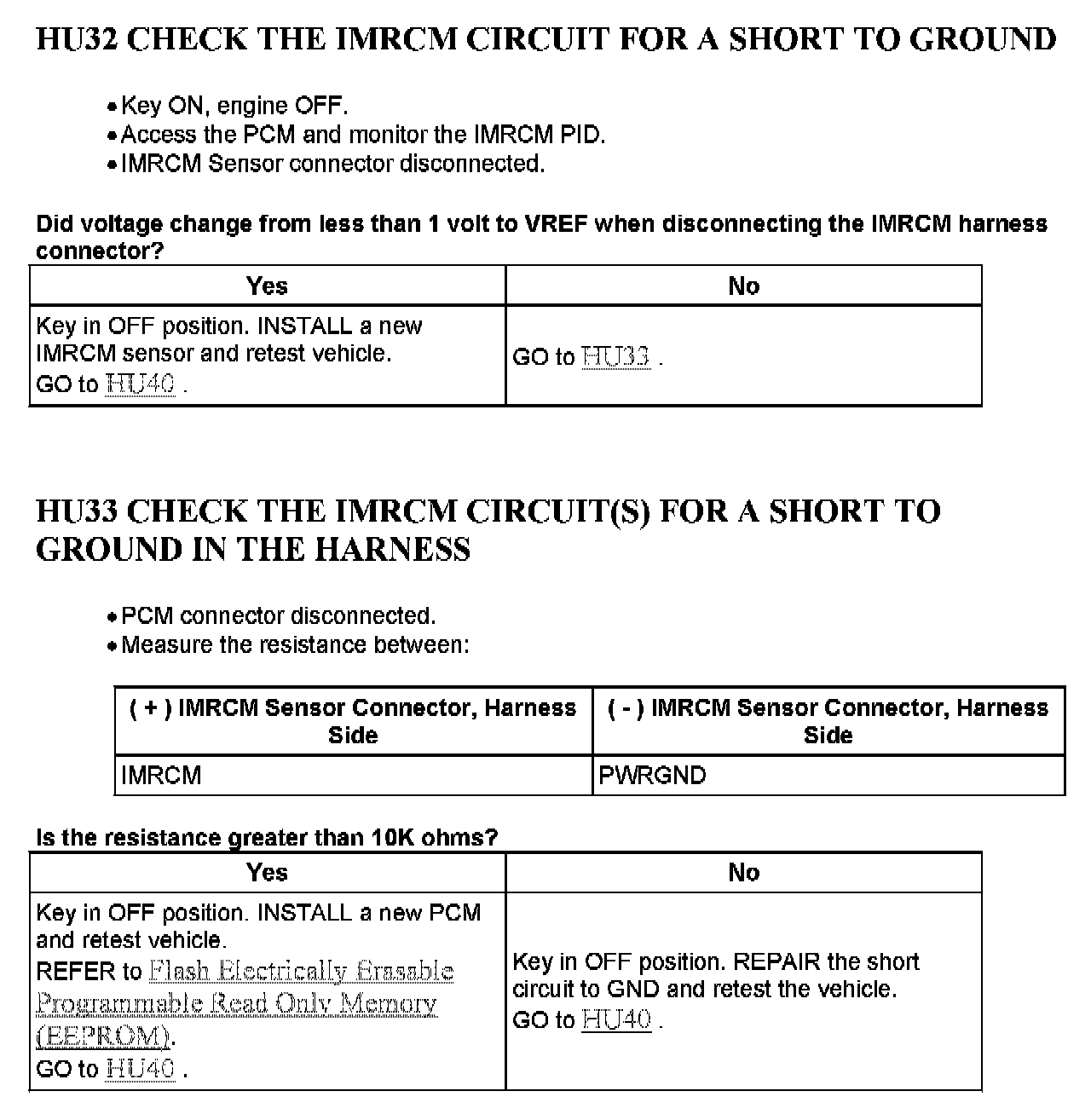

HU32 - HU33:
HU34 - HU35:
HU36 - HU37:

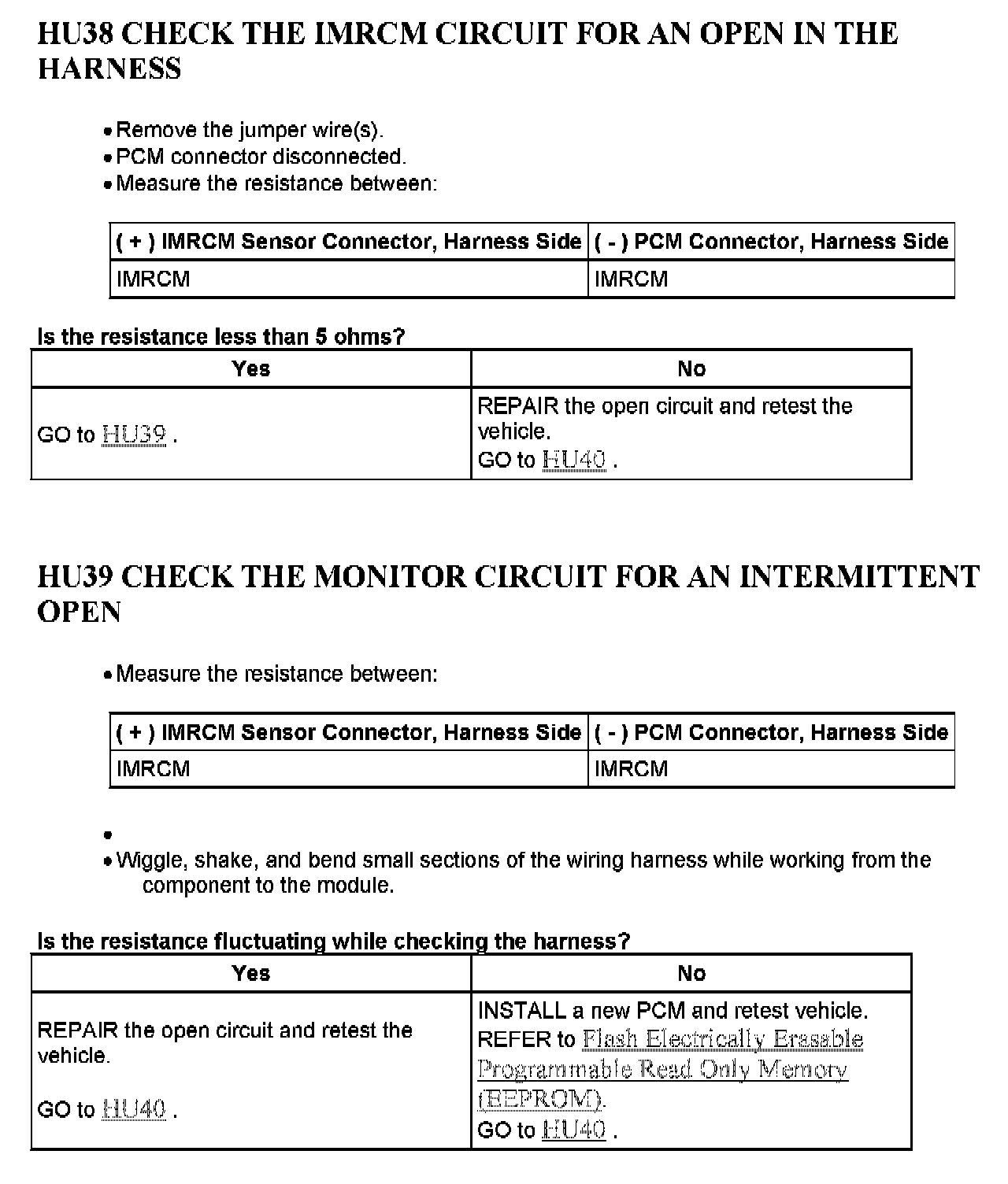

HU38 - HU39:
HU40 - HU41:
HU42 - HU43:
HU44 - HU45:
HU47 - HU48:
HU49 - HU50:
HU51 - HU52:

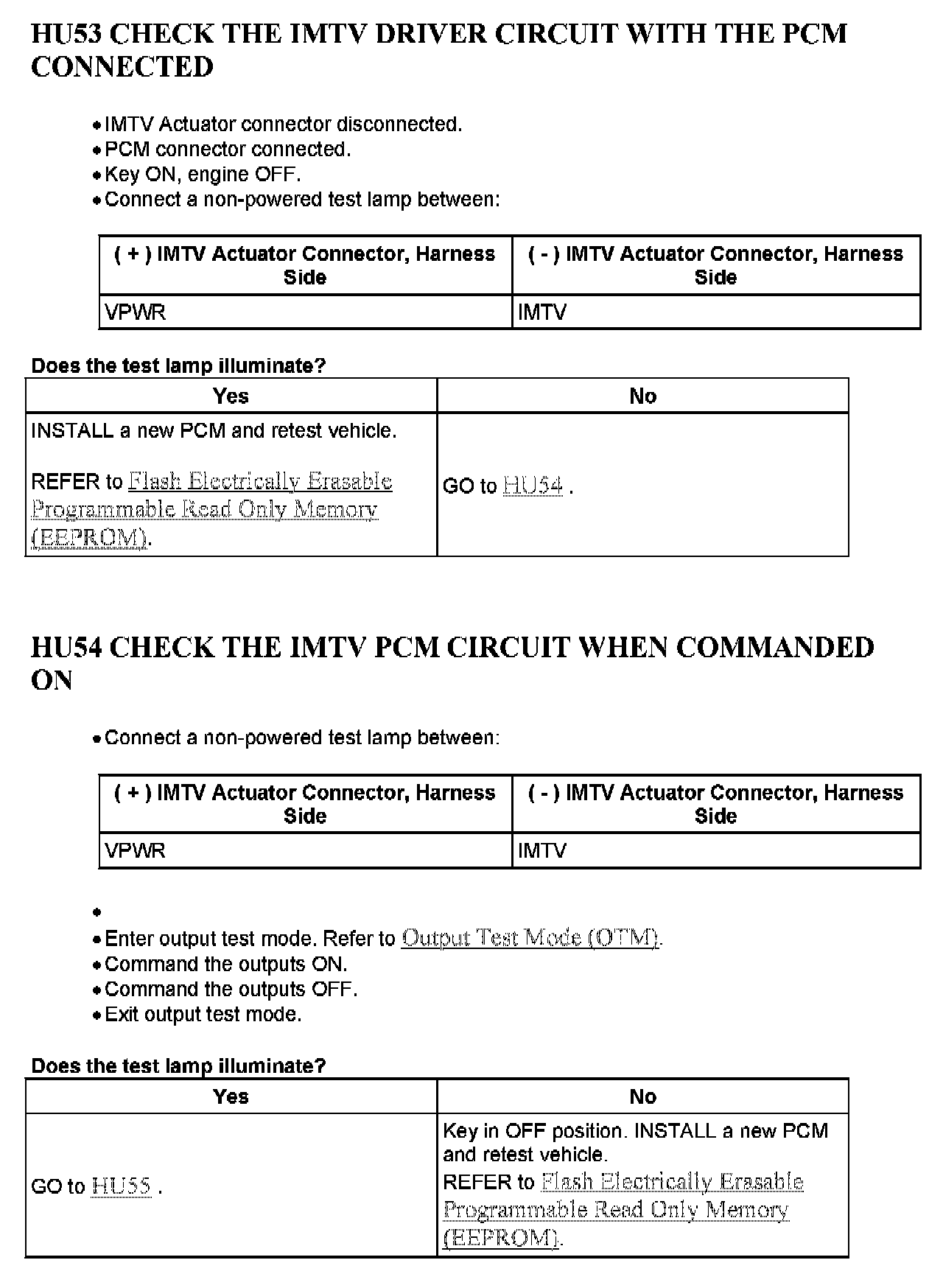

HU53 - HU54:

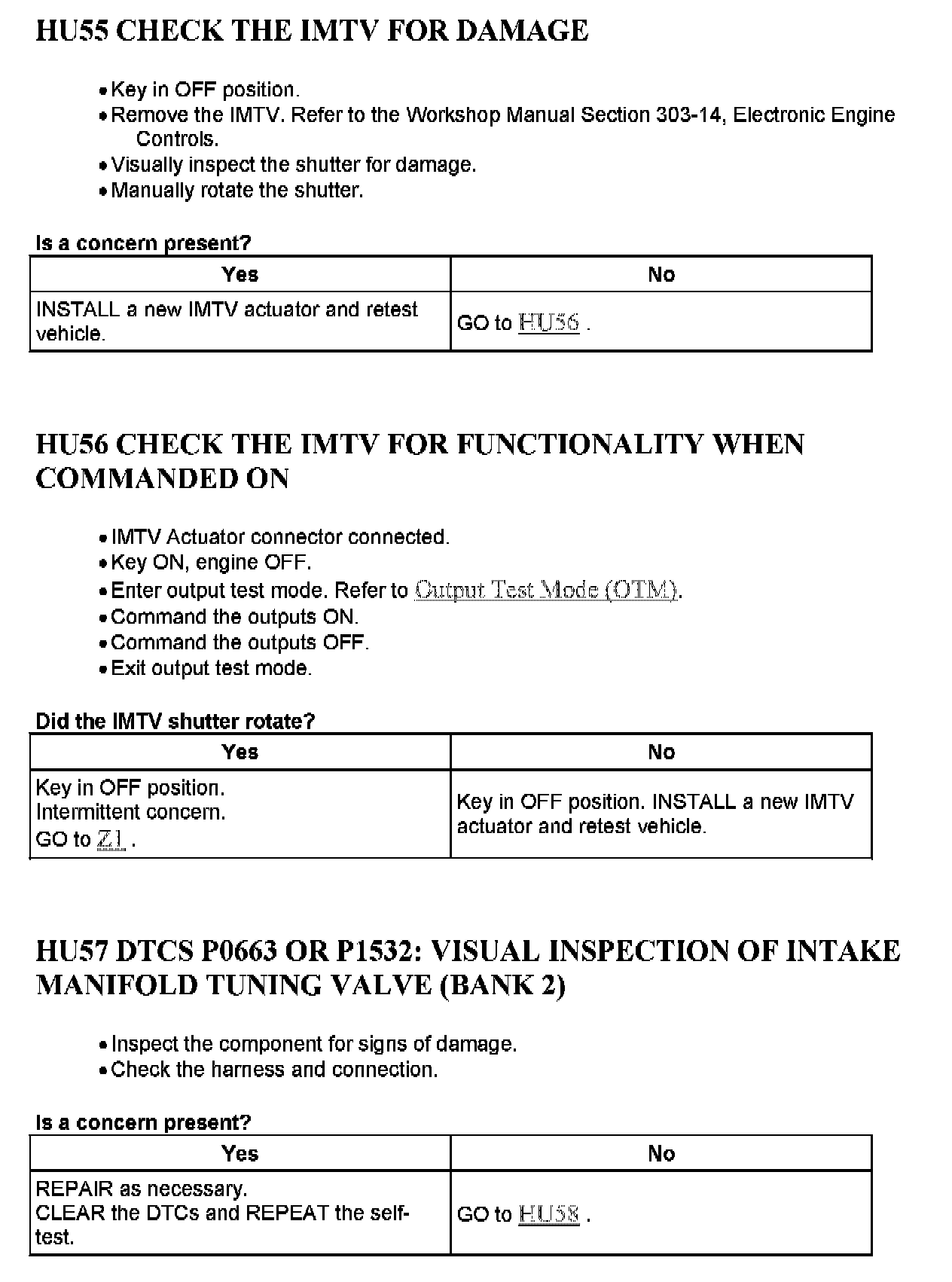

HU55 - HU57:
HU58 - HU59:
HU60 - HU61:

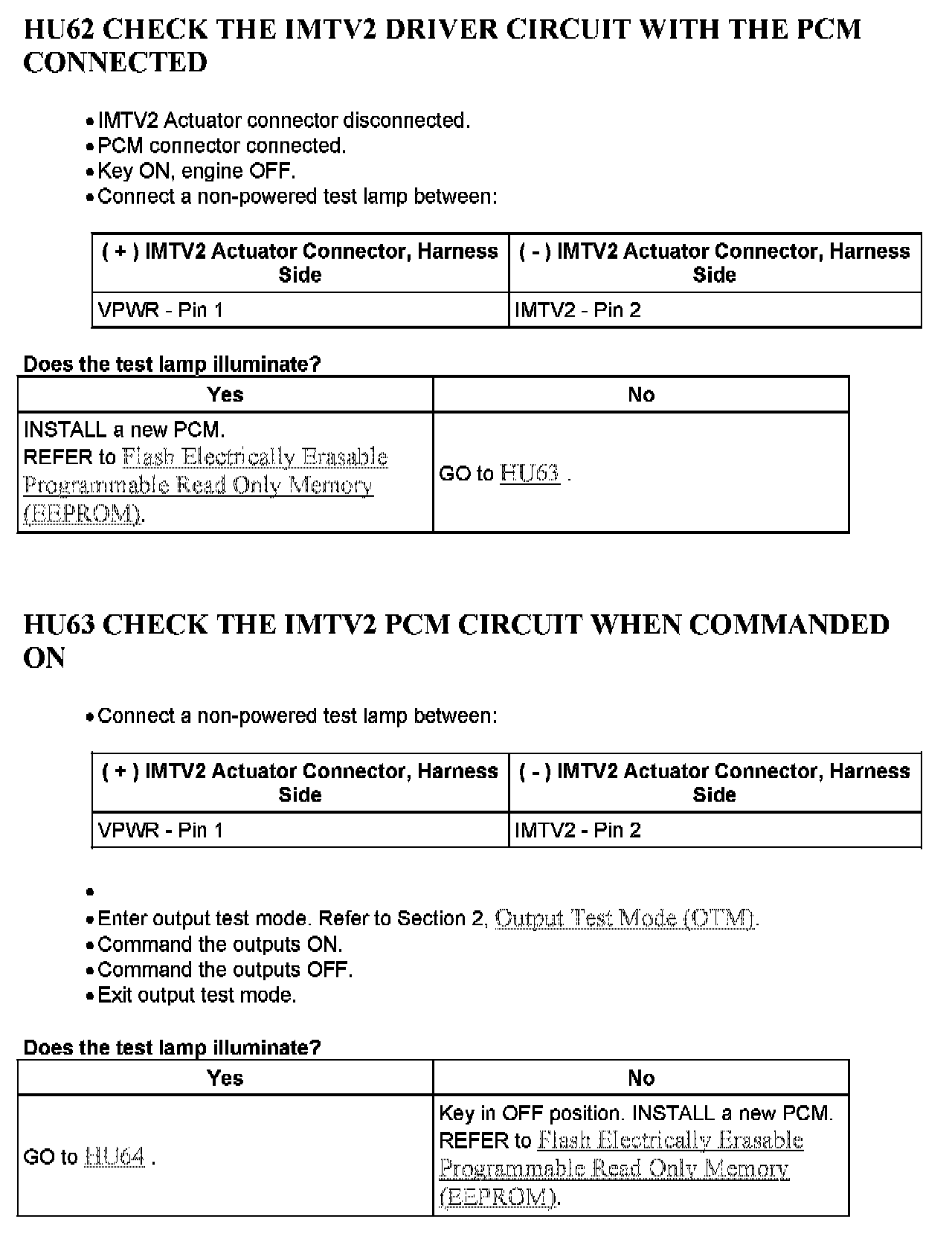

HU62 - HU63:

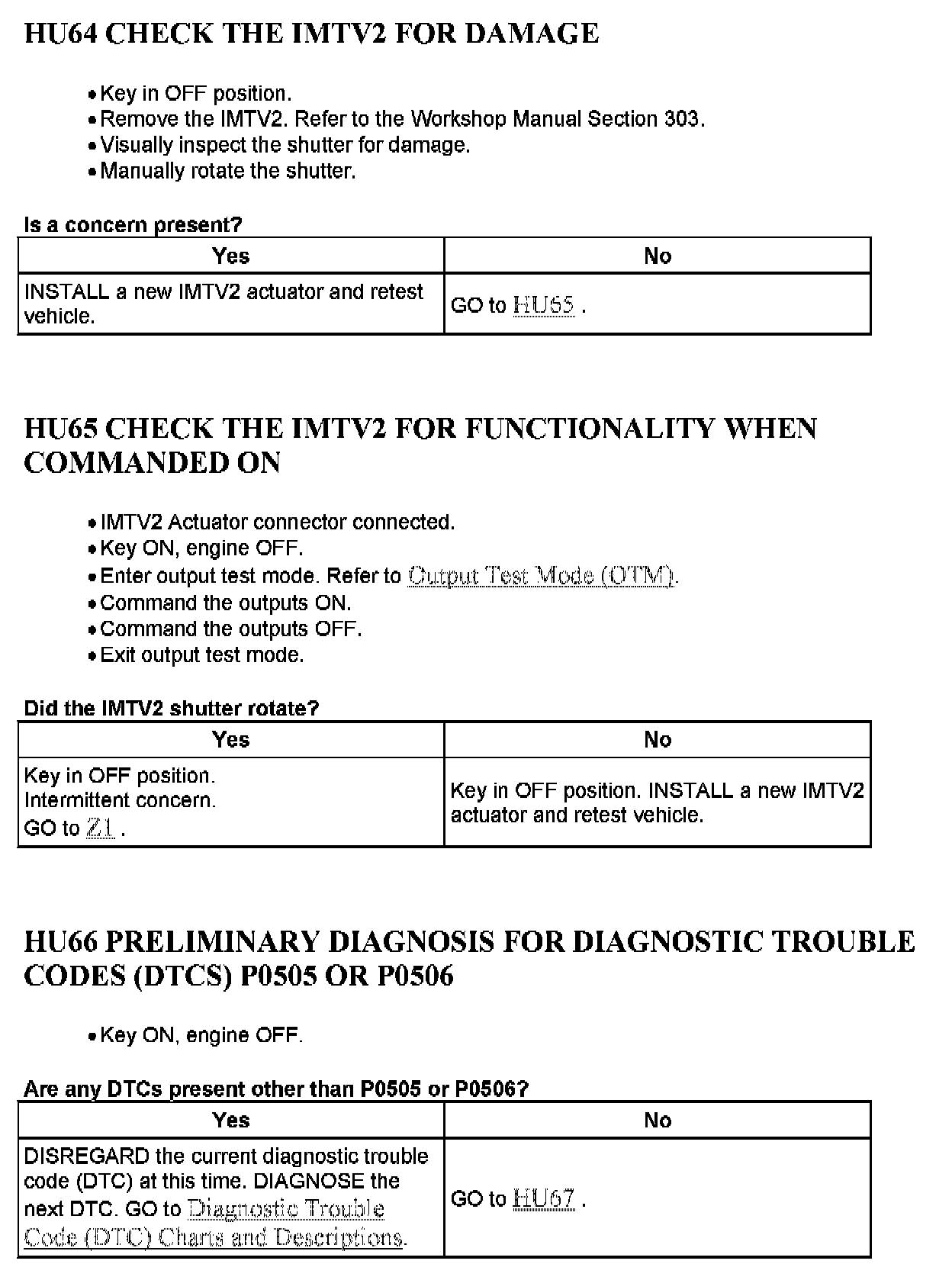

HU64 - HU66:
HU67:
