In-Vehicle Repair: Flexplate: Installation

  1. Position the flexplate and loosely install the bolts. Tighten the bolts in the sequence shown.

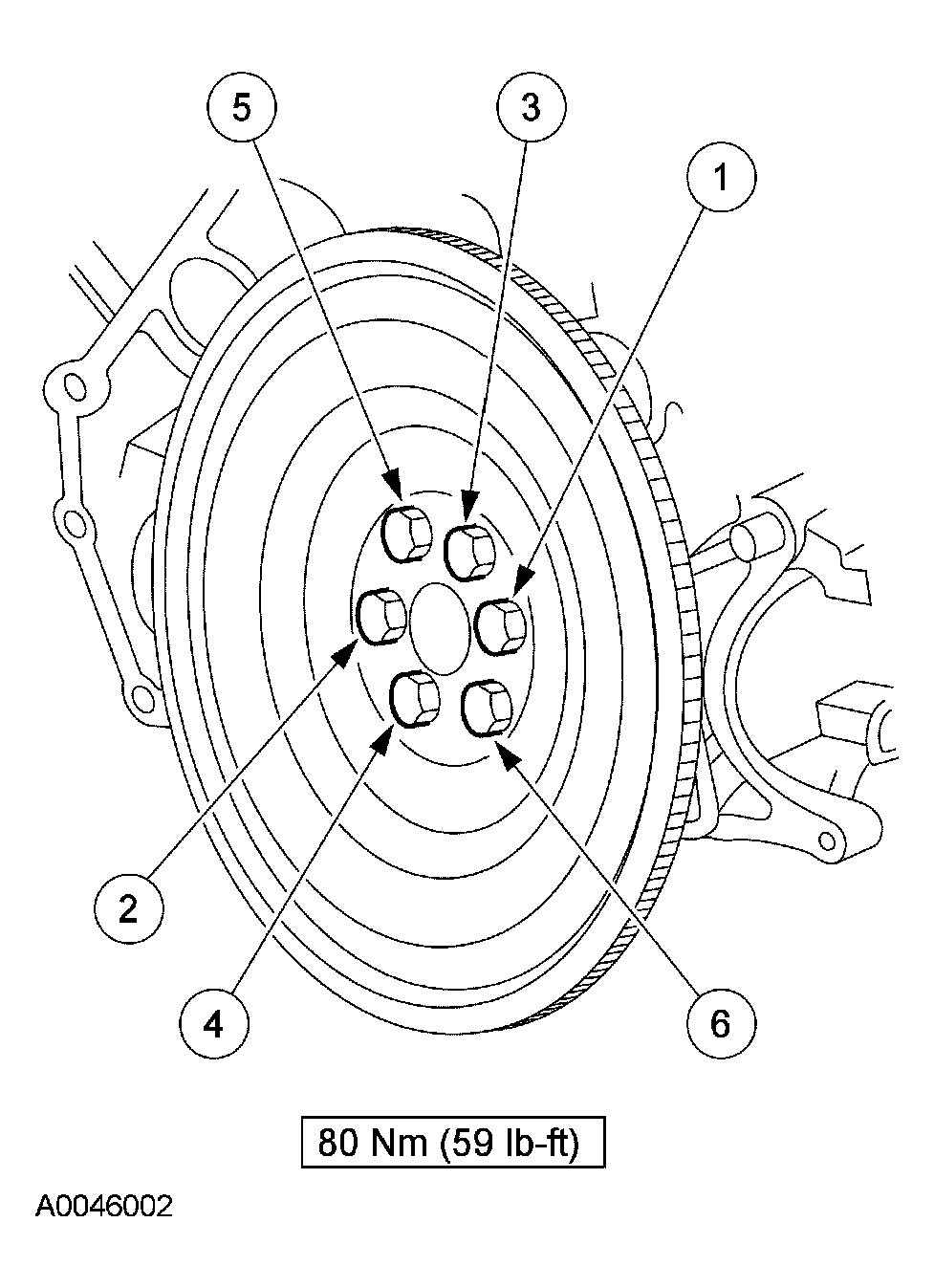

    Fig 1: Tightening Sequence & Torque Specification Of Flexplate Bolts
    G04002042Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
