System Diagram

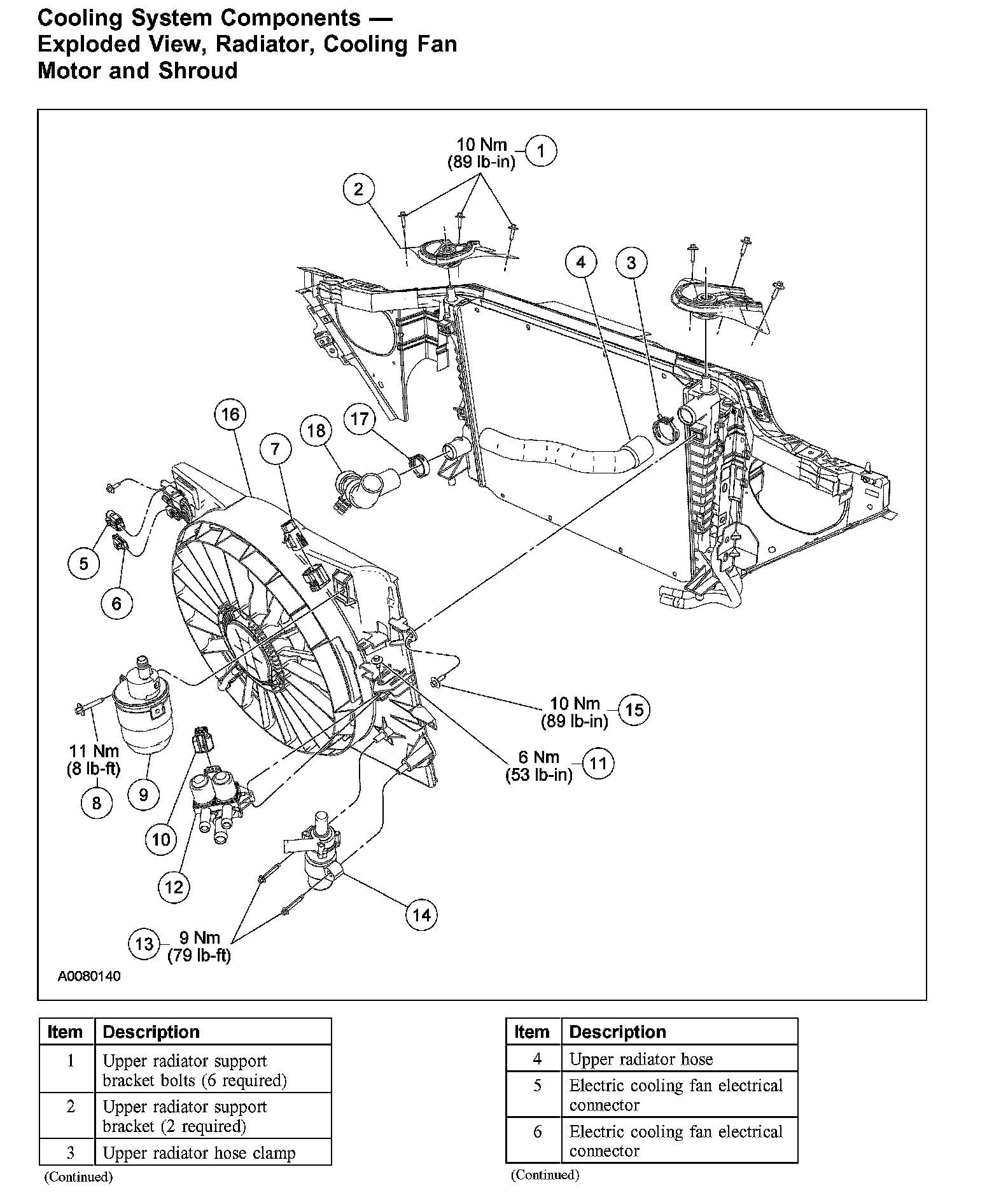

Cooling System Components - Exploded View, Radiator, Cooling Fan Motor and Shroud

Cooling System Components - Exploded View, Radiator, Cooling Fan Motor and Shroud:

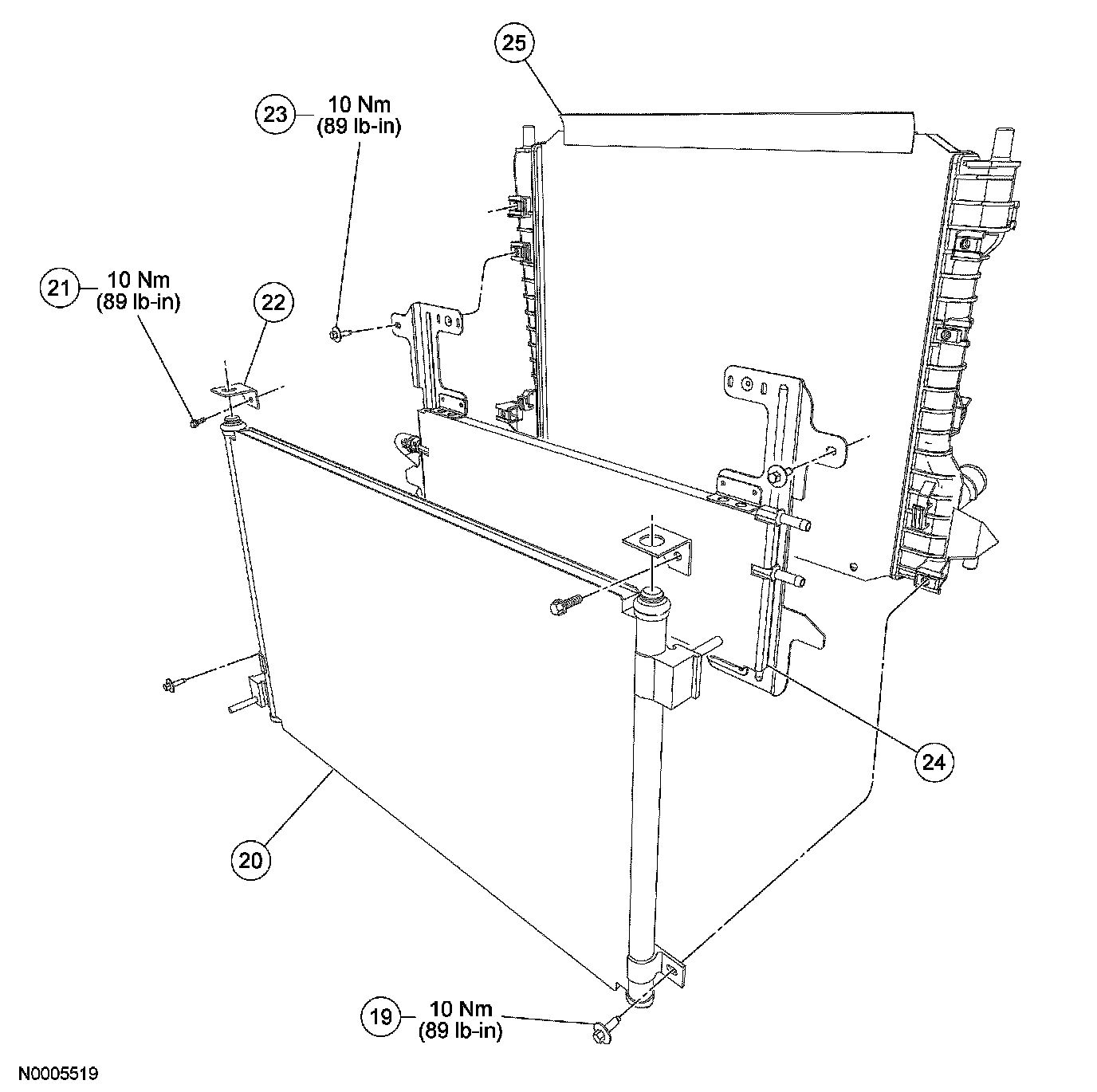

Cooling System Components - Exploded View, Radiator, Cooling Fan Motor and Shroud:







Cooling System Components - Exploded View, Radiator, Cooling Fan Motor and Shroud:
