Windshield Moulding

WINDSHIELD MOULDING







Removal and Installation

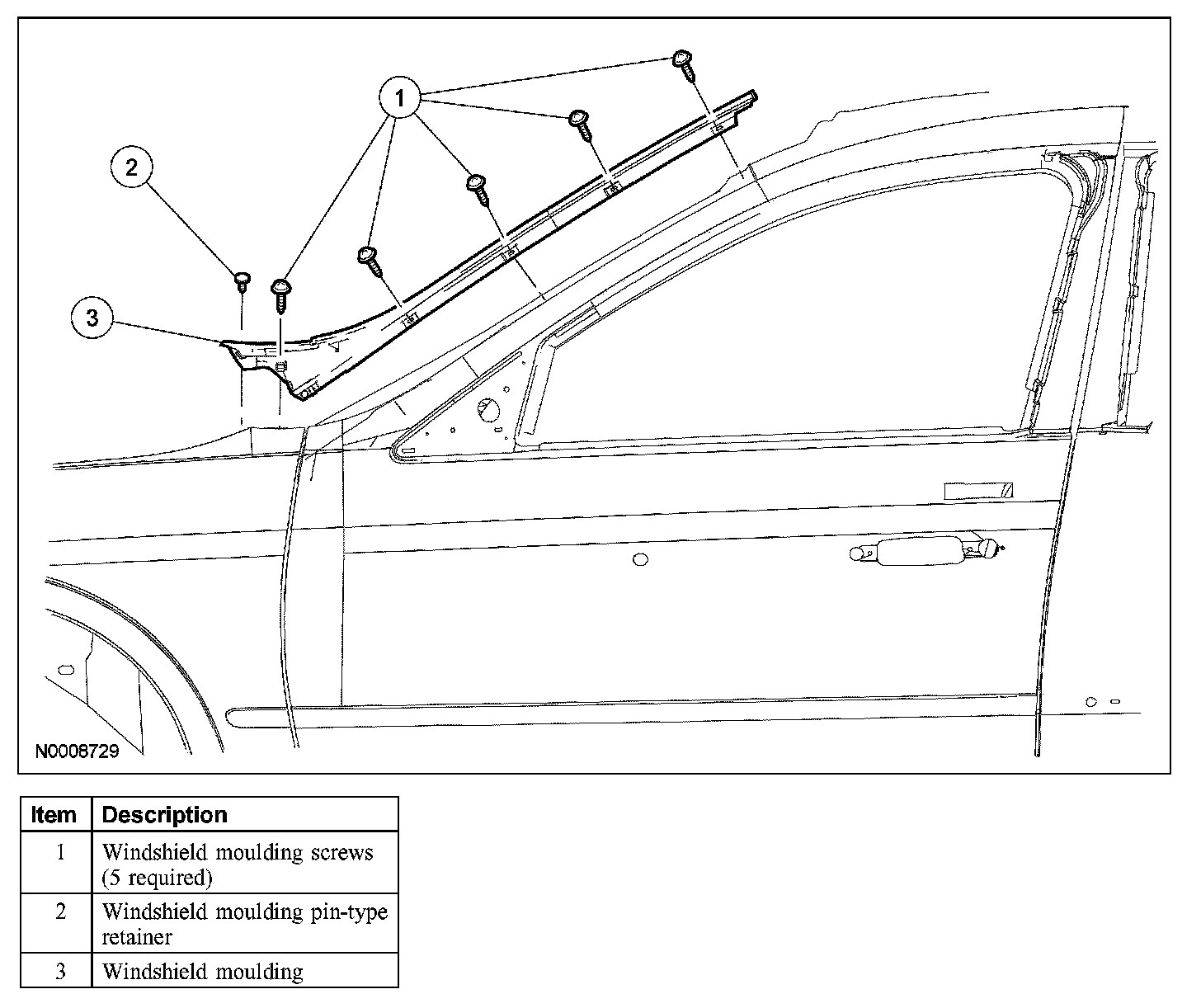

NOTE: The LH side is shown, the RH side is similar.

1. Remove the 5 windshield moulding screws.
2. Remove the pin-type retainer and the windshield moulding.
3. To install, reverse the removal procedure.
