Seat Backrest - Rear: Notes

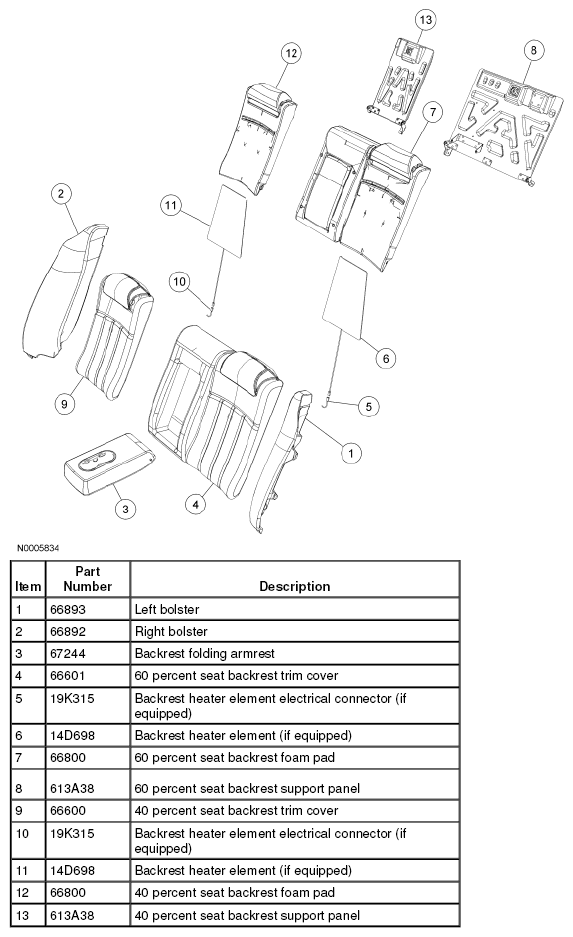

Fig 1: Identifying Seat Backrest - Rear Components

G04693285

Courtesy of FORD MOTOR CO.
