Front Seat Backrest

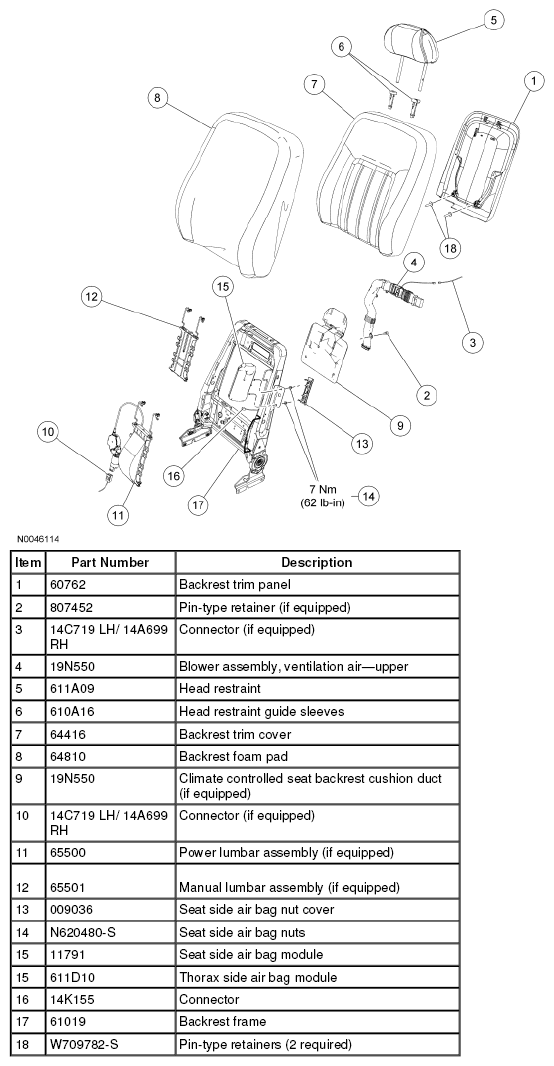

Fig 1: Front Seat Backrest With Torque Specifications
G04693231Courtesy of FORD MOTOR CO.
  1. For additional information, refer to appropriate procedure.
