Starter Motor: Notes

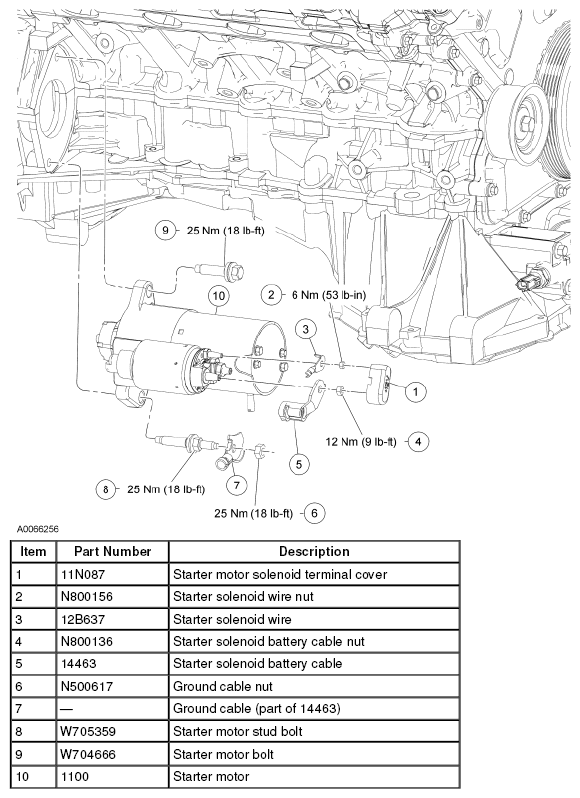

Fig 1: Starter Motor Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
