Oil Level Indicator and Tube: Notes
MATERIAL SPECIFICATION
Item
Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20- LSP12) or equivalent
WSS-M2C930-A

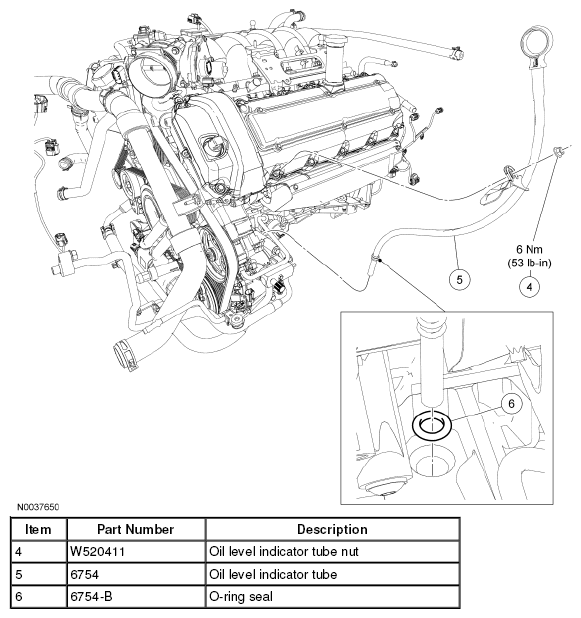

Fig 1: Oil Level Indicator And Tube Replacement Components With Torque Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Oil Level Indicator And Tube Replacement Components With Torque Specifications (2 Of 2)
