Fuel Transfer Pump: Notes

SPECIAL TOOLS DESCRIPTION

G04691882Courtesy of FORD MOTOR CO.
 Fuel Sender Wrench
310-123
G04691883Courtesy of FORD MOTOR CO.
 Fuel Drain Hose
310-102
G04691884Courtesy of FORD MOTOR CO.
 Fuel Storage Tanker
164-R3202 or equivalent
MATERIAL SPECIFICATION

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20- LSP12) or equivalent WSS-M2C930-A

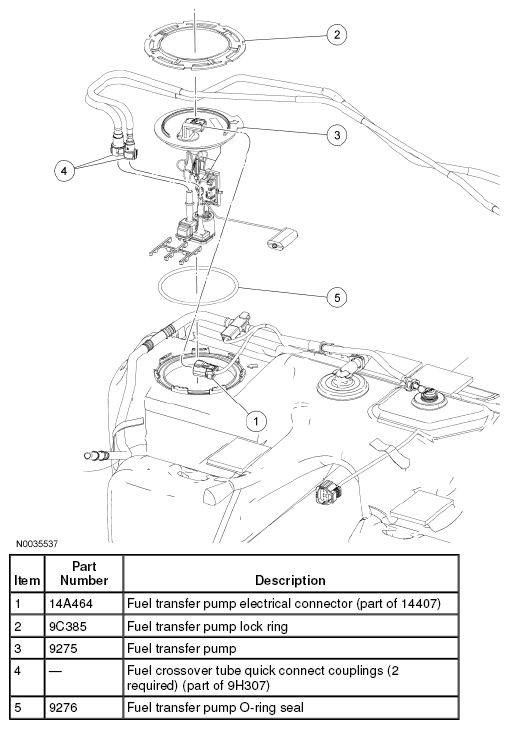

Fig 1: Identifying Fuel Transfer Pump Components
G04691885Courtesy of FORD MOTOR CO.
