Cylinder Head Temperature (CHT) Sensor: Notes

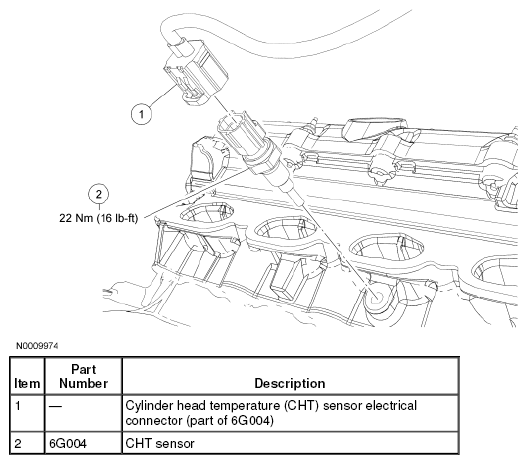

Fig 1: Cylinder Head Temperature (CHT) Sensor Replacement Components With Torque Specifications
G04691068Courtesy of FORD MOTOR CO.
