Fuel Pressure Sensor: Notes

MATERIAL

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20- LSP12) or equivalent WSSM2C930-A

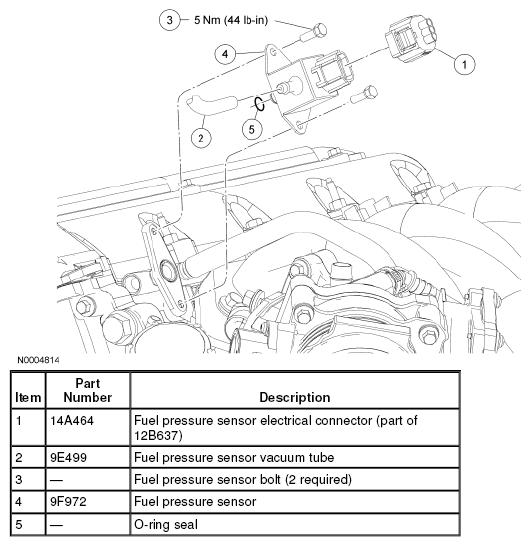

Fig 1: Fuel Pressure Sensor Replacement Components With Torque Specifications
G04691069Courtesy of FORD MOTOR CO.
