Throttle Position (TP) Sensor: Notes

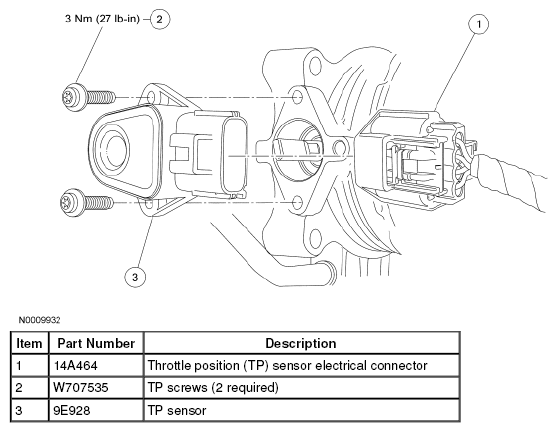

Fig 1: Throttle Position (TP) Sensor Replacement Components With Torque Specifications
G04691060Courtesy of FORD MOTOR CO.
