Fuel Injectors

The dual-injection fuel delivery system uses 2 injectors per cylinder paired together. The primary injectors are slightly forward of the secondary injectors.

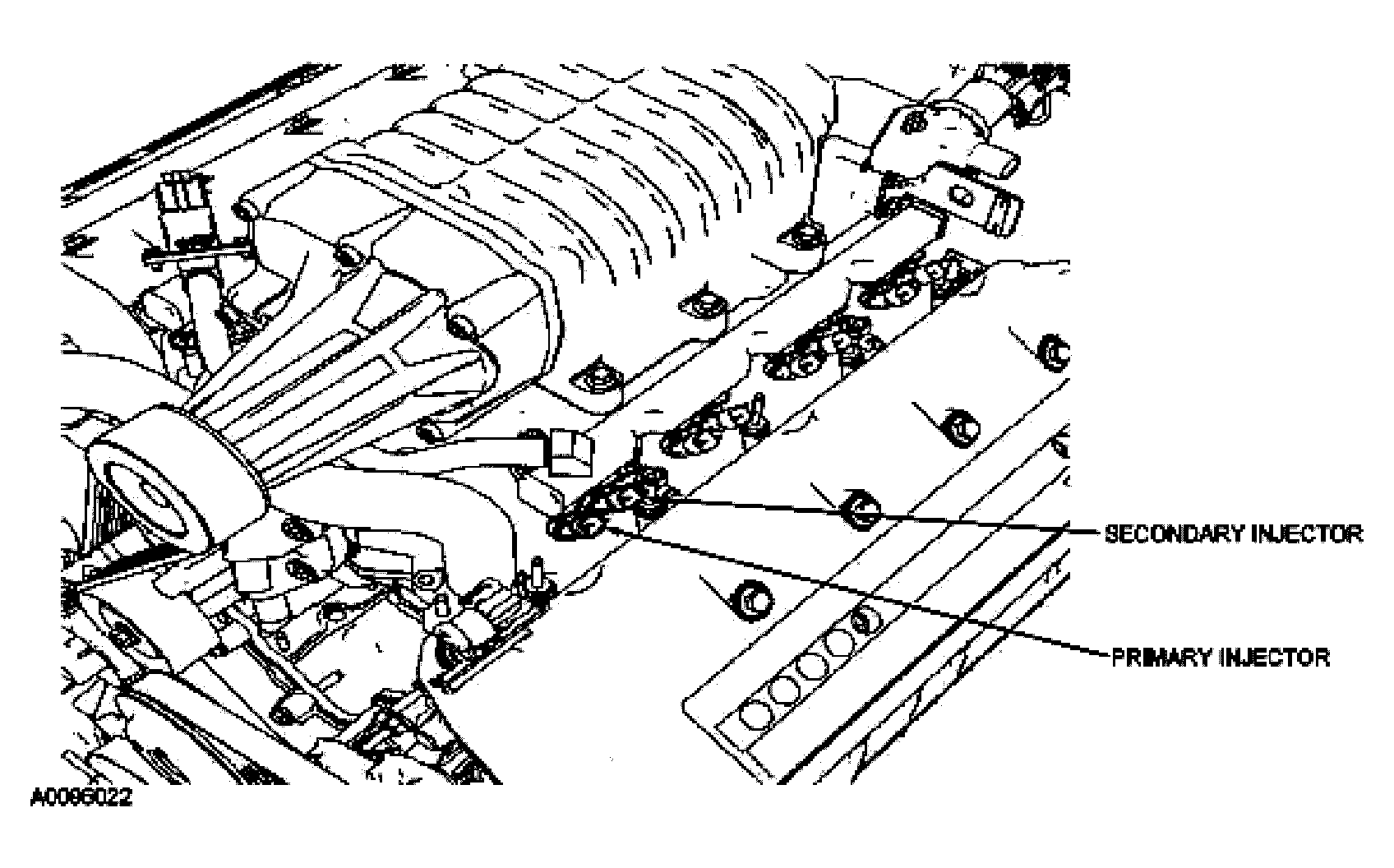

Fig 1: Identifying Primary And Secondary Injectors
G04587097Courtesy of FORD MOTOR CO.
