Fuel Rails

The fuel rails route fuel to both fuel injectors.

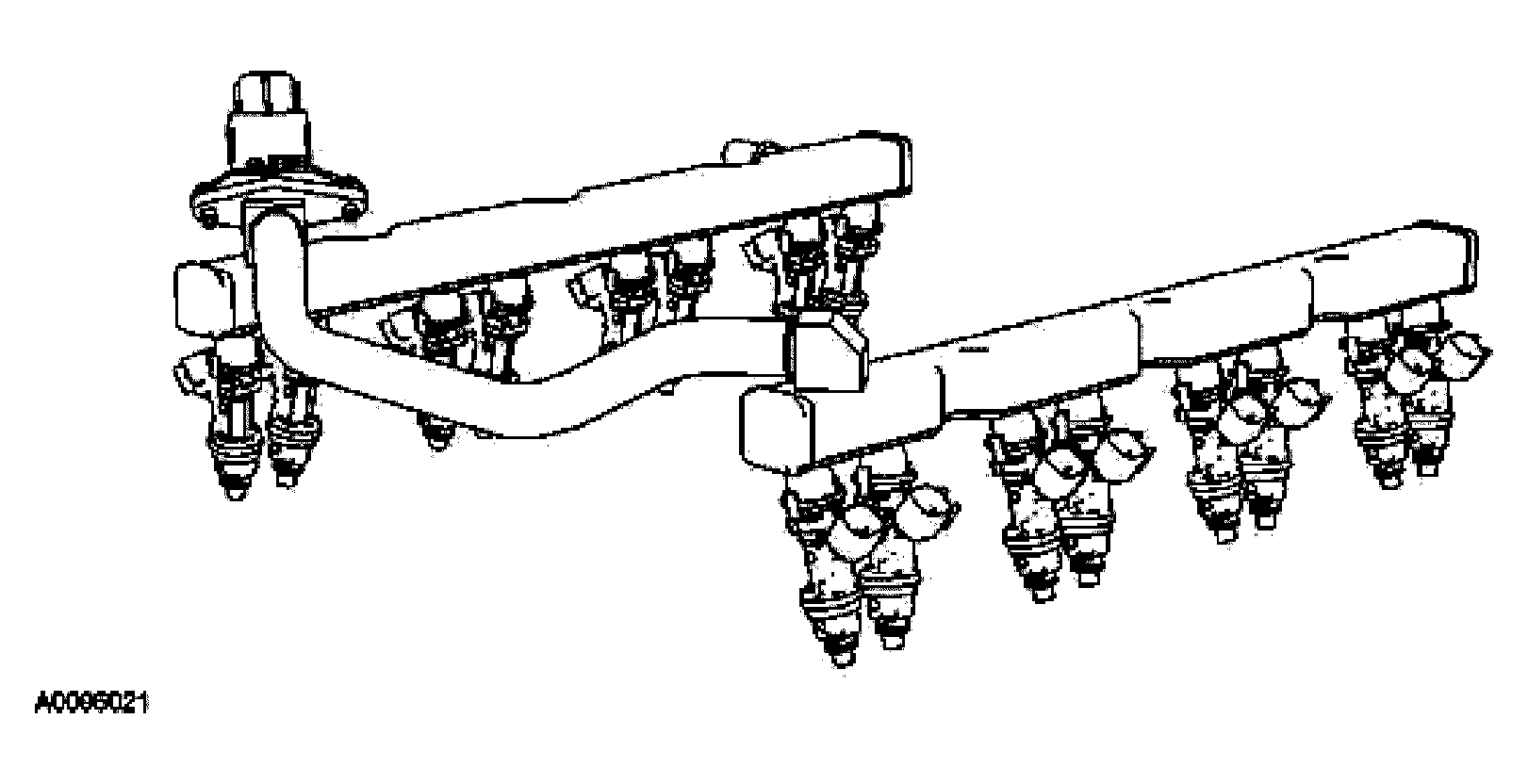

Fig 1: Identifying Dual-injection Fuel Rail
G04587096Courtesy of FORD MOTOR CO.
