Power Steering Pump: Notes

SPECIAL TOOL(S) CHART

G04690134Courtesy of FORD MOTOR CO.
 Installer Set, Teflon® Seal
211-D027 (D90P-3517-A) or equivalent

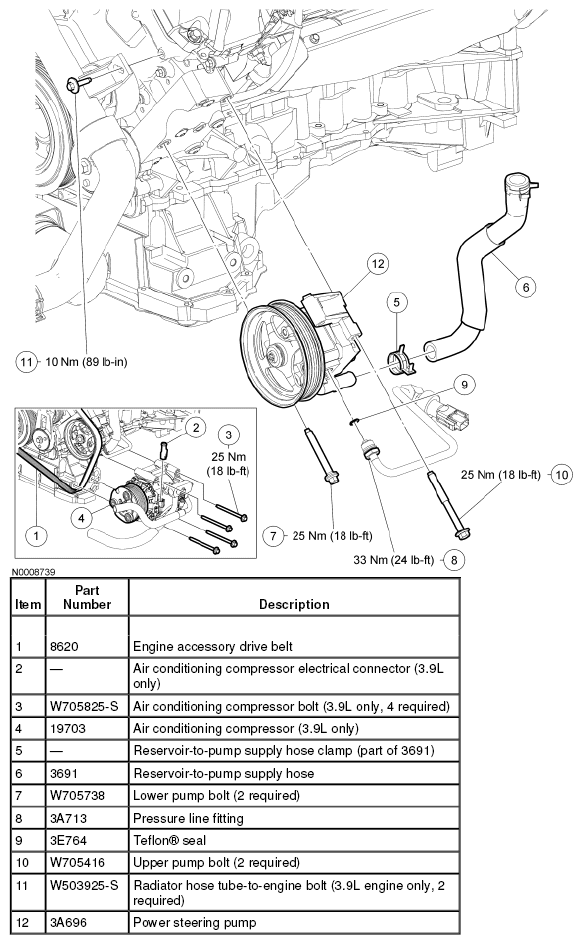

Fig 1: Power Steering Pump Replacement Components With Torque Specifications
G04690135Courtesy of FORD MOTOR CO.
