Tilt/Telescopic Motors: Notes

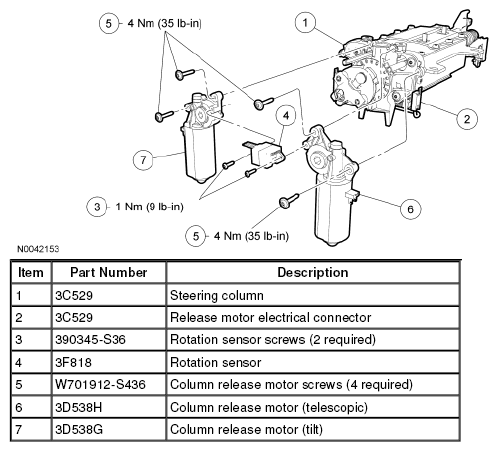

Fig 1: Exploded View Of Tilt/Telescopic Motors With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
