Powertrain Control Module (PCM)

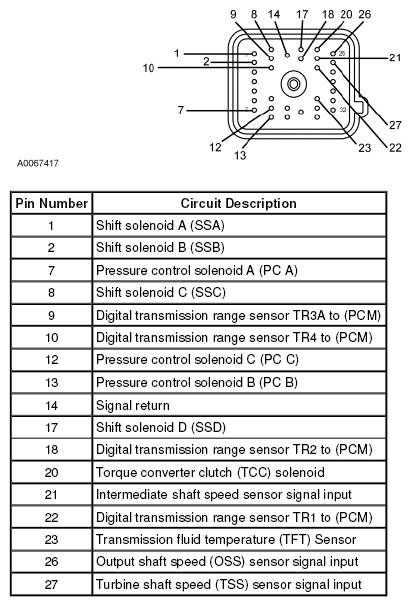

Fig 1: Powertrain Control Module Connector Terminal Identification
G04691085Courtesy of FORD MOTOR CO.
