Overdrive Planetary and One-Way Clutch Assembly: Notes

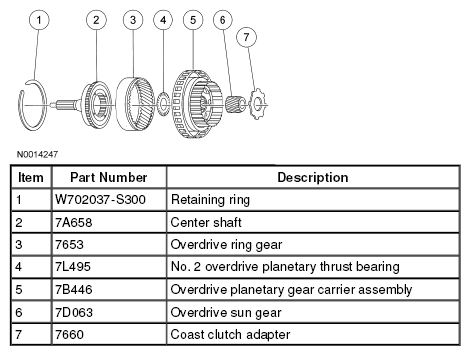

Fig 1: Exploded View Of Overdrive Planetary And One-Way Clutch Assembly
G04691525Courtesy of FORD MOTOR CO.
