Powertrain Control Module (PCM): Notes

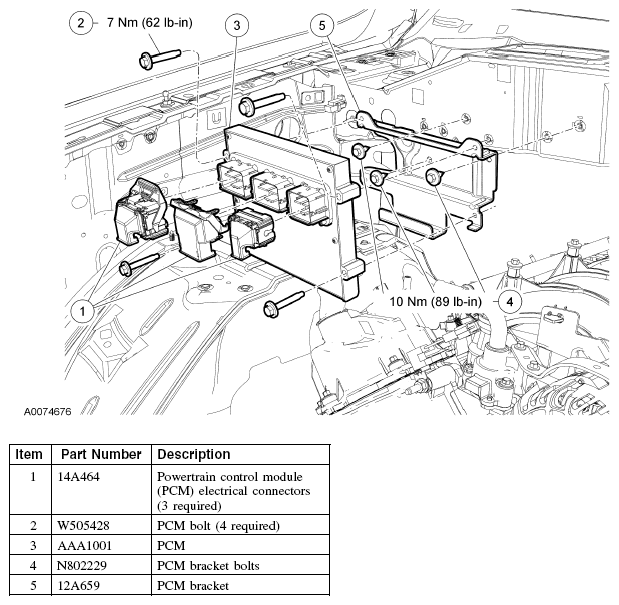

Fig 1: Identifying Powertrain Control Module (PCM) Remove/Install Components
G04673031Courtesy of FORD MOTOR CO.
