Component Location Index

PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

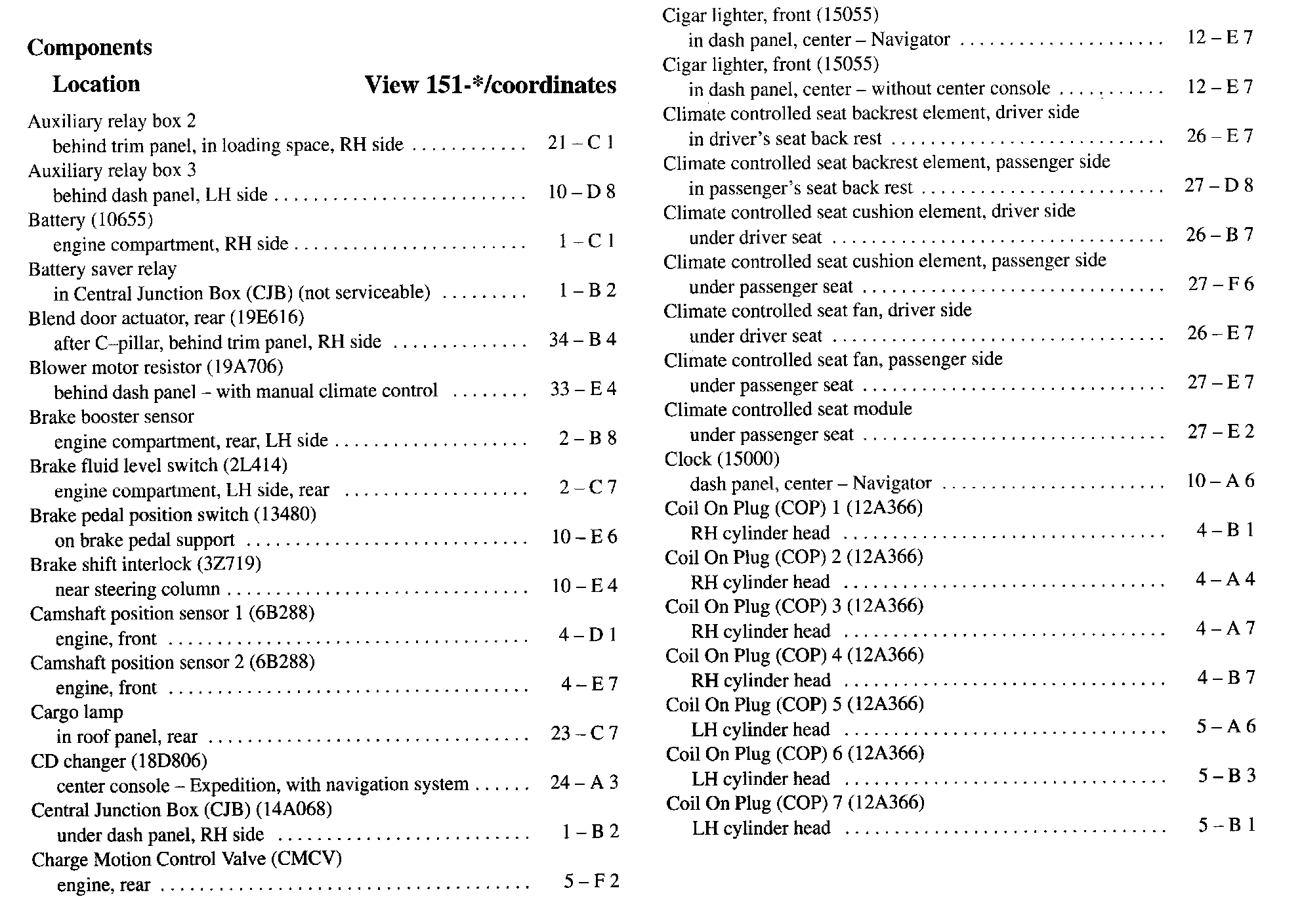

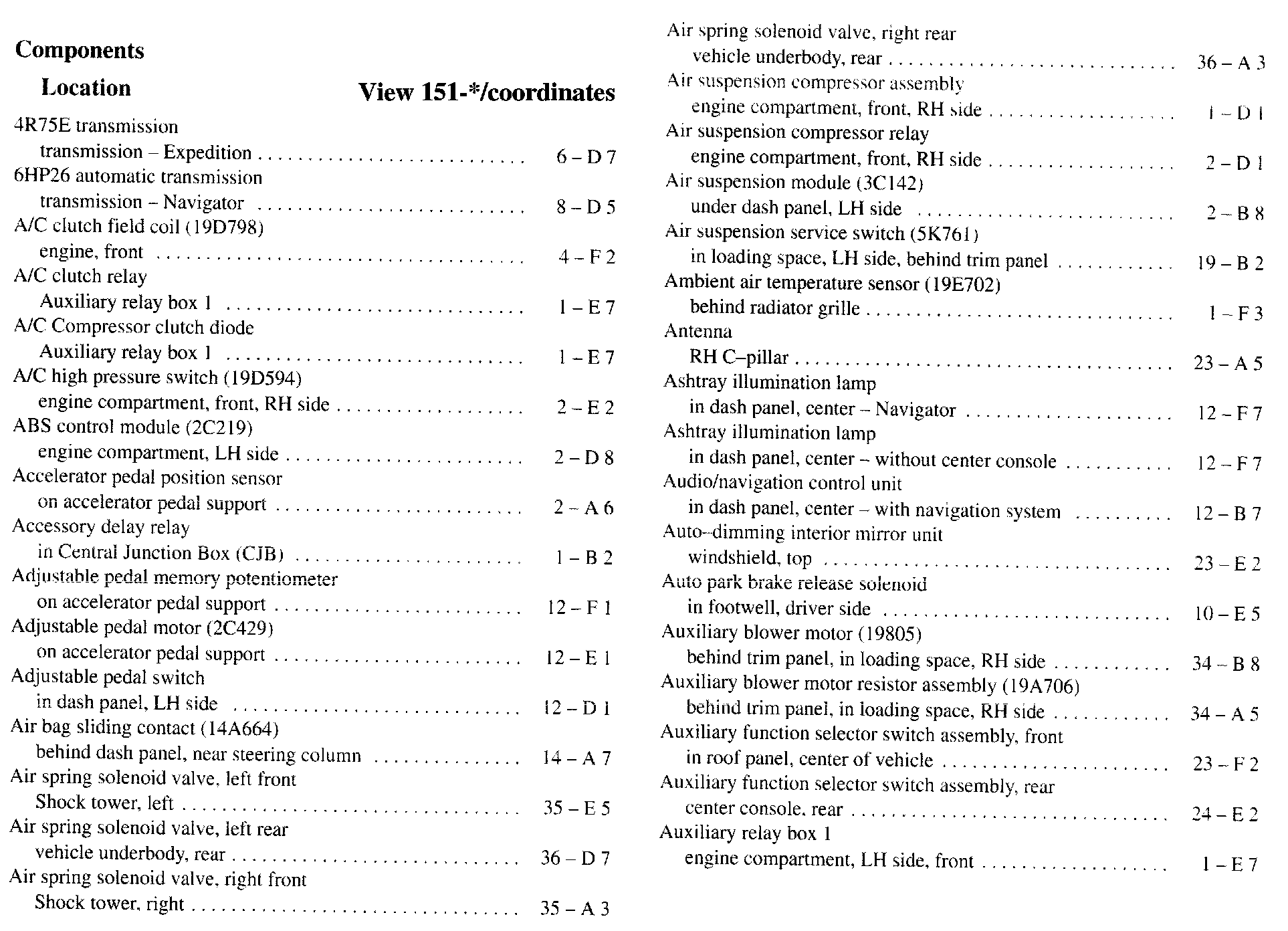

4R-Au:

Au-Co:

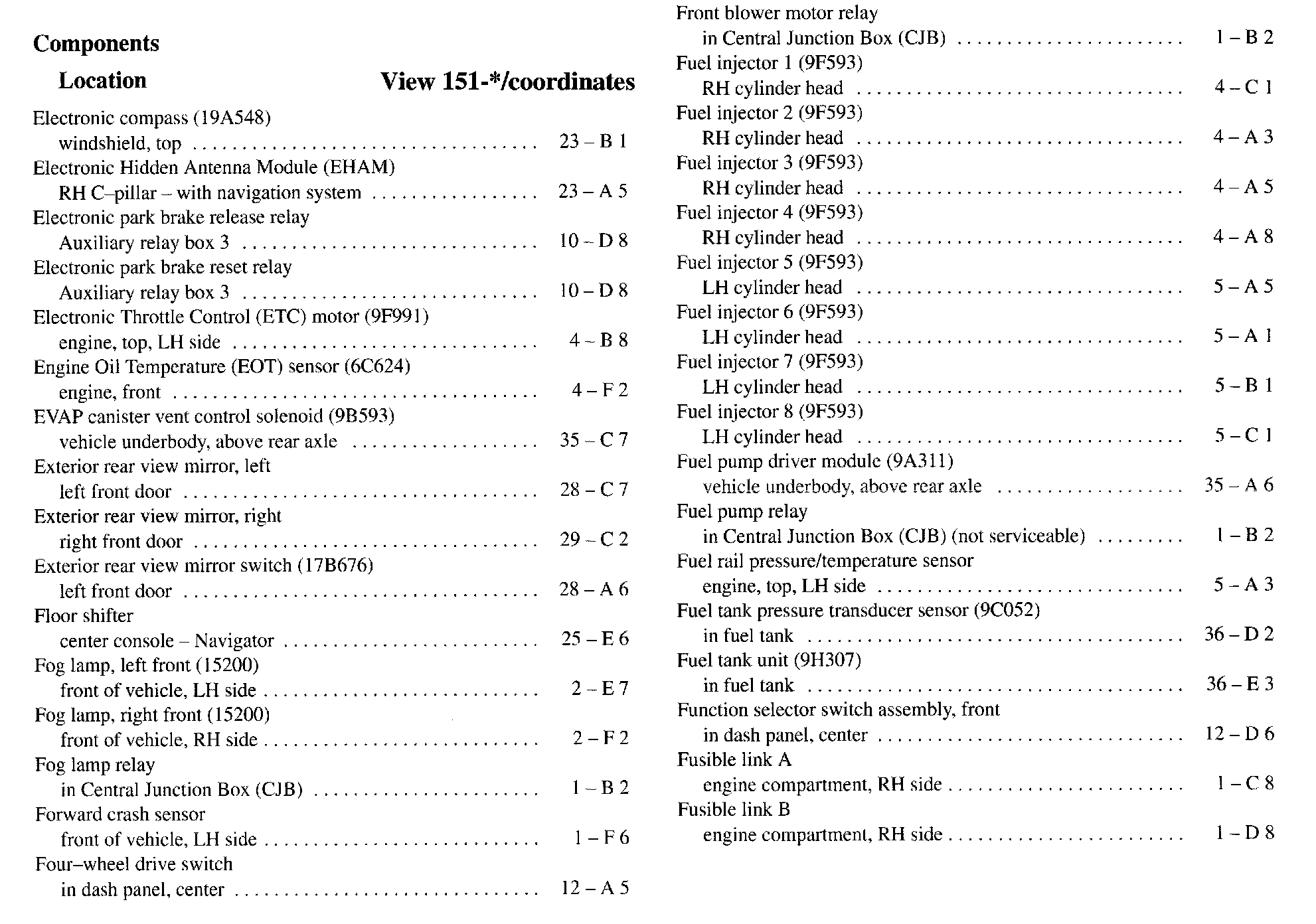

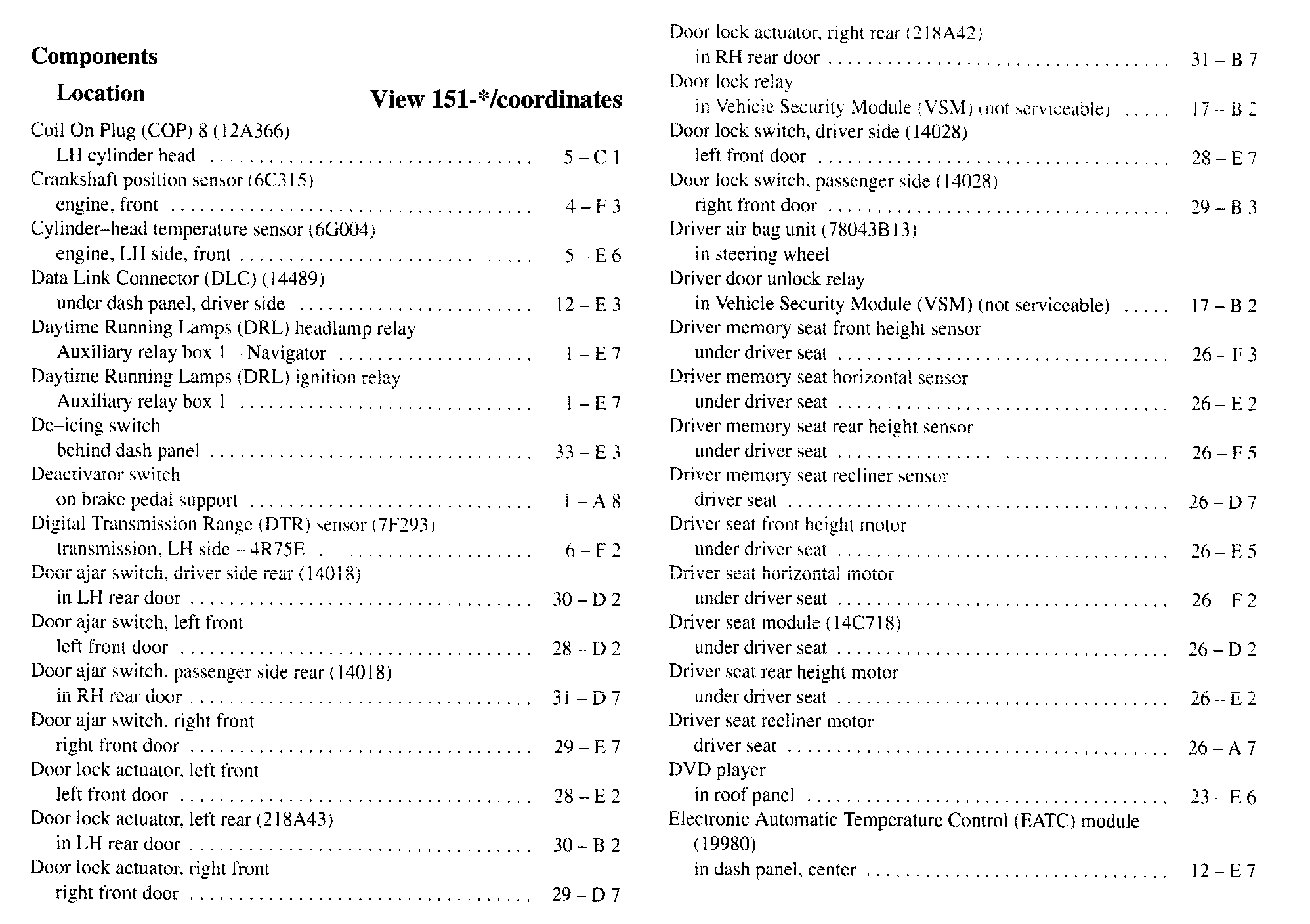

Co-El:

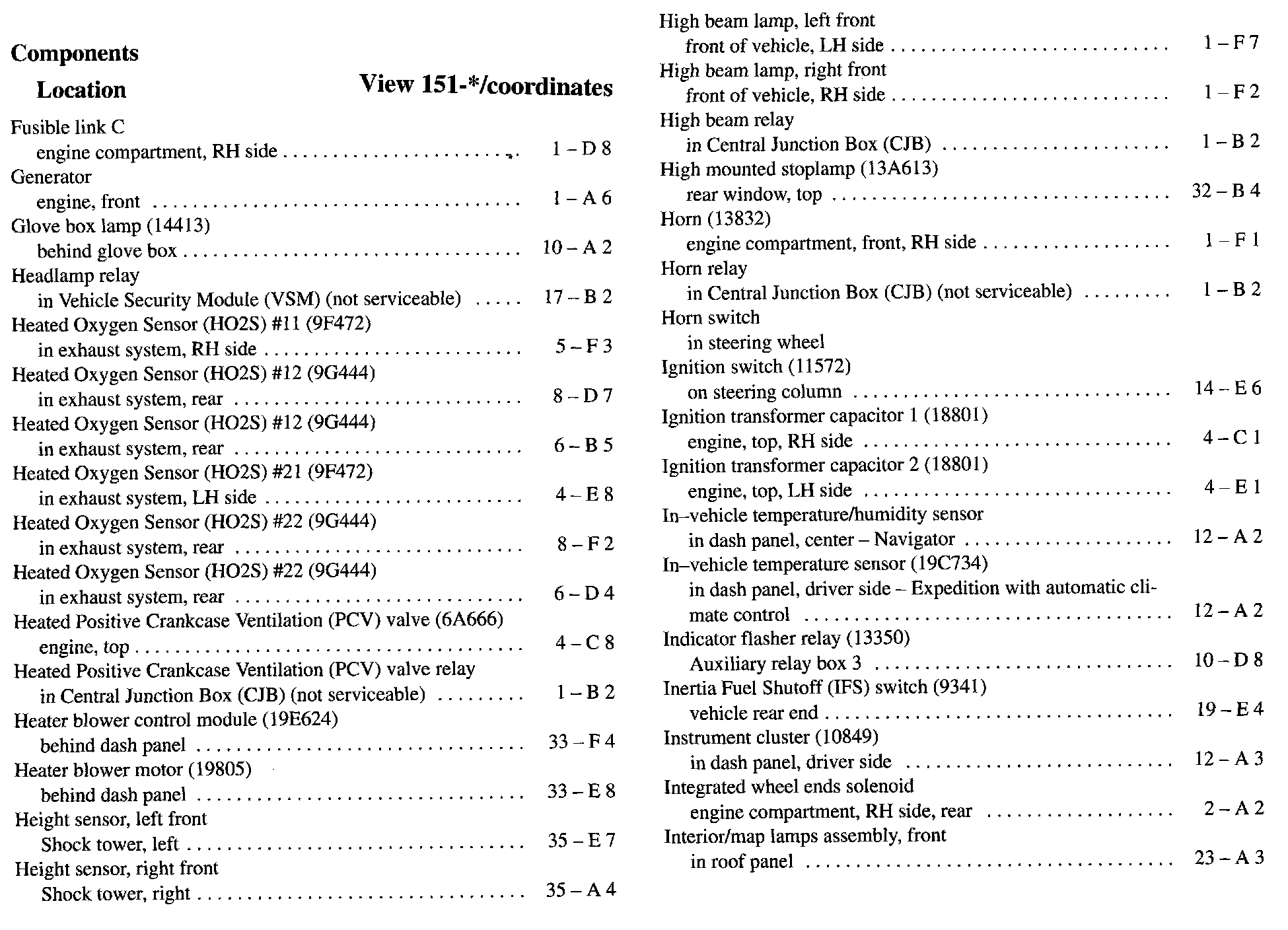

El-Fu:

Fu-In:

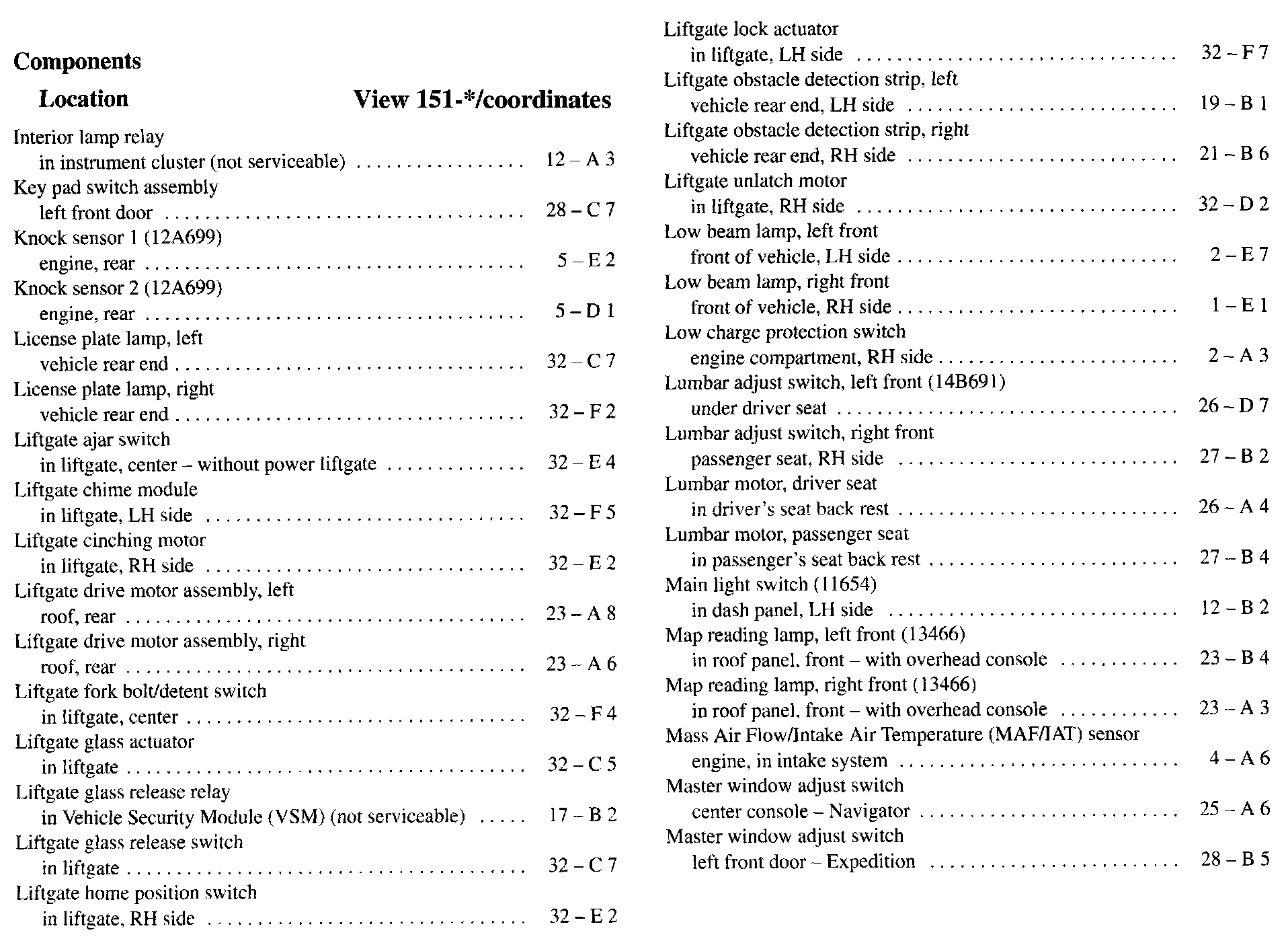

In-Ma:

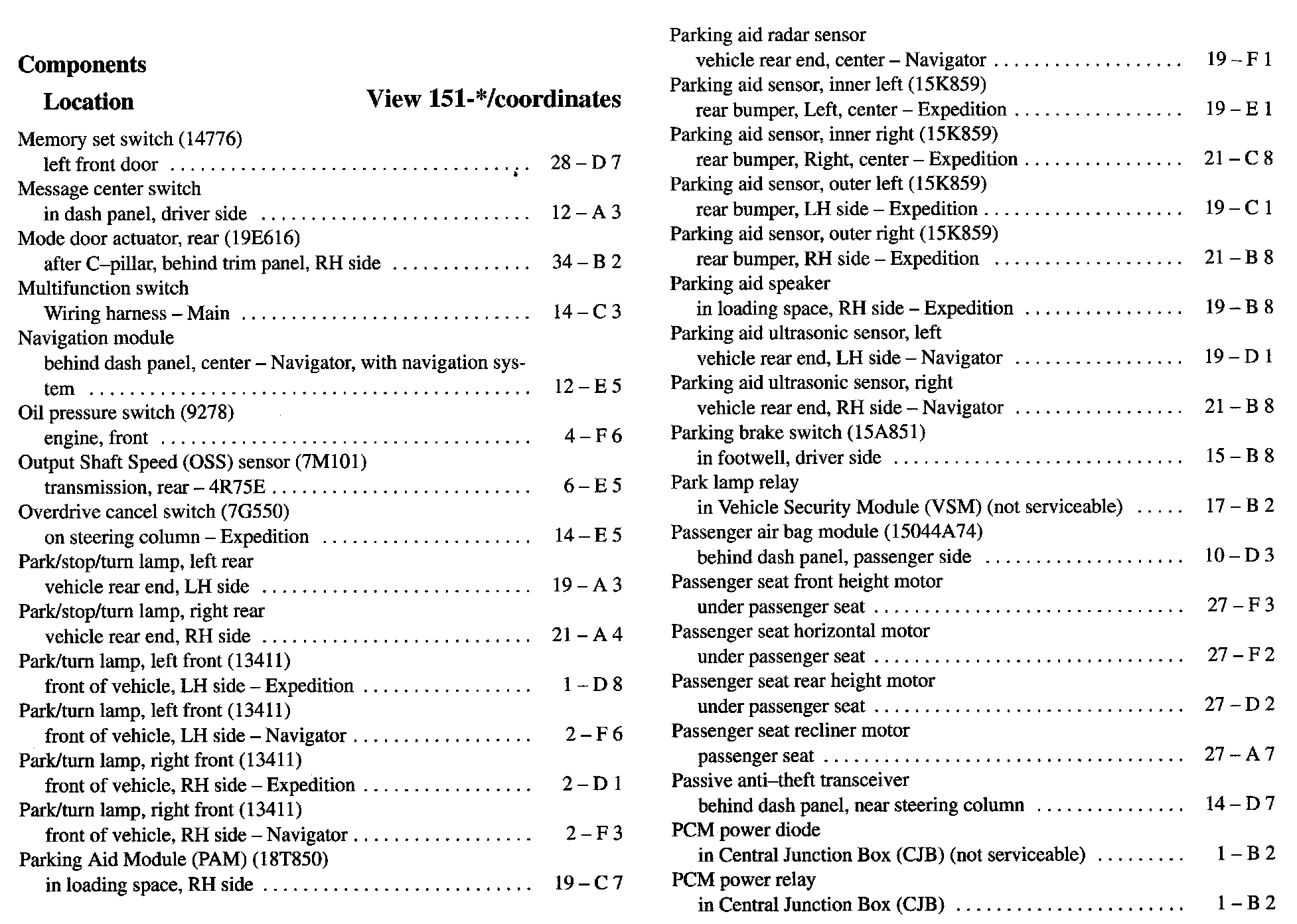

Me-PC:

Po-Re:

Re-Sp:

St-Tu:

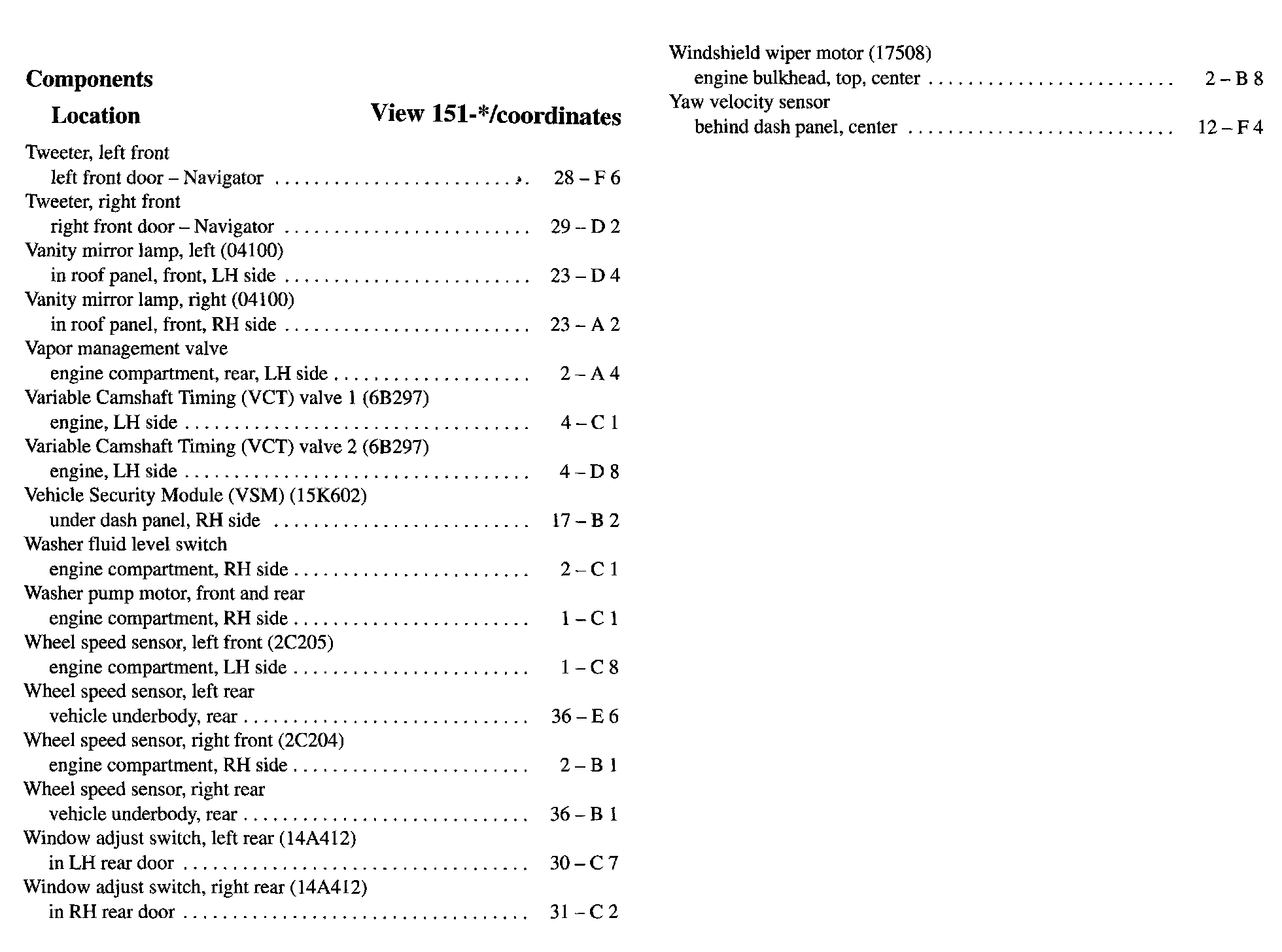

Tw-Wi:
