Fuse Block

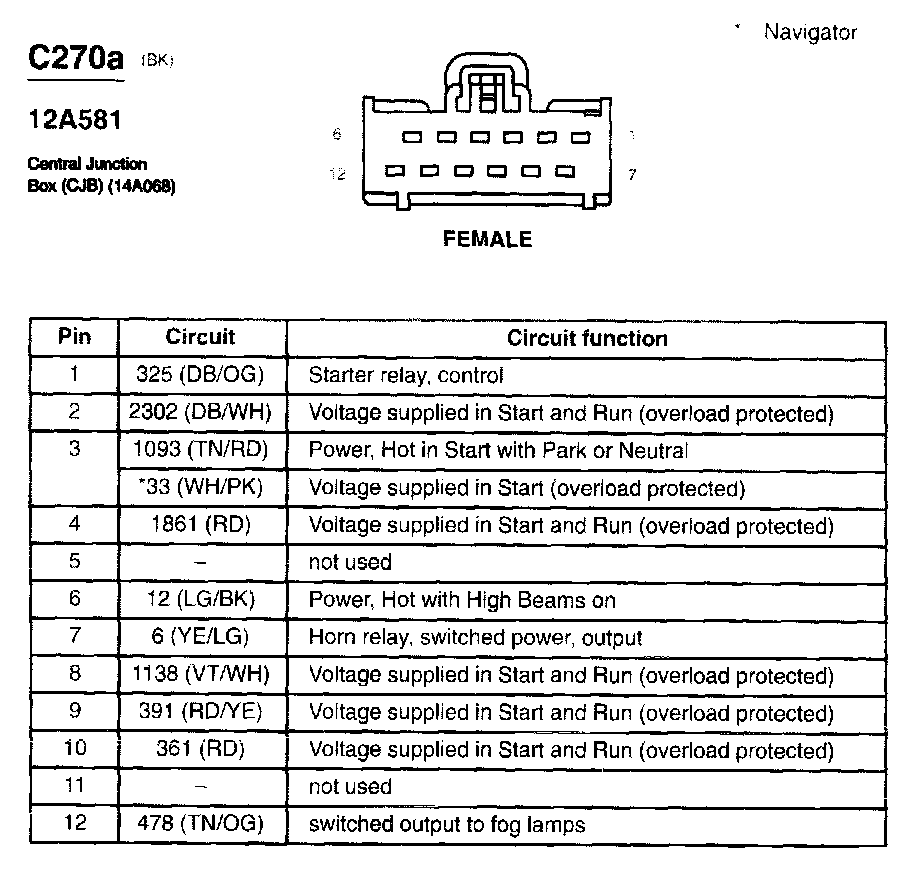

C270a:

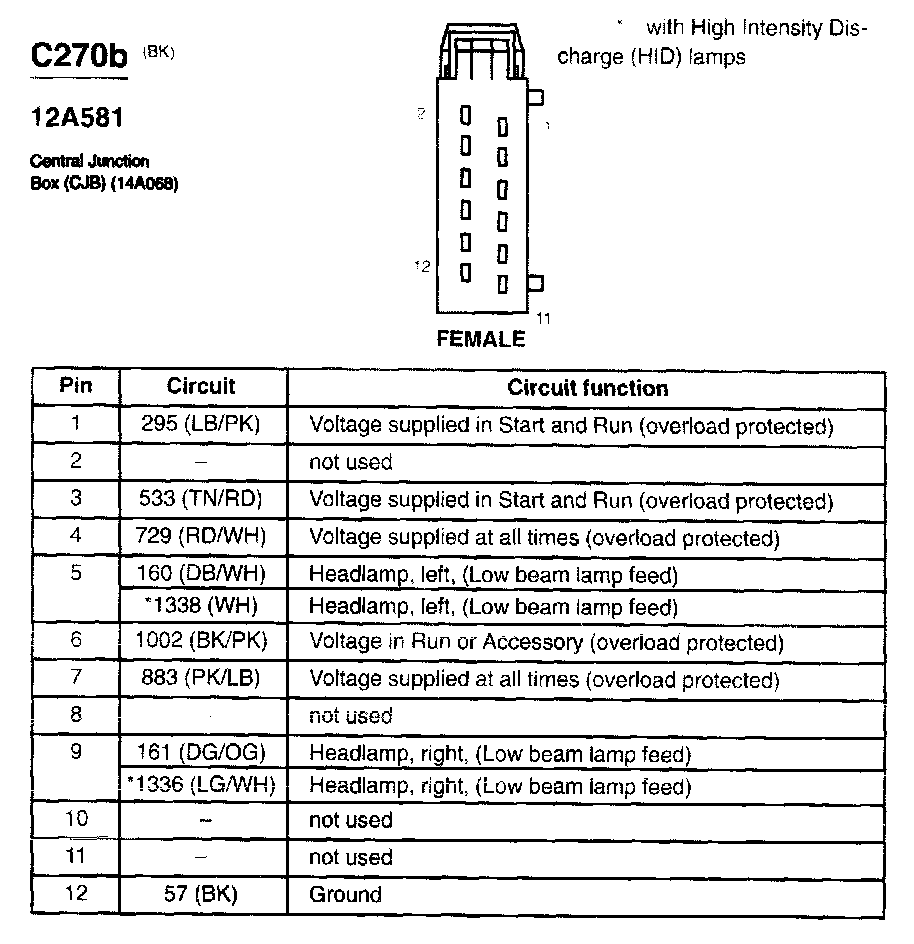

C270b:



C270c:



C270d:

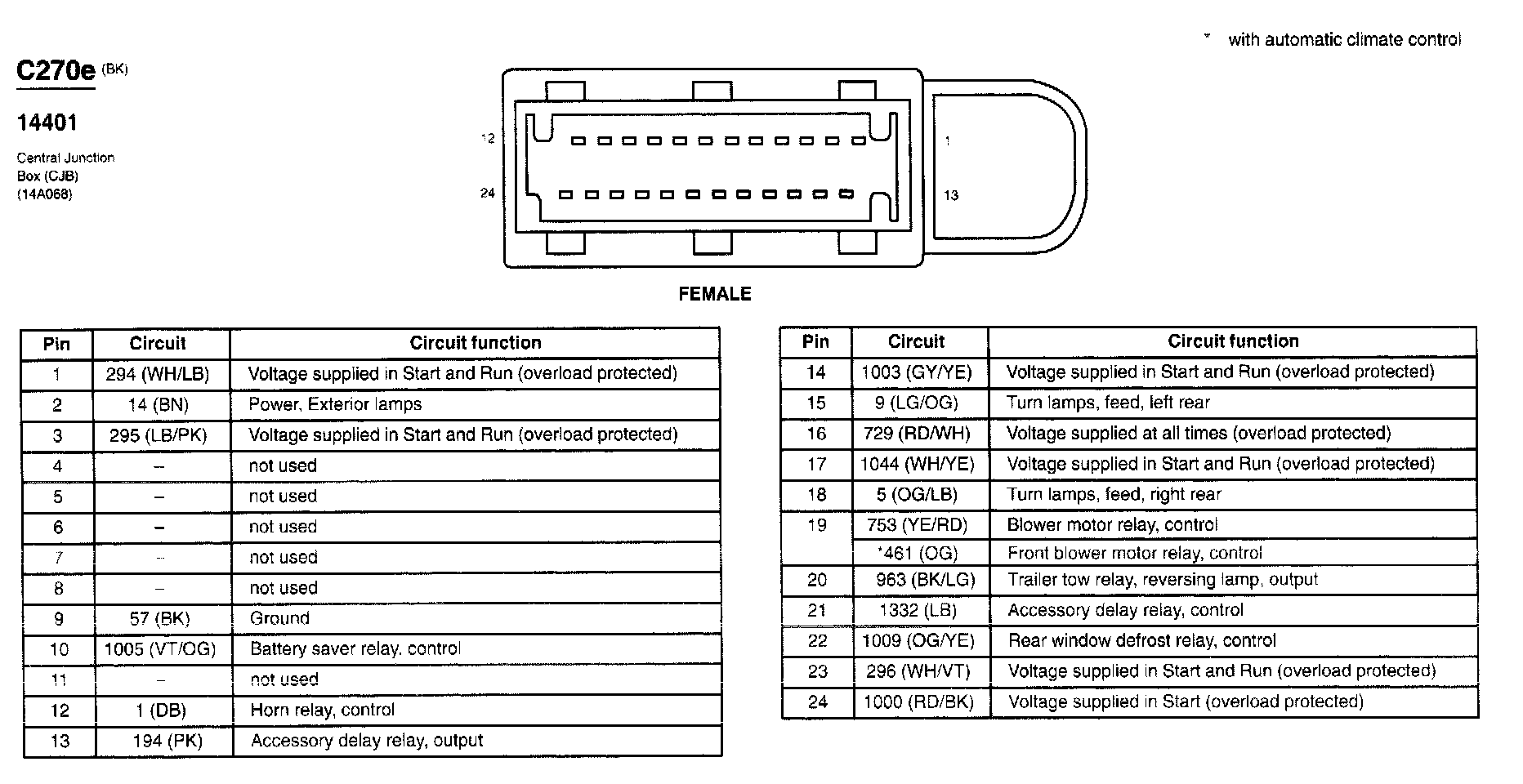

C270e:



C270f:



C270g:

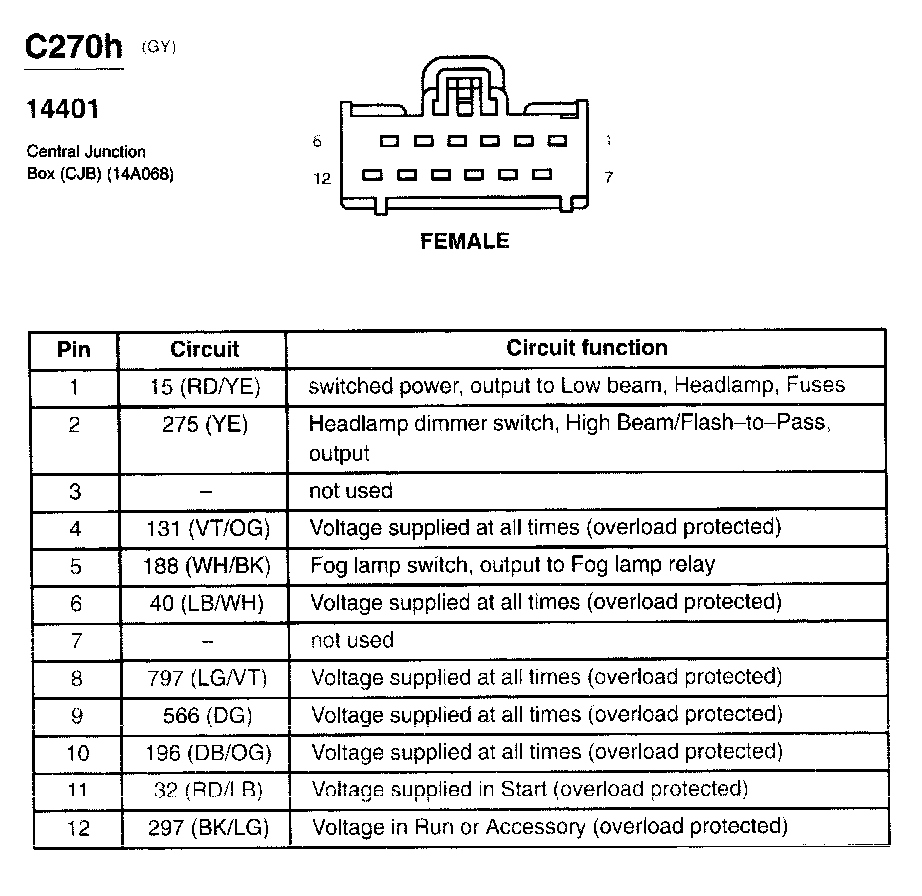

C270h:

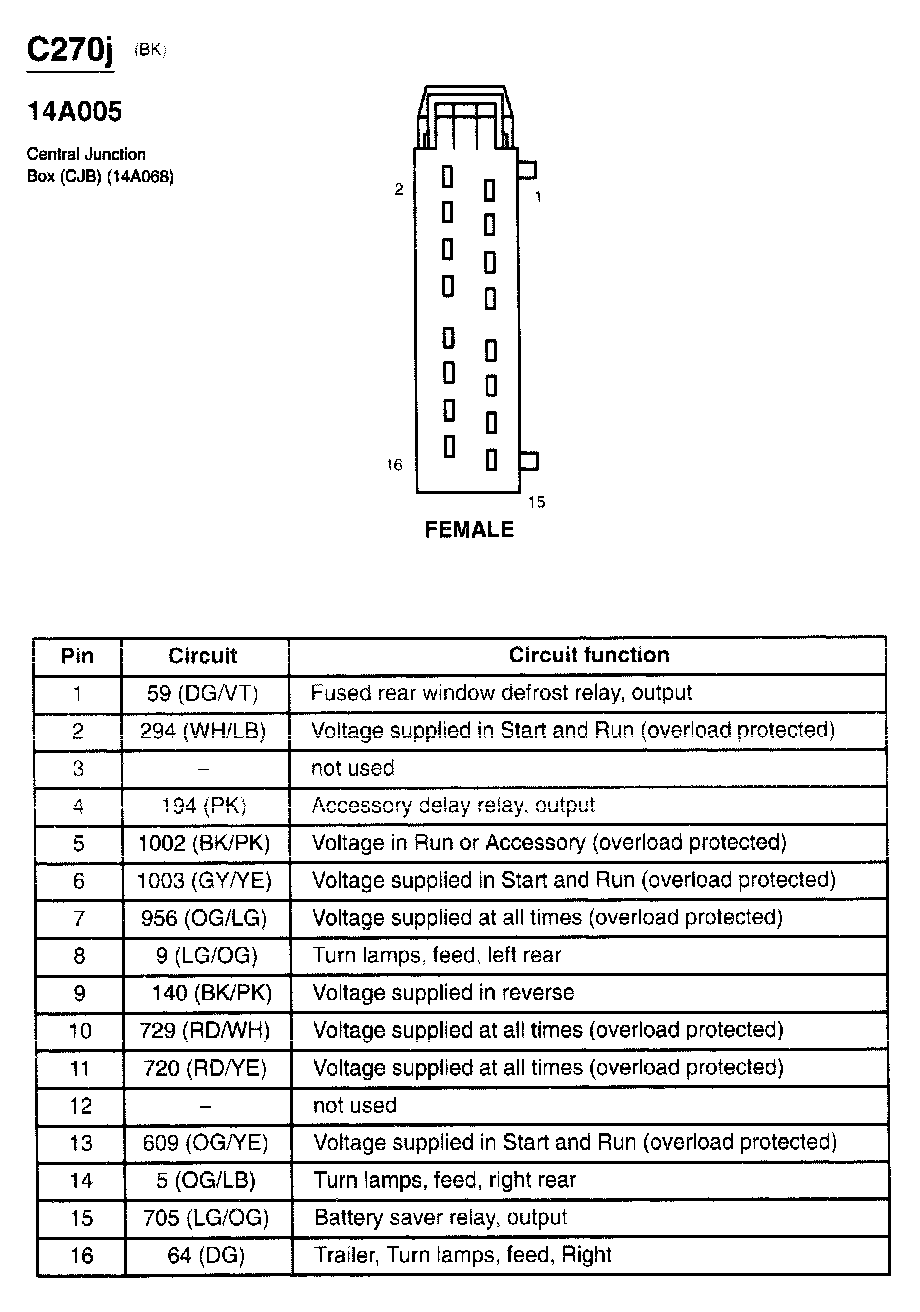

C270j:



C270k:



C270m:



C270n:



C270p:
