Seat - Exploded View, Front

Front Seat 40 Percent Backrest

NOTE: Driver backrest shown, passenger similar.

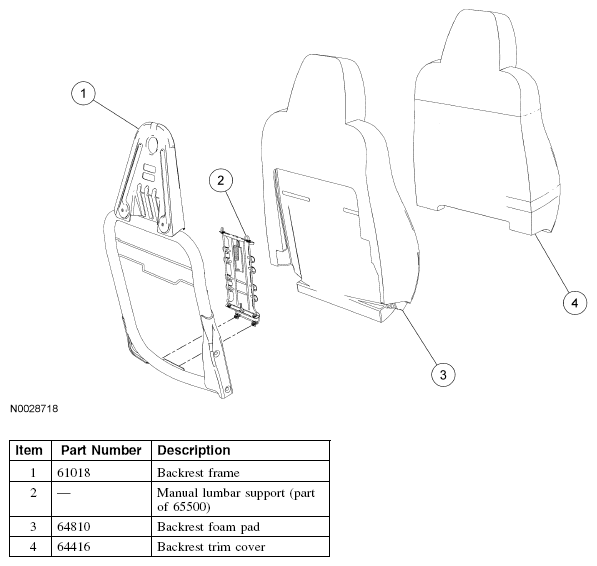

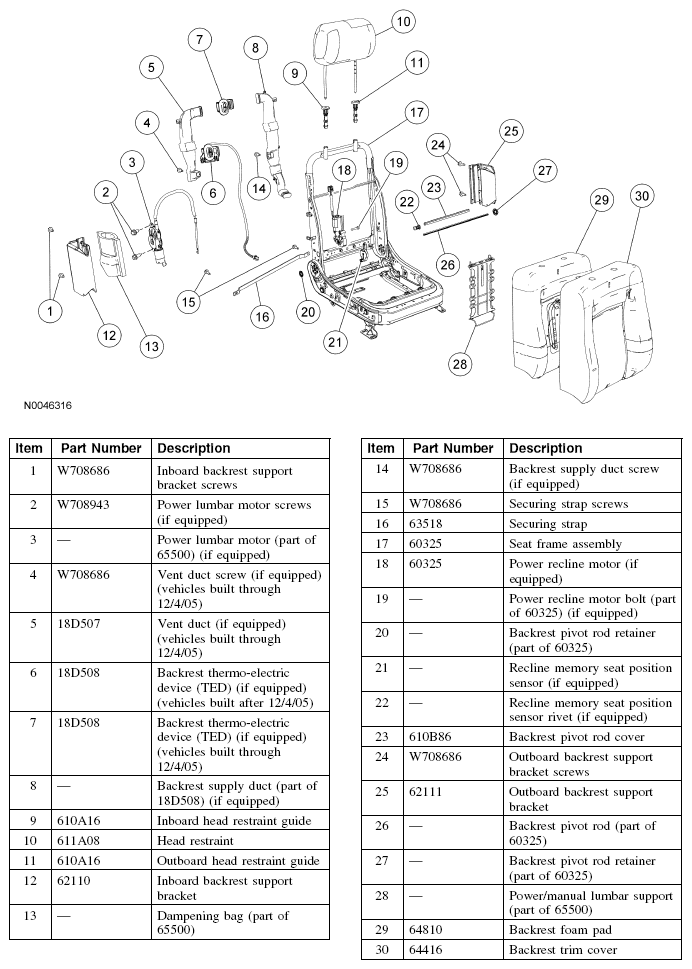

Fig 1: Identifying Exploded View Of Front Seat Components - 40 Percent Backrest

Courtesy of FORD MOTOR CO.

Front Seat 40 Percent Cushion

NOTE: Driver cushion shown, passenger similar.

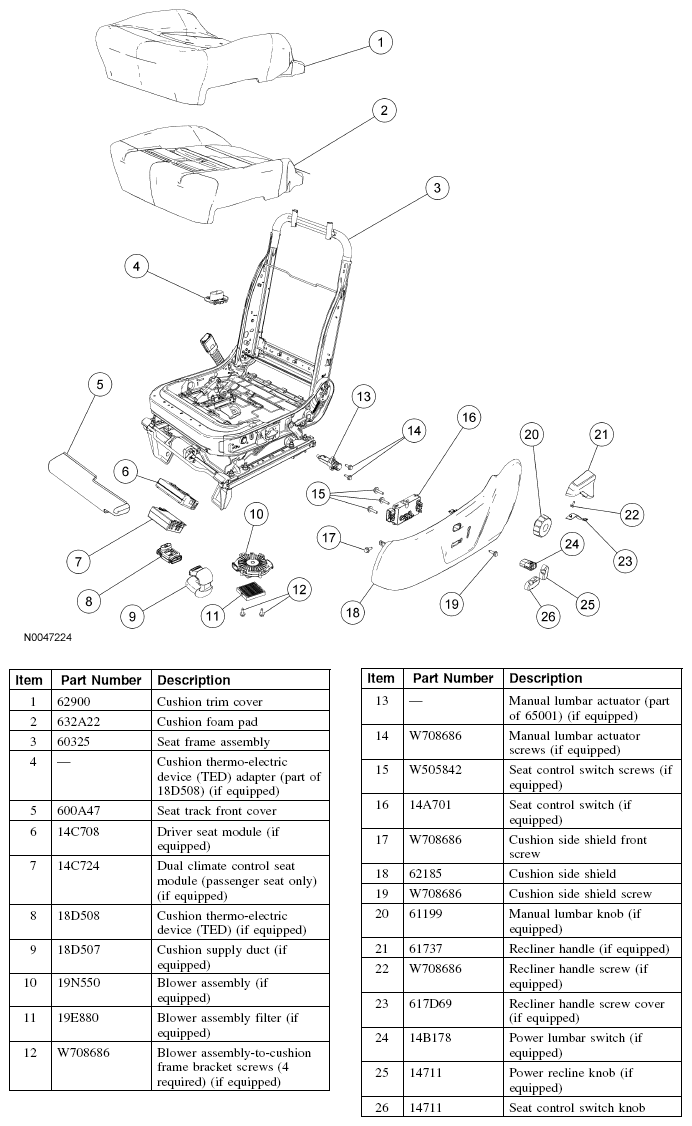

Fig 2: Identifying Exploded View Of Front Seat Components - 40 Percent Cushion

Courtesy of FORD MOTOR CO.

Front Seat 40 Percent Track And Motors

NOTE: Driver side power and passenger side manual seat track shown in Fig 3.

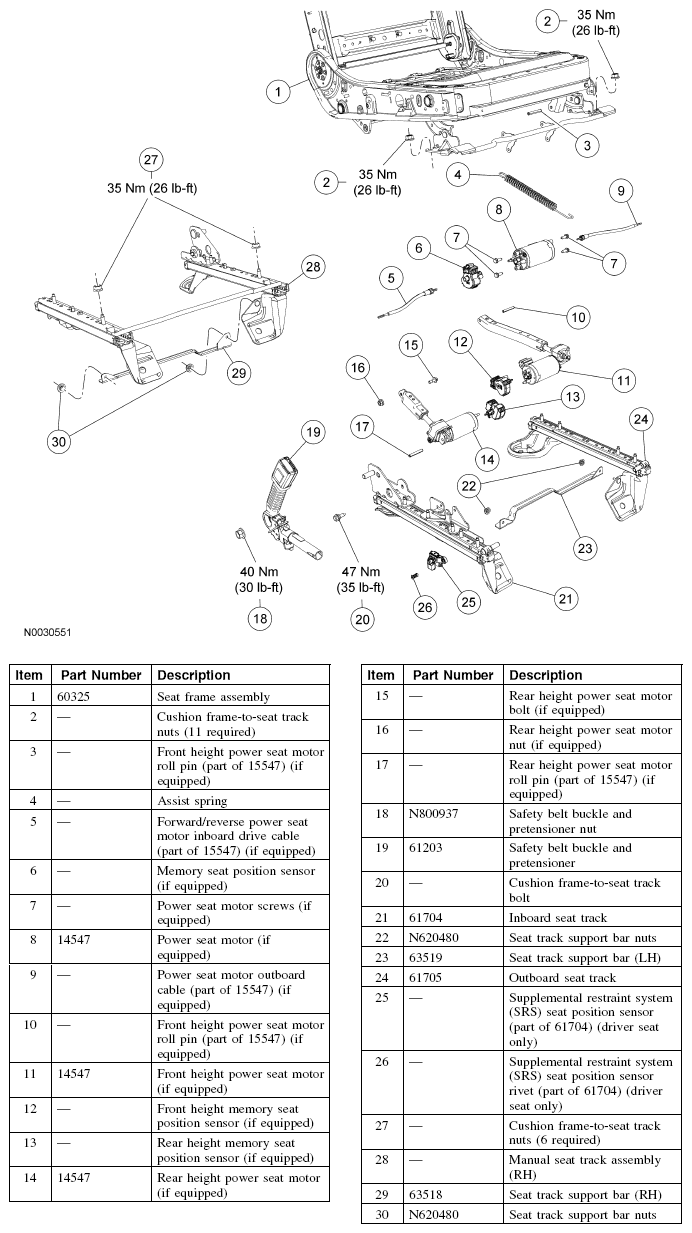

Fig 3: Exploded View Of Front Seat Replacement Components -- 40 Percent Track & Motors With Torque Specifications

Courtesy of FORD MOTOR CO.

Front Seat 60 Percent Backrest

Fig 4: Identifying Front Seat Components - 60 Percent Backrest

Courtesy of FORD MOTOR CO.

Front Seat 60 Percent Cushion

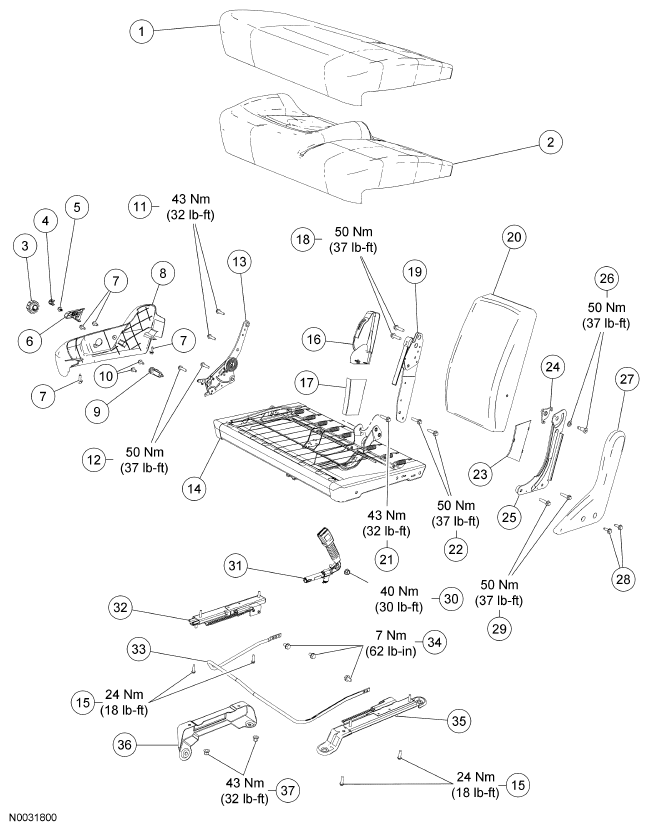

Fig 5: Exploded View Of Front Seat Replacement Components -- 60 Percent Cushion With Torque Specifications

Courtesy of FORD MOTOR CO.

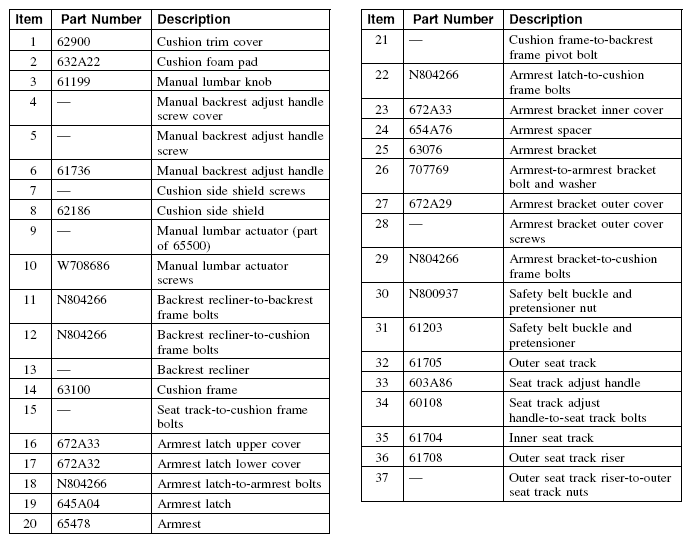

Fig 6: Identifying Front Seat 60 Percent Cushion Description Table

Courtesy of FORD MOTOR CO.
