Home >> Lincoln >> 2006 >> Navigator RWD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Safety Belt System >> Removal And Installation >> Safety Belt Retractor - Second Row, Center >> Notes
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Safety Belt Retractor - Second Row, Center: Notes

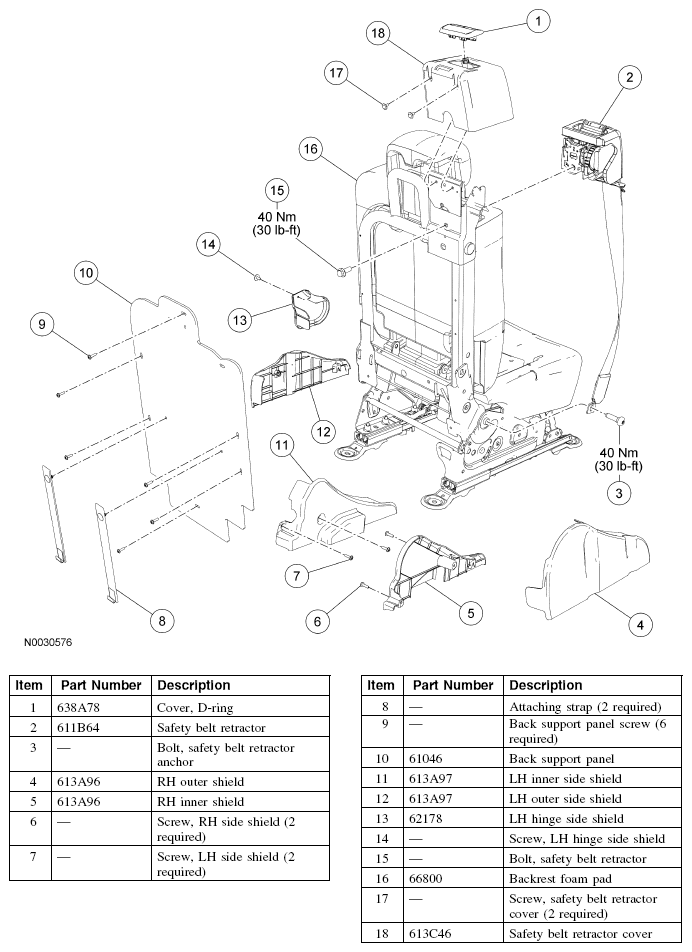

Fig 1: Identifying Safety Belt Retractor Components - Second Row, Center
G04631305Courtesy of FORD MOTOR CO.
