Engine Mount - LH: Notes

SPECIAL TOOL(S)

G04705296Courtesy of FORD MOTOR CO.
 Lifting Brackets, Engine
303-050 (T70P-6000)
G04705297Courtesy of FORD MOTOR CO.
 3-Bar Engine Support Kit
303-F072
MATERIAL

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A

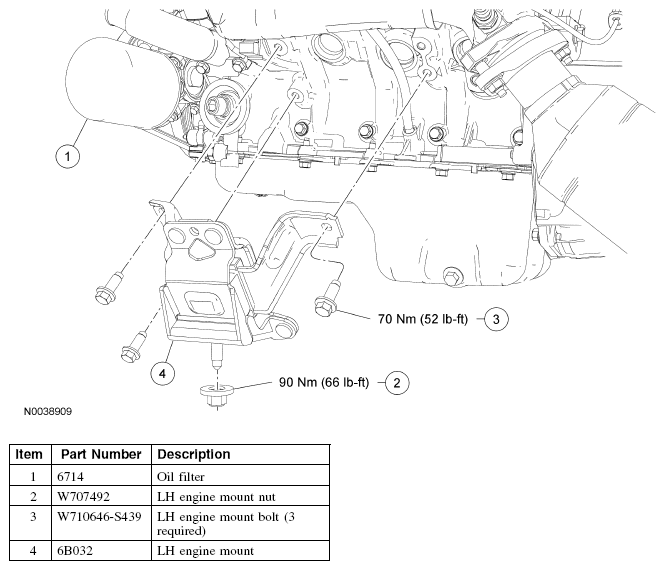

Fig 1: Engine Mount -- LH Replacement Components With Torque Specifications
G04705298Courtesy of FORD MOTOR CO.
