Intake Manifold: Notes

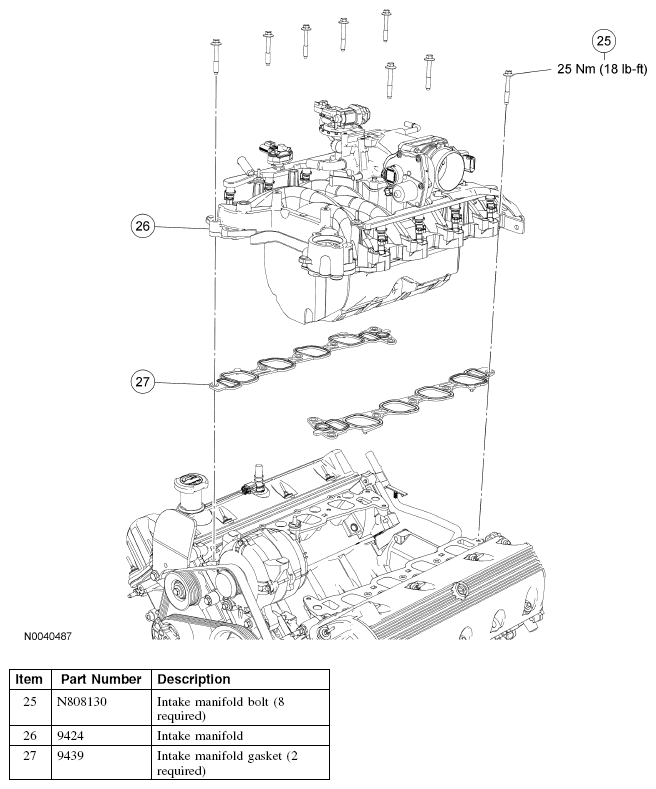

Fig 1: Intake Manifold Replacement Components (1 Of 3) With Torque Specifications

Courtesy of FORD MOTOR CO.

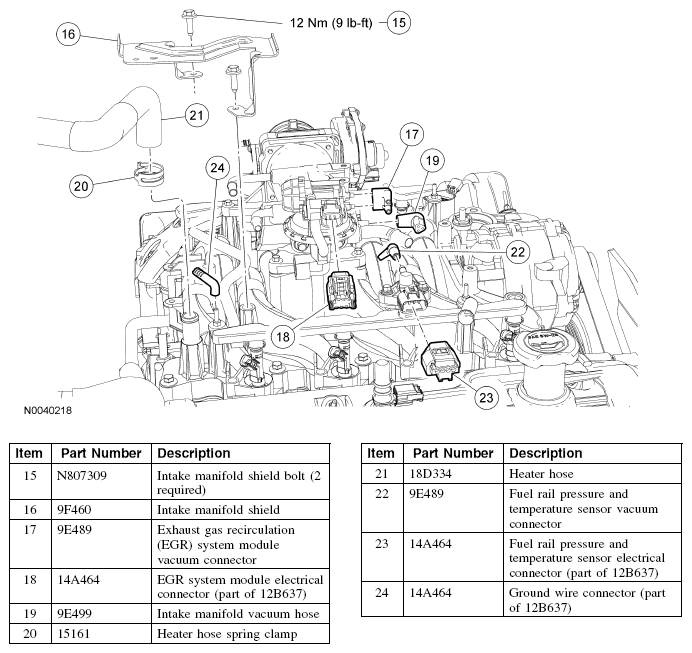

Fig 2: Intake Manifold Replacement Components (2 Of 3) With Torque Specifications

Courtesy of FORD MOTOR CO.

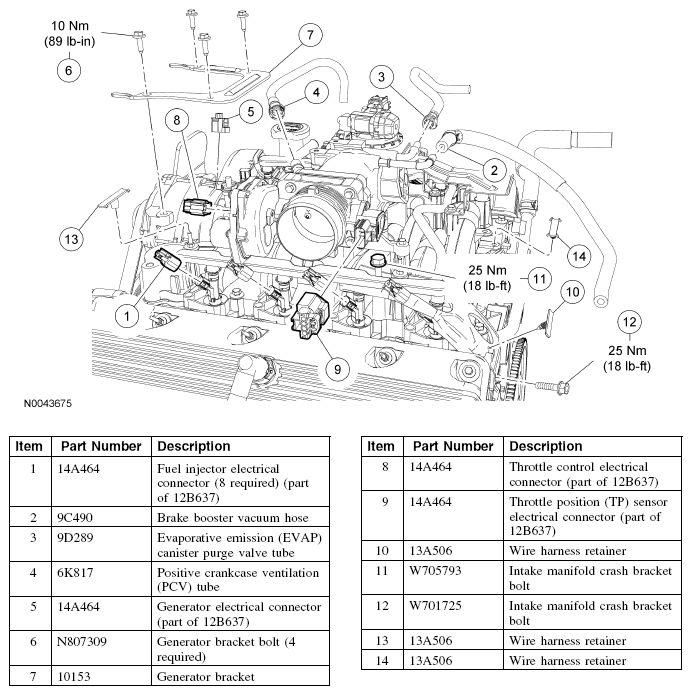

Fig 3: Intake Manifold Replacement Components (3 Of 3) With Torque Specifications

Courtesy of FORD MOTOR CO.
