Valve Train Components - Exploded View

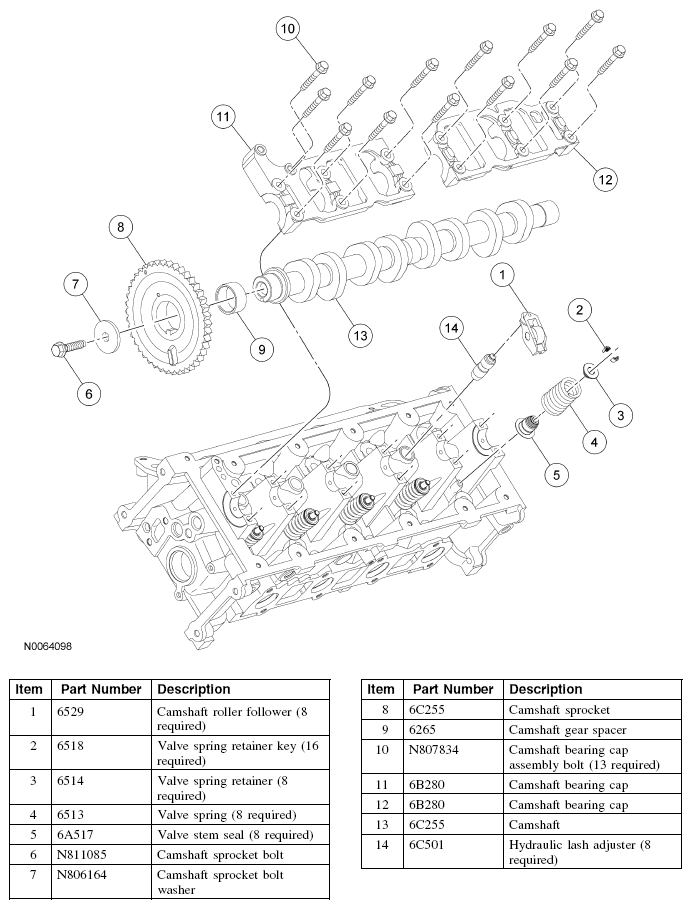

Fig 1: Exploded View Of Valve Train Components
G04705211Courtesy of FORD MOTOR CO.
  1. For additional information, refer toValve Train  the in this article.
