Throttle Position (TP) Sensor: Notes

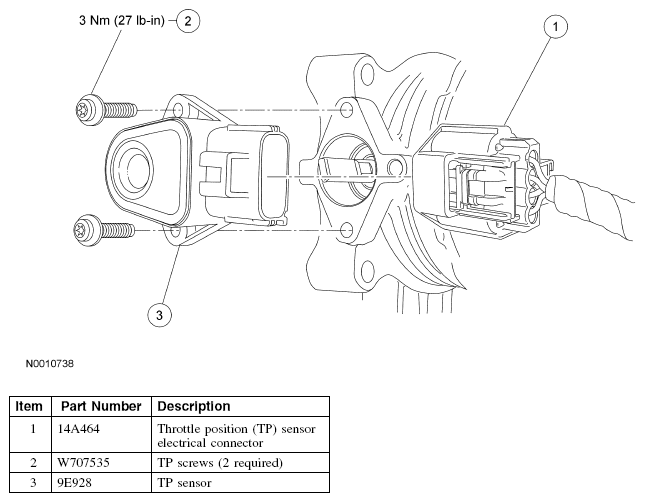

Fig 1: Throttle Position (TP) Sensor Replacement Components With Torque Specifications

G04705884
