Reverse Clutch: Notes

SPECIAL TOOL(S)

G04706302Courtesy of FORD MOTOR CO.
 Dial Indicator Gauge with Holding Fixture
100-002 (TOOL-4201-C)
G04706303Courtesy of FORD MOTOR CO.
 Compressor, Clutch Spring
307-015 (T65L-77515-A)
G04706304Courtesy of FORD MOTOR CO.
 Protector, Transmission Reverse Clutch Outer Fluid Seal
307-424
G04706305Courtesy of FORD MOTOR CO.
 Protector, Transmission Reverse Clutch Inner Fluid Seal
307-425
G04706306Courtesy of FORD MOTOR CO.
 Compressor, Clutch Spring
307-086 (T80L-77405-A)
MATERIALS

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

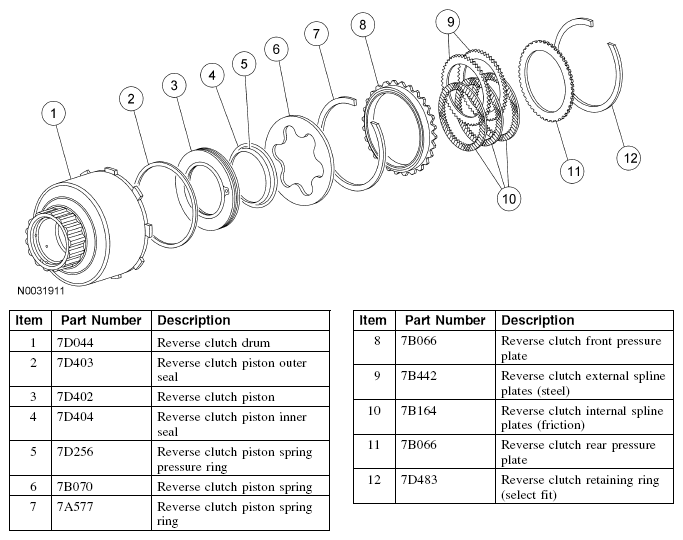

Fig 1: Exploded View Of Reverse Clutch
G04706307Courtesy of FORD MOTOR CO.
