Exterior Mirrors - Exploded View

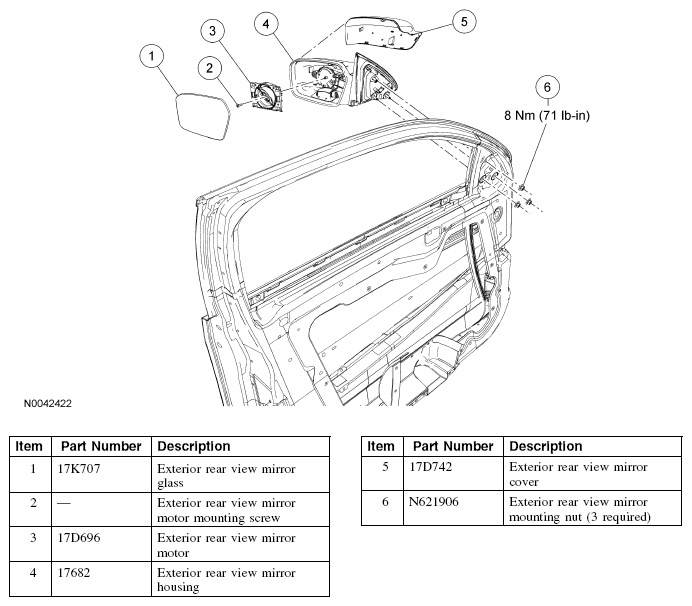

Fig 1: Exploded View Of Exterior Mirrors With Torque Specifications
G04683165Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
