Sunroof / Moonroof

ROOF OPENING PANEL - EXPLODED VIEW

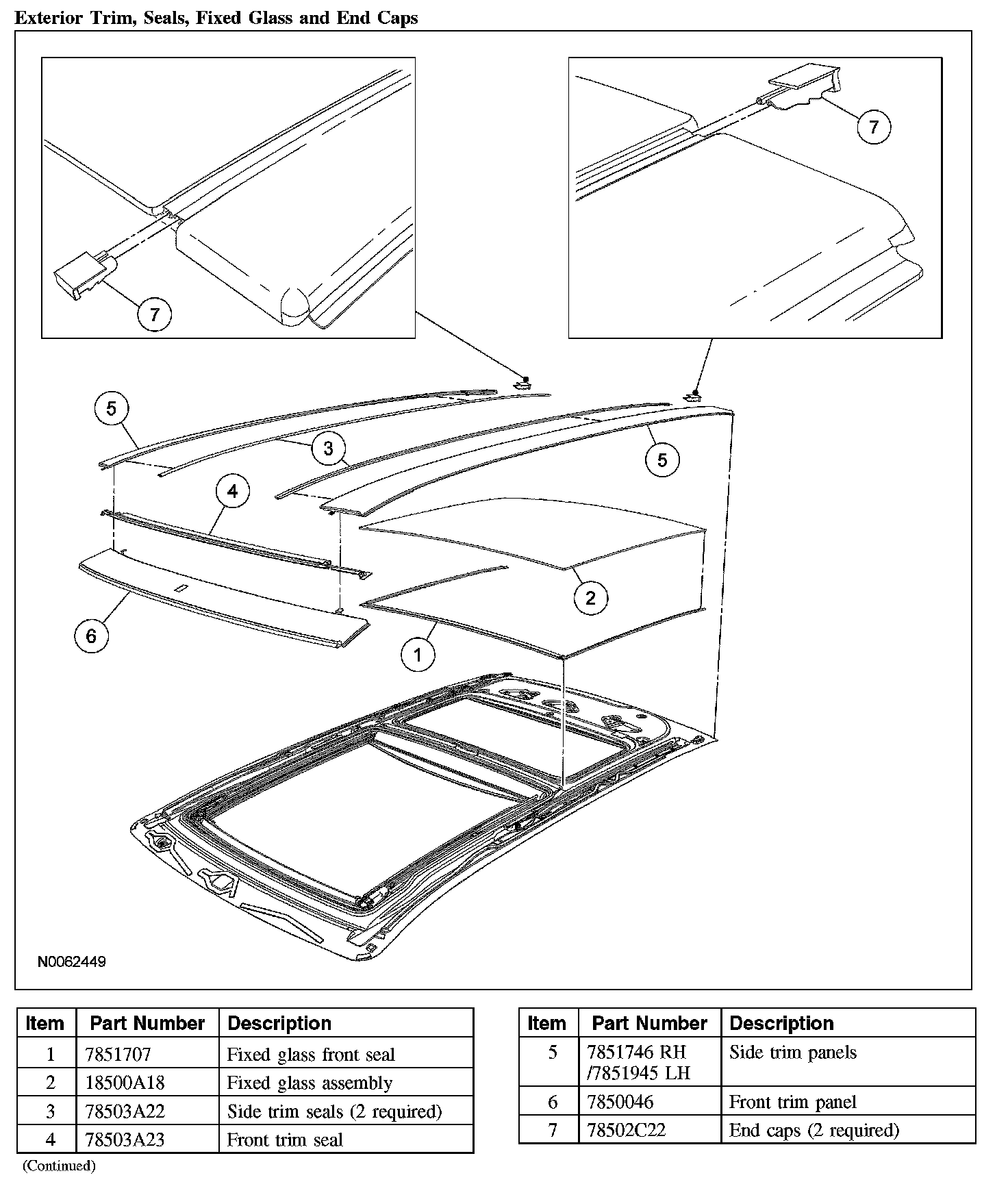

Exterior Trim, Seals, Fixed Glass And End Caps:

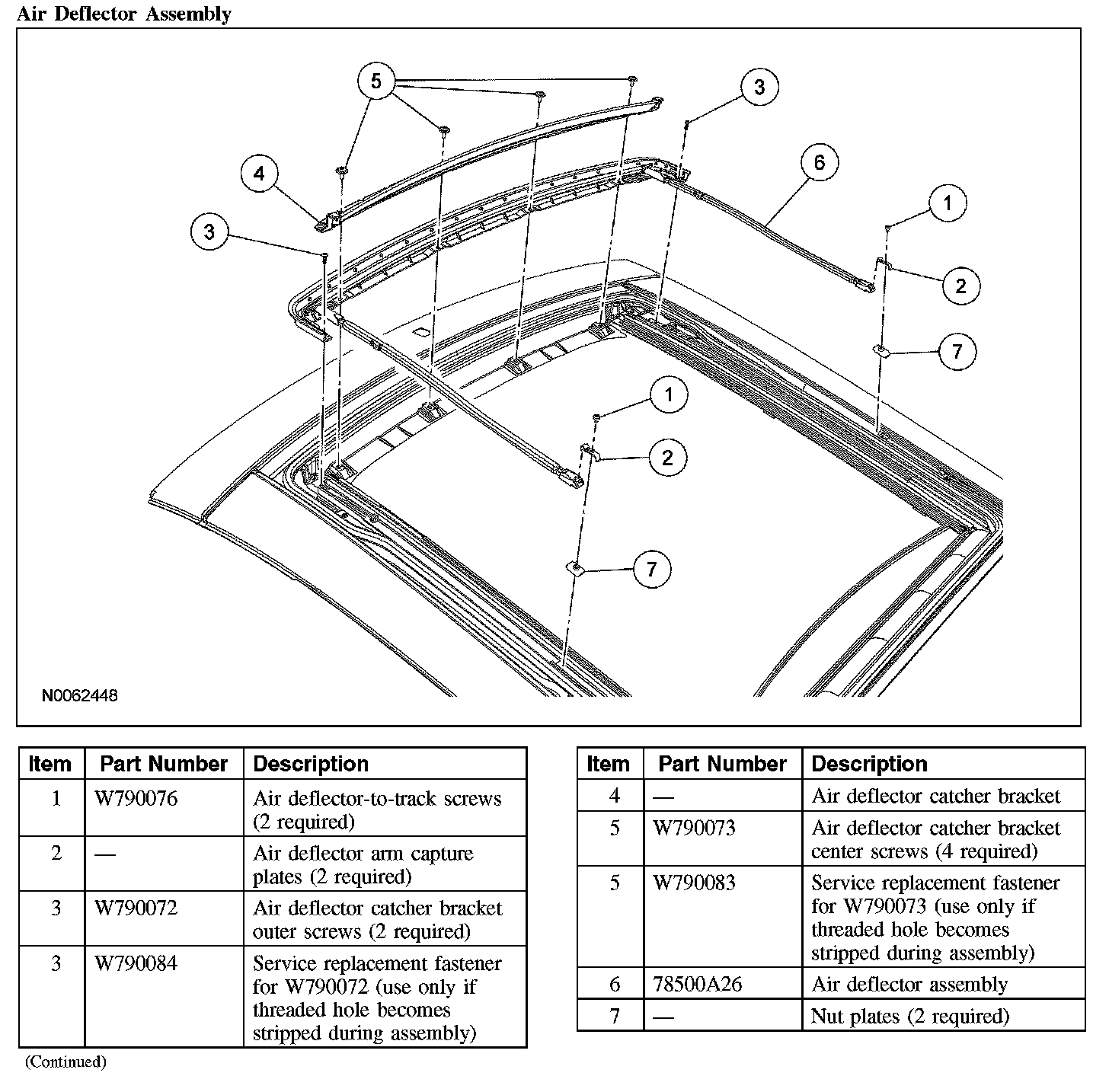

Air Deflector Assembly:

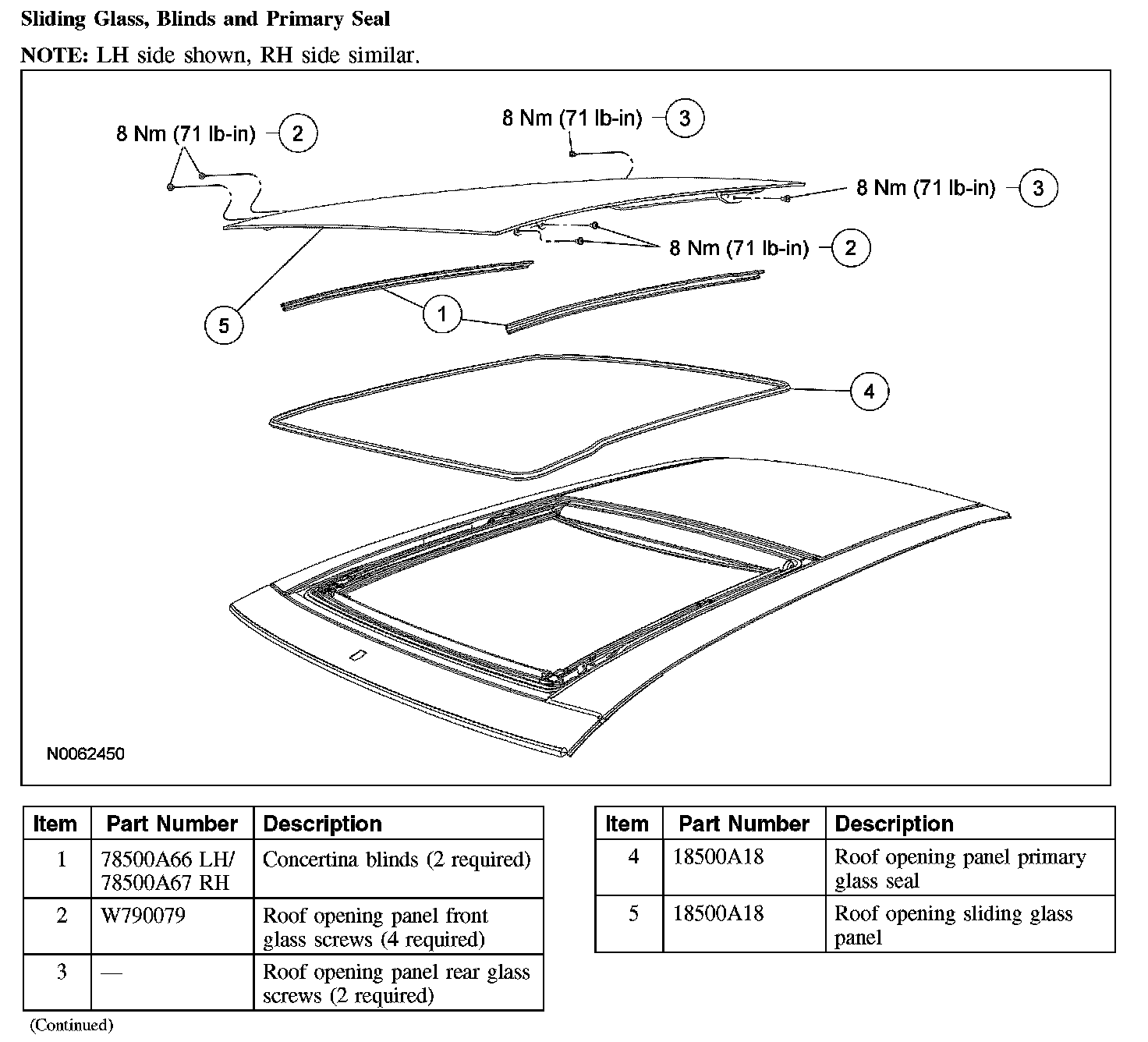

Sliding Glass, Blinds And Primary Seal:

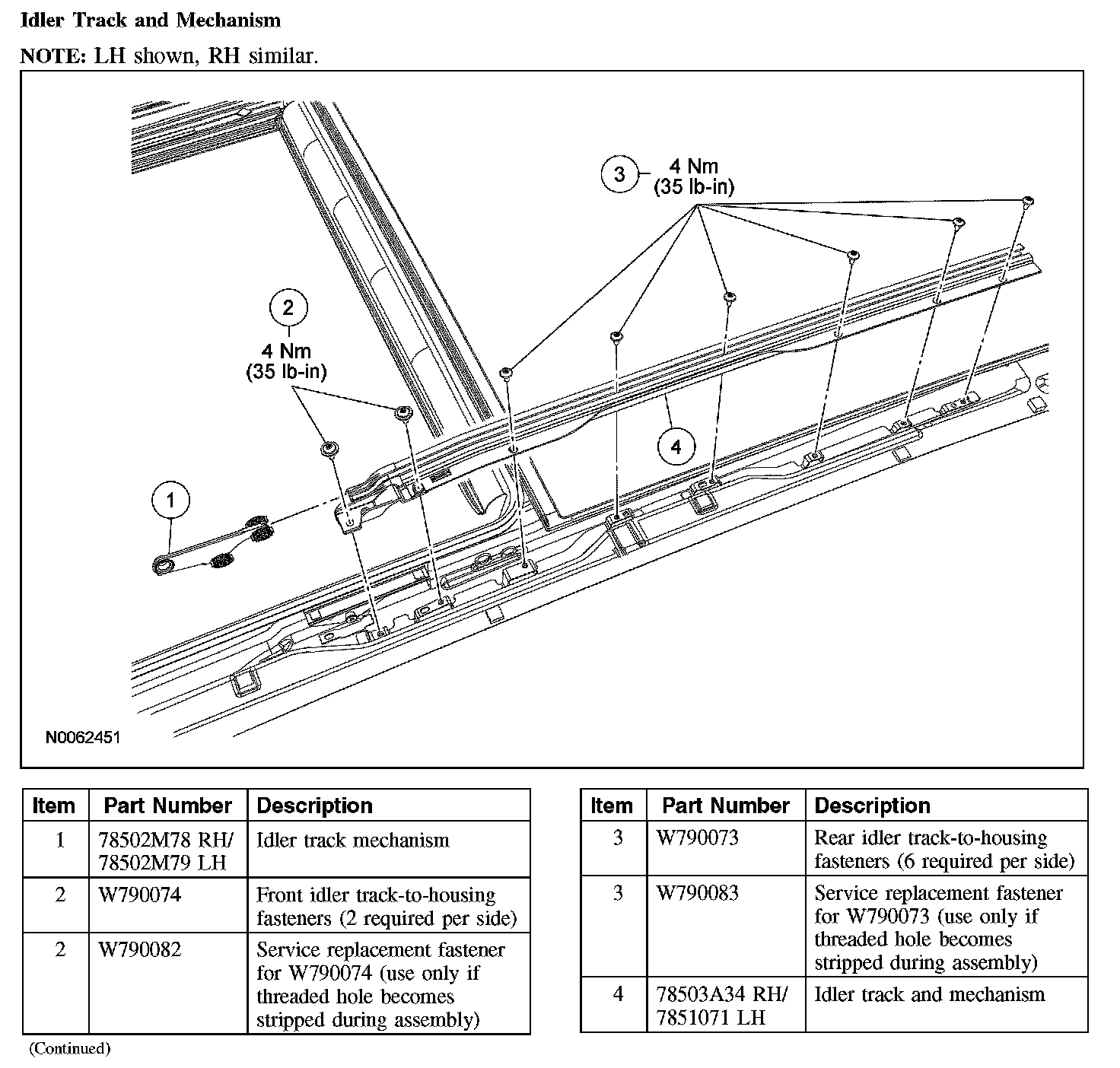

Idler Track And Mechanism:

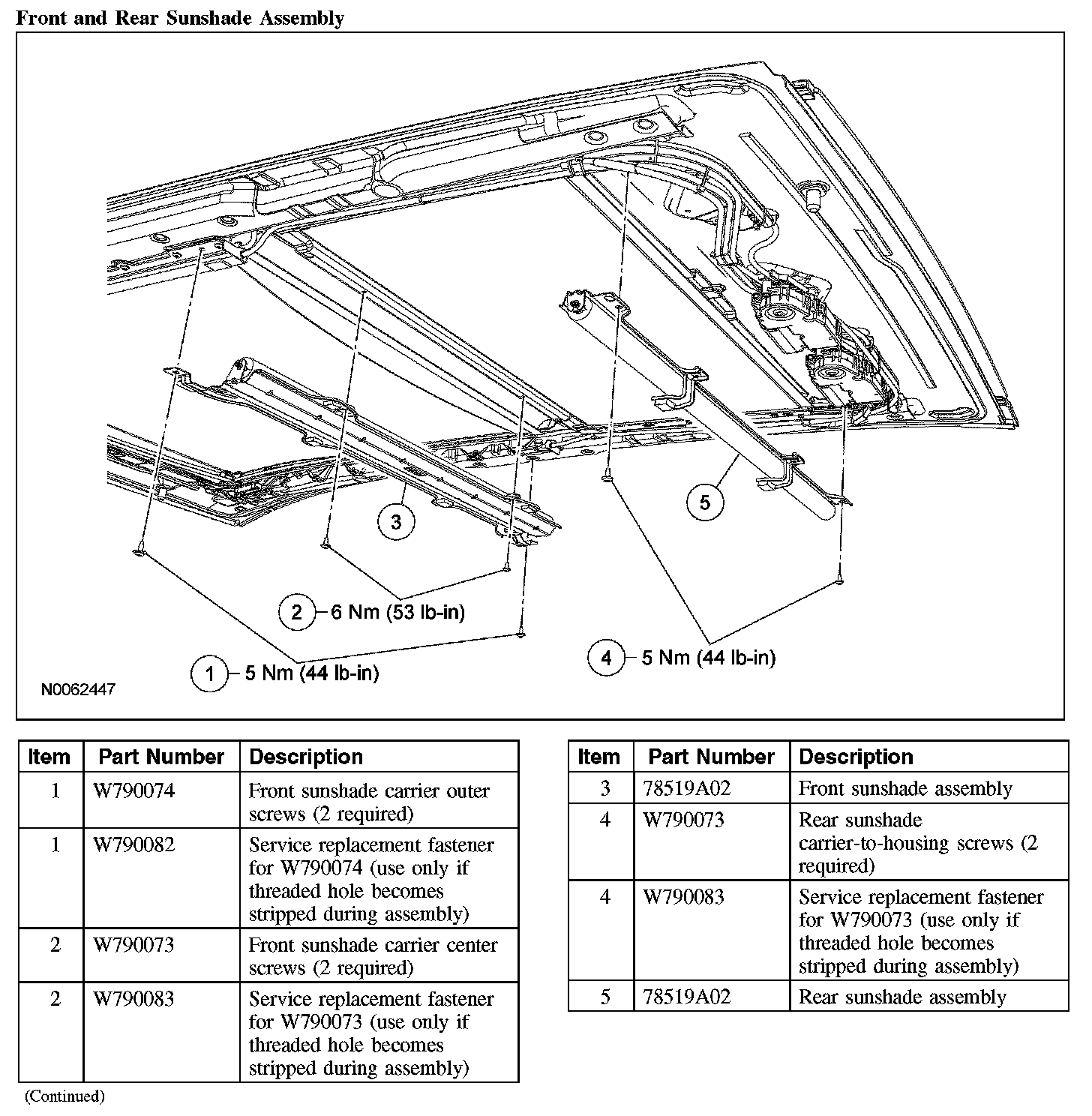

Front And Rear Sunshade Assembly:

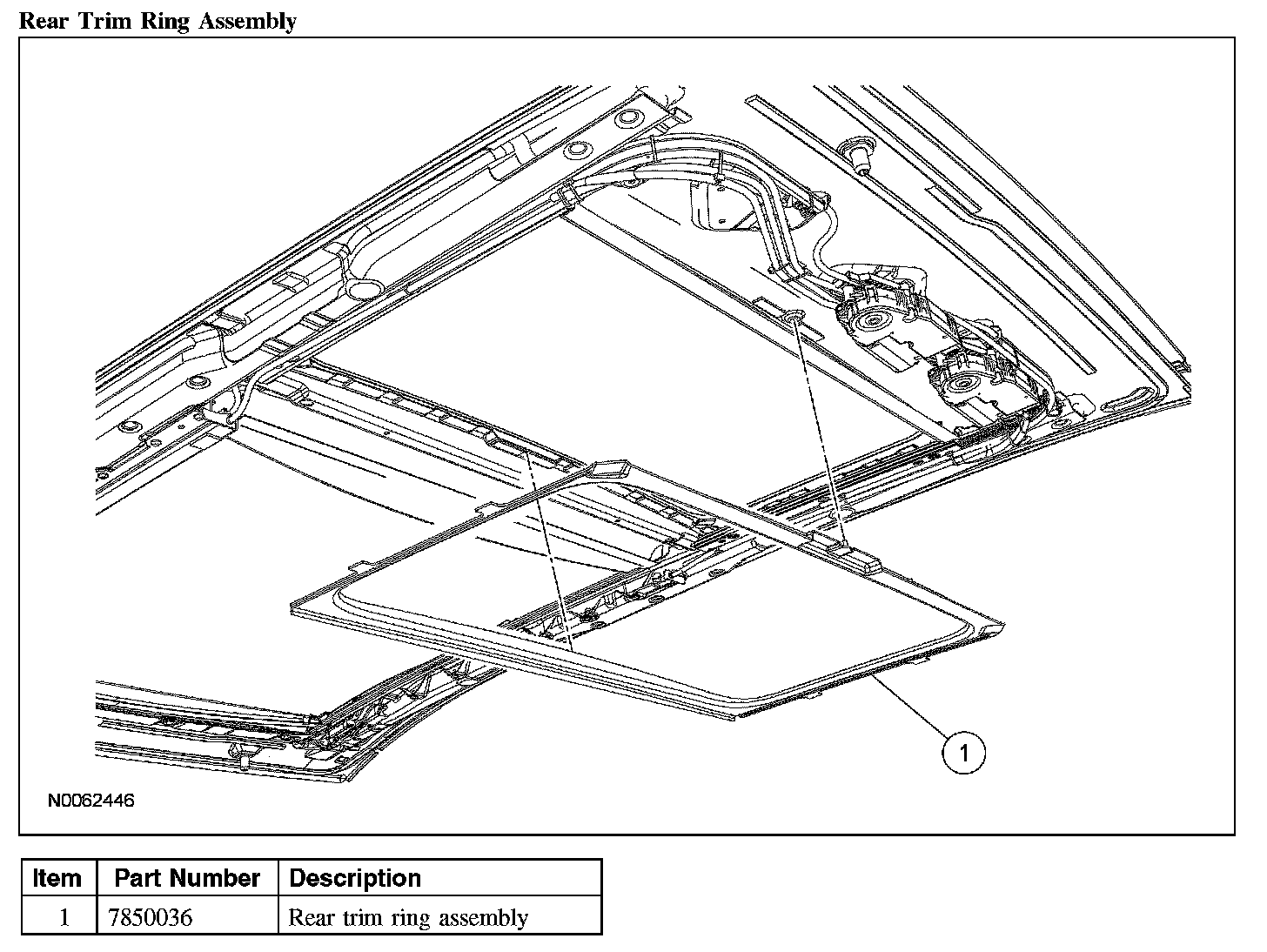

Rear Trim Ring Assembly:

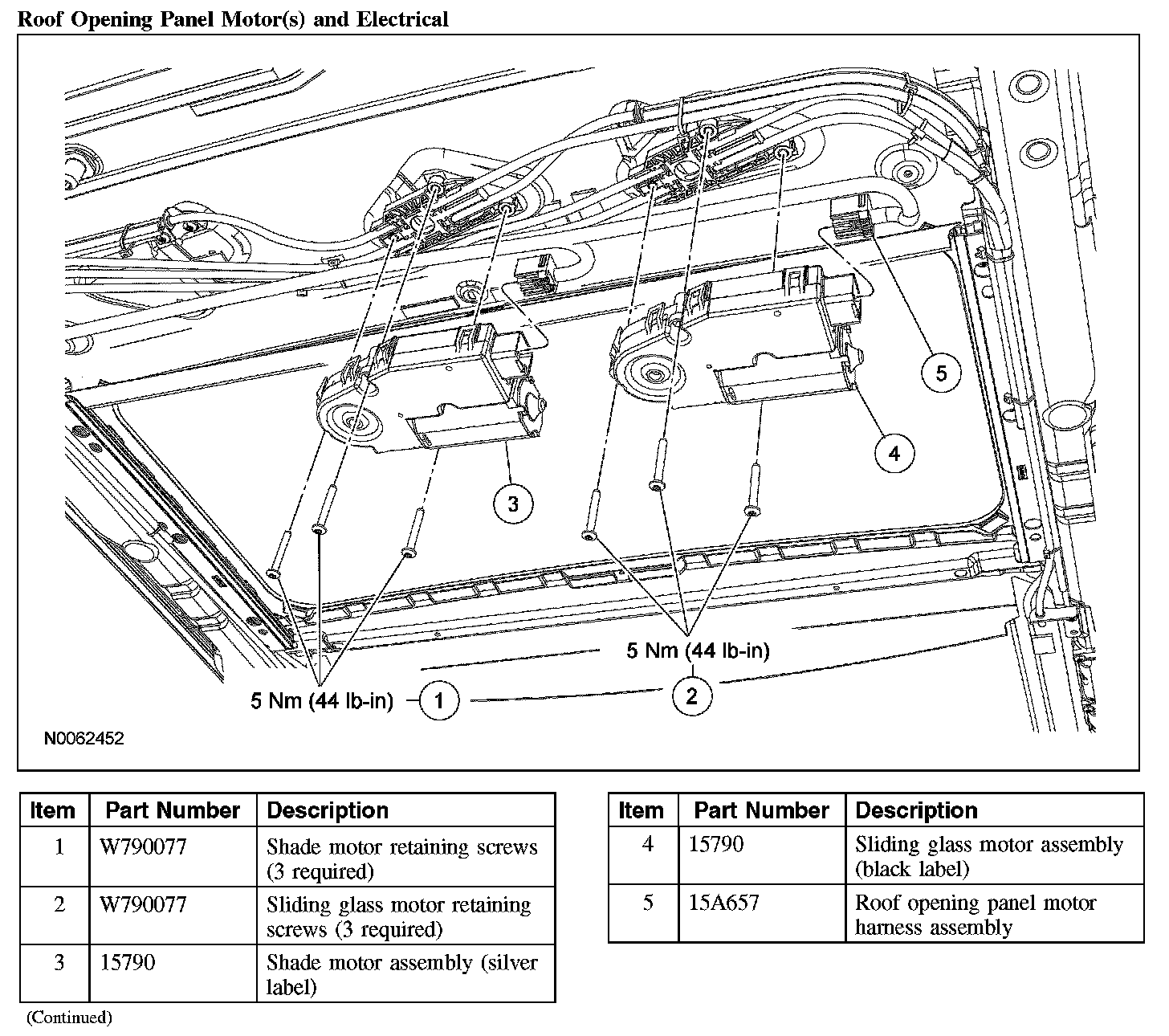

Roof Opening Panel Motor(s) And Electrical:

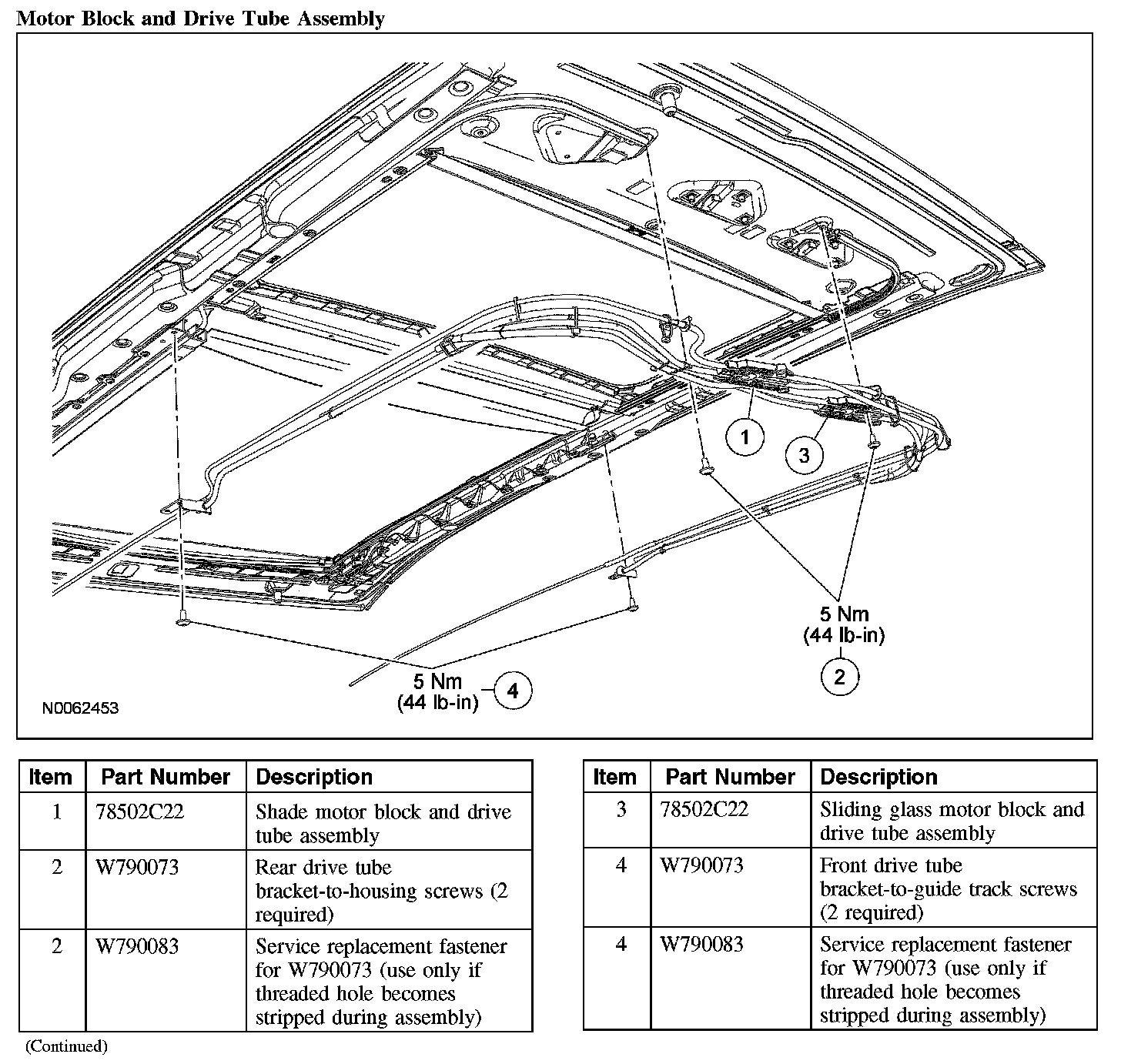

Motor Block And Drive Tube Assembly:

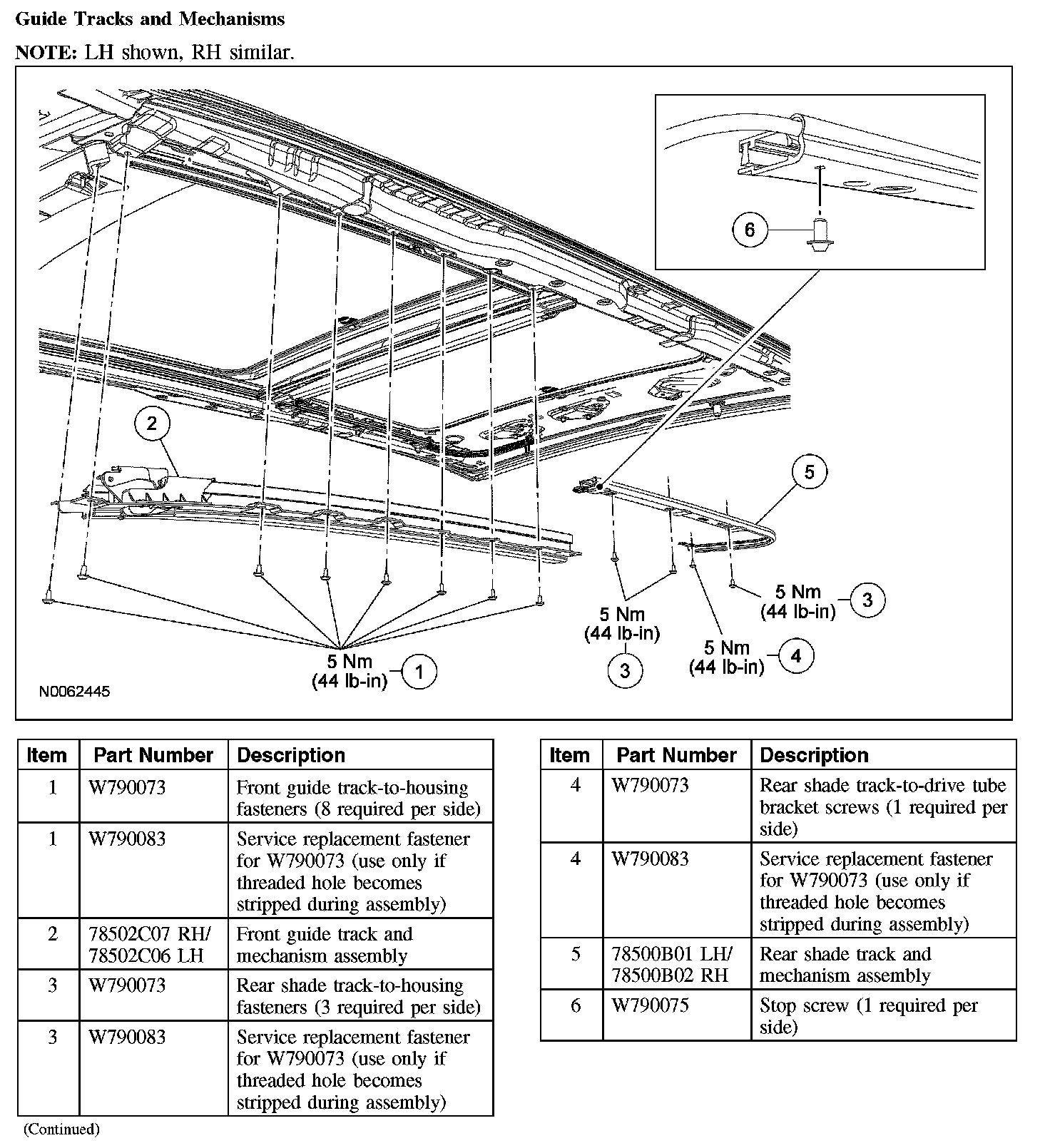

Guide Tracks And Mechanisms:

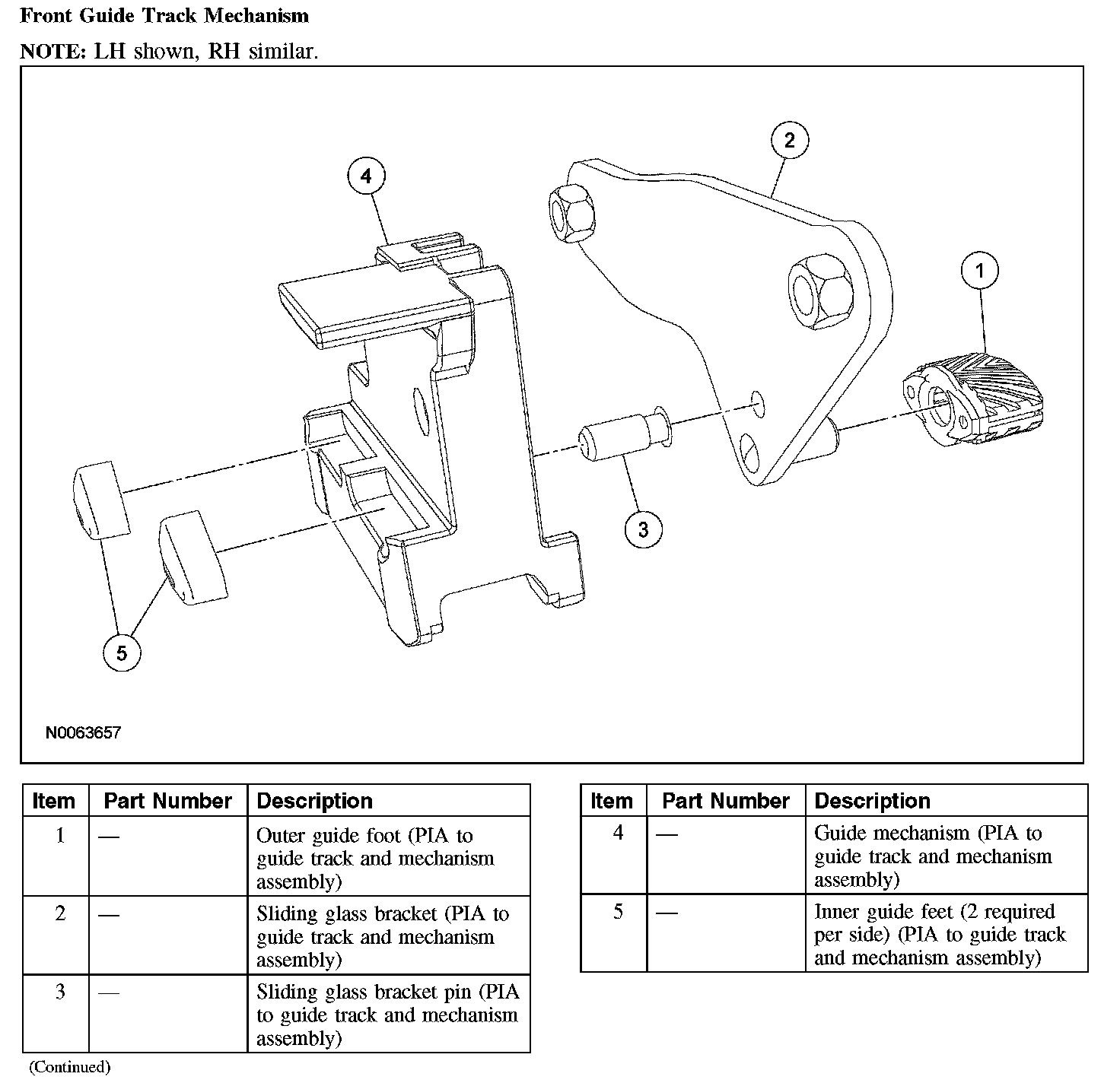

Front Guide Track Mechanism:

Removal and Installation
1. For additional information, refer to the individual procedures.
