Audio Unit Connectors

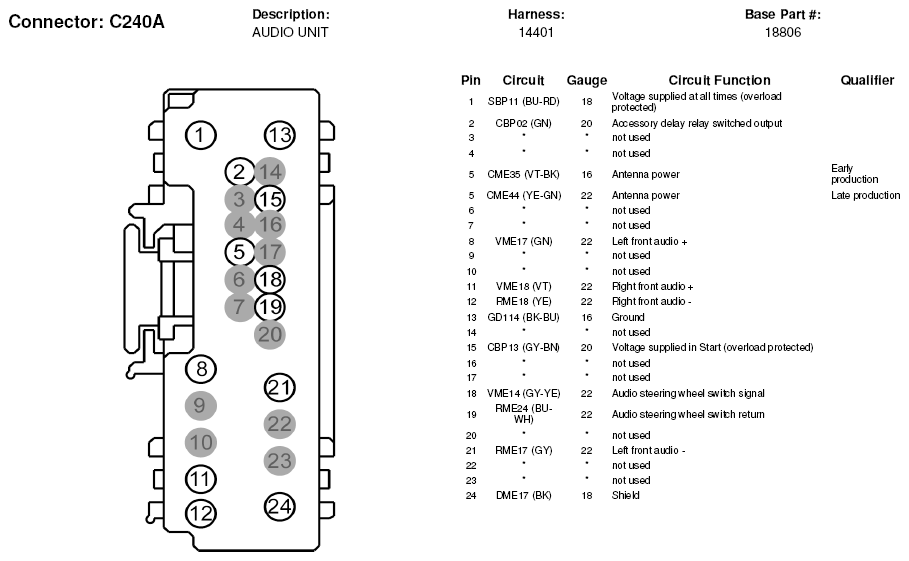

Fig 1: Audio Unit Connector End View (C240A)
G05180623Courtesy of FORD MOTOR CO.
Fig 2: Audio Unit Connector End View (C240C)
G05180624Courtesy of FORD MOTOR CO.

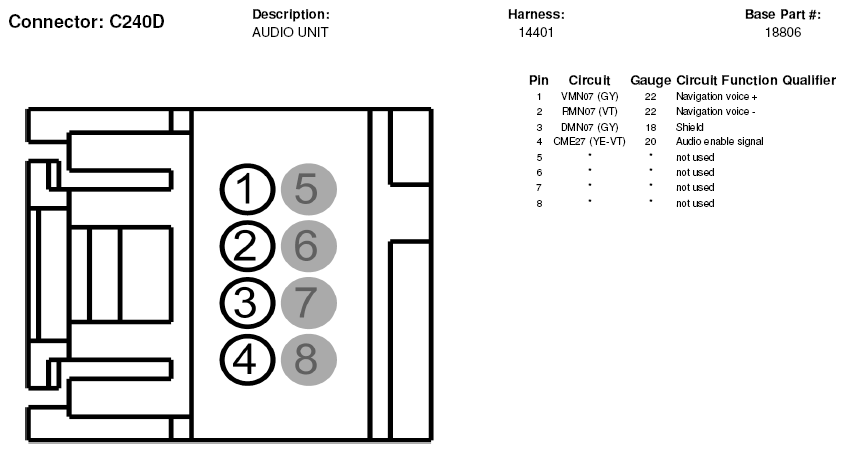

Fig 3: Audio Unit Connector End View (C240D)
G05180625Courtesy of FORD MOTOR CO.

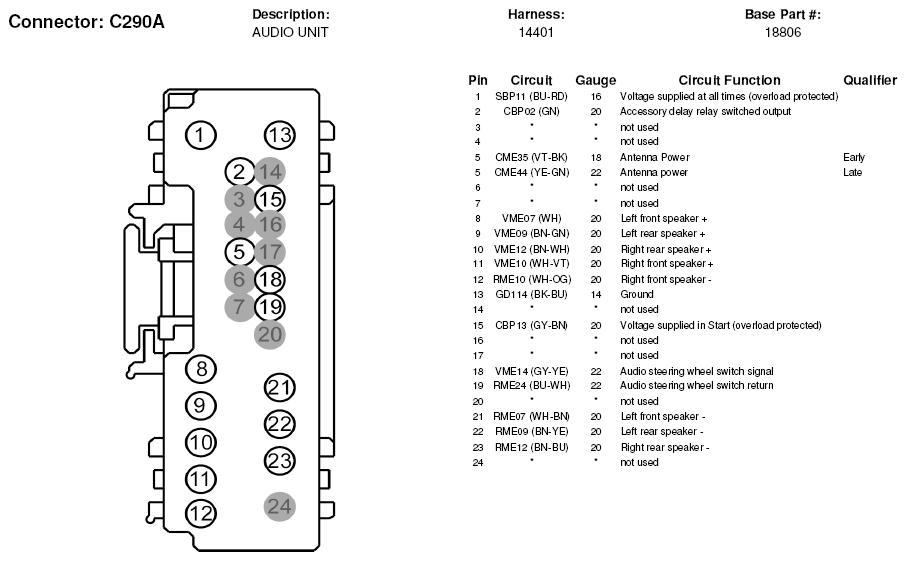

Fig 4: Audio Unit Connector End View (C290A)
G05180639Courtesy of FORD MOTOR CO.

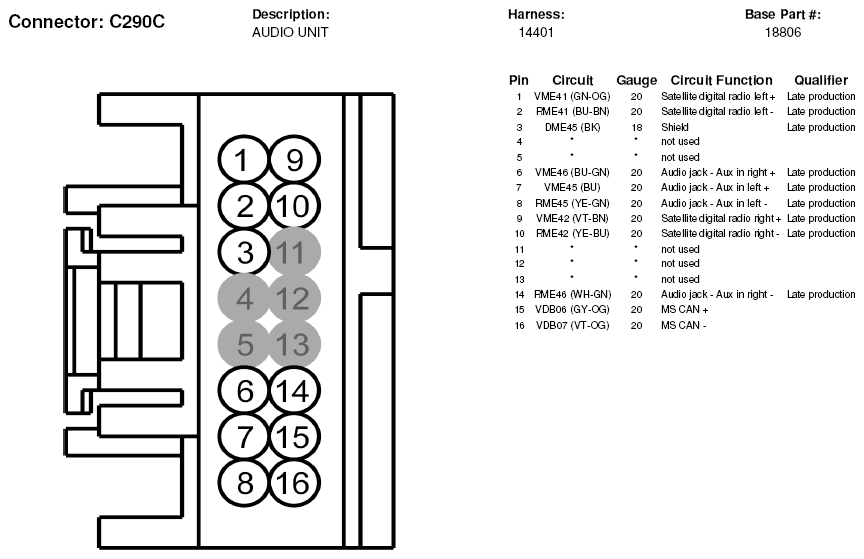

Fig 5: Audio Unit Connector End View (C290C)
G05180640Courtesy of FORD MOTOR CO.

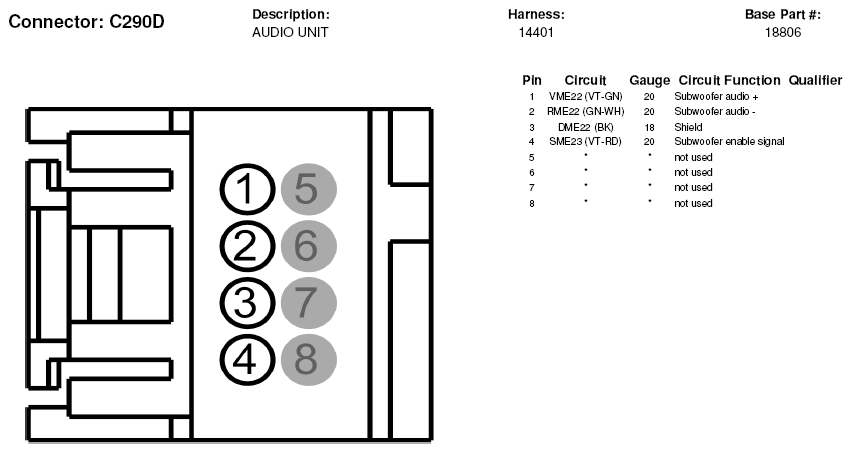

Fig 6: Audio Unit Connector End View (C290D)
G05180641Courtesy of FORD MOTOR CO.
