Generator Connectors

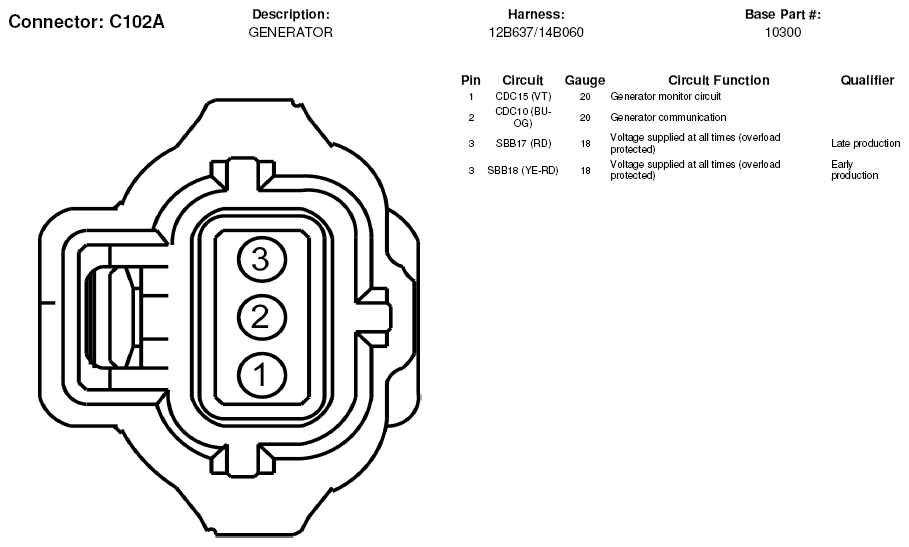

Fig 1: Generator Connector End View (C102A)
G05180542Courtesy of FORD MOTOR CO.
Fig 2: Generator Connector End View (C102B)
G05180543Courtesy of FORD MOTOR CO.
