Master Window Adjust Switch Connector

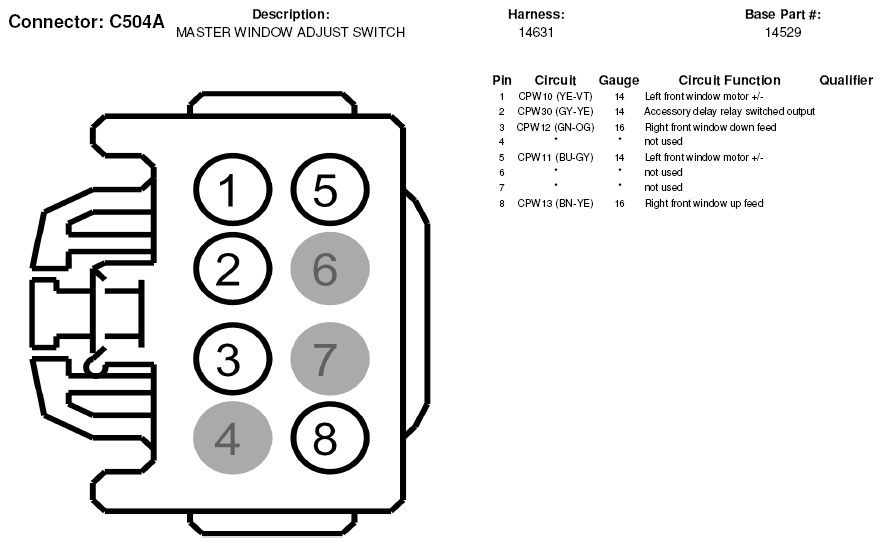

Fig 1: Master Window Adjust Switch Connector End View (C504A)
G05180706Courtesy of FORD MOTOR CO.

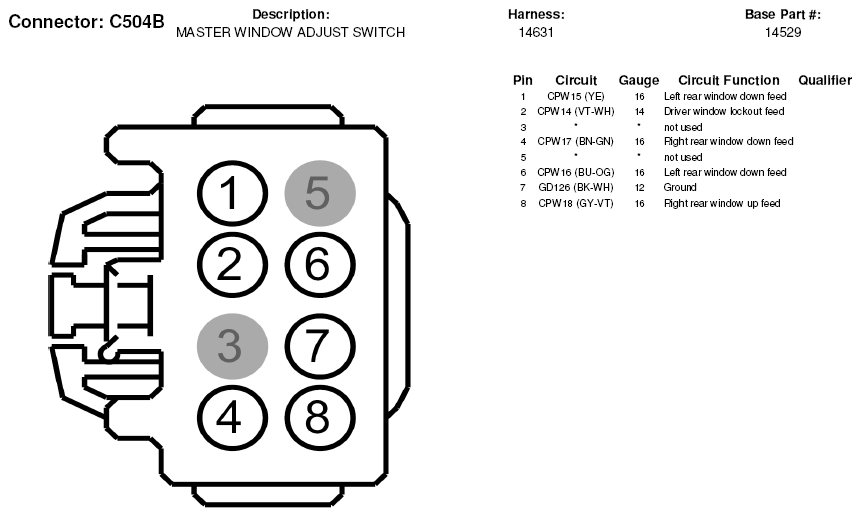

Fig 2: Master Window Adjust Switch Connector End View (C504B)
G05180707Courtesy of FORD MOTOR CO.

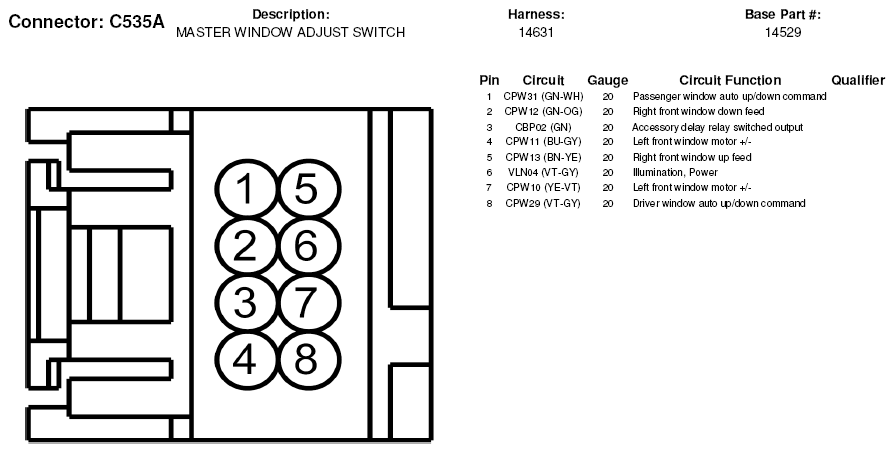

Fig 3: Master Window Adjust Switch Connector End View (C535A)
G05180720Courtesy of FORD MOTOR CO.

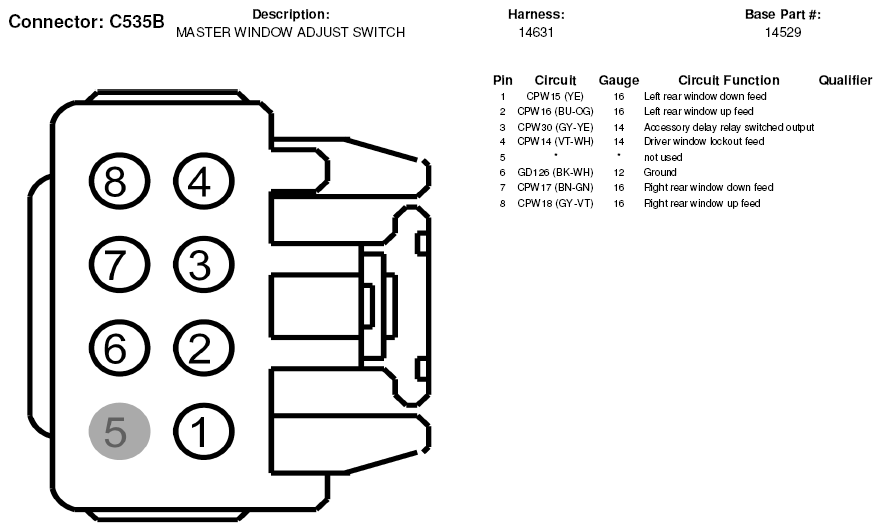

Fig 4: Master Window Adjust Switch Connector End View (C535B)
G05180721Courtesy of FORD MOTOR CO.
