Output Shaft Speed Sensor Connector

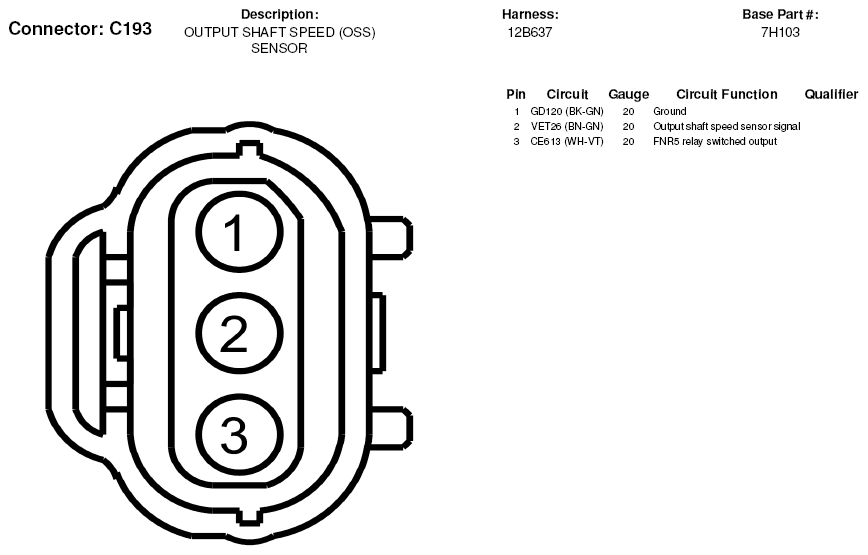

Fig 1: Output Shaft Speed Sensor Connector End View (C193)
G05180600Courtesy of FORD MOTOR CO.

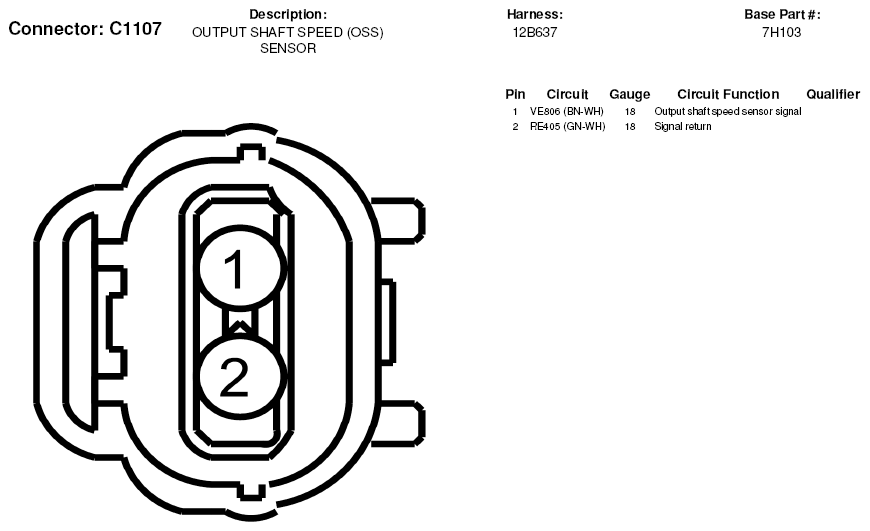

Fig 2: Output Shaft Speed Sensor Connector End View (C1107)
G05180773Courtesy of FORD MOTOR CO.
