Window Adjust Switch Connectors

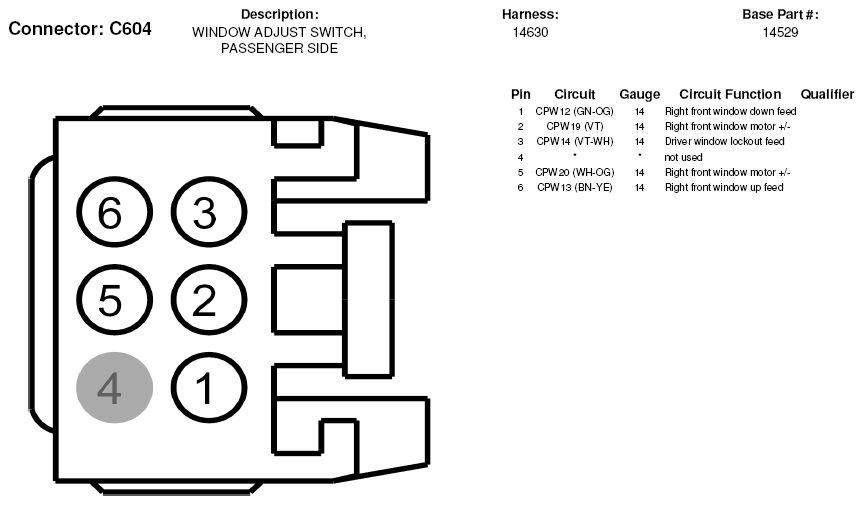

Fig 1: Window Adjust Switch Connector End View (C604)
G05180727Courtesy of FORD MOTOR CO.

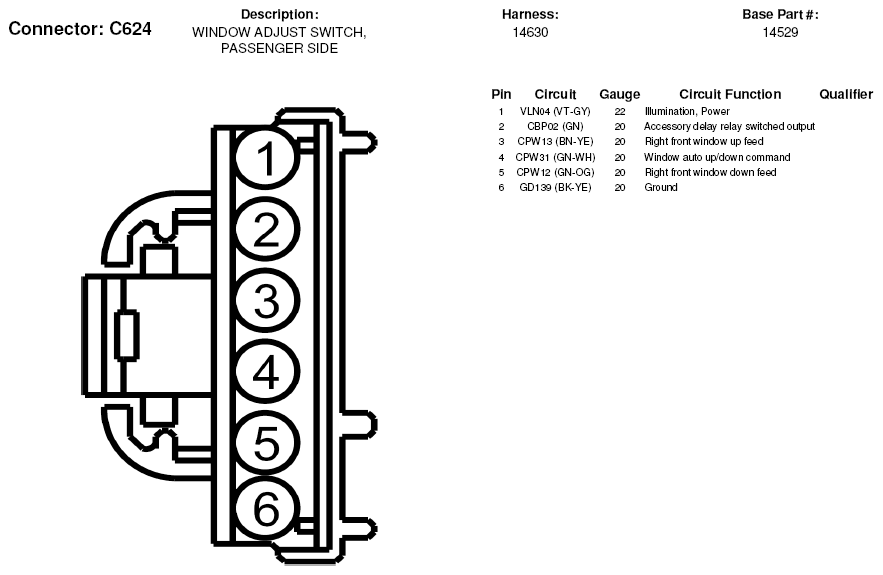

Fig 2: Window Adjust Switch Connector End View (C624)
G05180736Courtesy of FORD MOTOR CO.

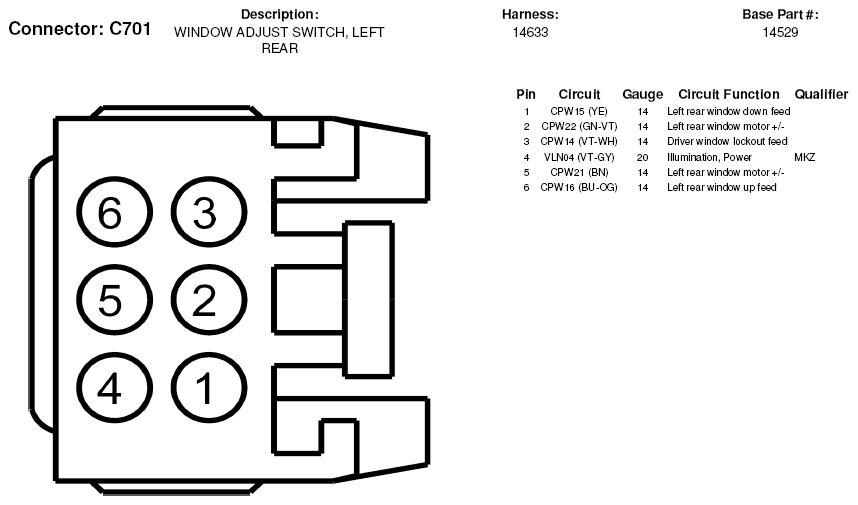

Fig 3: Window Adjust Switch Connector End View (C701)
G05180740Courtesy of FORD MOTOR CO.

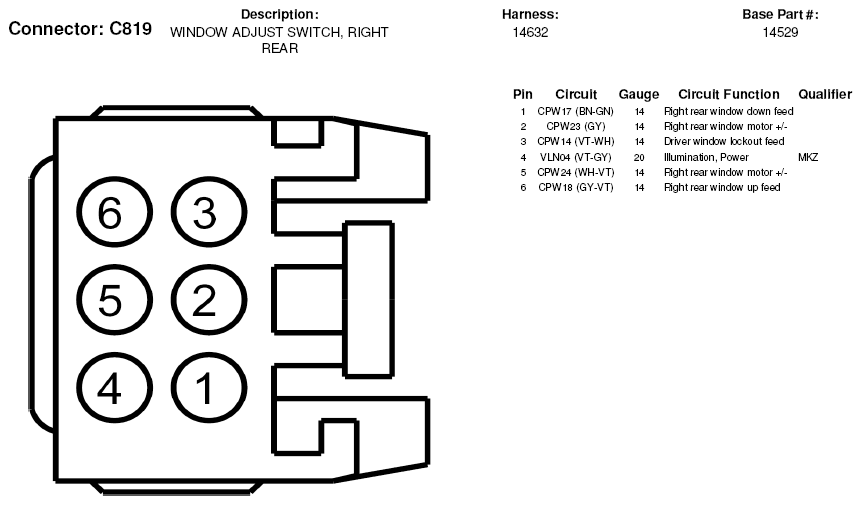

Fig 4: Window Adjust Switch Connector End View (C819)
G05180748Courtesy of FORD MOTOR CO.
