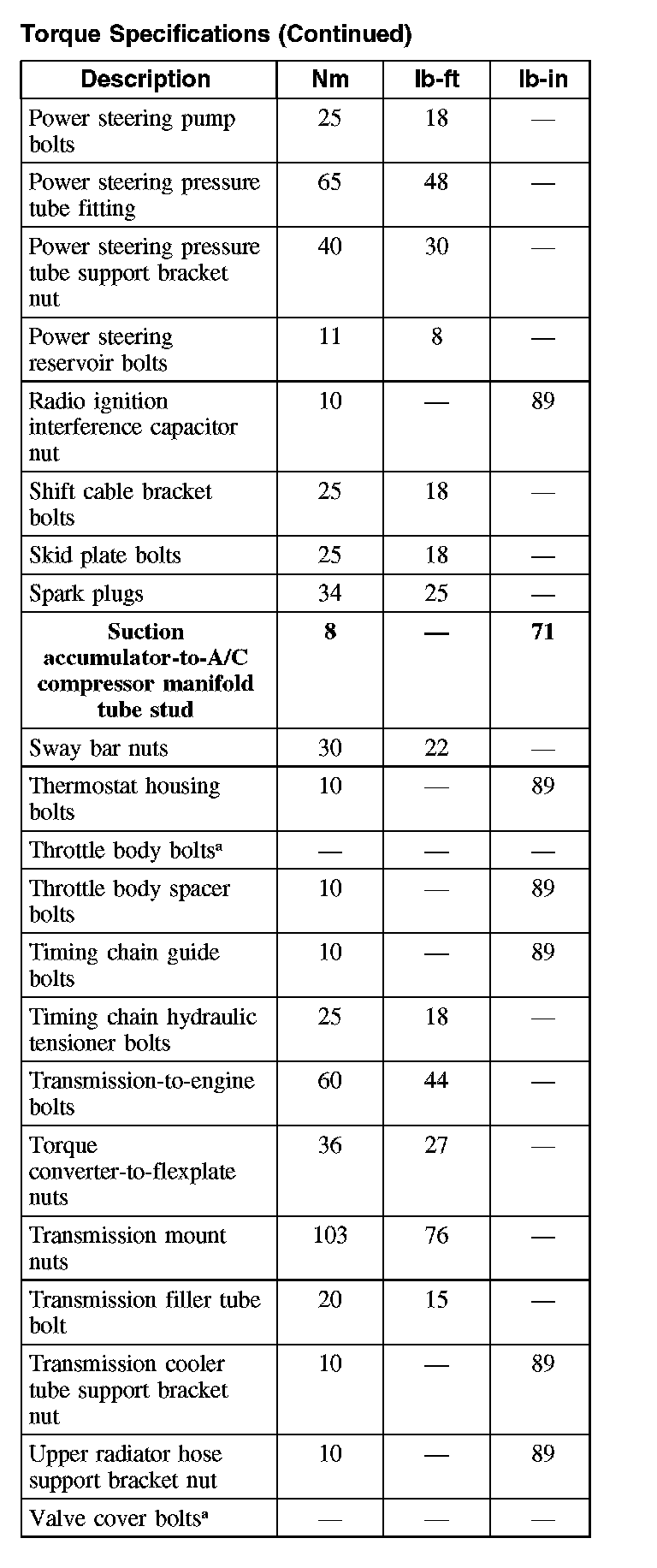

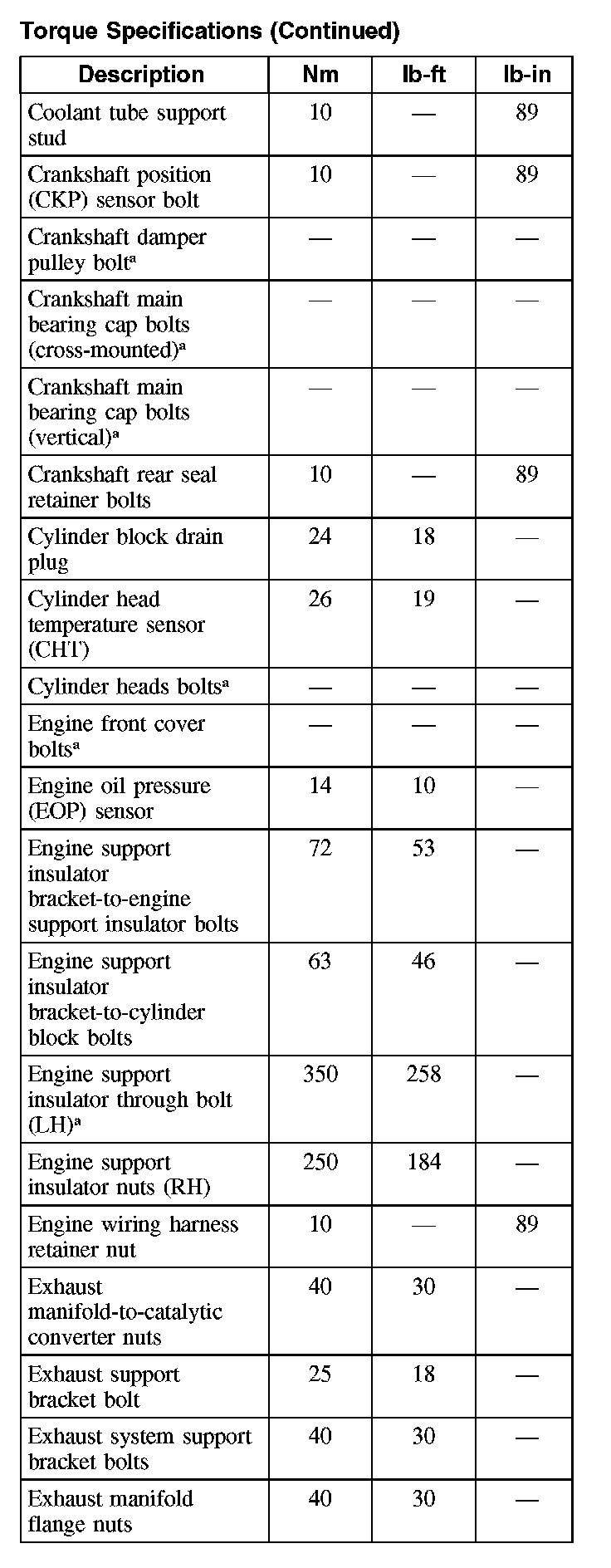

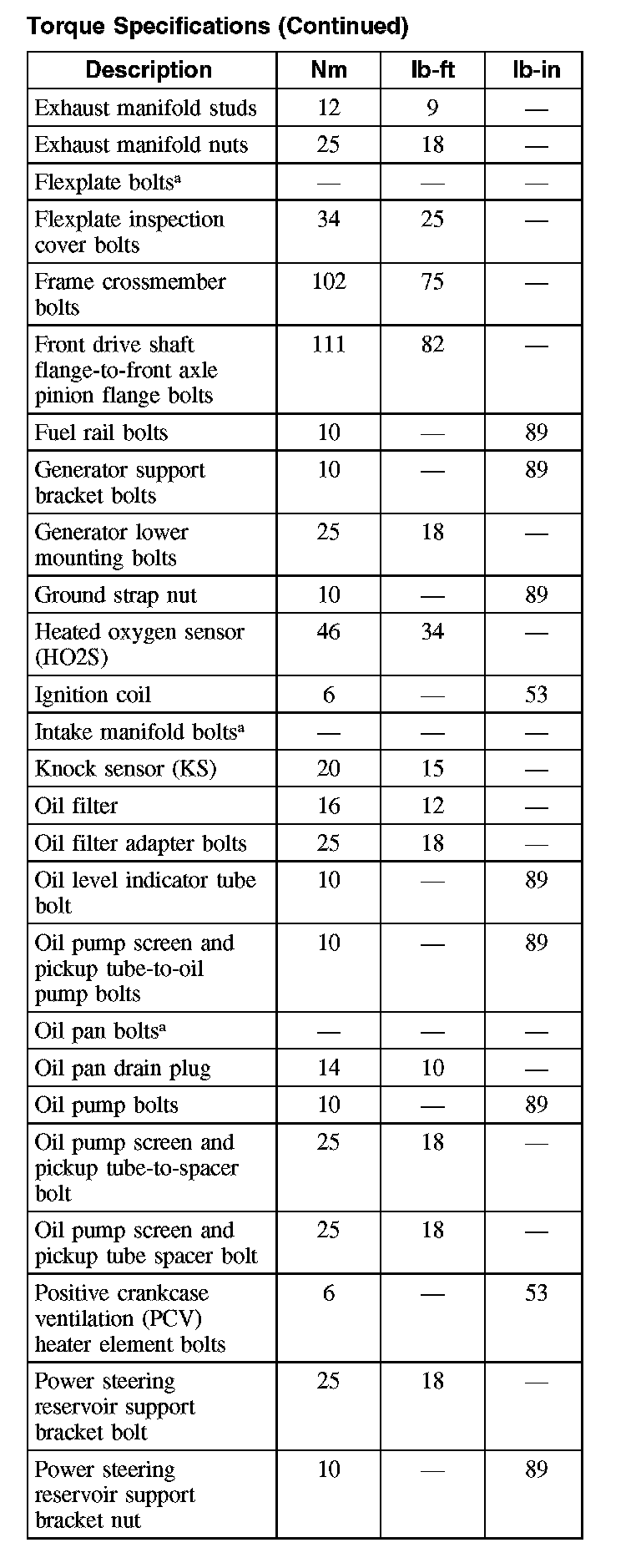

Torque Specifications

Torque Specifications

Torque Specifications:




Torque Specifications:




Torque Specifications:




Torque Specifications:




Torque Specifications:





Vertical main bearing cap fasteners
Step 1 40 Nm (30 ft. lbs.)
Step 2 additional 90 degrees





Side bolts
Step 1 30 Nm (22 ft. lbs.)
Step 2 additional 90 degrees
