Drive Belt: Service and Repair

Accessory Drive Belt

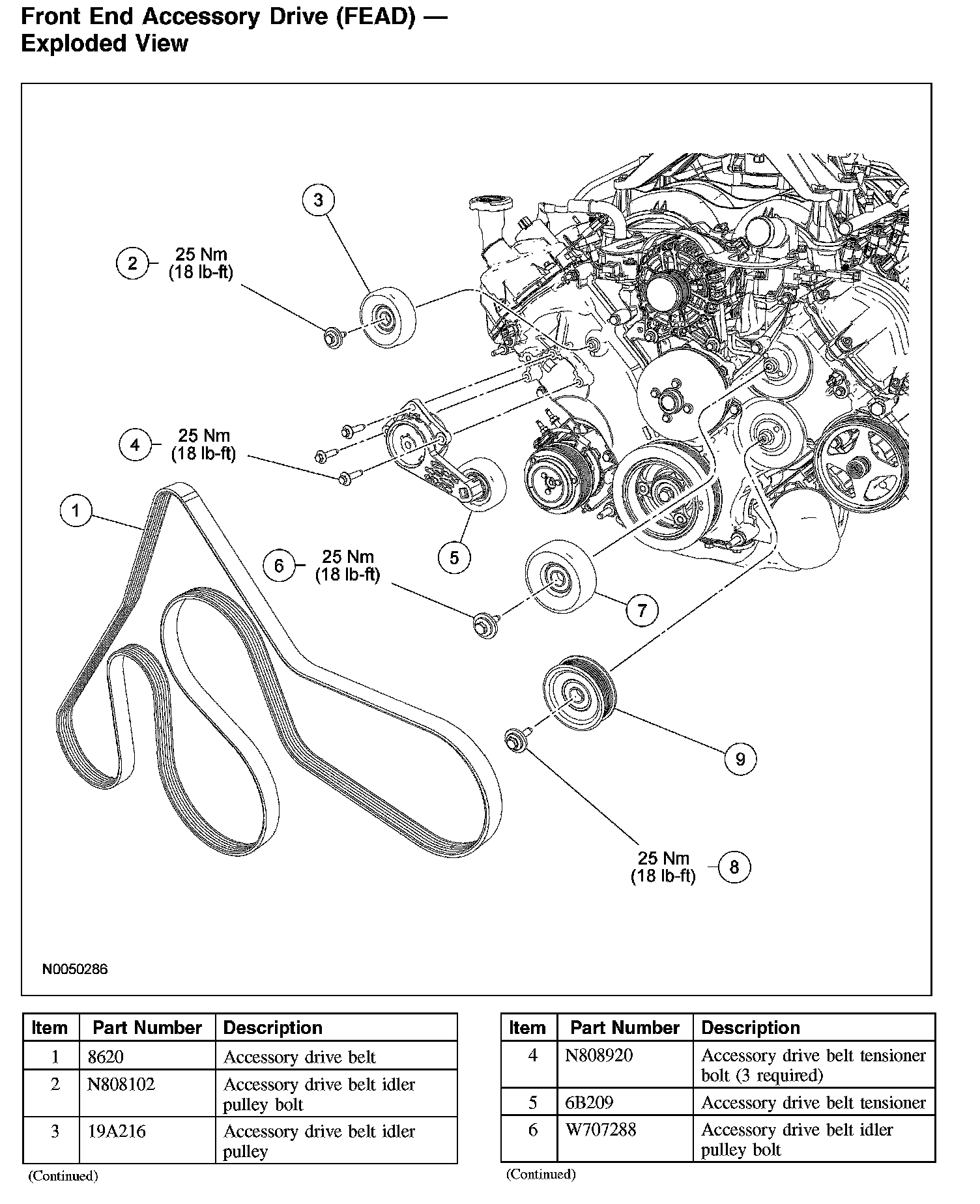

Front End Accessory Drive (FEAD) - Exploded View (Part 1):

Front End Accessory Drive (FEAD) - Exploded View (Part 2):

Removal and Installation
1. Rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt.





2. NOTE: Make sure the drive belt is correctly installed on each pulley.

To install, reverse the removal procedure.
^ Refer to Accessory Drive in Description and Operation for drive belt routing.
