Power Point Connectors

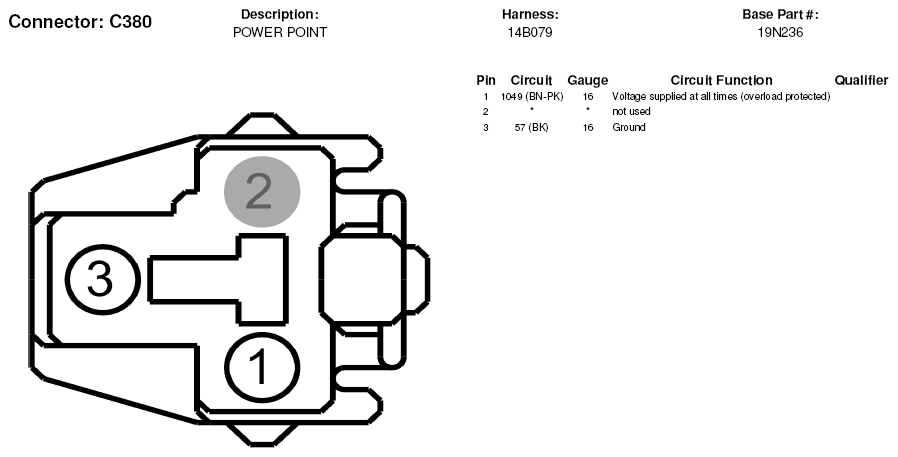

Fig 1: Power Point Connector End View (C380)
G05179176Courtesy of FORD MOTOR CO.
Fig 2: Power Point Connector End View (C2033)
G05179304Courtesy of FORD MOTOR CO.
