Wheel Speed Sensor Connectors

Fig 1: Wheel Speed Sensor Connector End View (C150)
G05179075Courtesy of FORD MOTOR CO.

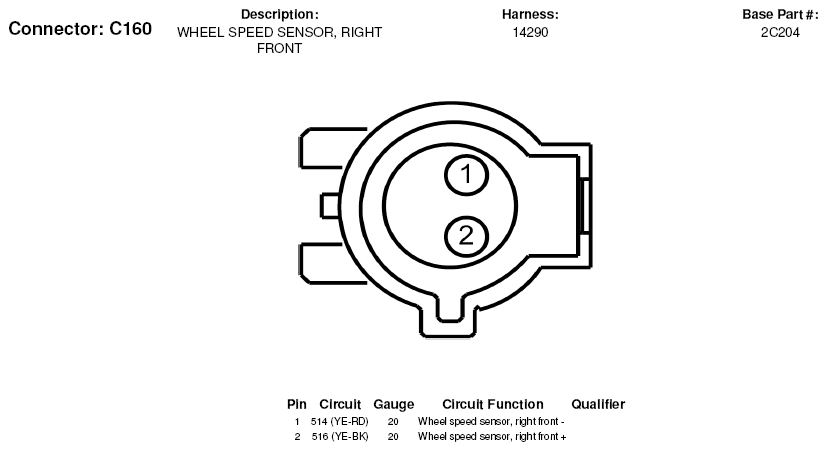

Fig 2: Wheel Speed Sensor Connector End View (C160)
G05179078Courtesy of FORD MOTOR CO.

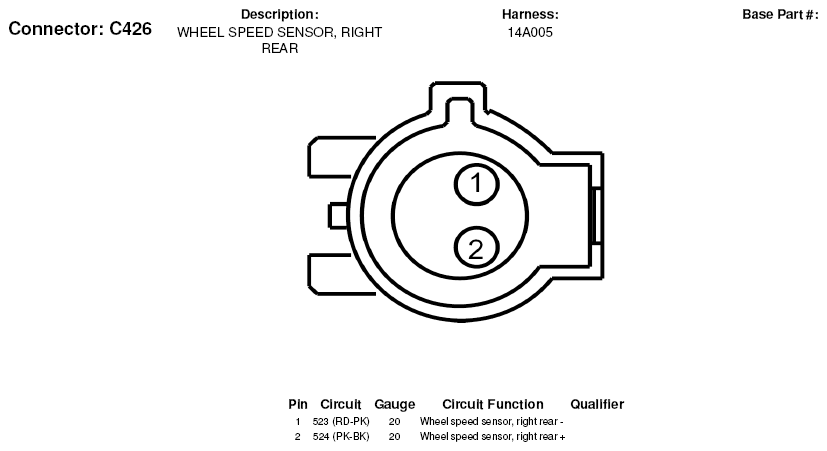

Fig 3: Wheel Speed Sensor Connector End View (C426)
G05179186Courtesy of FORD MOTOR CO.

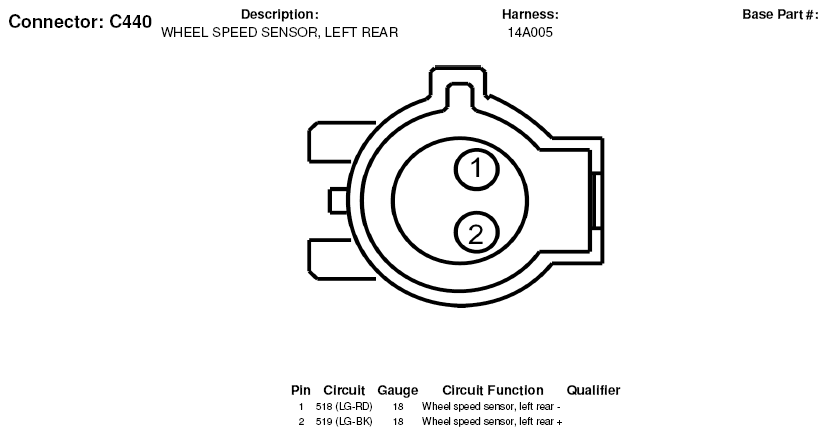

Fig 4: Wheel Speed Sensor Connector End View (C440)
G05179191Courtesy of FORD MOTOR CO.
