Rear Window Defrost Switch Connectors

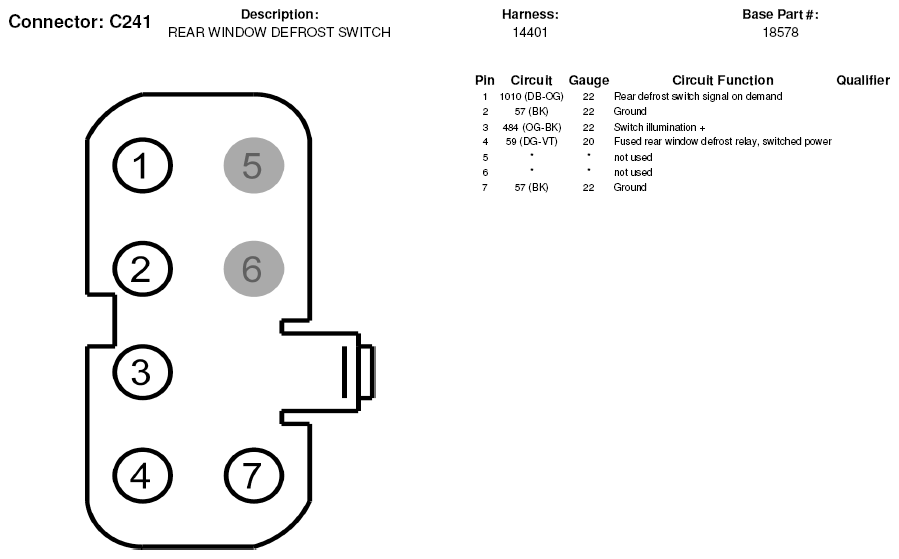

Fig 1: Rear Window Defrost Switch Connector End View (C241)
G05179120Courtesy of FORD MOTOR CO.
