A/C Pressure Transducer Sensor Connector

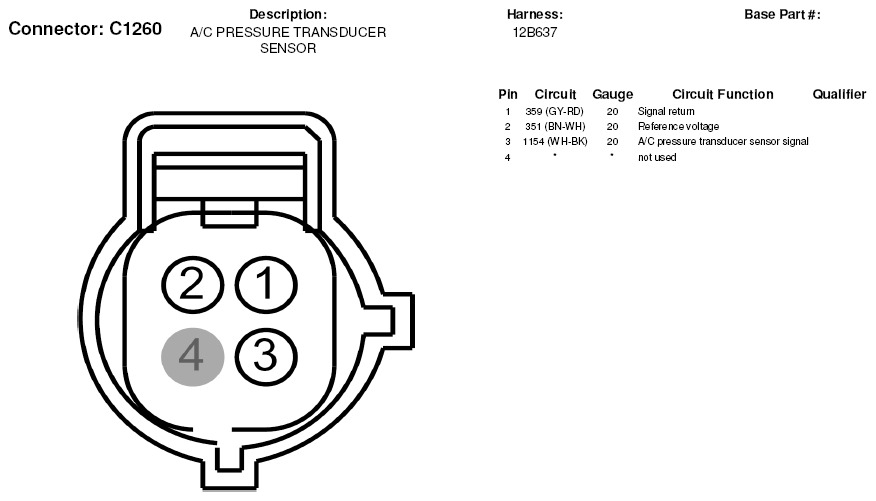

Fig 1: A/C Pressure Transducer Sensor Connector End View (C1260)
G05179279Courtesy of FORD MOTOR CO.
